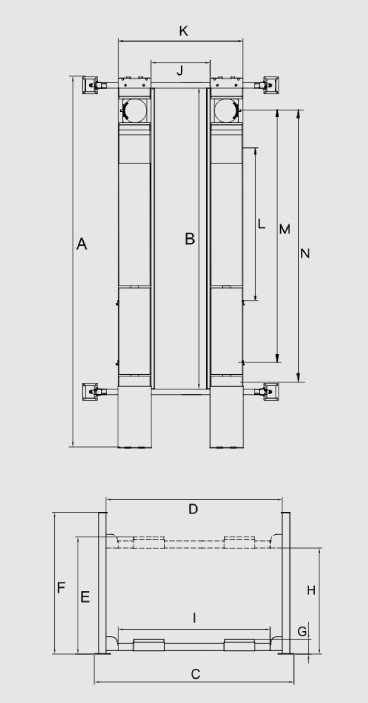

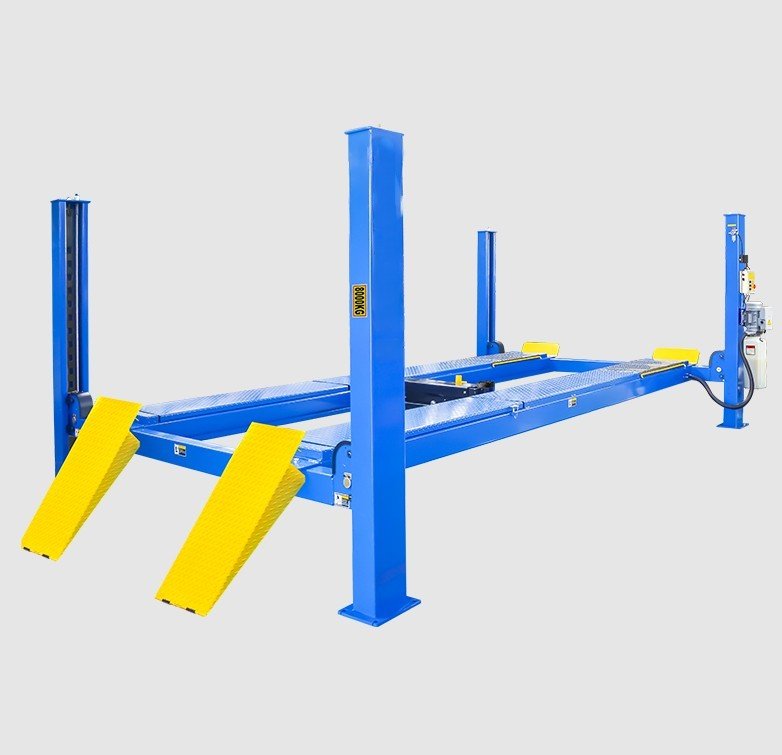

The Iron Lift MONARCH 80HDA is the highest-capacity alignment hoist in this MONARCH batch. Rated to 8,000 kg, it uses 6,000 mm runways and a 3,108 mm gap between columns to accommodate larger commercial vehicles and long-wheelbase fleet work. The published four-wheel alignment wheelbase range extends from 2,535 mm to 4,836 mm, while two-wheel alignment coverage reaches 4,870 mm. A 2,750 mm drive-through clearance provides additional width for larger vehicles entering the bay. MONARCH 80HDA is intended for transport, fleet, mining-support and industrial workshop environments where alignment work needs to extend well beyond conventional light vehicles.
