BendPak HD-9STX

4,082 kg narrow high-rise four-post hoist with extended runways for workshops and vehicle-storage facilities needing more length and vertical clearance without a wider footprint.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

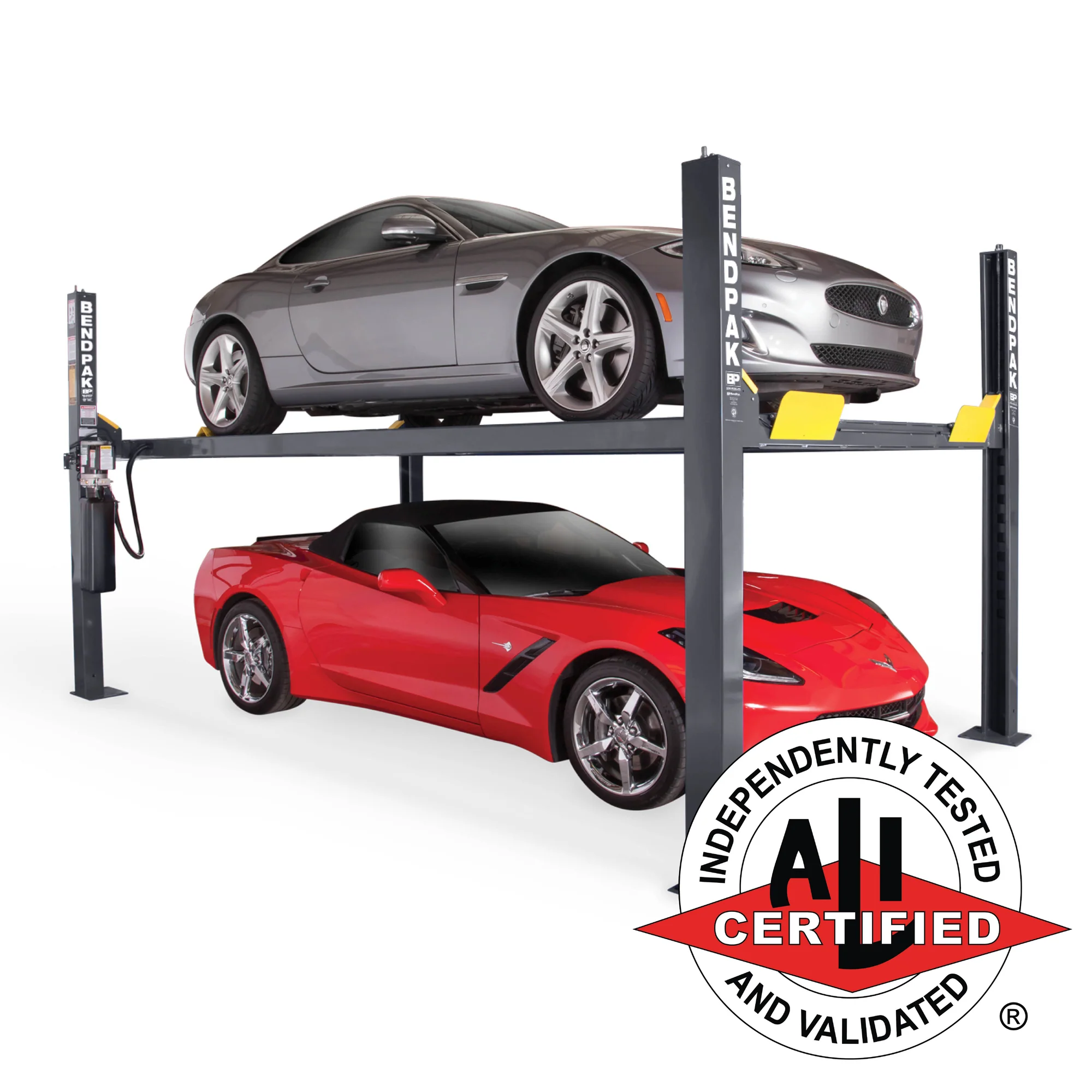

BendPak HD-9STX

4,082 kg Narrow High-Rise Four-Post Hoist

4,082 kg narrow high-rise four-post hoist with extended runways for workshops and vehicle-storage facilities needing more length and vertical clearance without a wider footprint.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,082 kg
Rated capacity
Narrow high-rise / extended-length four-post
Configuration
2,197 mm
Maximum lifting height
1,943 mm
Drive-through clearance

Product overview

The BendPak HD-9STX combines three useful characteristics in one four-post platform: narrow overall width, extended runways and high-rise geometry. That makes it well suited to longer vehicles or stacked parking arrangements where bay width is constrained but additional bay length and ceiling height are available. The drive-on layout preserves open-centre service access while the higher column and lock range provide extra clearance beneath the raised vehicle. It is a more specialised HD-9 variant for sites that need length and height without giving up floor width.

Key features

  • 4,082 kg rated lifting capacity
  • Narrow 2,546 mm overall width
  • High 2,083 mm maximum runway rise
  • Extended 4,775 mm runways
  • 5,690 mm overall length
  • Open-centre service access
  • Multi-position mechanical safety locks
  • Pneumatic lock release and slack-cable protection
  • Enclosed lifting cables/sheaves
  • Accessory-ready runways for compatible service equipment

Detail photography

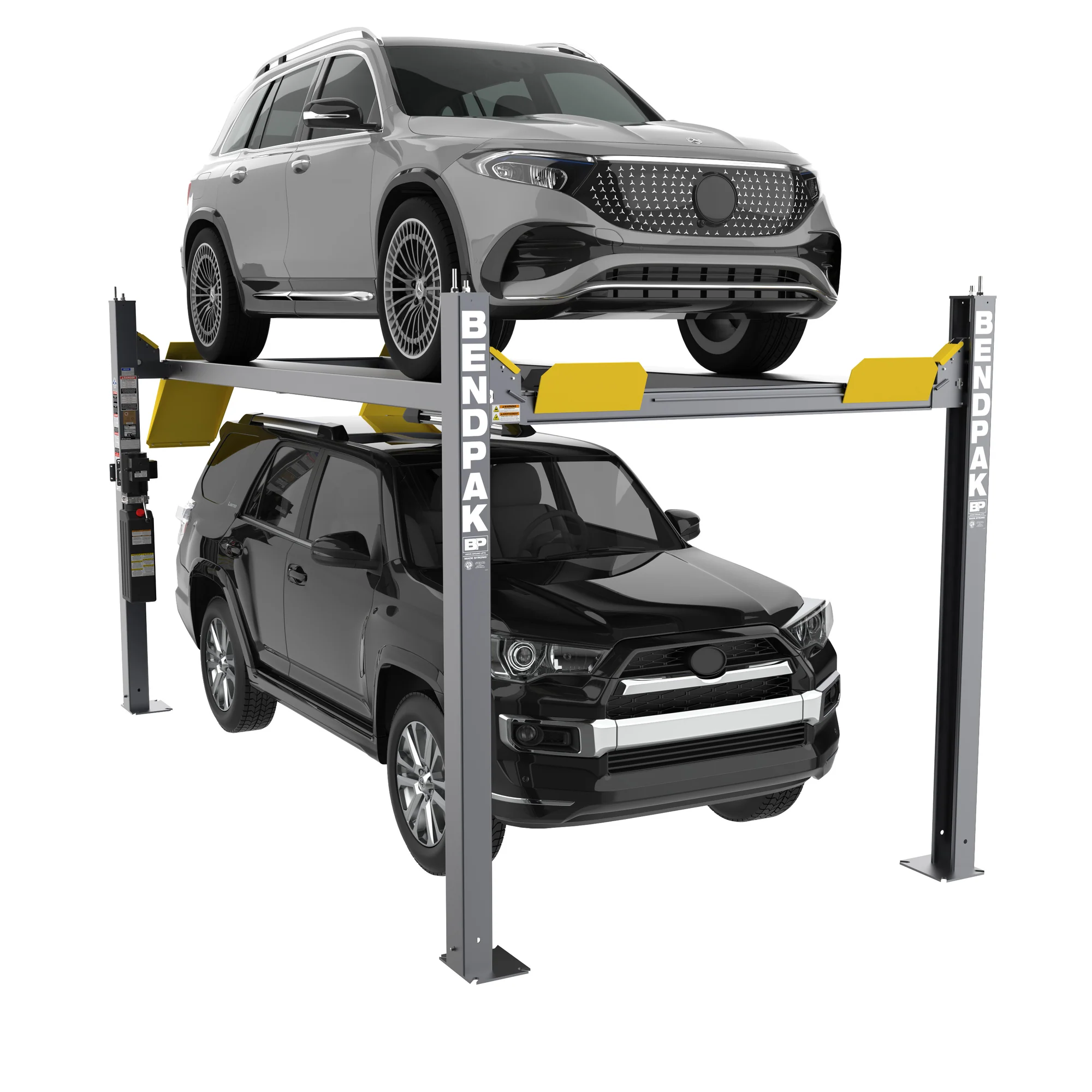

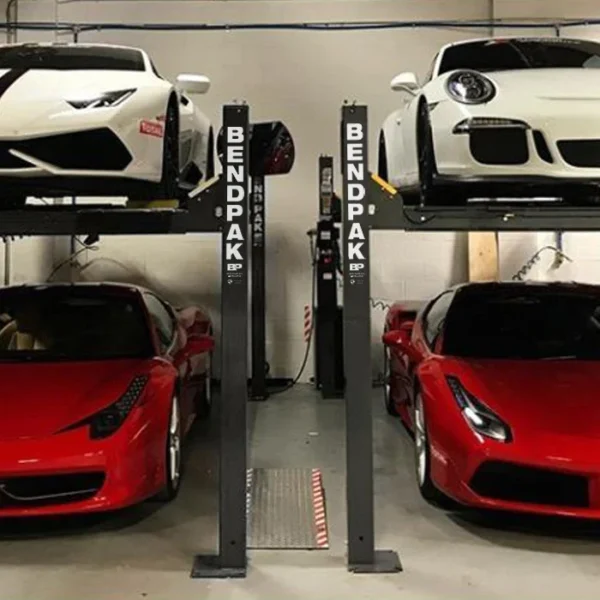

Narrow high-rise column geometry

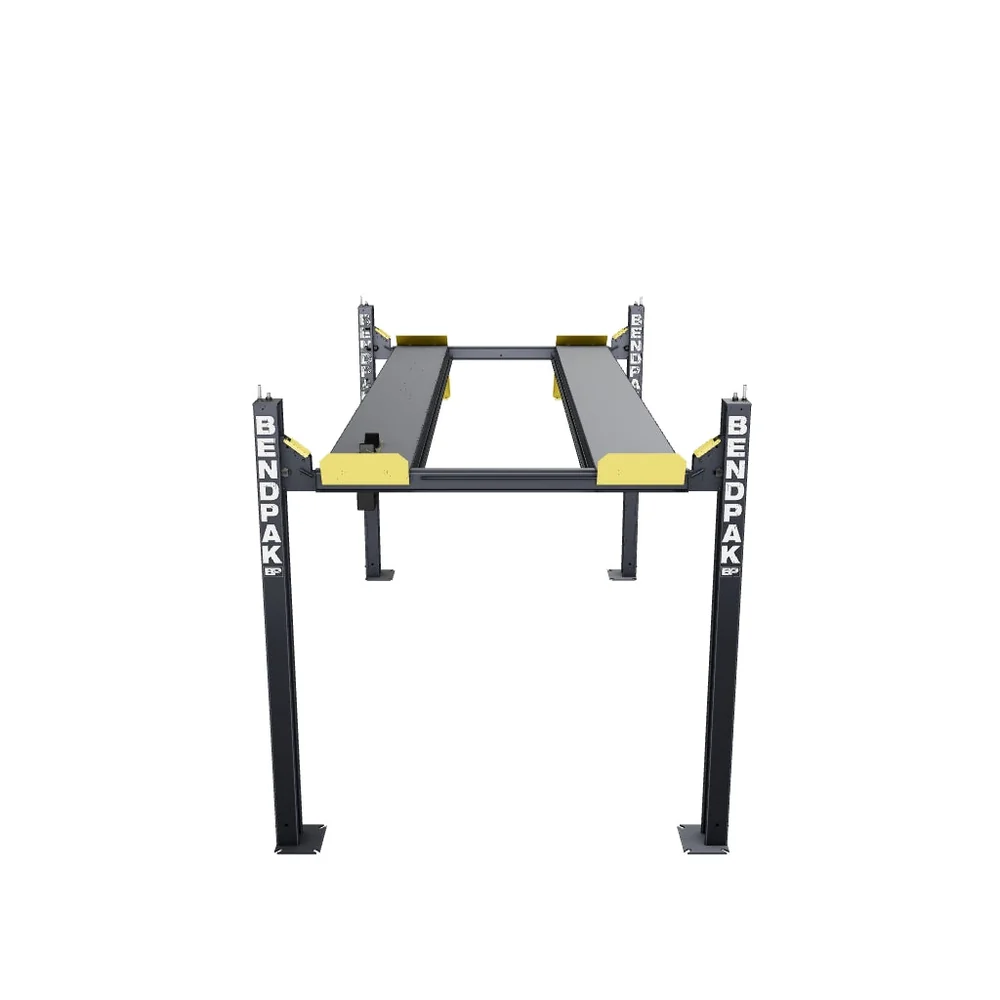

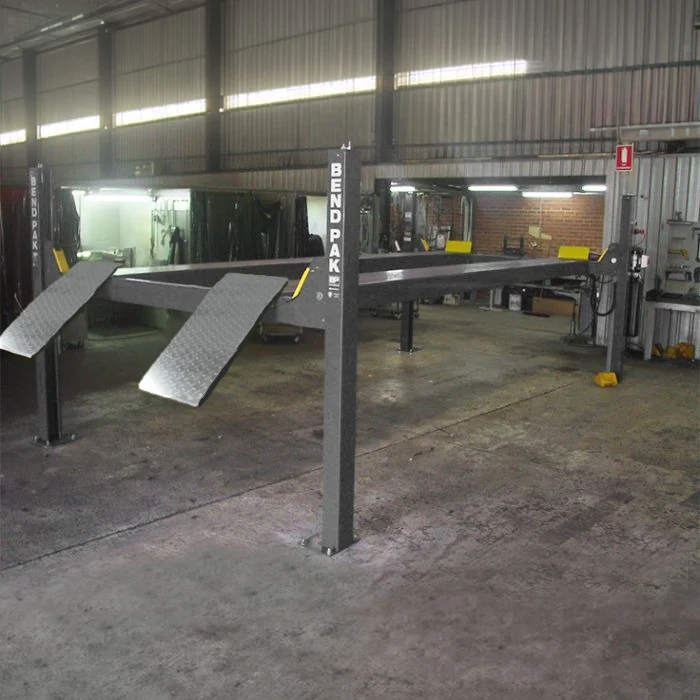

Extended runway and approach-ramp layout
Crossbeam and runway construction
Under-runway hydraulic cylinder
Safety locks / lock ladders
Internal cable/sheave routing
Compatible bridge-jack setup where available

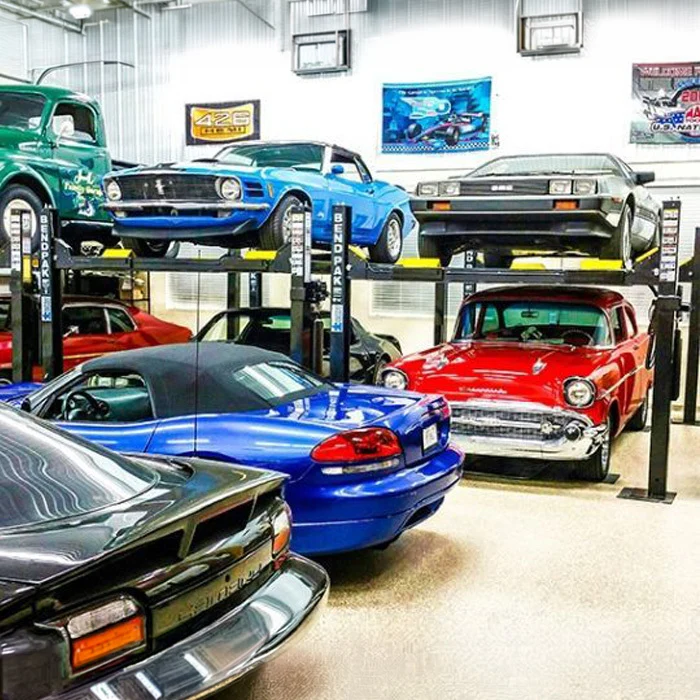

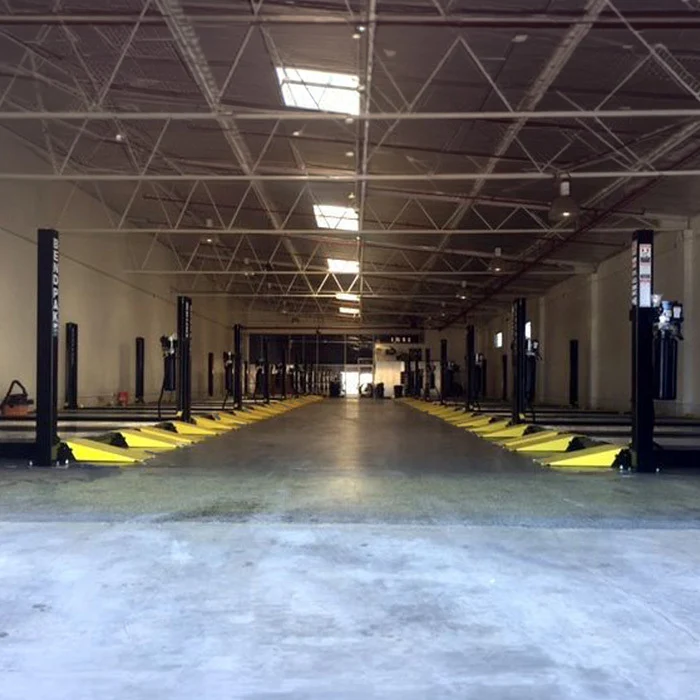

Ideal for

Longer-vehicle storage, specialist workshops and higher-ceiling garages where floor width is constrained but additional lift height and runway length are required.

Specifications

Specifications

Details

Capacity
4,082 kg
Configuration
Narrow high-rise / extended-length four-post
Overall width
2,546 mm
Overall length
5,690 mm
Drive-through clearance
1,943 mm

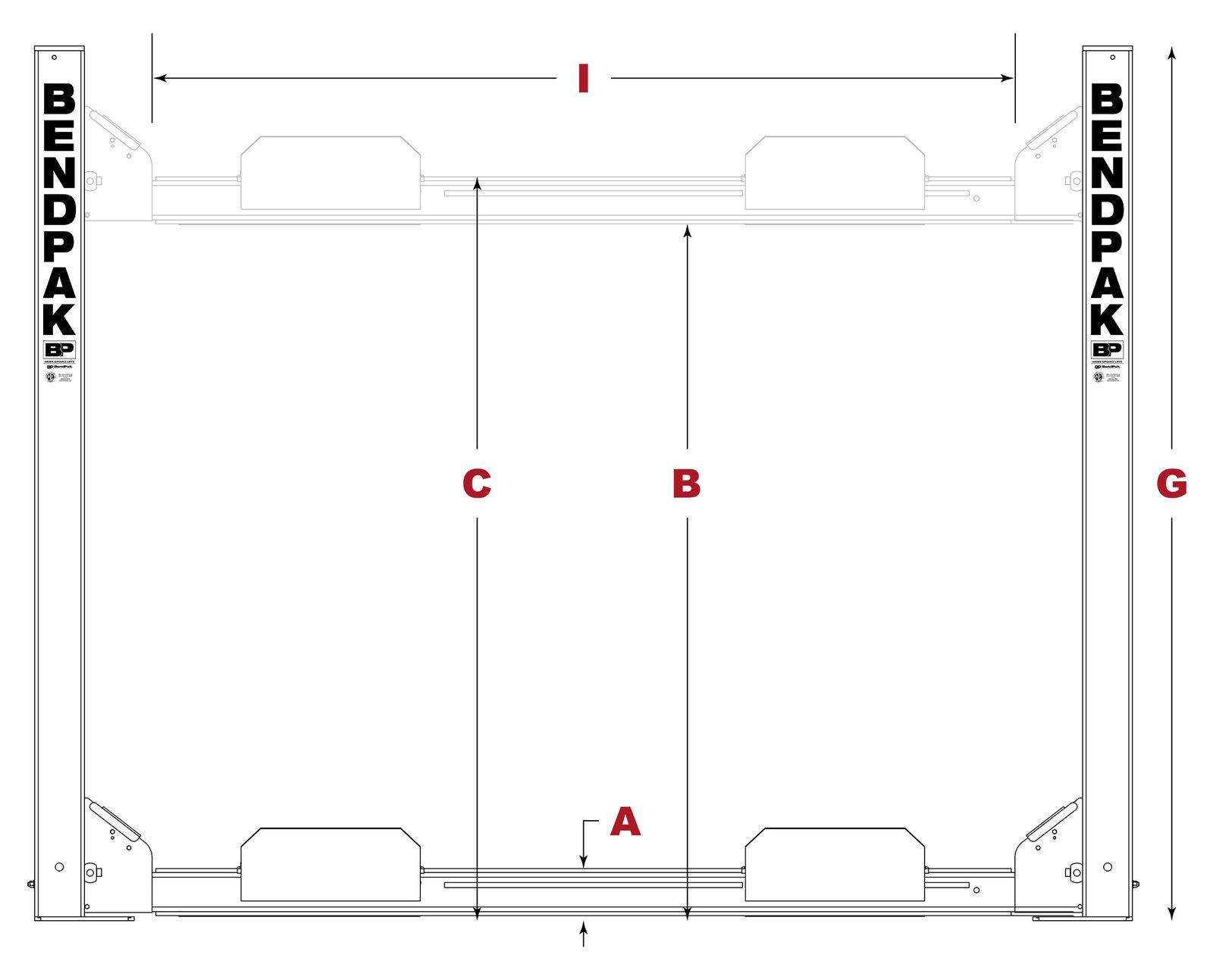

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HD-9STX
BendPak SKU
5175862
Rated lifting capacity
Narrow high-rise / extended-length four-post
Minimum runway height
Narrow high-rise / extended-length four-post
Maximum rise
2,083 mm
Maximum lifting height
2,197 mm
Time to full rise
Confirm current exact-model rise time before publication
Overall width
2,546 mm
Outside length
5,029 mm
Overall length
5,690 mm
Column height
2,540 mm
Width between columns
2,280 mm
Drive-through clearance
1,943 mm
Runway width
483 mm
Runway length
4,775 mm
Width between runways
953 mm
Minimum wheelbase / rated-capacity reference
2,921 mm at rated capacity
Locking
15 positions; 102 mm spacing
Power unit
2 HP on current manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
Narrow footprint combined with extended runways and high-rise working/storage clearance

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Four-post hoist structure with four columns, crossbeams and model-specific runways.
  • Electric-hydraulic lifting system with the model-specific under-runway hydraulic cylinder and cable equalisation arrangement.
  • Multi-position mechanical safety locks, adjustable lock ladders and secondary slack-cable safety protection where specified for the exact model.
  • Push-button pneumatic safety-lock release system where specified for the exact model.
  • Approach ramps / wheel stops and runway accessory rails as supplied with the Australian configuration

Options

  • Compatible rolling bridge jack(s) for wheel-off service, subject to exact model capacity and Australian availability
  • Drip trays, rolling drain pan, jack platform and/or solid deck accessories where compatible with the exact model.
  • Portable wheel/caster kit on compatible HD-series models only.
  • Drive-through or alternative approach-ramp configuration where approved for the exact model.

Workshop fit

BendPak HD-9STX is rated to 4,082 kg. Key published dimensions in this brief include overall width 2,546 mm, overall length 5,690 mm, runway length 4,775 mm, width between columns 2,280 mm, drive-through clearance 1,943 mm and maximum lifting height 2,197 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raised vehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability. AUSTRALIAN CONFIGURATION CHECK: Do not present this model as locally stocked, immediately available or technically final for Australia until Michael/Genesis confirms the exact supplied revision/configuration. The page may be built in staging so the catalogue is ready.

Frequently asked questions

Why choose the HD-9STX instead of the HD-9ST?
The STX adds higher rise and longer runways while keeping the narrow overall width.
The current manufacturer specification lists 4,775 mm runway length.
The columns are approximately 2,540 mm high, but total building clearance must also allow for the raised vehicle, doors, lights and other overhead services.
Compatible rolling bridge jacks may be available, but Iron Lift must confirm the correct model, capacity and Australian availability for the exact supplied lift.
The current BendPak model is verified, but an exact current Genesis product page was not located in this research. Keep the page staging/noindex until Australian supply is confirmed.
