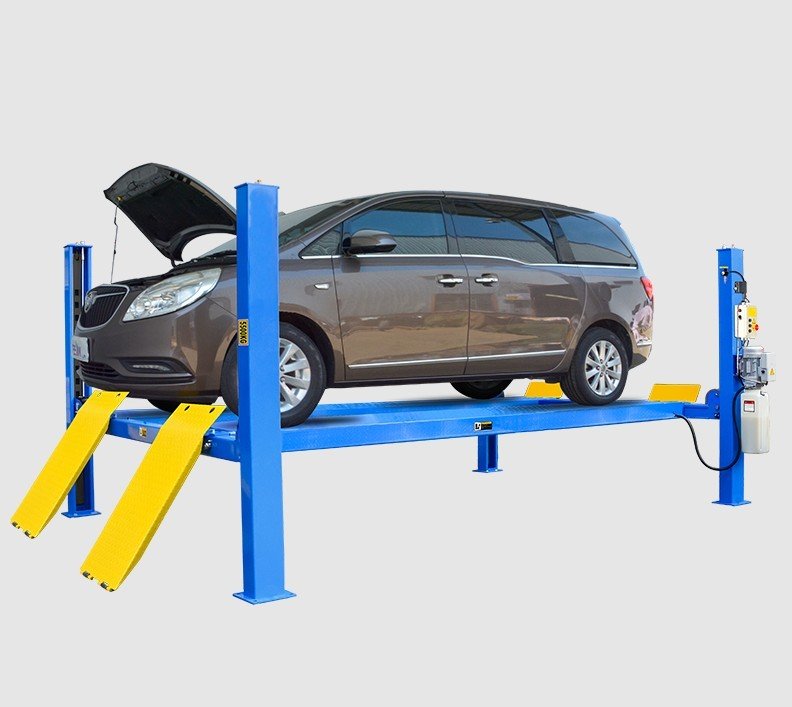

Iron Lift MONARCH 55

5,500 kg heavy-duty four-post service hoist with adjustable runway spacing and a longer platform for broader commercial workshop vehicle coverage.

Clear-floor two-post

Iron Lift MONARCH 55

5,500 kg Heavy-duty general-service Four-Post Hoist

5,500 kg heavy-duty four-post service hoist with adjustable runway spacing and a longer platform for broader commercial workshop vehicle coverage.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
5,500 kg
Rated capacity
1,890 mm
Maximum lifting height
6,092 mm
Overall length
2,498 mm
Drive-through clearance

Product overview

The Iron Lift MONARCH 55 moves the four-post range into a 5,500 kg heavy-duty service class while keeping adjustable runway spacing and a manageable 3,208 mm overall width. It is designed for workshops that service heavier vans, light trucks, motorhomes and fleet vehicles alongside conventional passenger vehicles. The longer 6,092 mm overall footprint gives larger wheelbases more room on the platform, while the runway spacing can be adjusted from 965 mm to 1,292 mm. A 1,890 mm lifting height provides practical access for inspection and maintenance tasks. MONARCH 55 is suited to mixed commercial workshops that need greater capacity without moving directly to the much larger 6.5 or 8 tonne platforms.

Key features

Detail photography

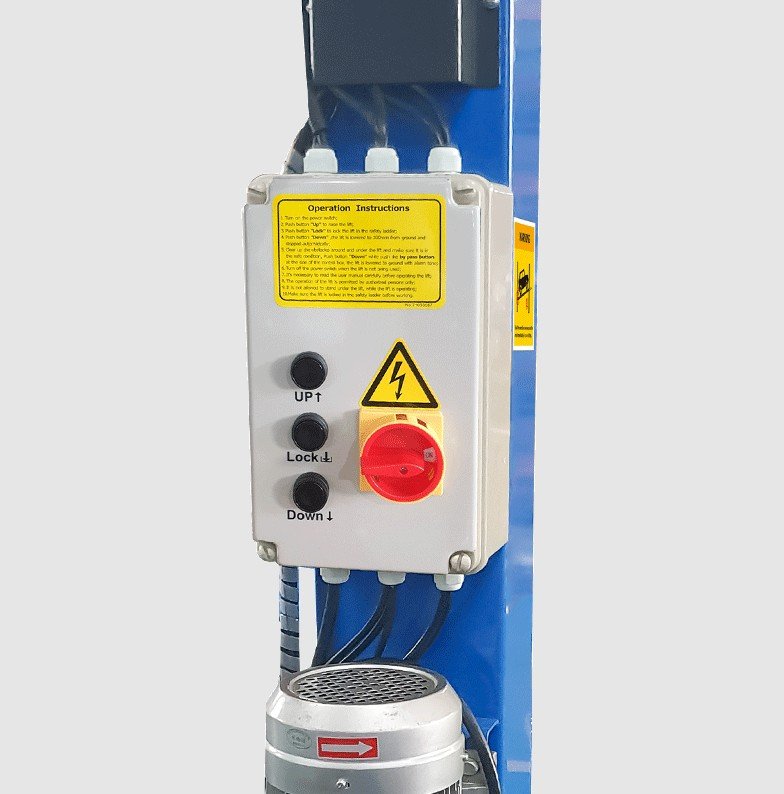

UP / LOCK / DOWN control unit
Mechanical safety-lock system and air-release detail

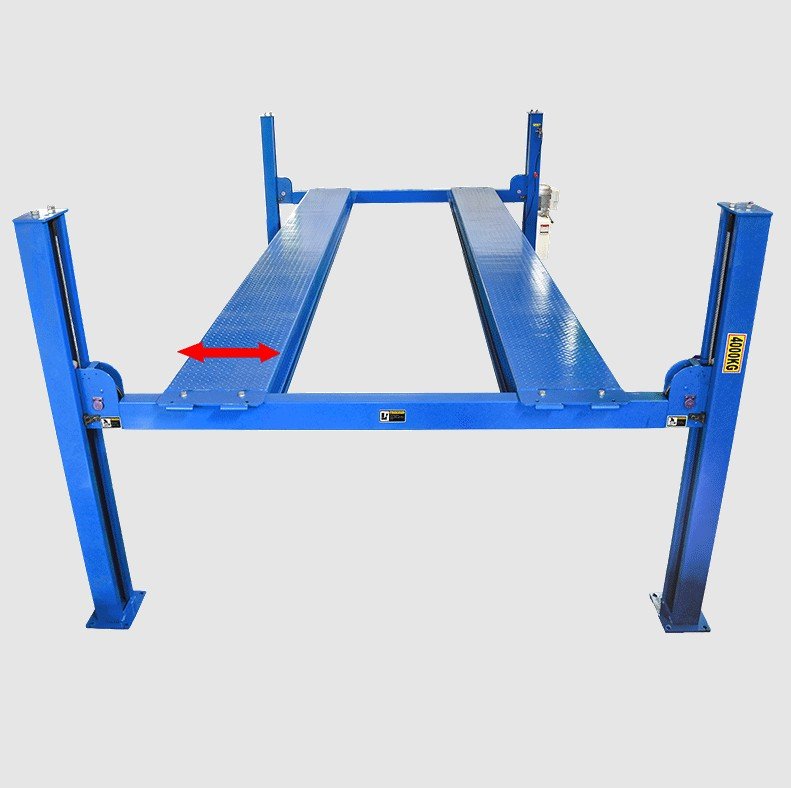

Runway/platform surface and runway-adjustment detail

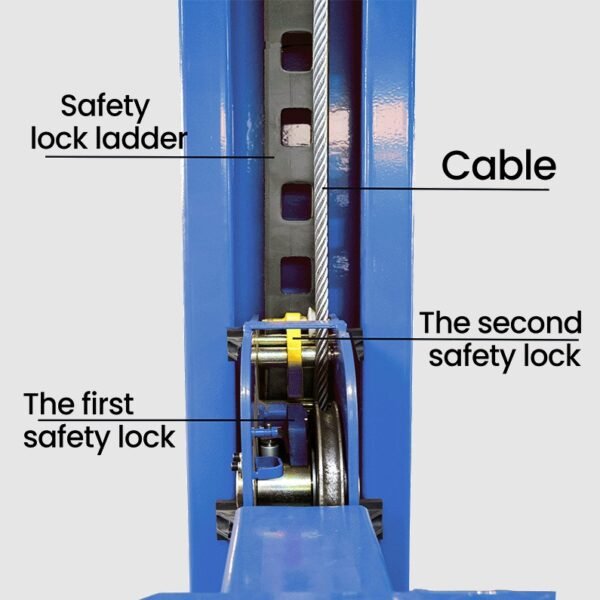

Crossbeam, cable and secondary safety detail
Hydraulic power unit / lifting-system detail

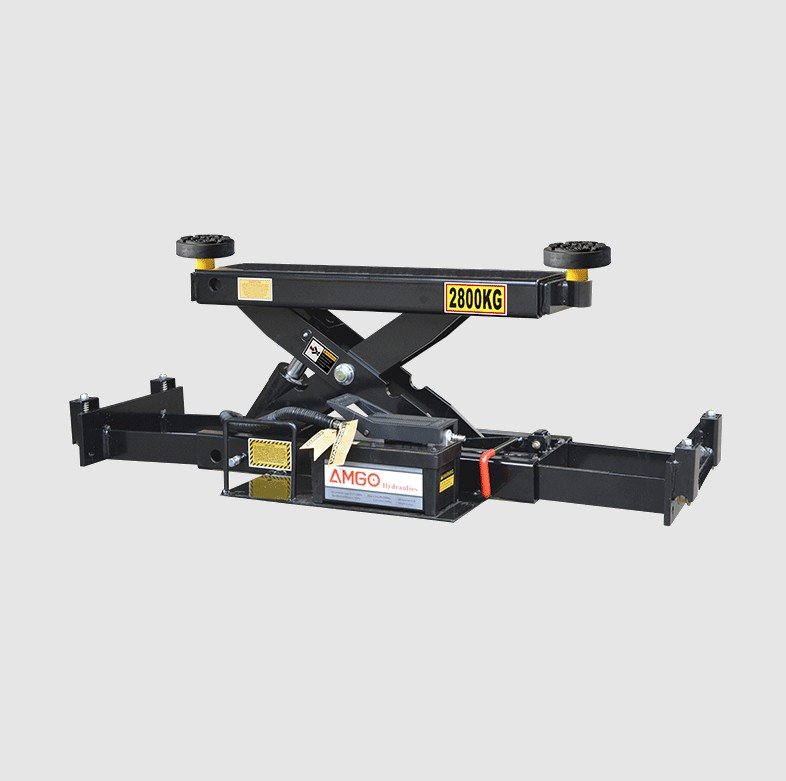

Rolling-jack rail / wheel-free service accessory interface where shown

Ideal for

Fleet maintenance, transport workshops, commercial vehicle service centres, motorhome/RV workshops and general repairers needing 5.5 tonne four-post capacity.

Specifications

Specifications

Details

Capacity
5,500 kg
Configuration
Heavy-duty general-service four-post
Overall height
2,185 mm
Overall width
3,208 mm
Drive-through clearance
2,498 mm
Motor
3.0 HP

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
5,500 kg
Lifting time
63 sec
Overall length including ramps
6,092 mm
Outside edge of crossbeams
6,092 mm
Overall width
3,208 mm
Width between columns
2,852 mm
Maximum lifting height
1,890 mm
Maximum lock height
1,810 mm
Overall height
2,185 mm
Minimum runway height
170 mm
Maximum underneath height
1,750 mm
Maximum underneath lock height
1,670 mm
Drive-through clearance
2,498 mm
Width between runways
965-1,292 mm adjustable; nominal 1,100 mm
Outside edge of runways
1,981-2,308 mm adjustable; nominal 2,116 mm
Gross weight
Approx. 1,082 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

At 5,500 kg capacity, vehicle axle loads, wheelbase and track width become increasingly important. Confirm the intended vehicle list rather than relying on gross vehicle mass alone. Allow for 6,092 mm overall length including ramps, 3,208 mm overall width and 2,185 mm overall height. Verify slab and anchoring requirements, site power, compressed air and delivery/offload access before installation.

Frequently asked questions

What vehicle class is MONARCH 55 aimed at?
It is intended for mixed commercial workshop use, including heavier vans, light trucks, motorhomes and fleet vehicles that remain within the published dimensions and load limits.
MONARCH 55 increases rated capacity to 5,500 kg and uses a longer platform for broader commercial vehicle coverage.
Yes. The published range is 965 mm to 1,292 mm between runways.
Yes. 2,800 kg manual or pneumatic-hydraulic rolling jacks are listed as compatible options.
Yes. Send vehicle make/model, weight, axle loads where available, wheelbase and track width and we can compare them with the published hoist envelope.

Related Pages

Two-Post Hoists

Installation

Servicing & Repairs

Spare Parts

Request a Quote

Documents

brochure

manual

dimension drawing

Request a vehicle hoist quote

Send us your fleet list, vehicle dimensions, bay size and site information and we will help confirm whether the MONARCH 55 provides the capacity and platform coverage you need.
