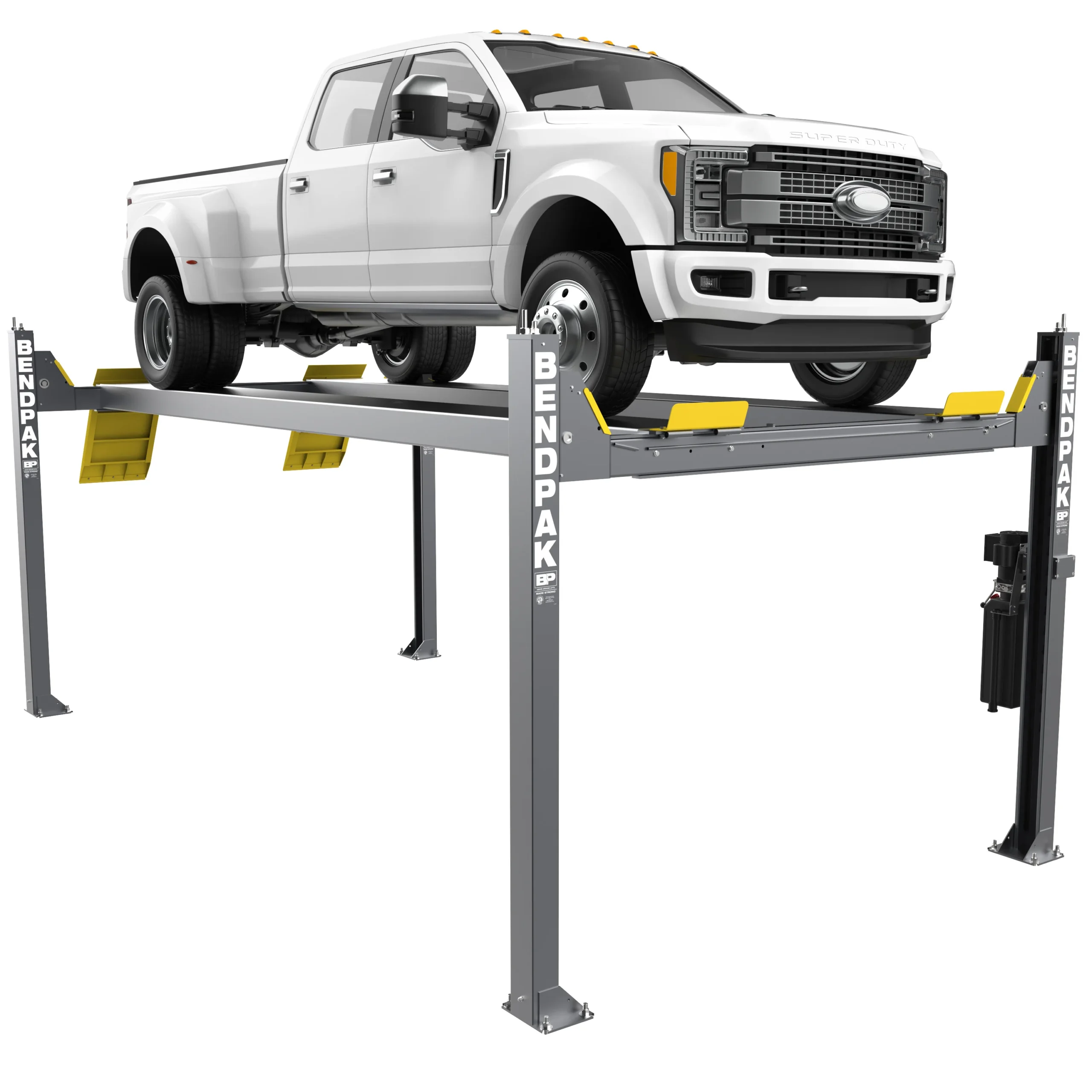

BendPak HDS14XT

6,350 kg extended high-rise four-post hoist with 5,779 mm runways and additional working height for long-wheelbase vehicles and taller professional workshop bays.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
BendPak HDS14XT
BendPak HDS14XT

Clear-floor two-post

BendPak HDS14XT

6,350 kg Extended High-Rise Heavy-Duty Four-Post Hoist

6,350 kg extended high-rise four-post hoist with 5,779 mm runways and additional working height for long-wheelbase vehicles and taller professional workshop bays.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
6,350 kg
Rated capacity
Heavy-duty extended-length high-rise four-post
Configuration
2,273 mm
Maximum lifting height
2,051 mm
Drive-through clearance

Product overview

The BendPak HDS14XT adds both length and height to the 6,350 kg HDS platform. Its extended runways support longer wheelbases while the 2,102 mm maximum runway rise creates additional under-vehicle clearance for technicians and stackedspace planning. The wide heavy-duty structure, mechanical locks, pneumatic safety release and accessory-ready runways make it suitable for demanding workshop use where the standard HDS14 footprint or rise is not enough. It is the model to consider when a 6.35 t capacity is sufficient but the vehicle or bay requires more length and lift height.

Key features

  • 6,350 kg rated lifting capacity
  • Extended 5,779 mm runways
  • 2,102 mm maximum runway rise
  • 2,273 mm maximum lifting height
  • 4,064 mm rated-capacity wheelbase
  • Heavy-duty 3,302 mm overall width
  • Multi-position mechanical safety locks
  • Pneumatic push-button lock release
  • Heavy-duty cable/sheave system
  • Rolling-bridge-jack compatible runway rails

Detail photography

High-rise HDS column arrangement

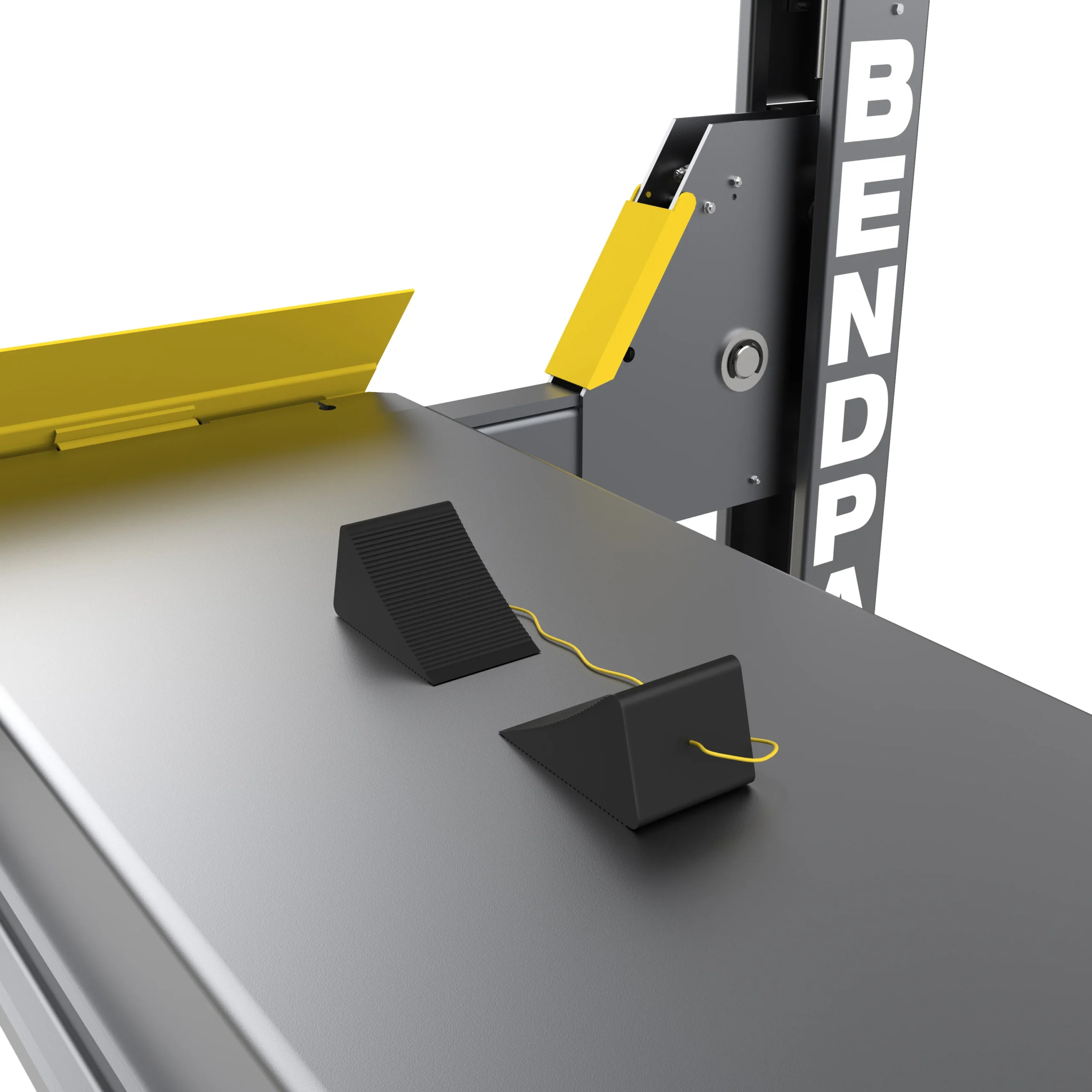

Extended runway and ramp profile
Heavy-duty cable/sheave system
Under-runway hydraulic cylinder
Safety locks and adjustable lock ladders
Pneumatic release components
Compatible heavy-duty bridge-jack configuration

Ideal for

Long-wheelbase vans, utes, fleet vehicles and professional workshop applications needing 6.35 t capacity plus greater runway length and under-vehicle working height.

Specifications

Specifications

Details

Capacity
6,350 kg
Configuration
Heavy-duty extended-length high-rise four-post
Overall width
3,302 mm
Overall length
6,909 mm
Drive-through clearance
2,051 mm

Factory dimension drawing

BendPak HDS14XT diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HDS14XT
BendPak SKU
5175624
Rated lifting capacity
6,350 kg
Configuration
6,350 kg
Minimum runway height
191 mm
Maximum rise
2,102 mm
Maximum lifting height
2,273 mm
Time to full rise
Confirm current exact-model rise time before publication
Overall width
3,302 mm
Outside length
6,172 mm
Overall length
6,909 mm
Column height
2,642 mm
Width between columns
3,048 mm
Drive-through clearance
2,051 mm
Runway width
508 mm
Runway length
5,779 mm
Width between runways
876-1,054 mm
Minimum wheelbase / rated-capacity reference
4,064 mm at rated capacity
Locking
18 positions; 102 mm spacing
Power unit
2 HP on current manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
Extended-length and high-rise 6.35 t HDS platform for longer vehicles and taller workshop bays

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Heavy-duty four-post structure with columns, crossbeams, wide runways and base plates for the exact model.
  • Single hydraulic under-runway cylinder, cable equalisation system and model-specific heavy-duty sheaves/cables.
  • Multi-position spring-loaded mechanical safety locks, adjustable lock ladders and secondary slack-cable protection.
  • Pneumatic safety-lock release and protected internal routing of the principal lifting/safety components where specified.
  • Approach ramps / rear wheel stops and runway rails for compatible heavy-duty accessories.

Options

  • Compatible heavy-duty rolling bridge jack(s), correctly capacity-matched to the exact lift and vehicle application.
  • Truck/frame adapter sets for compatible rolling jacks where required.
  • Drive-through ramp configuration and model-compatible runway accessories where available.
  • Airline kit / workshop air supply for pneumatic lock release and rolling-jack operation where required.

Workshop fit

BendPak HDS14XT is rated to 6,350 kg. Key published dimensions in this brief include overall width 3,302 mm, overall length 6,909 mm, runway length 5,779 mm, width between columns 3,048 mm, drive-through clearance 2,051 mm and maximum lifting height 2,273 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raisedvehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability. AUSTRALIAN CONFIGURATION CHECK: Do not present this model as locally stocked, immediately available or technically final for Australia until Michael/Genesis confirms the exact supplied revision/configuration. The page may be built in staging so the catalogue is ready.

Frequently asked questions

How does HDS14XT differ from HDS14?
It adds significantly more runway length and maximum rise, making it better suited to longer vehicles and taller bays.
The current manufacturer specification lists 5,779 mm.
The current manufacturer page lists approximately 2,273 mm maximum lifting height.
Yes, HDS-14XT appears in the current Genesis 4 Post Hoist range, but an exact current product page was not located during this research, so final Australian supply/configuration must still be confirmed.
Yes. Iron Lift can review bay length/height, vehicle wheelbase and loads, slab/foundation, services and installation access before quotation.

Related Pages

Two-Post Hoists

Installation

Servicing & Repairs

Spare Parts

Request a Quote

Related Products

Related products

View All Four-Post Hoists

Installation Service

Installation

Servicing & Repairs

Spare Parts

Documents

brochure

Download

manual

Download

dimension drawing

Download

Request a vehicle hoist quote

Tell us your longest/heaviest vehicles, wheelbase range, bay length and height, slab details, power/air provision and location and we will help confirm whether the BendPak HDS14XT suits the site.
