Iron Lift MONARCH 65HD

6,500 kg heavy-duty four-post service hoist with a robust fixedrunway platform for commercial vehicles, fleet maintenance and higher-capacity workshop bays.

Clear-floor two-post

Iron Lift MONARCH 65HD

6,500 kg Heavy-duty general-service Four-Post Hoist

6,500 kg heavy-duty four-post service hoist with a robust fixedrunway platform for commercial vehicles, fleet maintenance and higher-capacity workshop bays.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
6,500 kg
Rated capacity
1,920 mm
Maximum lifting height
2,946 mm
Width between columns
2,592 mm
Drive-through clearance

Product overview

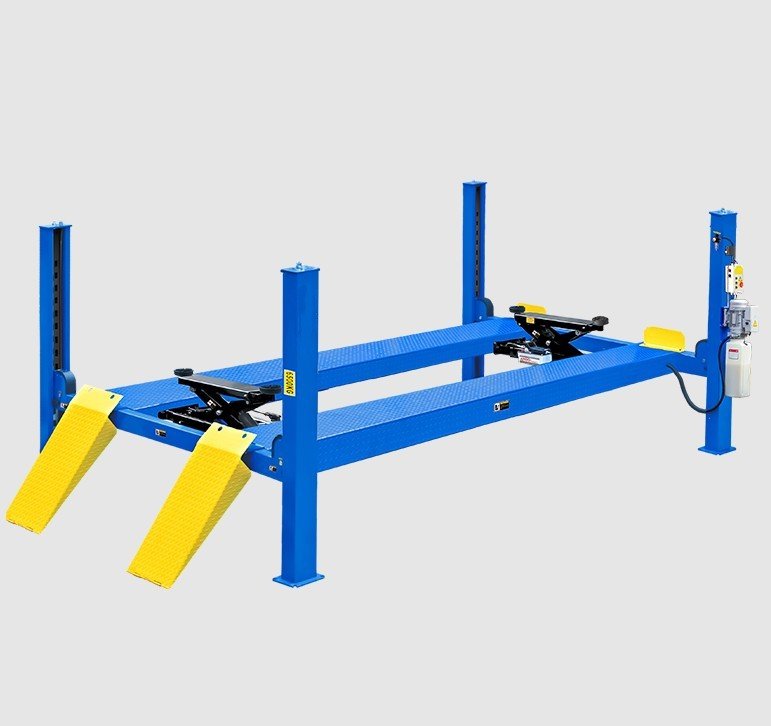

The Iron Lift MONARCH 65HD is the first true heavy-duty four-post model in the MONARCH range. Its 6,500 kg rating and robust platform are intended for commercial workshops servicing heavier vans, trucks, fleet vehicles and motorhomes while still supporting conventional workshop service work. The platform uses fixed 1,168 mm runway spacing and a 2,592 mm drive-through clearance, giving the structure a straightforward heavy-duty layout. A 1,920 mm maximum lifting height and 6,554 mm overall length provide the working envelope required for larger vehicles. MONARCH 65HD is aimed at workshops where vehicle weight and duty cycle have moved beyond the 5.5 tonne class and a more substantial four-post structure is required.

Key features

Detail photography

UP / LOCK / DOWN control unit
Mechanical safety-lock system and air-release detail

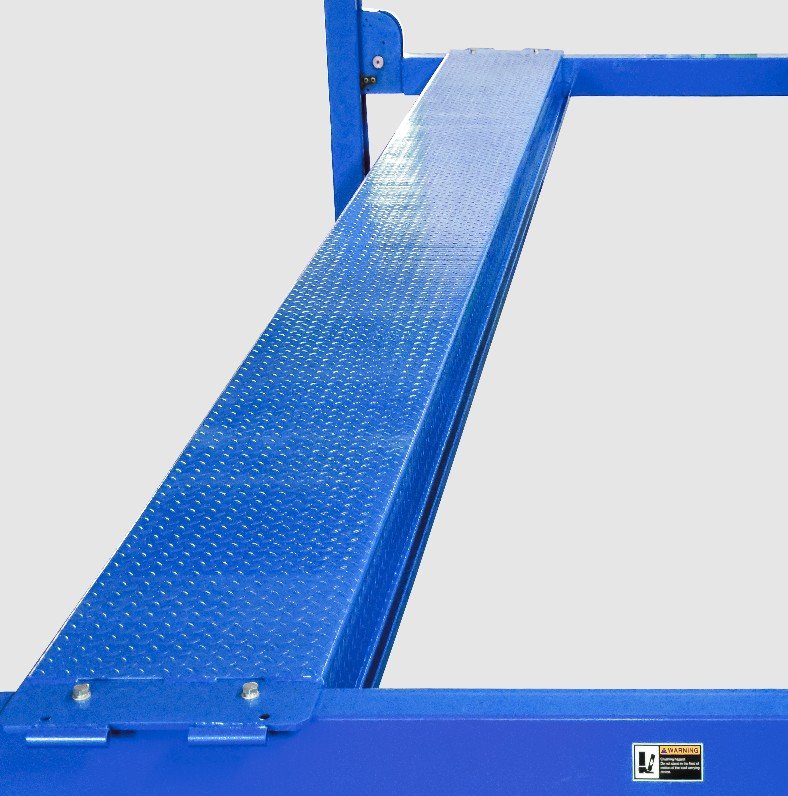

Runway/platform surface and runway-adjustment detail
Crossbeam, cable and secondary safety detail
Hydraulic power unit / lifting-system detail
Rolling-jack rail / wheel-free service accessory interface where shown

Ideal for

Transport workshops, fleet depots, commercial vehicle service centres, motorhome workshops, mining-support workshops and industrial maintenance facilities.

Specifications

Specifications

Details

Capacity
6,500 kg
Configuration
Heavy-duty general-service four-post
Overall height
2,189 mm
Overall width
3,324 mm
Drive-through clearance
2,592 mm
Motor
3.0 HP

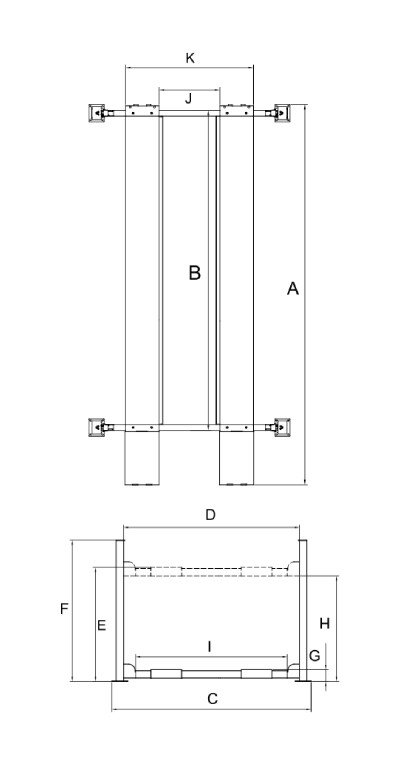

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
6,500 kg
Lifting time
79 sec
Overall length including ramps
6,554 mm
Outside edge of crossbeams
6,554 mm
Overall width
3,324 mm
Width between columns
2,946 mm
Maximum lifting height
1,920 mm
Maximum lock height
1,840 mm
Overall height
2,189 mm
Minimum runway height
200 mm
Maximum underneath height
1,750 mm
Maximum underneath lock height
1,670 mm
Drive-through clearance
2,592 mm
Width between runways
1,168 mm
Outside edge of runways
2,184 mm
Gross weight
Approx. 1,356 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

This model is aimed at larger commercial vehicles, so obtain actual vehicle axle loads, wheelbase, tyre position and overall dimensions before selection. Allow for 6,554 mm overall length including ramps, 3,324 mm overall width and a 2,189 mm column height. The fixed runway spacing is 1,168 mm, so vehicle track/tyre placement must be checked carefully. Heavy-duty installation also makes slab, anchoring, access and offload planning especially important.

Frequently asked questions

What is MONARCH 65HD designed for?
It is a 6,500 kg heavy-duty four-post service hoist for commercial, fleet and industrial workshop applications.
The source specification lists a fixed 1,168 mm width between runways for this heavy-duty model.
Yes. The source lists an RJ-8A 3,500 kg pneumatic-hydraulic rolling jack as an option.
Yes. A 660 mm extension kit is listed as source kit 41403.
Yes. For this capacity class we recommend checking vehicle data, slab/anchors, workshop access, power, compressed air and unloading requirements before finalising the quote.
