BendPak HD-9XW

4,082 kg high-rise four-post hoist combining standard-width vehicle access, extended runways and additional lift height for taller bays and stacked parking.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
BendPak HD-9XW
BendPak HD-9XW

Clear-floor two-post

BendPak HD-9XW

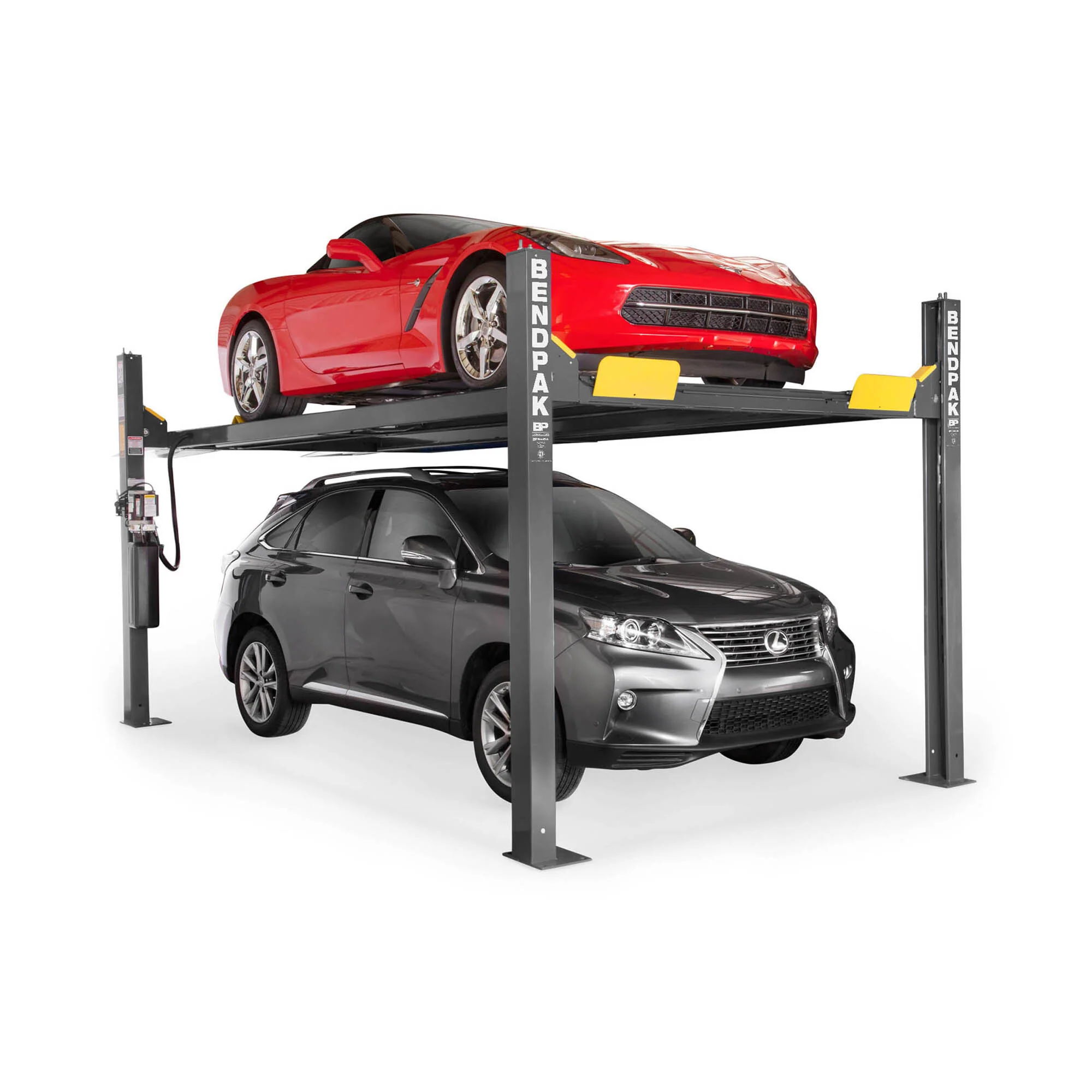

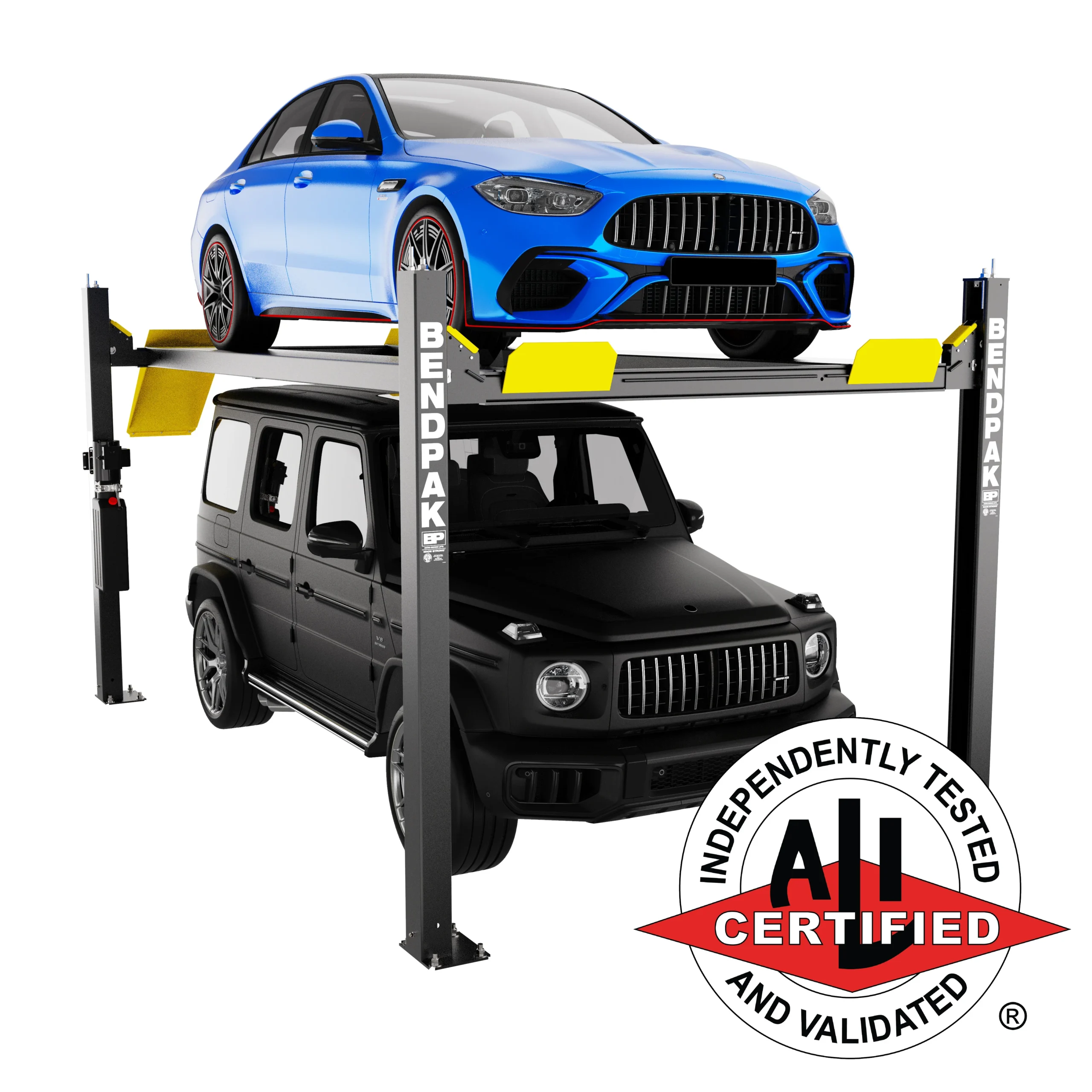

4,082 kg Standard-Width High-Rise Four-Post Hoist

4,082 kg high-rise four-post hoist combining standard-width vehicle access, extended runways and additional lift height for taller bays and stacked parking.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,082 kg
Rated capacity
Standard-width high-rise / extended-length four-post
Configuration
2,210 mm
Maximum lifting height
2,197 mm
Drive-through clearance

Product overview

The BendPak HD-9XW is the higher-rise, longer version of the standard-width HD-9 platform. It provides 2,083 mm of runway rise and extended 4,629 mm runways, giving larger or longer vehicles more room while also increasing the clearance available below a raised vehicle. The 2,800 mm overall width is more generous than the narrow ST-series models, making loading wider SUVs, utes and performance vehicles more comfortable. For higher-ceiling sites that want parking, storage and service flexibility from one 4,082 kg platform, the HD-9XW is the most spacious HD-9 configuration in this batch.

Key features

  • 4,082 kg rated lifting capacity
  • High 2,083 mm maximum runway rise
  • Extended 4,629 mm runways
  • Standard 2,800 mm overall width
  • 2,197 mm drive-through clearance
  • 3,429 mm rated-capacity wheelbase
  • Open-centre workshop access
  • Multi-position locks with pneumatic release
  • Enclosed lifting cables and safety components
  • Compatible bridge-jack and storage accessories

Detail photography

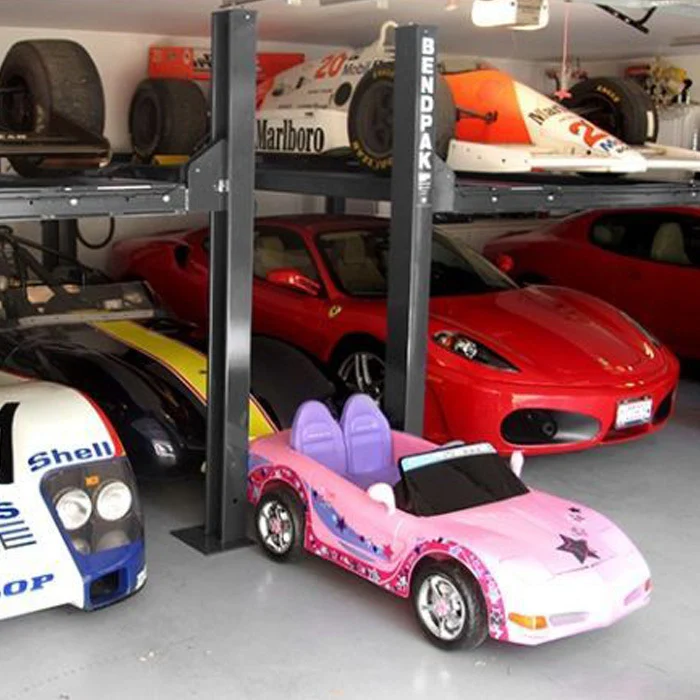

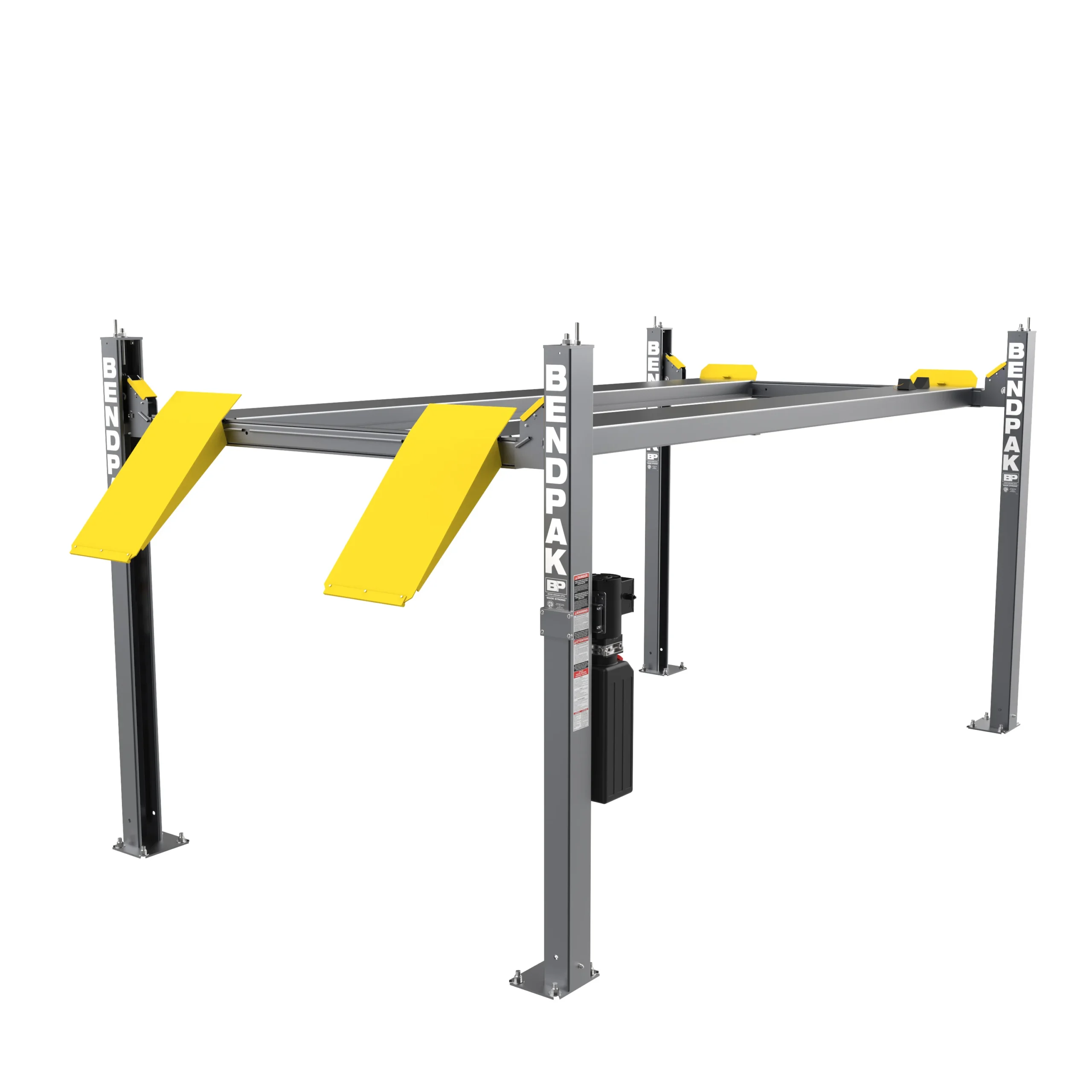

High-rise column/crossbeam arrangement
Extended runways
Drive-through and runway spacing

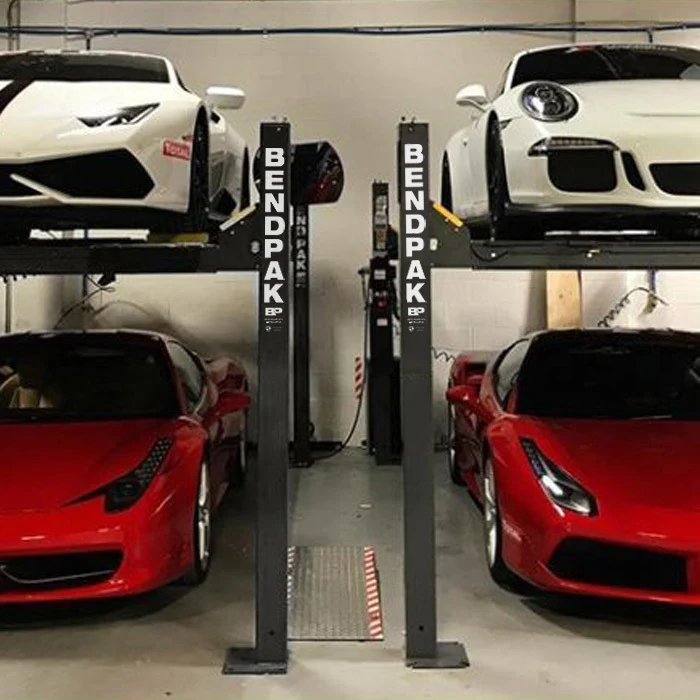

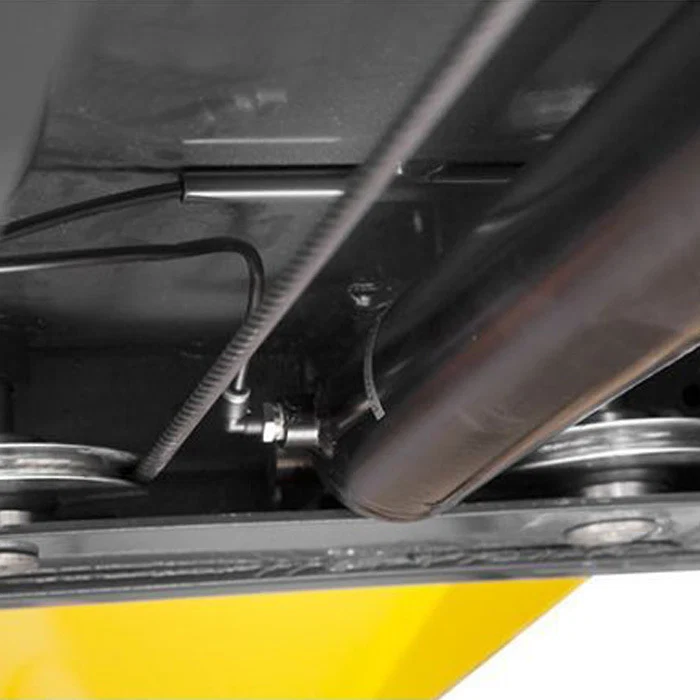

Hydraulic cylinder and cable routing

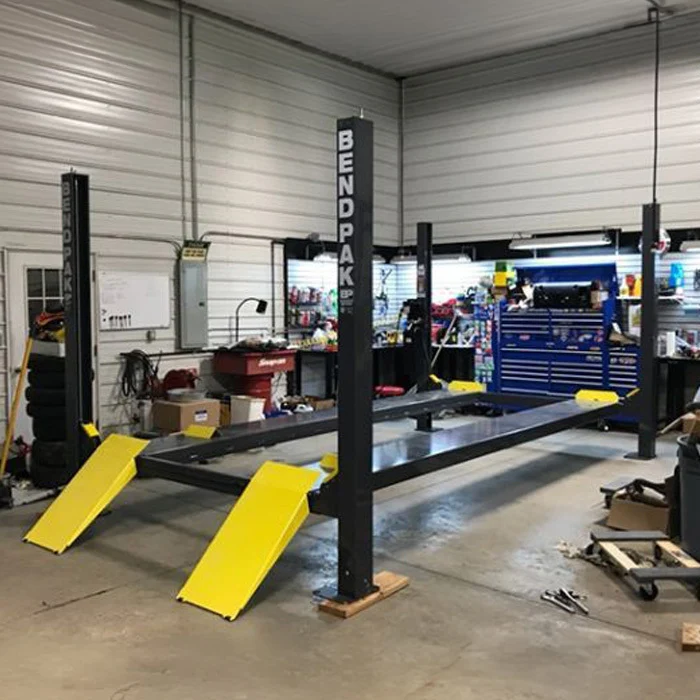

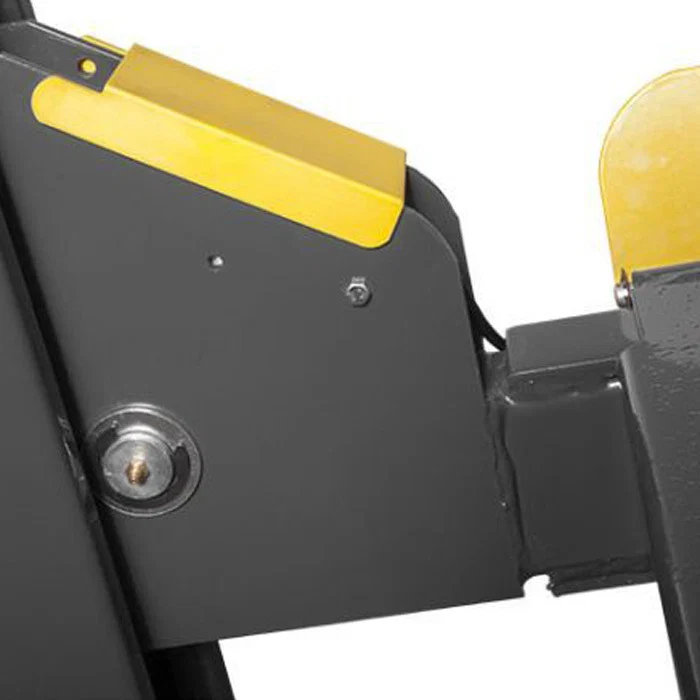

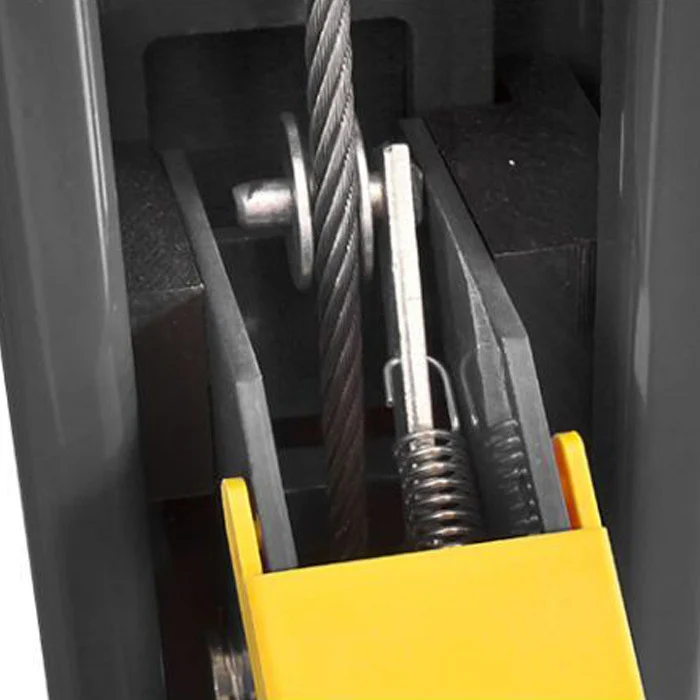

Mechanical lock ladders
Pneumatic release components
Optional rolling jack / storage accessory configuration

Ideal for

Higher-ceiling workshops, collector garages and storage/service facilities handling SUVs, utes and longer vehicles that benefit from standard-width loading and additional vertical clearance.

Specifications

Specifications

Details

Capacity
4,082 kg
Configuration
Standard-width high-rise / extended-length four-post
Overall width
2,800 mm
Overall length
5,702 mm
Drive-through clearance
2,197 mm

Factory dimension drawing

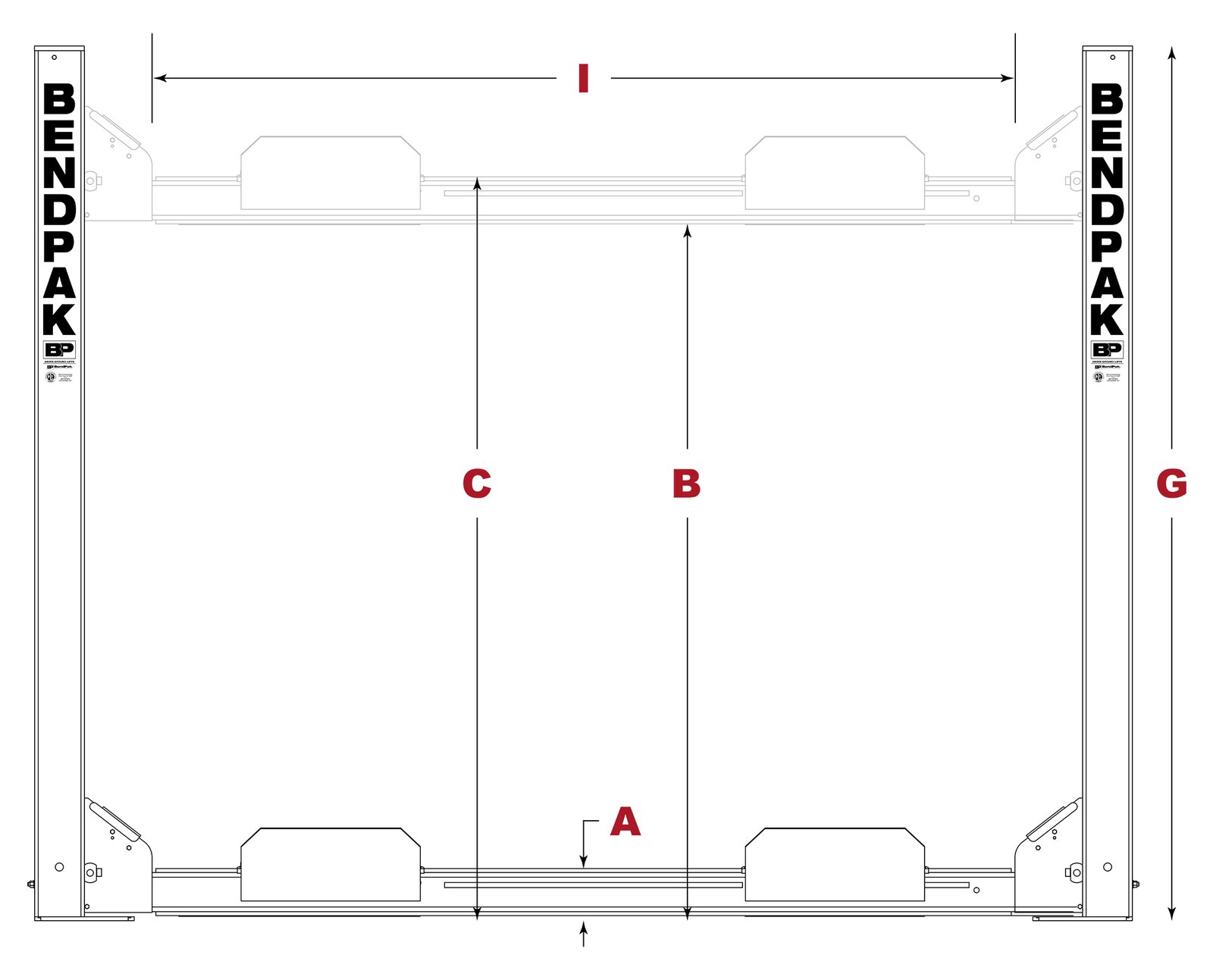

BendPak HD-9XW Diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HD-9XW
BendPak SKU
5175863
Rated lifting capacity
4,082 kg
Configuration
4,082 kg
Minimum runway height
127 mm
Maximum rise
2,083 mm
Maximum lifting height
2,210 mm
Time to full rise
Current Genesis listing states 50 seconds; confirm exact supplied configuration
Overall width
2,800 mm
Outside length
5,029 mm
Overall length
5,702 mm
Column height
2,546 mm
Width between columns
2,546 mm
Drive-through clearance
2,197 mm
Runway width
483 mm
Runway length
4,629 mm
Width between runways
889-1,041 mm
Minimum wheelbase / rated-capacity reference
3,429 mm at rated capacity
Locking
17 positions; 102 mm spacing
Power unit
2 HP on current manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
High-rise, extended-length HD-9 variant with standard-width drivethrough room

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Four-post hoist structure with four columns, crossbeams and model-specific runways.
  • Electric-hydraulic lifting system with the model-specific under-runway hydraulic cylinder and cable equalisation arrangement.
  • Multi-position mechanical safety locks, adjustable lock ladders and secondary slack-cable safety protection where specified for the exact model.
  • Push-button pneumatic safety-lock release system where specified for the exact model.
  • Approach ramps / wheel stops and runway accessory rails as supplied with the Australian configuration.

Options

  • Compatible rolling bridge jack(s) for wheel-off service, subject to exact model capacity and Australian availability.
  • Drip trays, rolling drain pan, jack platform and/or solid deck accessories where compatible with the exact model.

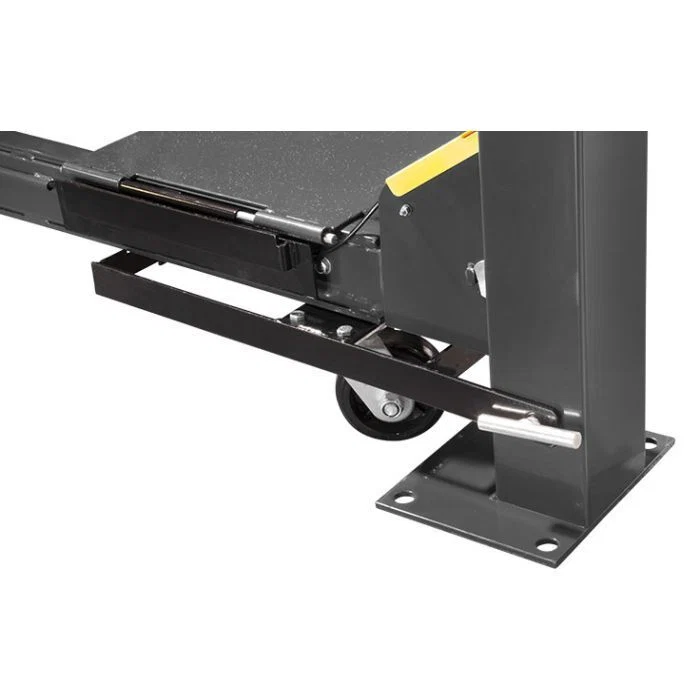

  • Portable wheel/caster kit on compatible HD-series models only.
  • Drive-through or alternative approach-ramp configuration where approved for the exact model.

Workshop fit

BendPak HD-9XW is rated to 4,082 kg. Key published dimensions in this brief include overall width 2,800 mm, overall length 5,702 mm, runway length 4,629 mm, width between columns 2,546 mm, drive-through clearance 2,197 mm and maximum lifting height 2,210 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raisedvehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability. AUSTRALIAN CONFIGURATION CHECK: Do not present this model as locally stocked, immediately available or technically final for Australia until Michael/Genesis confirms the exact supplied revision/configuration. The page may be built in staging so the catalogue is ready.

Frequently asked questions

How is the HD-9XW different from the HD-9XL?
Both use longer runways, but the HD-9XW adds a higher rise and taller columns for more vertical clearance.
The current BendPak manufacturer specification lists 2,083 mm maximum rise.
Yes. It uses the standard 2,800 mm overall-width layout with approximately 2,197 mm drive-through clearance.
Compatible rolling bridge jacks can be specified, subject to capacity and Australian availability.
Some older Genesis dimensions differ from BendPak current manufacturer data. Jhuma should use the values in this brief and Iron Lift should confirm the exact Australian-supplied revision before publication.
