BendPak HD-7P

3,175 kg narrow high-rise four-post hoist for workshops, collectors and parking applications that need vertical storage or service capability in a compact bay.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak HD-7P

3,175 kg Narrow High-Rise Four-Post Parking / Service Hoist

3,175 kg narrow high-rise four-post hoist for workshops, collectors and
parking applications that need vertical storage or service capability in a
compact bay.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
3,175 kg
Rated capacity
Narrow high-rise four-post
Configuration
2,178 mm
Maximum lifting height
1,943 mm
Drive-through clearance

Product overview

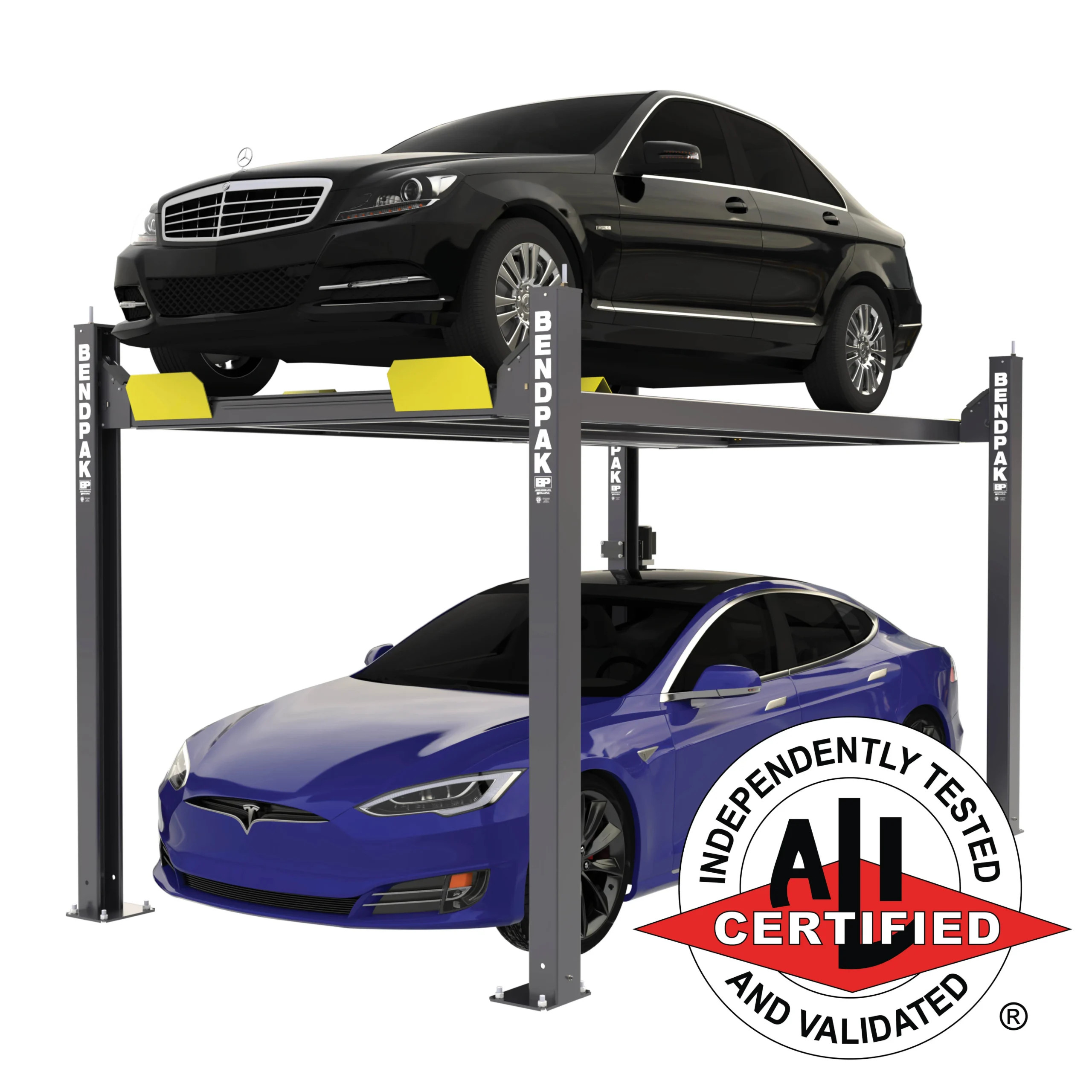

The BendPak HD-7P is a narrow high-rise four-post hoist designed to create useful vertical vehicle space without requiring a wide bay. Its drive-on runway layout makes positioning straightforward, while the elevated rise gives useful clearance for parking or under-vehicle access. Enclosed lifting cables and safety components, multi-position mechanical locks and pneumatic lock release support day-to-day operation. For workshops or vehicle-storage environments where footprint matters, the HD-7P provides a compact entry point into the BendPak four-post range.

Key features

  • 3,175 kg rated lifting capacity
  • Narrow 2,546 mm overall width
  • High-rise layout with 2,083 mm maximum runway rise
  • Drive-on four-post platform with open centre
  • Low 127 mm minimum runway height
  • Enclosed lifting cables and safety components
  • Automatic multi-position mechanical safety locks
  • Push-button pneumatic safety release
  • Secondary slack-cable safety protection
  • Accessory-ready runway rails for compatible service equipment

Detail photography

Narrow four-column footprint
High-rise column and crossbeam arrangement

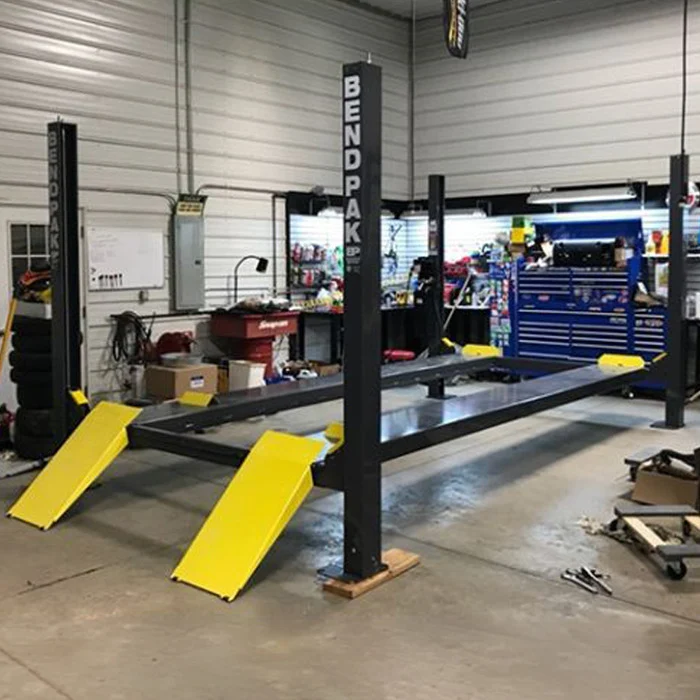

Runway surface and approach-ramp profile
Internal cable/sheave routing
Mechanical safety locks and lock ladders
Pneumatic lock-release components
Optional rolling bridge-jack setup where shown

Ideal for

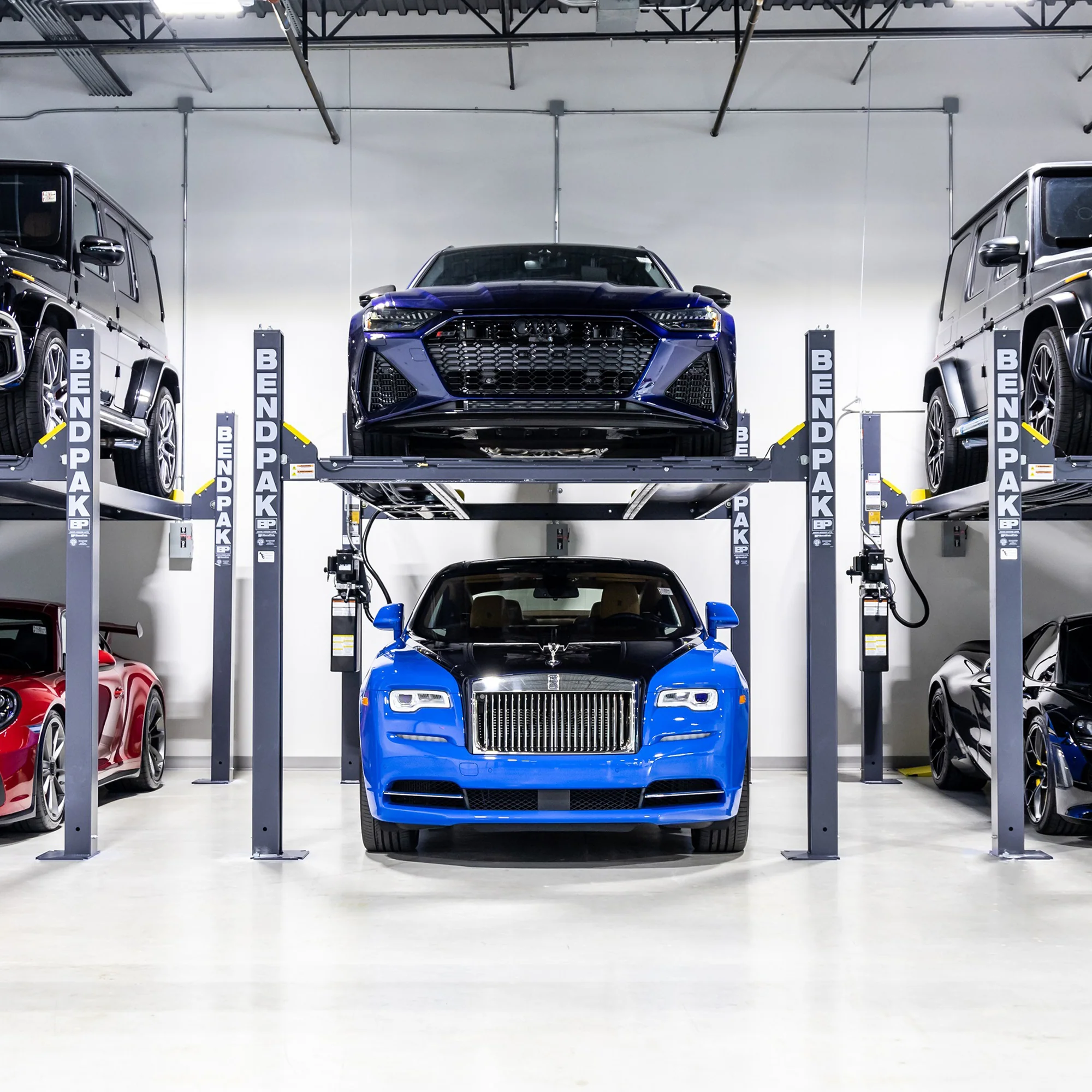

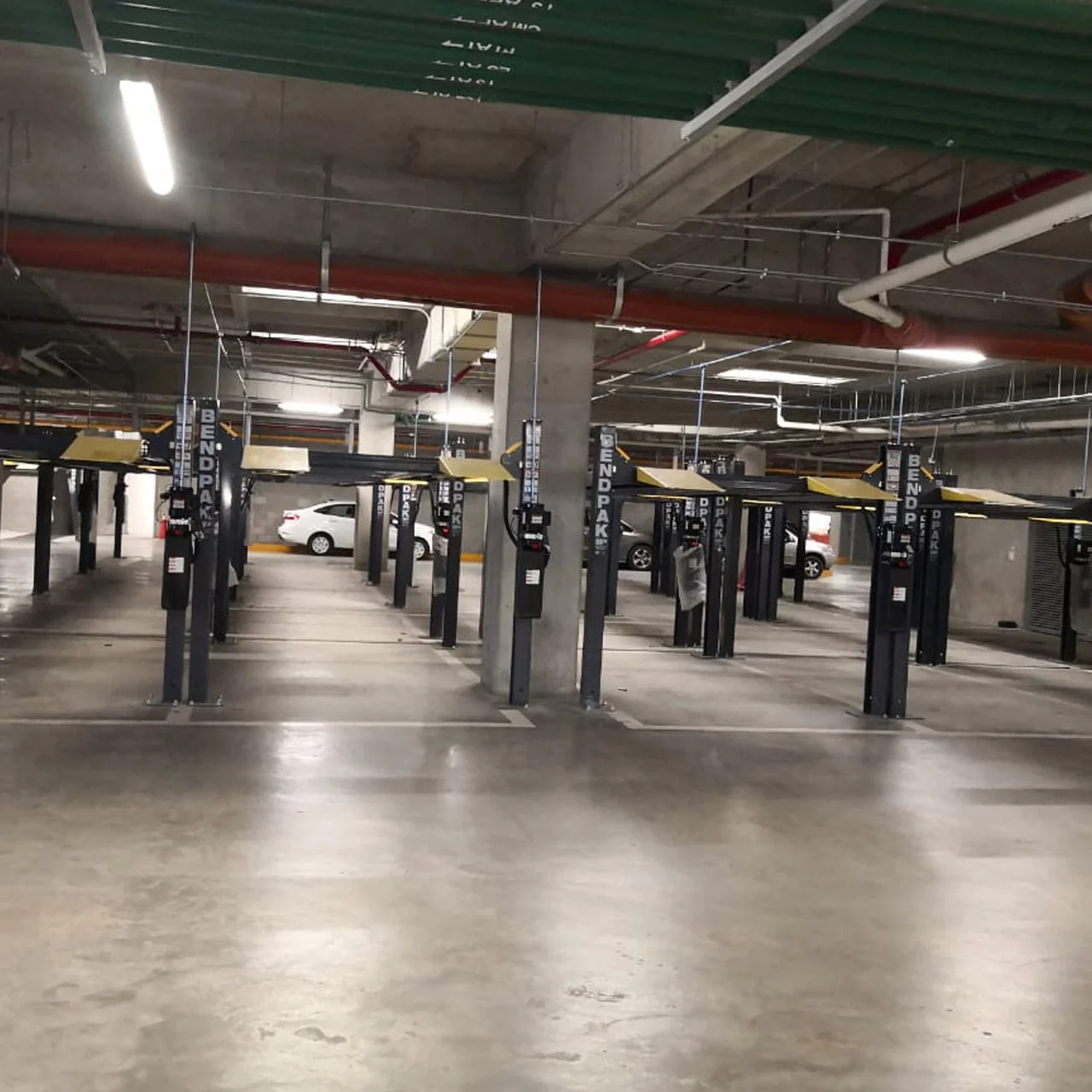

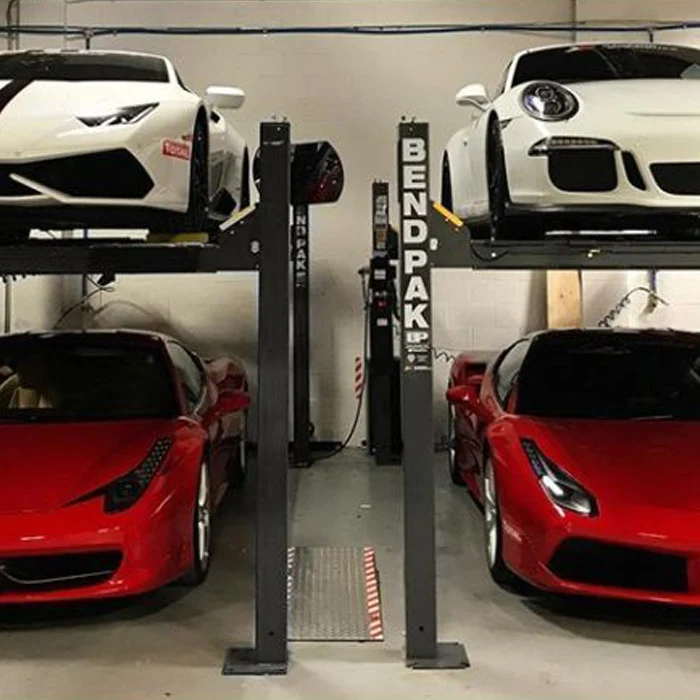

Residential or commercial vehicle storage, specialist workshops, collector-car facilities and service bays needing a narrow drive-on platform with greater vertical parking clearance.

Specifications

Specifications

Details

Capacity
3,175 kg
Configuration
Narrow high-rise four-post
Overall width
2,546 mm
Overall length
5,093 mm
Drive-through clearance
1,943 mm

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HD-7P
BendPak SKU
5175510
Rated lifting capacity
3,175 kg
Configuration
3,175 kg
Minimum runway height
127 mm
Maximum rise
2,083 mm
Maximum lifting height
2,178 mm
Time to full rise
35 seconds
Overall width
2,546 mm
Outside length
4,420 mm
Overall length
5,093 mm
Column height
2,540 mm
Width between columns
2,292 mm
Drive-through clearance
1,943 mm
Runway width
483 mm
Runway length
4,020 mm
Width between runways
876 mm
Minimum wheelbase / rated-capacity reference
2,921 mm at rated capacity
Locking
17 positions; 102 mm spacing
Power unit
2 HP on current manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
Compact narrow footprint with high-rise parking/storage geometry

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Four-post hoist structure with four columns, crossbeams and model-specific runways.
  • Electric-hydraulic lifting system with the model-specific under-runway hydraulic cylinder and cable equalisation arrangement.
  • Multi-position mechanical safety locks, adjustable lock ladders and secondary slack-cable safety protection where specified for the exact model.
  • Push-button pneumatic safety-lock release system where specified for the exact model.
  • Approach ramps / wheel stops and runway accessory rails as supplied with the Australian configuration.

Options

  • Compatible rolling bridge jack(s) for wheel-off service, subject to exact model capacity and Australian availability.
  • Drip trays, rolling drain pan, jack platform and/or solid deck accessories where compatible with the exact model.
  • Portable wheel/caster kit on compatible HD-series models only.
  • Drive-through or alternative approach-ramp configuration where approved for the exact model.

Workshop fit

BendPak HD-7P is rated to 3,175 kg. Key published dimensions in this brief include overall width 2,546 mm, overall length 5,093 mm, runway length 4,020 mm, width between columns 2,292 mm, drive-through clearance 1,943 mm and maximum lifting height 2,178 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raised vehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability.

Frequently asked questions

What makes the HD-7P different from a standard-width four-post hoist?
Its overall width is only 2,546 mm, making it useful where floor space is restricted while still providing a high-rise four-post layout.
The published lifting capacity is 3,175 kg. Vehicle suitability still depends on wheelbase, axle loads, track, approach clearance and correct positioning on the runways.
Yes. The open-centre layout provides under-vehicle access, and a compatible rolling bridge jack can expand wheel-off service capability where correctly specified.
The model uses a pneumatic lock-release system. Iron Lift should confirm the required workshop-air provision and final supplied configuration before installation.
Iron Lift can quote installation, commissioning, servicing and spare-parts support subject to site conditions, location and supplier arrangements.
