BendPak HDS14

6,350 kg heavy-duty four-post hoist with broad runways and professional workshop geometry for larger SUVs, vans, utes and commercial service applications.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak HDS14

6,350 kg Heavy-Duty Four-Post Service Hoist

6,350 kg heavy-duty four-post hoist with broad runways and professional workshop geometry for larger SUVs, vans, utes and commercial service applications.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
6,350 kg
Rated capacity
Heavy-duty standard-length four-post
Configuration
1,969 mm
Maximum lifting height
2,489 mm
Drive-through clearance

Product overview

The BendPak HDS14 steps the four-post platform into professional 6,350 kg territory. Wider columns, 508 mm runways and a 2,489 mm drive-through provide substantially more room than the HD-9 family, while the 5,017 mm runways support larger wheelbases. Heavy-duty cables, oversized sheaves, mechanical locks and pneumatic release are built around daily workshop use. Optional rolling bridge jacks can turn the drive-on platform into a more complete wheel-service bay. This is the practical bridge between lightvehicle four-post lifts and the larger HDS27 fleet platforms.

Key features

  • 6,350 kg rated lifting capacity
  • Heavy-duty four-post professional service platform
  • 3,302 mm overall width
  • 2,489 mm drive-through clearance
  • 5,017 mm long runways
  • Adjustable runway spacing of 876-1,054 mm
  • Heavy-duty cable/sheave system
  • Multi-position mechanical safety locks
  • Pneumatic push-button lock release
  • Runway rails for compatible rolling bridge jacks

Detail photography

Heavy-duty columns and base plates
Wide runway/crossbeam construction
Oversized cable sheaves and lifting cables
Under-runway hydraulic cylinder
Mechanical safety locks and lock ladders
Pneumatic lock release

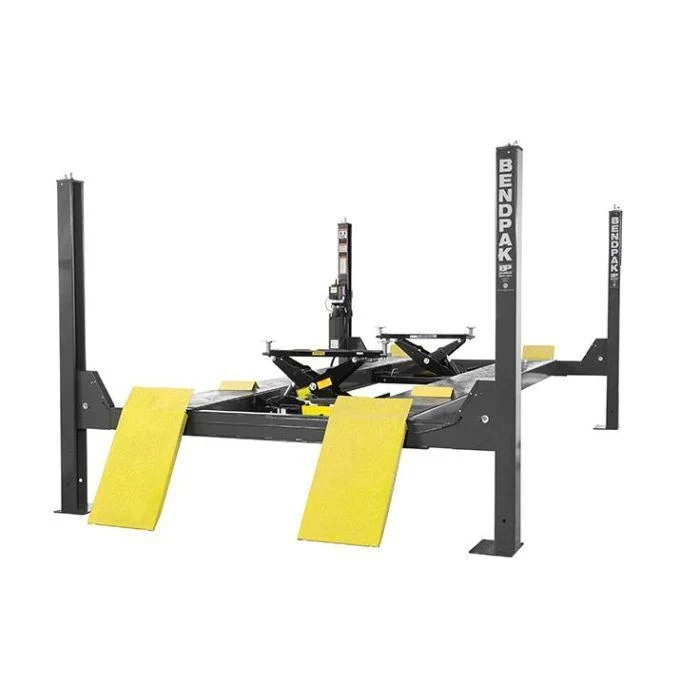

Optional RJ7W or other exact-compatible bridge jack setup

Ideal for

Dealerships, fleet workshops, mechanical repairers and commercial service bays handling larger SUVs, vans, utes and heavier vehicles within the published dimensional and axle-load limits.

Specifications

Specifications

Details

Capacity
6,350 kg
Configuration
Heavy-duty standard-length four-post
Overall width
3,302 mm
Overall length
6,147 mm
Drive-through clearance
2,489 mm

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HDS14
BendPak SKU
5175170
Rated lifting capacity
6,350 kg
Configuration
6,350 kg
Minimum runway height
191 mm
Maximum rise
1,778 mm
Maximum lifting height
1,969 mm
Time to full rise
Confirm current exact-model rise time before publication
Overall width
3,302 mm
Outside length
5,410 mm
Overall length
6,147 mm
Column height
2,337 mm
Width between columns
3,048 mm
Drive-through clearance
2,489 mm
Runway width
508 mm
Runway length
5,017 mm
Width between runways
876-1,054 mm
Minimum wheelbase / rated-capacity reference
3,556 mm at rated capacity
Locking
15 positions; 102 mm spacing
Power unit
2 HP on current manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
6.35 t professional HDS platform; current Genesis HDS-14 page contains an incorrect/stale technical table and must not be copied

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Heavy-duty four-post structure with columns, crossbeams, wide runways and base plates for the exact model.
  • Single hydraulic under-runway cylinder, cable equalisation system and model-specific heavy-duty sheaves/cables.
  • Multi-position spring-loaded mechanical safety locks, adjustable lock ladders and secondary slack-cable protection.
  • Pneumatic safety-lock release and protected internal routing of the principal lifting/safety components where specified.
  • Approach ramps / rear wheel stops and runway rails for compatible heavy-duty accessories.

Options

  • Compatible heavy-duty rolling bridge jack(s), correctly capacity-matched to the exact lift and vehicle application.
  • Truck/frame adapter sets for compatible rolling jacks where required.
  • Drive-through ramp configuration and model-compatible runway accessories where available.
  • Airline kit / workshop air supply for pneumatic lock release and rolling-jack operation where required.

Workshop fit

BendPak HDS14 is rated to 6,350 kg. Key published dimensions in this brief include overall width 3,302 mm, overall length 6,147 mm, runway length 5,017 mm, width between columns 3,048 mm, drive-through clearance 2,489 mm and maximum lifting height 1,969 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raisedvehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability. AUSTRALIAN CONFIGURATION CHECK: Do not present this model as locally stocked, immediately available or technically final for Australia until Michael/Genesis confirms the exact supplied revision/configuration. The page may be built in staging so the catalogue is ready.

Frequently asked questions

What is the HDS14 rated to lift?
The current BendPak manufacturer rating is 6,350 kg.
The current manufacturer specification lists approximately 2,489 mm.
Yes. BendPak lists compatible rolling bridge jacks for wheel-off service; the exact model and capacity must be matched to the supplied lift.
The current Genesis HDS-14 page visibly contains technical values that match a different/older model. This brief uses current BendPak HDS14 manufacturer data and flags the Australian configuration for confirmation.
Confirm vehicle dimensions and axle loads, bay footprint, slab/foundation, electrical and compressed-air services, unloading access and the current installation manual before supply.
