BendPak HDS27X

12,247 kg extended heavy-duty four-post truck hoist with 8,014 mm runways for long-wheelbase commercial fleet, bus and heavy-vehicle service applications.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak HDS27X

12,247 kg Extended Heavy-Duty Commercial Four-Post Truck Hoist

12,247 kg extended heavy-duty four-post truck hoist with 8,014 mm runways for long-wheelbase commercial fleet, bus and heavy-vehicle service applications.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
12,247 kg
Rated capacity
Heavy-duty commercial extended-length four-post
Configuration
1,765 mm
Maximum lifting height
2,769 mm
Drive-through clearance

Product overview

The BendPak HDS27X takes the HDS27 heavy-duty platform and extends it for vehicles that simply need more runway. Its 8,014 mm runways and 5,842 mm rated-capacity wheelbase provide the length required by many buses, long commercial trucks and specialist fleet vehicles while maintaining the 12,247 kg rating and wide 2,769 mm drive-through. The same heavy-duty lifting, cable/sheave and safety architecture supports demanding commercial service. For sites ready to work on long fleet vehicles, the X model provides the extra footprint without stepping to a different lifting concept.

Key features

  • 12,247 kg rated lifting capacity
  • Extended 8,014 mm runways
  • 5,842 mm rated-capacity wheelbase
  • 9,468 mm overall lift length
  • 3,899 mm overall width
  • 2,769 mm drive-through clearance
  • Heavy-duty cable/sheave and hydraulic architecture
  • Multi-position mechanical safety locks
  • Secondary slack-cable safety protection
  • Rolling bridge-jack compatibility for heavy wheel-off service

Detail photography

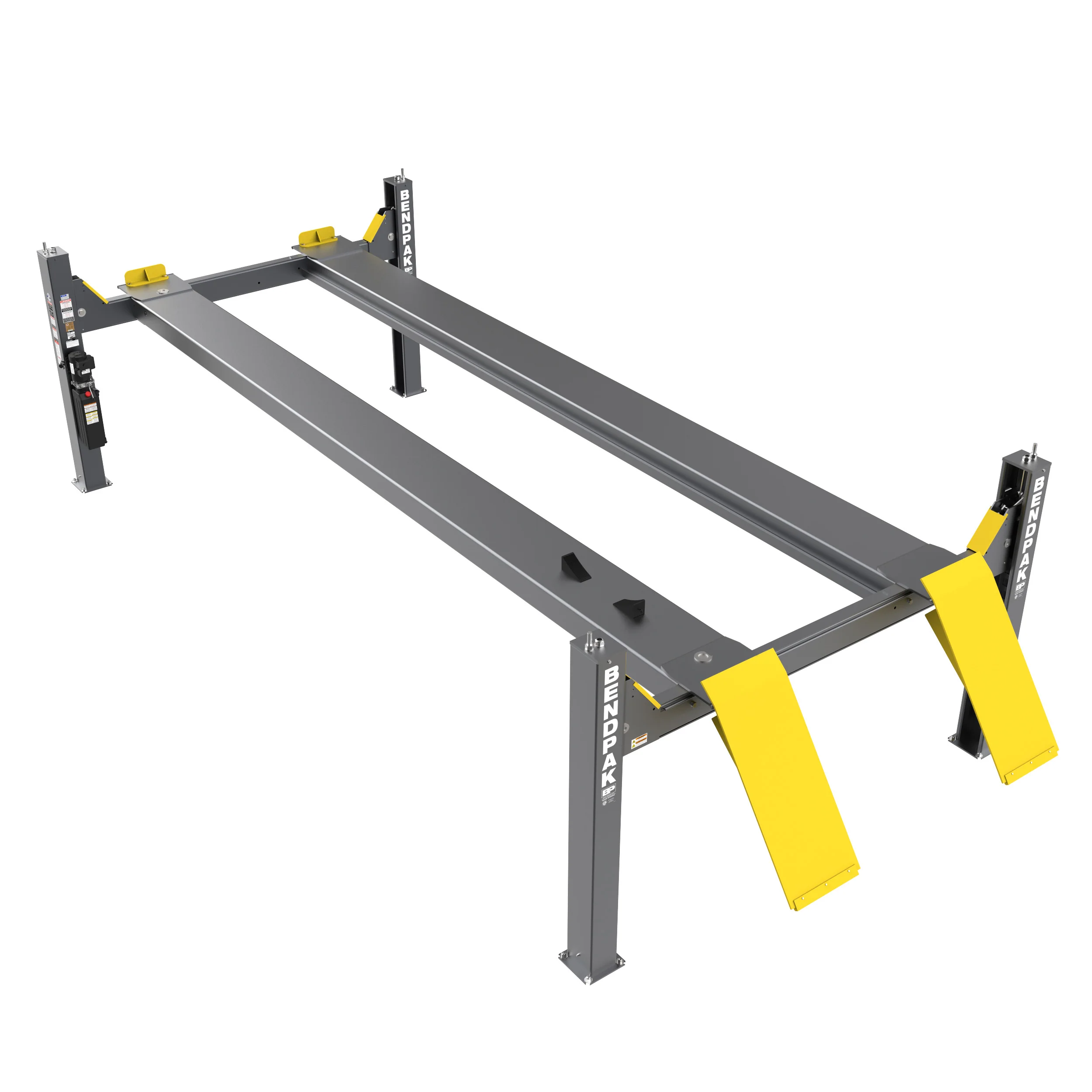

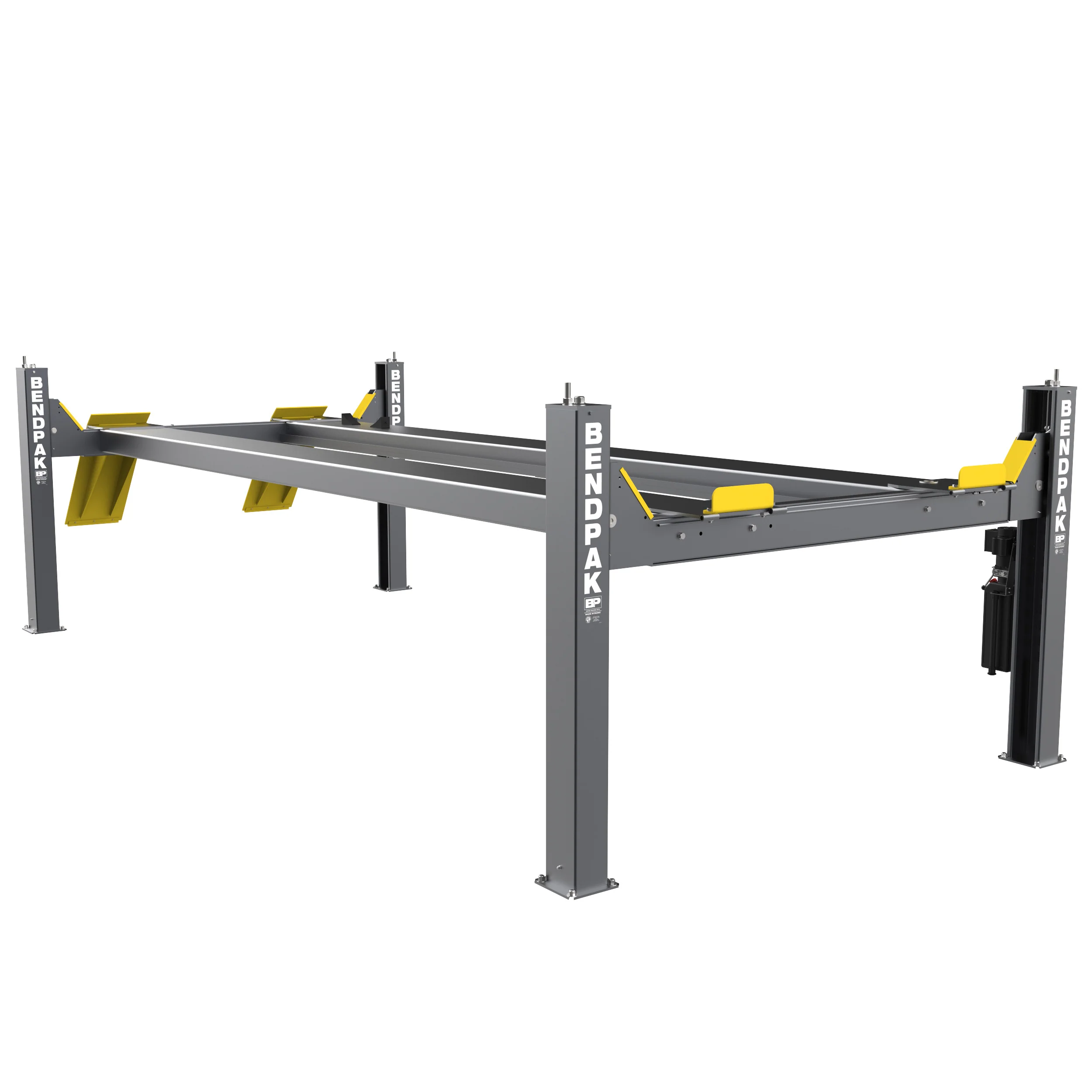

Extended commercial runway profile
Heavy-duty columns/base plates
Large sheaves and lifting cables
Under-runway hydraulic cylinder
Mechanical lock systems
Pneumatic lock release
Heavy rolling bridge jack / truck-adapter arrangement where shown

Ideal for

Long-wheelbase trucks, buses, municipal fleets, transport operators and industrial/heavy-vehicle workshops that need 12.247 t capacity plus substantially more runway length.

Specifications

Specifications

Details

Capacity
12,247 kg
Configuration
Heavy-duty commercial extended-length four-post
Overall width
3,899 mm
Overall length
9,468 mm
Drive-through clearance
2,769 mm

Factory dimension drawing

BendPak HDS27X Diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HDS27X
BendPak SKU
5175164
Rated lifting capacity
12,247 kg
Configuration
12,247 kg
Minimum runway height
241 mm
Maximum rise
1,524 mm
Maximum lifting height
1,765 mm
Time to full rise
75 seconds on current Genesis listing
Overall width
3,899 mm
Outside length
8,052 mm
Overall length
9,468 mm
Column height
2,318 mm
Width between columns
3,391 mm
Drive-through clearance
2,769 mm
Runway width
559 mm
Runway length
8,014 mm
Width between runways
1,016-1,149 mm
Minimum wheelbase / rated-capacity reference
5,842 mm at rated capacity
Locking
13 positions; 102 mm spacing
Power unit
2 HP on current manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
Extended HDS27 platform for very long commercial vehicles; minor Genesis/BendPak dimension/lock-spacing differences exist

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Heavy-duty four-post structure with columns, crossbeams, wide runways and base plates for the exact model.
  • Single hydraulic under-runway cylinder, cable equalisation system and model-specific heavy-duty sheaves/cables.
  • Multi-position spring-loaded mechanical safety locks, adjustable lock ladders and secondary slack-cable protection.
  • Pneumatic safety-lock release and protected internal routing of the principal lifting/safety components where specified.
  • Approach ramps / rear wheel stops and runway rails for compatible heavy-duty accessories.

Options

  • Compatible heavy-duty rolling bridge jack(s), correctly capacity-matched to the exact lift and vehicle application.
  • Truck/frame adapter sets for compatible rolling jacks where required.
  • Drive-through ramp configuration and model-compatible runway accessories where available.
  • Airline kit / workshop air supply for pneumatic lock release and rolling-jack operation where required.

Workshop fit

BendPak HDS27X is rated to 12,247 kg. Key published dimensions in this brief include overall width 3,899 mm, overall length 9,468 mm, runway length 8,014 mm, width between columns 3,391 mm, drive-through clearance 2,769 mm and maximum lifting height 1,765 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raisedvehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability.

Frequently asked questions

What is the main difference between HDS27 and HDS27X?
The HDS27X adds substantially longer runways and a longer full-capacity wheelbase while keeping the 12,247 kg rating.
The current BendPak manufacturer specification lists 8,014 mm.
The current manufacturer overall length is approximately 9,468 mm, so site planning and vehicle approach space are critical.
Yes, compatible heavy-duty bridge jacks can be specified for wheel-off work. Correct capacity, adapters and compressed-air provision must be confirmed.
Vehicle axle loads, wheelbase/track, bay and approach length, foundations, power/air, unloading/assembly access and the exact Australian-supplied model revision all need confirmation.

Related Pages

Two-Post Hoists

Installation

Servicing & Repairs

Spare Parts

Request a Quote

Related Products

Related products

View All Four-Post Hoists

Installation Service

Installation

Servicing & Repairs

Spare Parts

Documents

brochure

Download

manual

Download

dimension drawing

Download

Request a vehicle hoist quote

Tell us your longest/heaviest fleet vehicles, axle loads, wheelbase/track, bay and approach dimensions, foundation details, services and location and we will help assess whether the BendPak HDS27X suits the project.
