BendPak HD-9XL

4,082 kg extended-length four-post hoist with standard-width access and longer runways for longer-wheelbase vehicles, storage and service work.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak HD-9XL

4,082 kg Extended-Length Standard-Width Four-Post Hoist

4,082 kg extended-length four-post hoist with standard-width access
and longer runways for longer-wheelbase vehicles, storage and
service work.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,082 kg
Rated capacity
Standard-width extended-length four-post
Configuration
1,905 mm
Maximum lifting height
2,201 mm
Drive-through clearance

Product overview

The BendPak HD-9XL extends the HD-9 platform for vehicles that need more front-to-rear support than the standard model provides. The longer runways and 3,429 mm rated-capacity wheelbase make it a better fit for longer cars, utes and other extended wheelbase vehicles while retaining the familiar 4,082 kg capacity and standard-width bay. Open-centre access, adjustable runway spacing and accessory rails support both storag

Key features

  • 4,082 kg rated lifting capacity
  • Extended 4,629 mm runways
  • 3,429 mm rated-capacity wheelbase
  • Standard 2,800 mm overall width
  • 2,201 mm drive-through clearance
  • Adjustable runway spacing
  • Open-centre service access
  • Multi-position mechanical locks and pneumatic release
  • Secondary slack-cable safety system
  • Compatible HD-series service/storage accessories

Detail photography

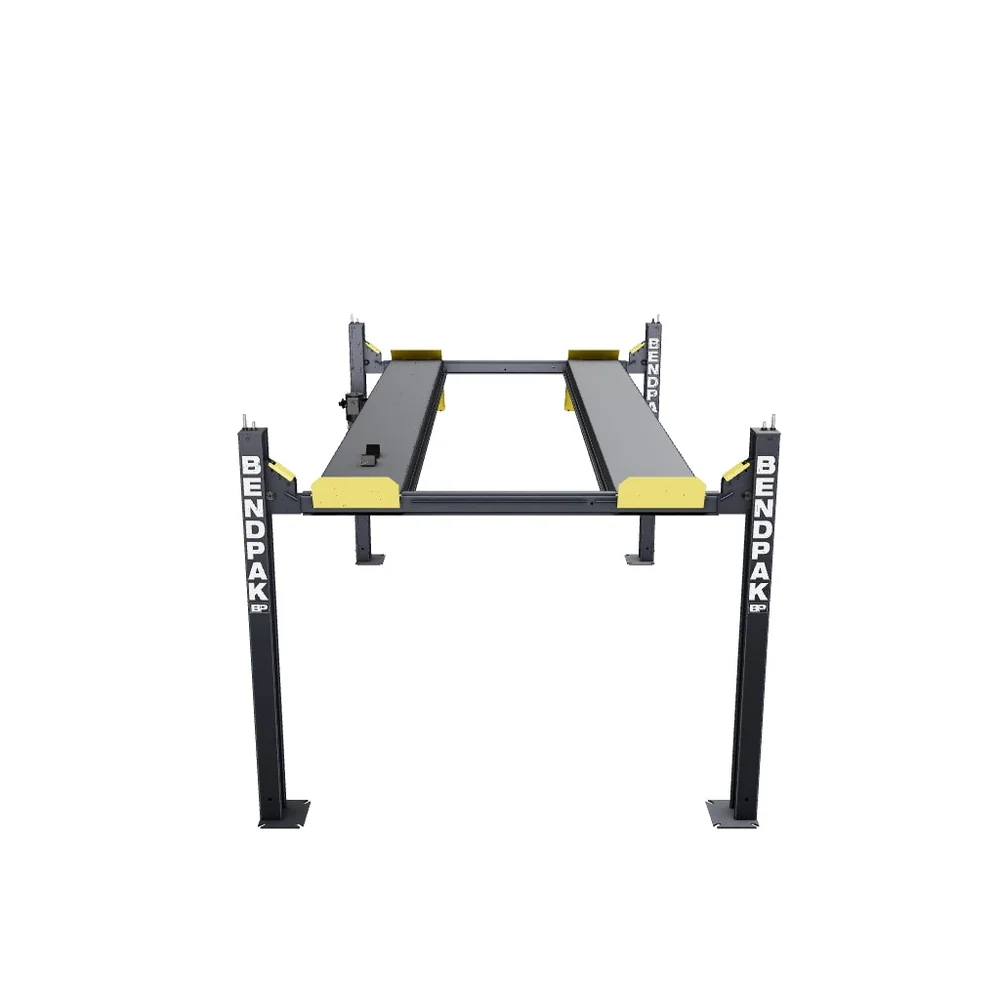

Extended runway profile
Longer-wheelbase positioning area
Approach ramps and runway spacing
Hydraulic cylinder/cable routing
Safety locks and lock ladders
Cable sheaves / anti-sway components
Optional bridge jack, caster or storage accessories where shown

Ideal for

Long-wheelbase passenger vehicles, utes, collector vehicles and workshop/storage applications that need more runway length without moving to a heavier-capacity commercial lift.

Specifications

Specifications

Details

Capacity
4,082 kg
Configuration
Standard-width extended-length four-post
Overall width
2,800 mm
Overall length
5,702 mm
Drive-through clearance
2,201 mm

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak HD-9XL
BendPak SKU
5175859
Rated lifting capacity
4,082 kg
Configuration
4,082 kg
Minimum runway height
127 mm
Maximum rise
1,778 mm
Maximum lifting height
1,905 mm
Time to full rise
50 seconds on current Genesis listing
Overall width
2,800 mm
Outside length
5,029 mm
Overall length
5,702 mm
Column height
2,235 mm
Width between columns
2,546 mm
Drive-through clearance
2,201 mm
Runway width
483 mm
Runway length
4,629 mm
Width between runways
889-1,041 mm
Minimum wheelbase / rated-capacity reference
3,429 mm at rated capacity
Lockin
14 positions; 102 mm spacing
Power unit
2 HP on current manufacturer page; Australian voltage/frequency to be confirmed before publication
Model-specific note
Extended-length HD-9 geometry for longer wheelbases

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Four-post hoist structure with four columns, crossbeams and model-specific runways.
  • Electric-hydraulic lifting system with the model-specific under-runway hydraulic cylinder and cable equalisation arrangement.
  • Multi-position mechanical safety locks, adjustable lock ladders and secondary slack-cable safety protection where specified for the exact model.
  • Push-button pneumatic safety-lock release system where specified for the exact model.
  • Approach ramps / wheel stops and runway accessory rails as supplied with the Australian configuration.

Options

  • Compatible rolling bridge jack(s) for wheel-off service, subject to exact model capacity and Australian availability.
  • Drip trays, rolling drain pan, jack platform and/or solid deck accessories where compatible with the exact model.
  • Portable wheel/caster kit on compatible HD-series models only.
  • Drive-through or alternative approach-ramp configuration where approved for the exact model.

Workshop fit

BendPak HD-9XL is rated to 4,082 kg. Key published dimensions in this brief include overall width 2,800 mm, overall length 5,702 mm, runway length 4,629 mm, width between columns 2,546 mm, drive-through clearance 2,201 mm and maximum lifting height 1,905 mm. Confirm actual vehicle mass and axle loads, wheelbase/track, tyre/runway positioning, approach clearance, raised vehicle height, bay width/length/ceiling, slab/foundation requirements, electrical supply, compressed-air requirements, unloading/assembly access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability.

Frequently asked questions

What does XL mean on this model?
It denotes the extended-length HD-9 layout, with longer runways and a greater rated-capacity wheelbase than the standard HD-9.
The current manufacturer specification lists 3,429 mm at full rated capacity.
Yes. The open-centre design provides under-vehicle access and compatible bridge jacks can add wheel-off capability.
The current manufacturer data gives approximately 2,201 mm drive-through clearance.
Confirm the longer bay footprint, approach clearance, ceiling, vehicle dimensions, slab/foundation, power/air services and unloading access.
