Iron Lift MONARCH 65HDA

Extended 6,500 kg heavy-duty alignment four-post hoist with 5,816 mm runways for long-wheelbase commercial vehicles and highcapacity alignment bays.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
Iron Lift MONARCH 65HDA
Iron Lift MONARCH 65HDA

Clear-floor two-post

Iron Lift MONARCH 65HDA

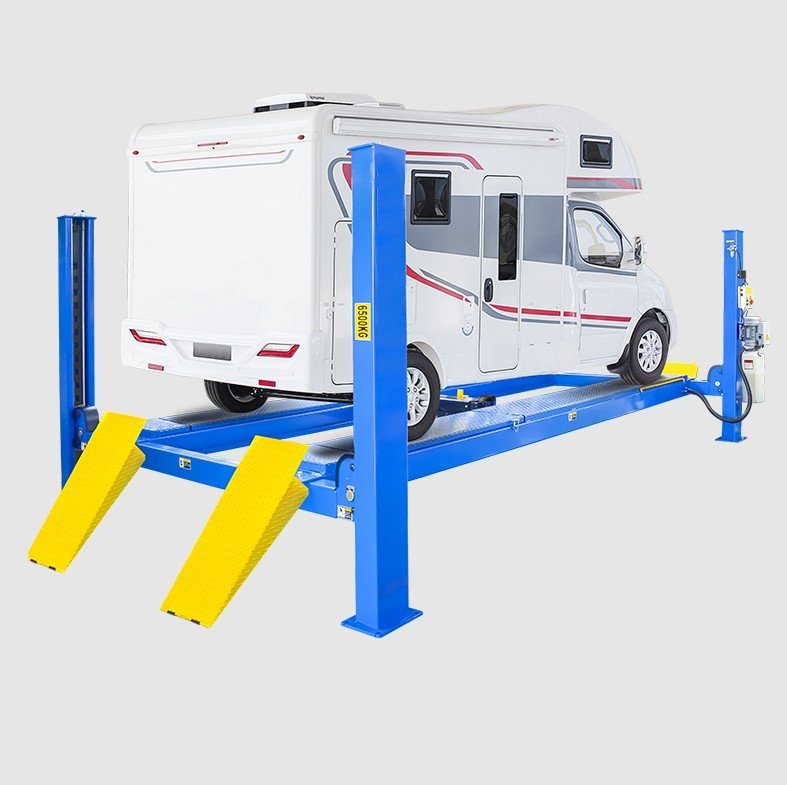

6,500 kg Extended heavy-duty Alignment Four-Post Hoist

Extended 6,500 kg heavy-duty alignment four-post hoist with 5,816
mm runways for long-wheelbase commercial vehicles and highcapacity alignment bays.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
6,500 kg
Rated capacity
5,816 mm
Runway length
1,970 mm
Maximum lifting height
4,501 mm
Maximum four-wheel alignment

Product overview

The Iron Lift MONARCH 65HDA is the extended heavy-duty alignment model in the MONARCH range. Its 5,816 mm runways are 724 mm longer than the source model’s standard 6.5 tonne alignment platform, giving workshops extra length for long-wheelbase commercial vehicles. A 6,500 kg rating, 2,946 mm between columns and published four-wheel alignment coverage up to 4,501 mm make this a serious alignment platform for fleet, transport and specialist commercial workshops. MONARCH 65HDA is intended for facilities that need alignment capability across heavier and longer vehicles rather than simply a higher-capacity passenger-vehicle bay.

Key features

  • 6,500 kg rated lifting capacity
  • Extended heavy-duty alignment configuration
  • 5,816 mm runway length
  • Overall length 7,252 mm including ramps
  • Four-wheel alignment wheelbase up to 4,501 mm
  • Two-wheel alignment wheelbase up to 5,259 mm
  • Adjustable turnplate pockets
  • Integrated non-slip diamond runways
  • Mechanical safety locks with air-operated release and cable-slack protection
  • Optional 3,500 kg rolling jack

Detail photography

UP / LOCK / DOWN control unit
Mechanical safety-lock system and air-release detail

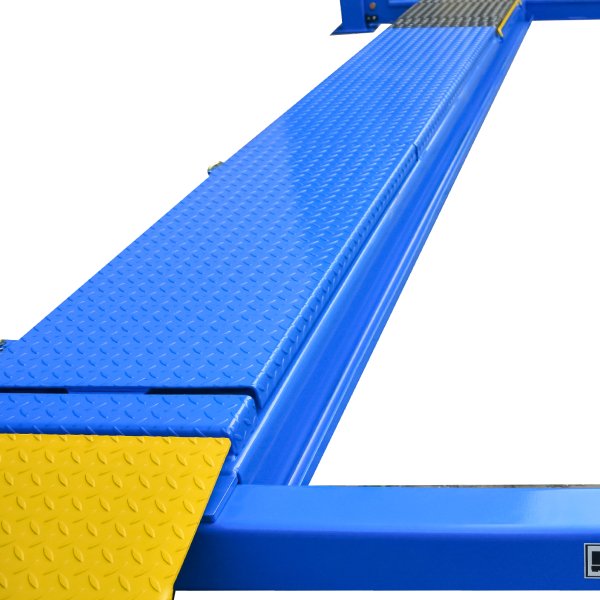

Runway/platform surface and runway-adjustment detail
Crossbeam, cable and secondary safety detail
Hydraulic power unit / lifting-system detail

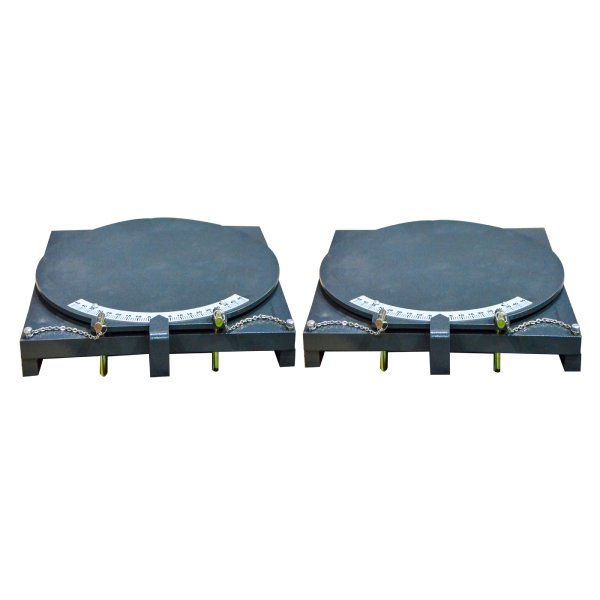

Adjustable turnplate pocket / turnplate area
Rear slip-plate / alignment runway detail where shown
Heavy-duty runway / crossbeam construction detail
Wheel-free service accessory interface where shown

Ideal for

Fleet alignment centres, transport workshops, commercial tyre and suspension facilities, bus/van/motorhome service operations and heavy workshop fit-outs requiring long-wheelbase alignment coverage.

Specifications

Specifications

Details

Capacity
6,500 kg
Configuration
Extended heavy-duty alignment four-post
Runway length
5,816 mm
Overall width
3,324 mm
Drive-through clearance
2,592 mm
Motor
3.0 HP

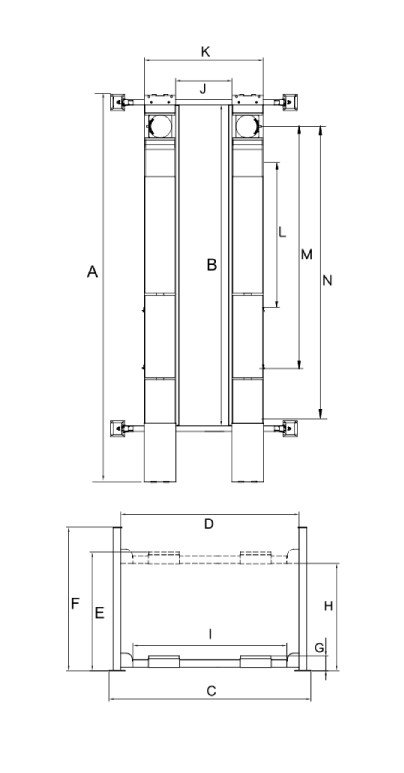

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
6,500 kg
Lifting time
81 sec
Overall length including ramps
7,252 mm
Runway length
7,252 mm
Overall width
3,324 mm
Width between columns
2,946 mm
Maximum lifting height
1,970 mm
Maximum lock height
1,890 mm
Overall height
2,189 mm
Minimum runway height
250 mm
Maximum underneath height
1,750 mm
Maximum underneath lock height
1,670 mm
Drive-through clearance
2,592 mm
Width between runways
1,168 mm
Outside edge of runways
2,184 mm
Minimum four-wheel alignment wheelbase
2,353 mm
Maximum four-wheel alignment wheelbase
4,501 mm
Maximum two-wheel alignment wheelbase
5,259 mm
Gross weight
Approx. 1,653 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Extended heavy-duty alignment four-post frame and 5,816 mm runways
  • Adjustable turnplate pockets / blocks
  • Integrated non-slip diamond runway surfaces
  • Electric UP / LOCK / DOWN controls
  • Mechanical safety locks with air-operated release

Options

  • 660 mm platform extension kit - source kit 41403
  • Adjustable blocks for extension kit - source kit 40905
  • Turnplate set - source kit 40101
  • Air-line kit for rolling-jack use - source kit 40102

Workshop fit

The 7,252 mm overall length makes workshop planning critical. Confirm clear bay length, door position, alignment machine location and vehicle approach before selection. Vehicle total mass, axle loads, wheelbase, track width and tyre position must all fit within the published envelope. The source gives a 2,353-4,501 mm four-wheel alignment range and up to 5,259 mm for two-wheel alignment. Verify slab/anchors, power, air and offload access for the heavy platform.

Frequently asked questions

Why is MONARCH 65HDA called the extended model?
Its 5,816 mm runways are substantially longer than the standard 6.5 tonne alignment platform, giving more coverage for longwheelbase commercial vehicles.
2,353 mm minimum to 4,501 mm maximum.
5,259 mm.
Yes. The source lists the 3,500 kg RJ-8A pneumatic-hydraulic rolling jack.
Because of its size and vehicle class, confirm the actual fleet dimensions/loads, available bay length and width, alignment equipment, slab, utilities and delivery access.
