Iron Lift MONARCH 40A

4,000 kg alignment four-post hoist with adjustable runway spacing, turnplate pockets and a professional drive-on platform for wheelalignment and general service bays.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
Iron Lift MONARCH 40A
Iron Lift MONARCH 40A

Clear-floor two-post

Iron Lift MONARCH 40A

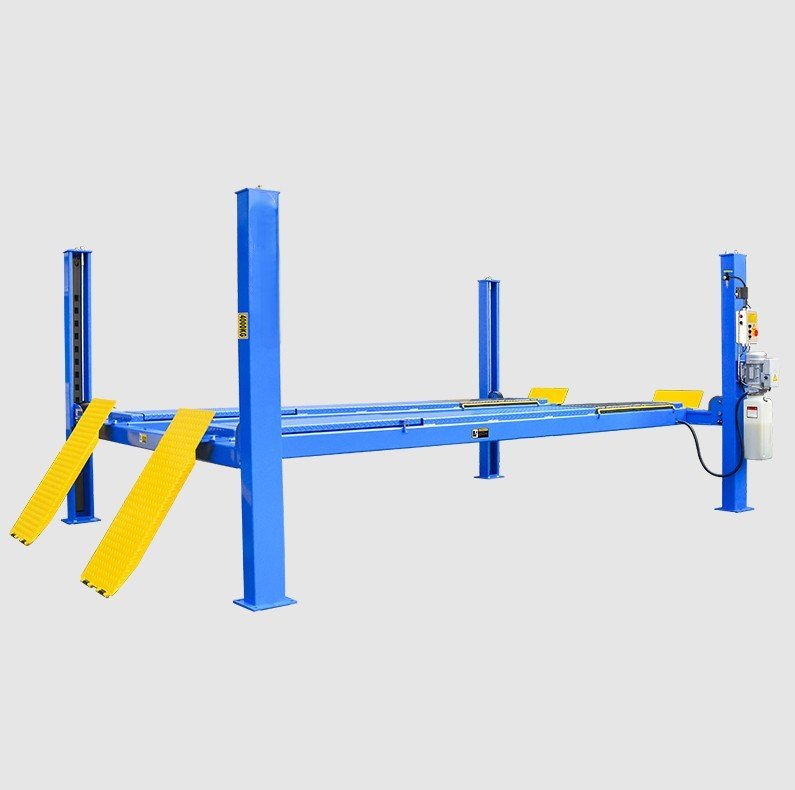

4,000 kg Alignment Four-Post Hoist

4,000 kg alignment four-post hoist with adjustable runway spacing,
turnplate pockets and a professional drive-on platform for wheelalignment and general service bays.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,000 kg
Rated capacity
1,940 mm
Maximum lifting height
4,242 mm
Runway length
2,498 mm
Drive-through clearance

Product overview

The Iron Lift MONARCH 40A brings wheel-alignment capability into the 4,000 kg MONARCH platform. It retains the practical four-post drive-on format while adding alignment-specific runway geometry and adjustable turnplate pockets for different wheelbases. The runways can be positioned across a 900-1,292 mm spacing range, allowing the bay to be configured for a broad mix of passenger vehicles and light commercial work. A 4,242 mm runway length and published alignment wheelbase range make the MONARCH 40A a strong fit for workshops that want one bay to support both inspection and alignment work. This model is intended as the alignment counterpart to MONARCH 40, giving workshops a consistent 4,000 kg platform with additional alignment functionality.

Key features

  • 4,000 kg rated lifting capacity
  • Alignment-specific four-post configuration
  • 4,242 mm runways
  • Adjustable turnplate pockets for different wheelbases
  • Stepless adjustable runway spacing
  • Integrated non-slip diamond runways
  • 24 V control system
  • Mechanical self-locking safety system with air-operated release
  • Primary safety locks plus cable-slack protection
  • Optional rolling jacks for wheel-free alignment and service work

Detail photography

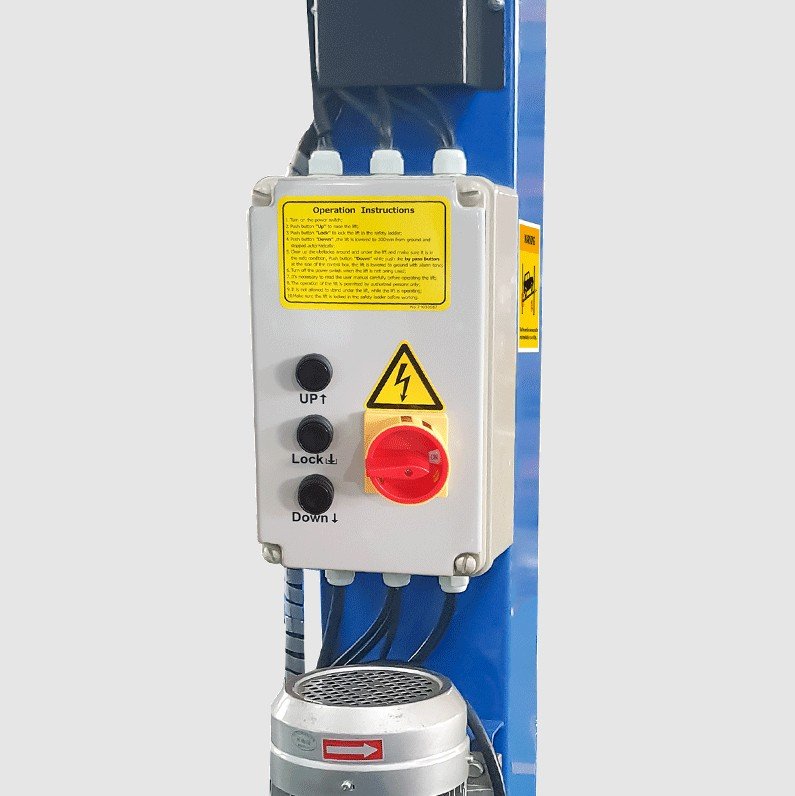

UP / LOCK / DOWN control unit
Mechanical safety-lock system and air-release detail

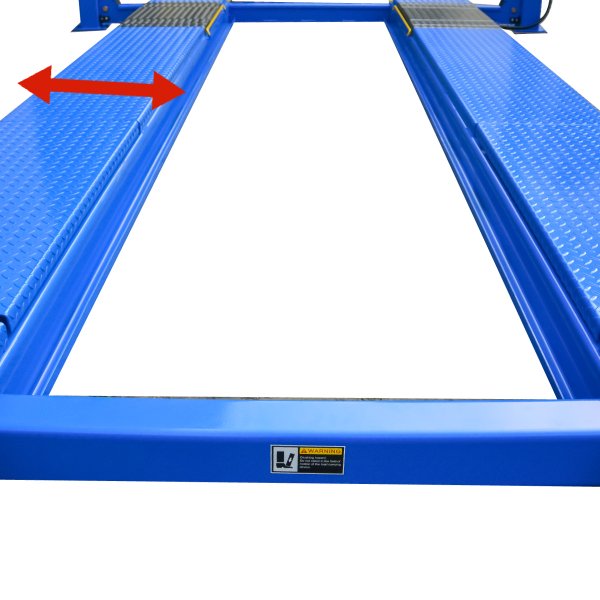

Runway/platform surface and runway-adjustment detail
Crossbeam, cable and secondary safety detail
Hydraulic power unit / lifting-system detail

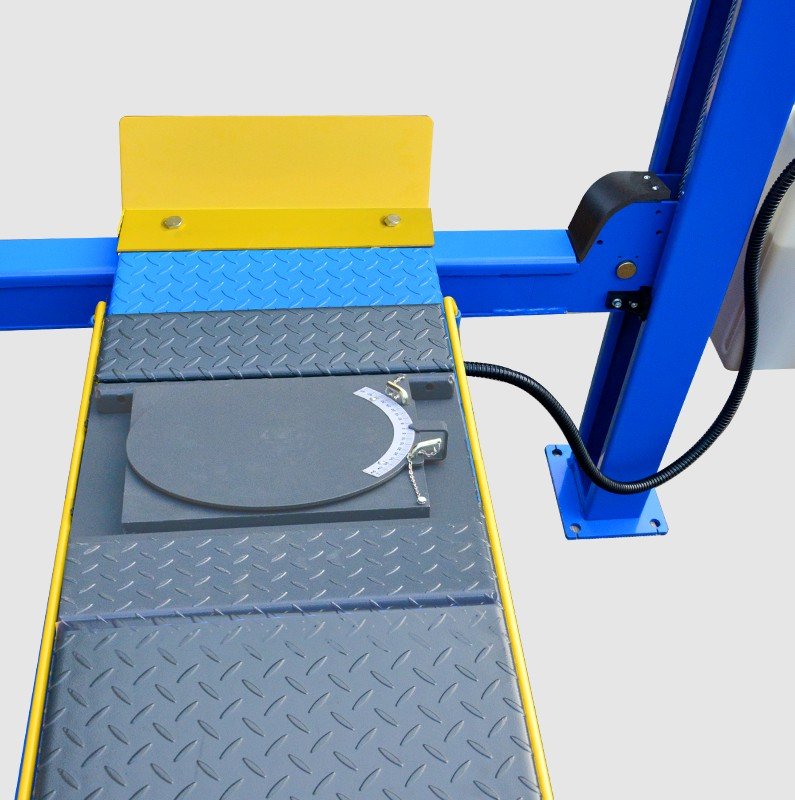

Adjustable turnplate pocket / turnplate area
Rear slip-plate / alignment runway detail where shown
Lifting-system detail
Wheel-free service accessory interface where shown

Ideal for

Wheel-alignment centres, tyre and suspension workshops, dealerships, general mechanical workshops and fleet service bays needing a 4,000 kg alignment platform.

Specifications

Specifications

Details

Capacity
4,000 kg
Configuration
Alignment four-post
Overall height
2,185 mm
Overall width
3,208 mm
Drive-through clearance
2,498 mm
Motor
3.0 HP

Factory dimension drawing

Iron Lift MONARCH 40 Diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
4,000 kg
Lifting time
45 sec
Overall length including ramps
5,512 mm
Runway length
5,512 mm
Overall width
3,208 mm
Width between columns
2,852 mm
Maximum lifting height
1,940 mm
Maximum lock height
1,860 mm
Overall height
2,185 mm
Minimum runway height
220 mm
Maximum underneath height
1,750 mm
Maximum underneath lock height
1,670 mm
Drive-through clearance
2,498 mm
Width between runways
900-1,292 mm adjustable; nominal 1,100 mm
Outside edge of runways
1,916-2,308 mm adjustable; nominal 2,116 mm
Minimum four-wheel alignment wheelbase
2,004 mm
Maximum four-wheel alignment wheelbase
3,652 mm
Maximum two-wheel alignment wheelbase
3,686 mm
Gross weight
Approx. 1,142 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Alignment four-post structure, crossbeams and runways
  • Adjustable turnplate pockets / blocks
  • Integrated non-slip diamond runway surfaces
  • Electric control device with UP / LOCK / DOWN functions
  • Mechanical safety-lock system with air-operated release

Options

  • 660 mm platform extension kit - source kit 40903
  • Adjustable blocks for use with extension kit - source kit 40905
  • Turnplate set - source kit 40101

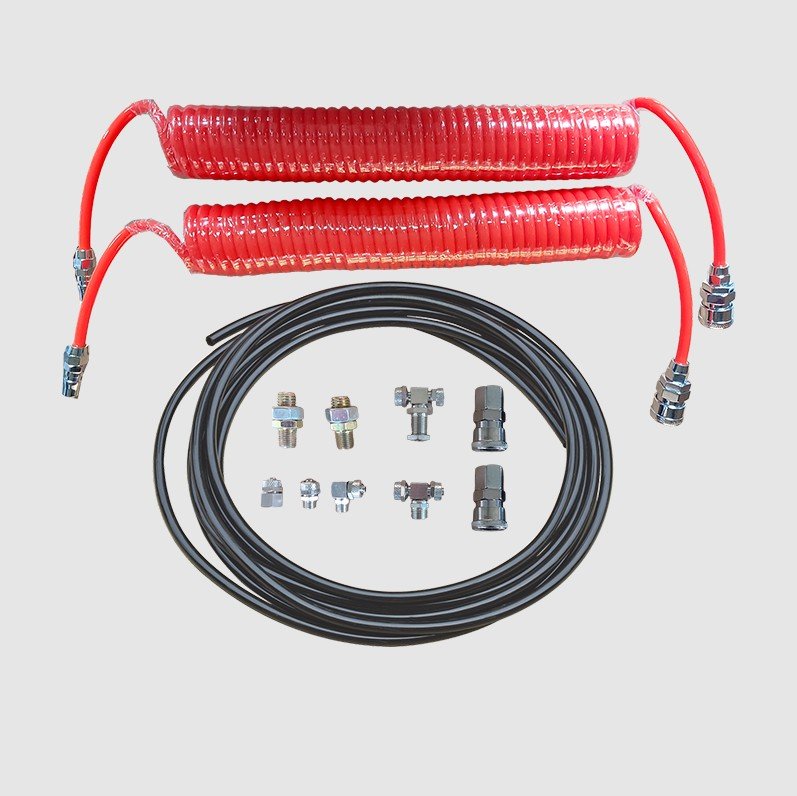

  • Air-line kit for rolling-jack use - source kit 40102

Workshop fit

Check the vehicle wheelbase against the published alignment range, vehicle track width against the adjustable runway spacing, and total/axle loads before use. Allow for 5,512 mm overall length including ramps, 3,208 mm overall width and 2,185 mm overall height, plus working space around the alignment equipment and vehicle. Site slab, anchoring, electrical, air and access requirements must be confirmed before installation.

Frequently asked questions

How is MONARCH 40A different from MONARCH 40?
MONARCH 40A is the alignment version, adding alignment runway geometry and adjustable turnplate pockets while retaining the same 4,000 kg capacity class.
The source lists 2,004 mm minimum to 3,652 mm maximum for four-wheel alignment, with up to 3,686 mm for two-wheel alignment.
The PEAK source lists turnplates as an option, so they should only be included in a quote when specified.

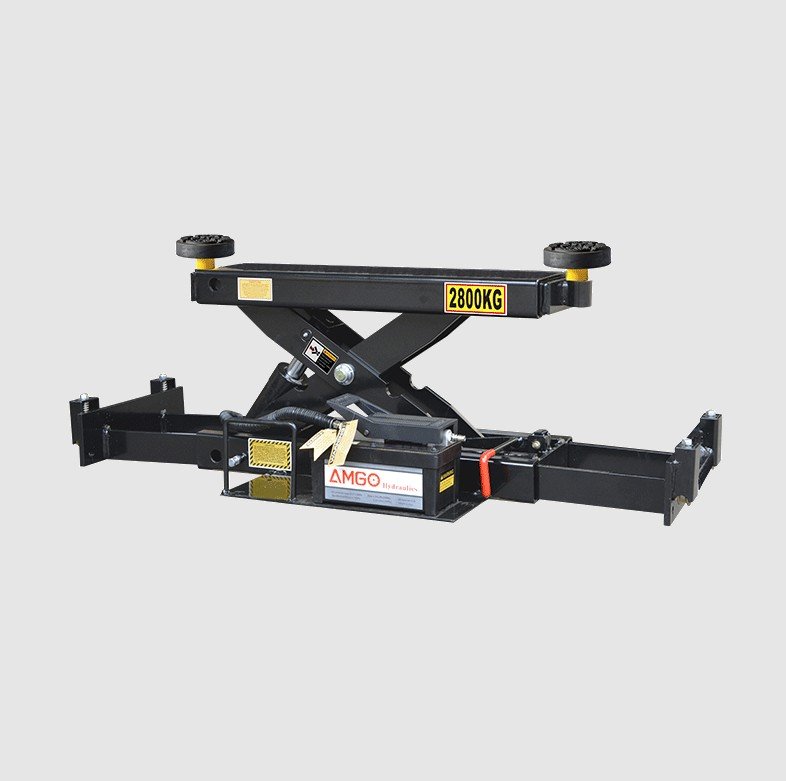

Yes. Compatible 2,800 kg manual or pneumatic-hydraulic rolling jacks are listed as options.
Yes. Send the vehicle mix, wheelbase range, aligner details, bay dimensions and site information so the complete bay can be checked.
