BendPak SP-7XE

Surface-mounted 3,175 kg full-rise scissor lift with 1,791 mm lifting height, open-centre access and no permanent side columns.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak SP-7XE

3,175 kg Surface-Mount Full-Rise Scissor Lift

Surface-mounted 3,175 kg full-rise scissor lift with 1,791 mm lifting height, open-centre access and no permanent side columns.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
3,175 kg
Rated capacity
Surface full-rise
Configuration
1,791 mm
Maximum lifting height
165 mm
Lowered / installation profile

Product overview

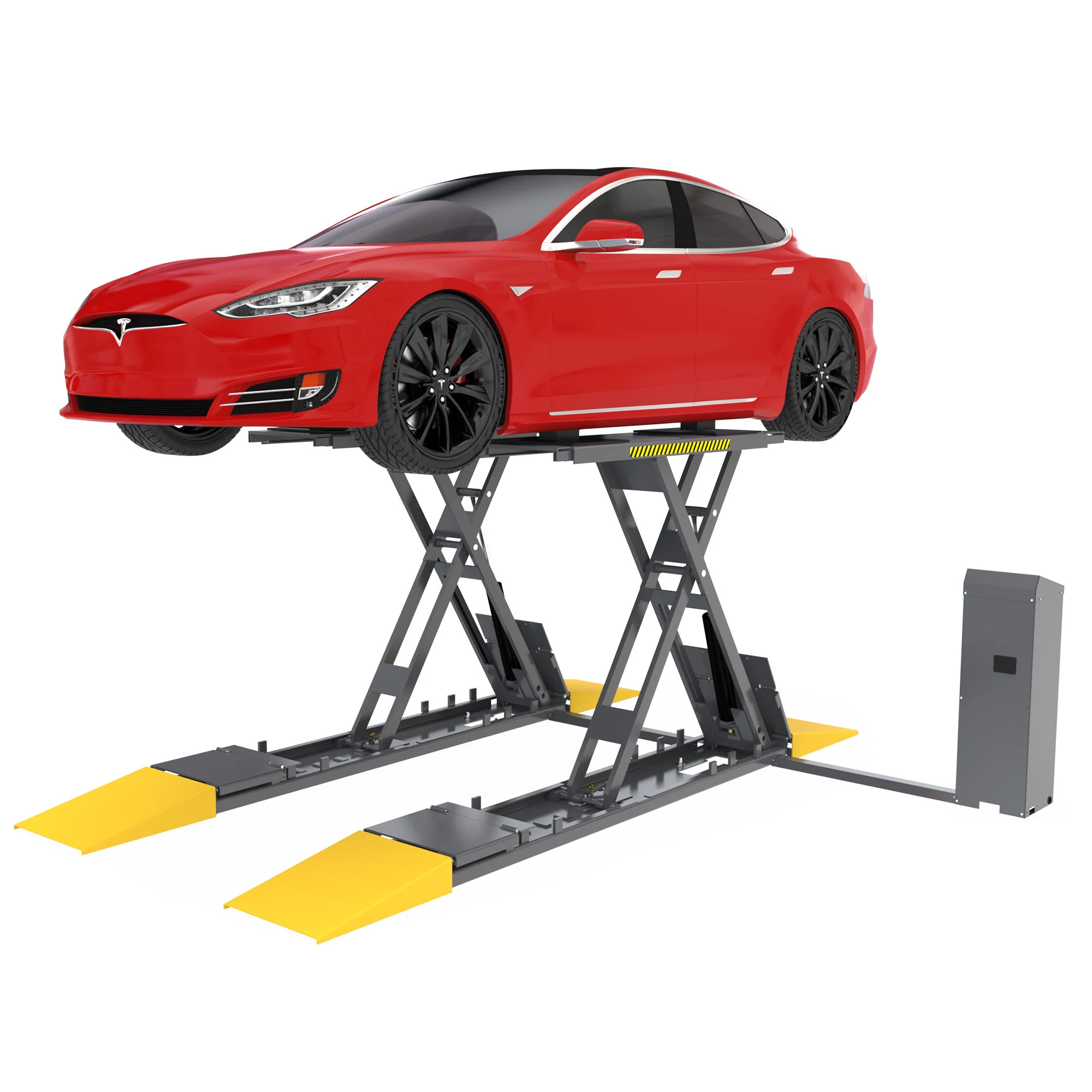

The BendPak SP-7XE is the surface-mounted full-rise option in the current scissor range. It provides approximately 1.79 metres of lifting height without the side columns of a conventional two-post hoist, giving technicians open access around doors, sills and vehicle sides. The full-rise geometry makes it suitable for a broader range of underbody service than the mid-rise models, while the open-centre arrangement reduces obstruction through the centreline. For workshops wanting full-rise scissor capability without constructing a recessed pit, the SP-7XE is the logical counterpart to the flush-mounted SP-7XEF.

Key features

  • 3,175 kg rated lifting capacity
  • Surface-mounted full-rise scissor design
  • 1,791 mm published maximum lifting height
  • Open-centre working access
  • No permanent side columns
  • Dual-cylinder hydraulic design
  • Pneumatic mechanical safety locks
  • Two published locking heights
  • Heavy formed base frame and hardened pivot points
  • Optional BendPak SP-7X arm kit available

Detail photography

Surface-mount approach/ramp geometry

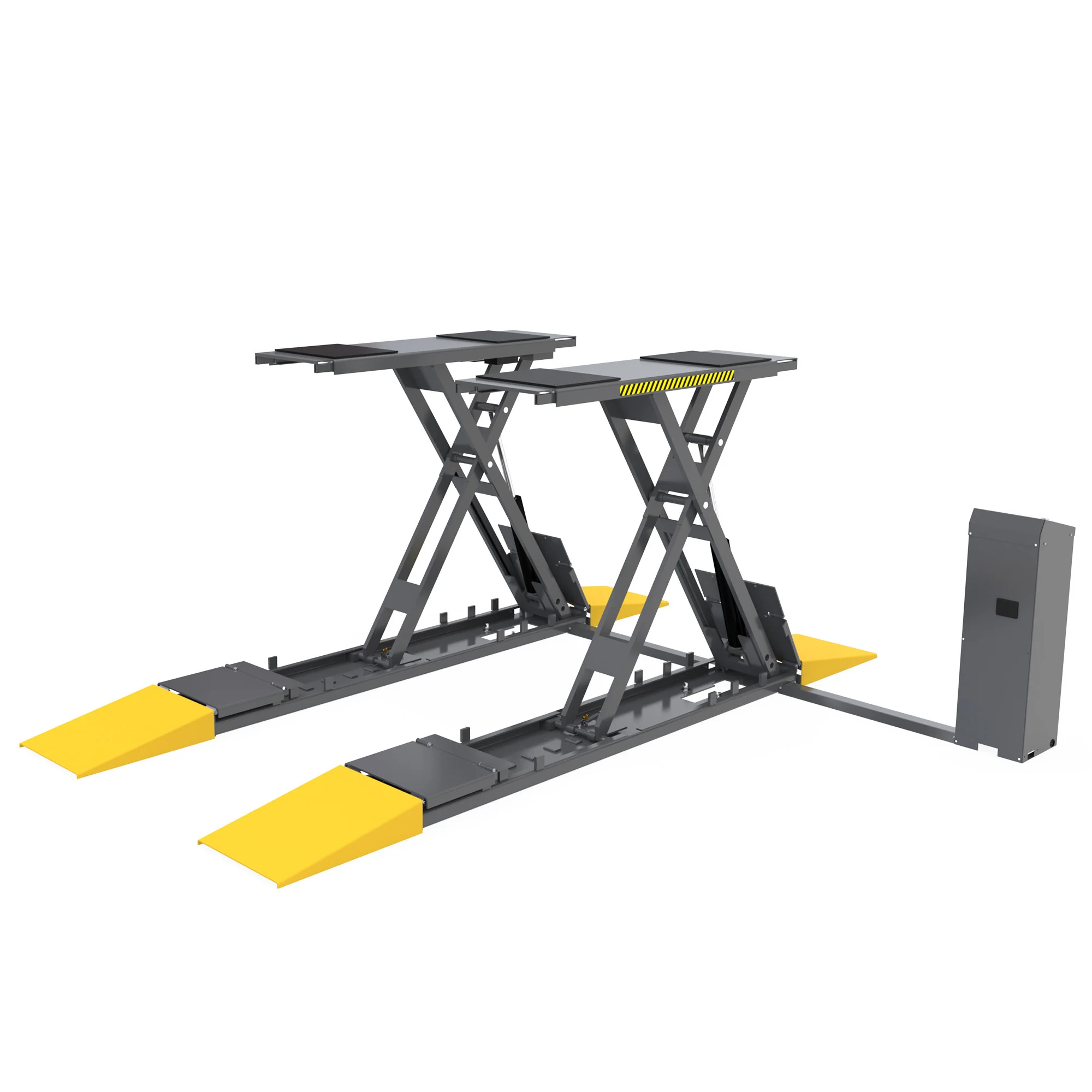

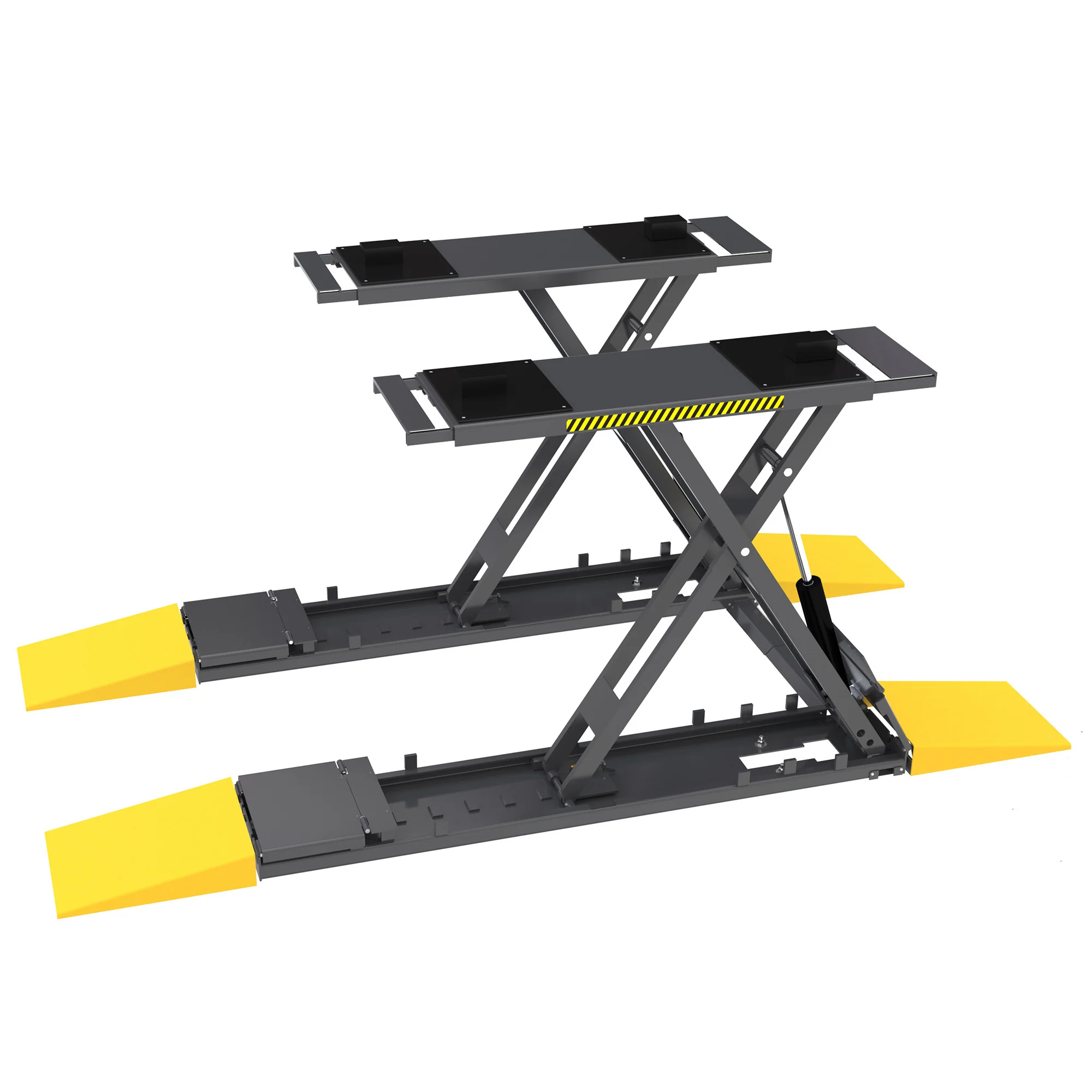

Full-rise scissor assemblies
Open-centre working space
Hydraulic cylinders
Pneumatic safety locks/release
Pivot pins and grease fittings
Control console

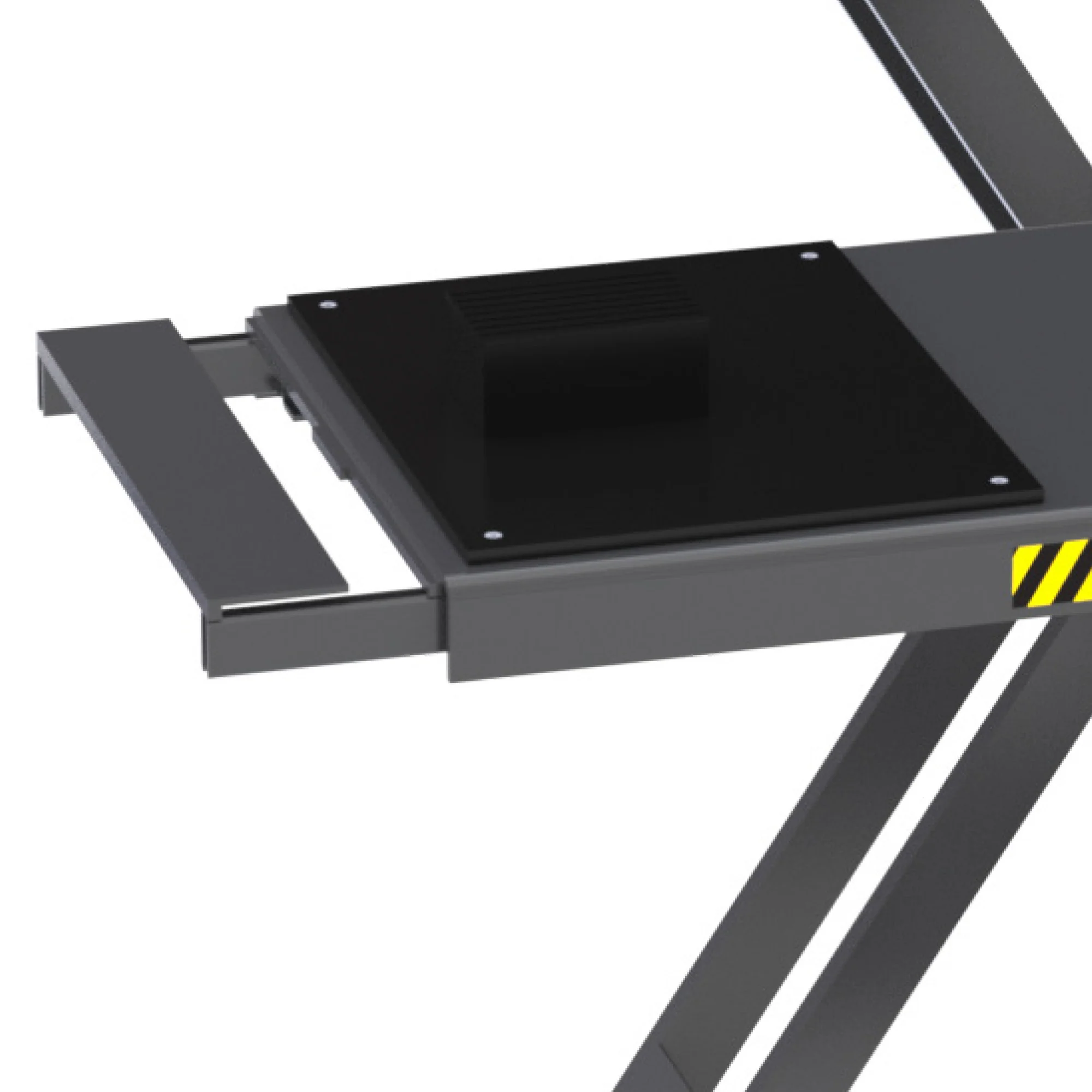

Optional SP-7X arm kit

Ideal for

Mechanical and performance workshops, dealerships, collision/body facilities and service centres wanting full-rise underbody access without excavating for a flush-mount lift or installing tall side columns.

Specifications

Specifications

Details

Capacity
3,175 kg
Configuration
Surface-mount full-rise open-centre scissor lift
Rise class
Full-rise
Maximum lifting height
1,791 mm
Installation type
Surface-mount

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak SP-7XE
BendPak SKU
5175424
Rated lifting capacity
3,175 kg
Rise class
3,175 kg
Configuration
Surface-mount full-rise open-centre scissor lift
Installation type
Surface-mount
Maximum lifting height
1,791 mm
Maximum height with blocks / adapters
Vehicle contact pads / optional arm kit affect pick-up point; follow exact manual
Lowered / floor profile
165 mm
Published lifting time
60 seconds
Published locking positions
622 mm / 1,772 mm
Platform / pad dimensions
Approx. 1,588 x 559 mm per platform
Overall / working length
Approx. 4,191 mm overall
Platform spacing / width reference
Width between platforms approx. 965 mm
Width between platforms
965 mm
Motor
1.5 HP
Electrical configuration
Current US page: 208-240 V, 50/60 Hz, 1-phase. Confirm Australiansupplied electrical configuration before publication.
Air / pneumatic requirement
Pneumatic safety locks/release; confirm exact Australian workshop-air requirement from the current manual/configuration.
Shipping / supplied-revision reference
Approx. 1,135 kg on current manufacturer page; verify Australian supplied revision.
Australian publication rule
Confirm exact Genesis/Iron Lift Australian supplied revision, electrical configuration, manuals and availability before live publication.

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • SP-7XE surface-mount twin scissor/platform assemblies.
  • Hydraulic lifting system and control/power unit.
  • Pneumatic mechanical safety-lock system.
  • Vehicle contact pads/ramp components supplied with the exact configuration.
  • Model-specific installation/operation and safety documentation.

Options

  • BendPak SP-7X arm kit where compatible with intended vehicles.
  • Approved vehicle contact pads/adapters.
  • Replacement hydraulic, pneumatic, lock and pivot parts.
  • Installation/commissioning and bay-layout review.

Workshop fit

BendPak SP-7XE is rated to 3,175 kg and is a surface-mount full-rise open-centre scissor lift. Published maximum lift is 1,791 mm; installation profile is surface-mount. Confirm vehicle mass and weight distribution, manufacturer-approved lifting points, ground clearance, track/wheelbase or pad reach, workshop bay dimensions, overhead clearance at full lift, electrical and pneumatic services, and the exact slab/foundation/recess requirements before supply or installation. Rated capacity alone does not establish vehicle suitability. For flush-mount products, the site recess/pit must be built to the exact supplied manual/revision – never from a generic scissor-lift drawing.

Frequently asked questions

How high does the SP-7XE lift?
The current BendPak manufacturer page lists a maximum lifting height of 1,791 mm.
SP-7XE is surface-mounted, while SP-7XEF is recessed/flush-mounted.
It provides much greater standing-height underbody access than a mid-rise lift, but the scissor/platform structures still occupy areas beneath the vehicle. Suitability depends on the work being performed.
BendPak lists an SP-7X arm kit as an option. The exact vehicle and lift-point application should be checked before specifying it.
An exact current Genesis product page was not located. Do not publish stock/availability claims until Genesis/Iron Lift confirms the Australian supply arrangement.

Related Pages

Two-Post Hoists

Installation

Servicing & Repairs

Spare Parts

Request a Quote

Related Products

Related products

View All Scissor Hoists

Installation Service

Installation

Servicing & Repairs

Spare Parts

Documents

brochure

Download

manual

Download

dimension drawing

Download

Request a vehicle hoist quote

Tell us your vehicle mix, bay dimensions, available floor/approach space, required working height, power/air services and location and we will help assess whether the BendPak SP-7XE is the right full-rise scissor option.
