BendPak MDS-6EXT

Extended-platform 2,722 kg open-centre mid-rise scissor lift designed to reach wider lifting-point spreads and longer-wheelbase vehicles.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

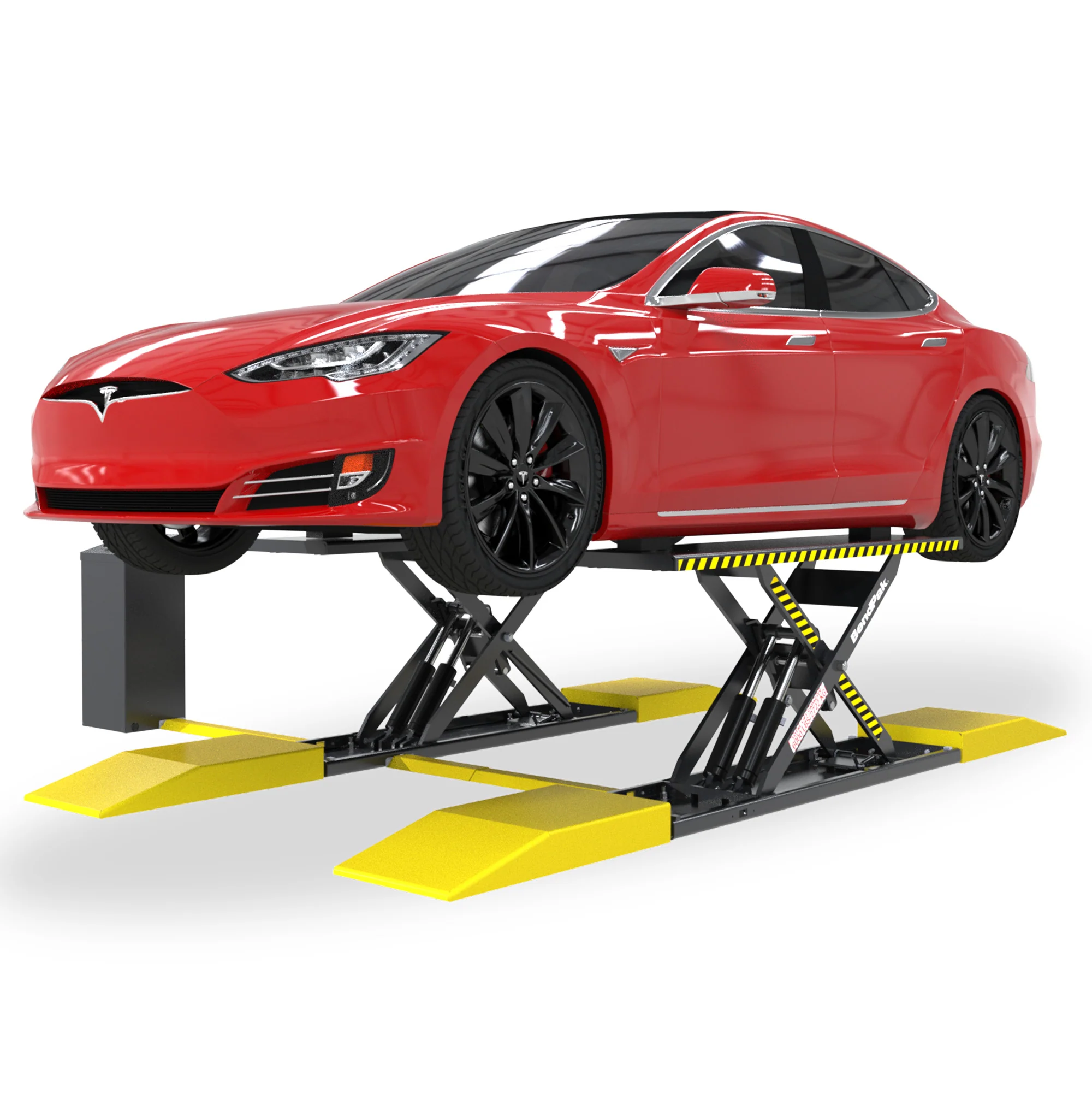

BendPak MDS-6EXT Iron lift
BendPak MDS-6EXT Iron lift

Clear-floor two-post

BendPak MDS-6EXT

2,722 kg Extended Open-Centre Mid-Rise Scissor Lift

Extended-platform 2,722 kg open-centre mid-rise scissor lift designed to reach wider lifting-point spreads and longer-wheelbase vehicles.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
2,722 kg
Rated capacity
Extended mid-rise
Configuration
933 mm
Maximum lifting height
133 mm
Lowered / installation profile

Product overview

The BendPak MDS-6EXT extends the MDS open-centre concept for workshops that regularly encounter longer wheelbases or lifting points positioned farther apart. Its platforms are approximately 2,000 mm long, giving more reach than the standard MDS-6LP while retaining the open-centre working area. Pneumatic assistance helps the lift through its initial travel from the low position, and four hydraulic cylinders support balanced platform movement. It is a practical choice where a compact mid-rise system is preferred but standard platform length is too restrictive for the vehicles being serviced.

Key features

  • 2,722 kg rated lifting capacity
  • Extended platform length of about 1,999 mm
  • Open-centre configuration
  • Designed for longer lift-point spreads and longer-wheelbase applications
  • Four hydraulic cylinders and flow-divider arrangement
  • Pneumatic kicker assist from the collapsed position
  • Pneumatic safety-lock release
  • Two published mechanical locking heights
  • Adjustable 1,016-1,168 mm platform spacing
  • 35-second published lifting time

Detail photography

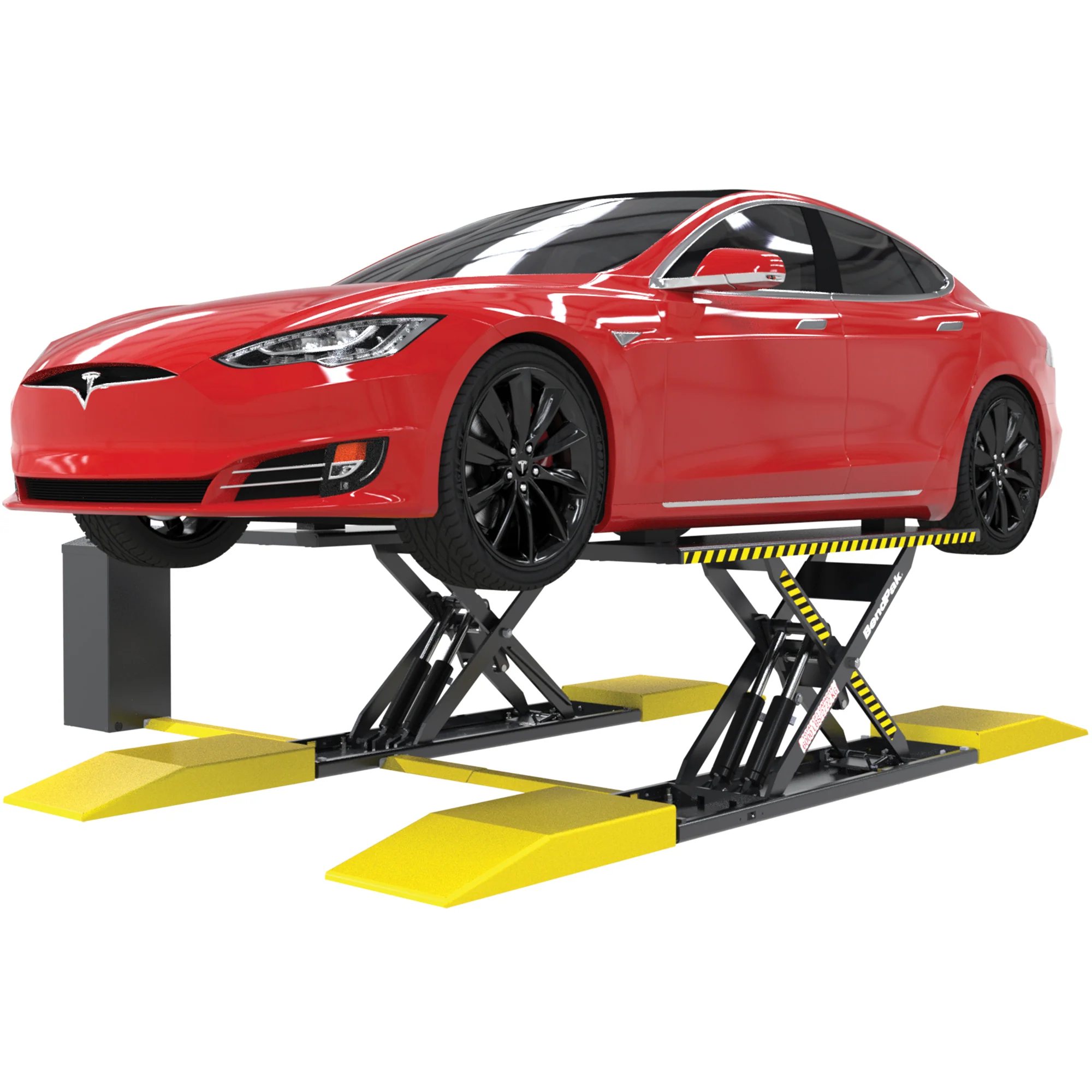

Extended platforms and lift-point reach

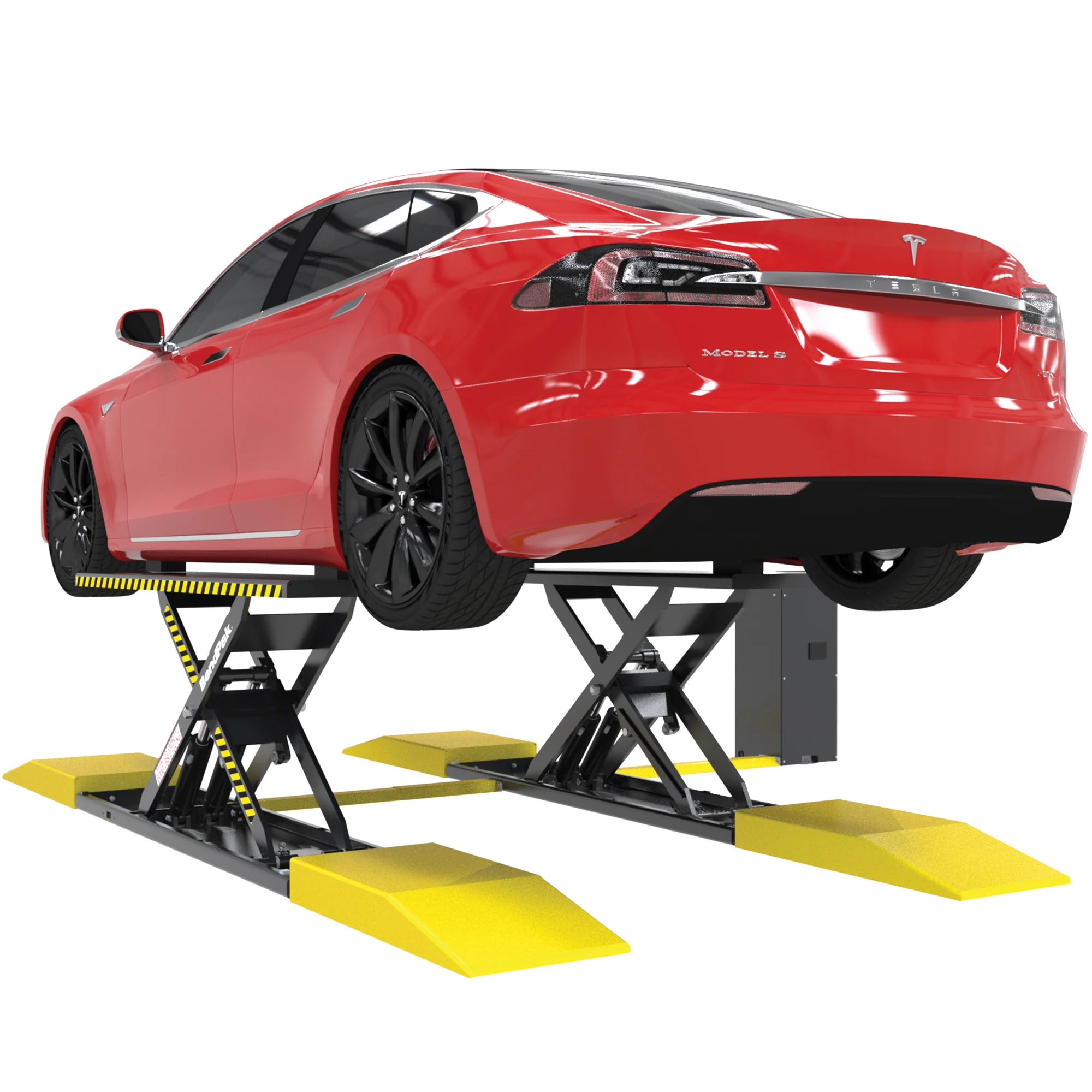

Open-centre service access
Pneumatic kicker system

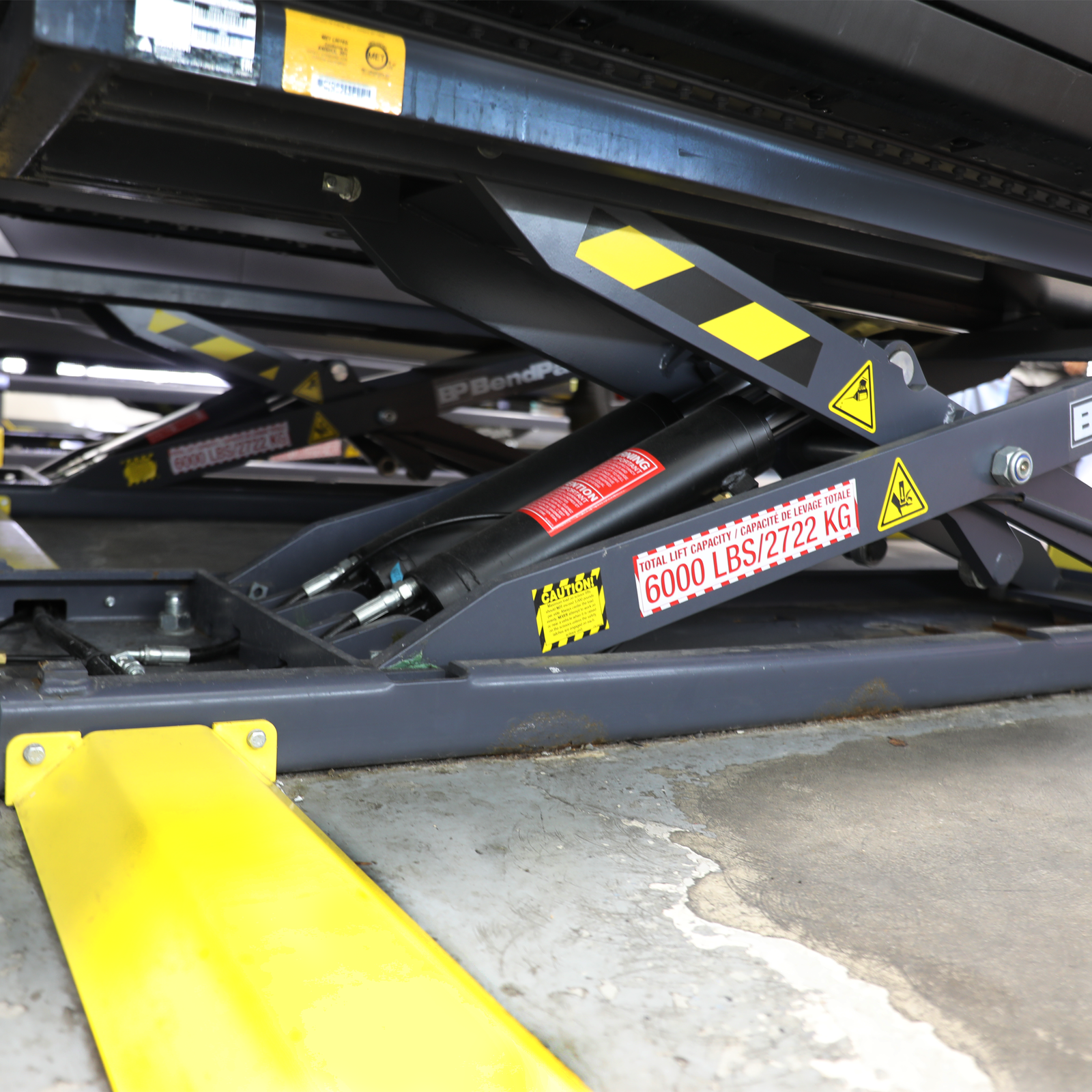

Four-cylinder hydraulic arrangement
Mechanical safety locks
Pneumatic lock release
BendPak MDS-6EXT Iron lift
Platform spacing adjustment

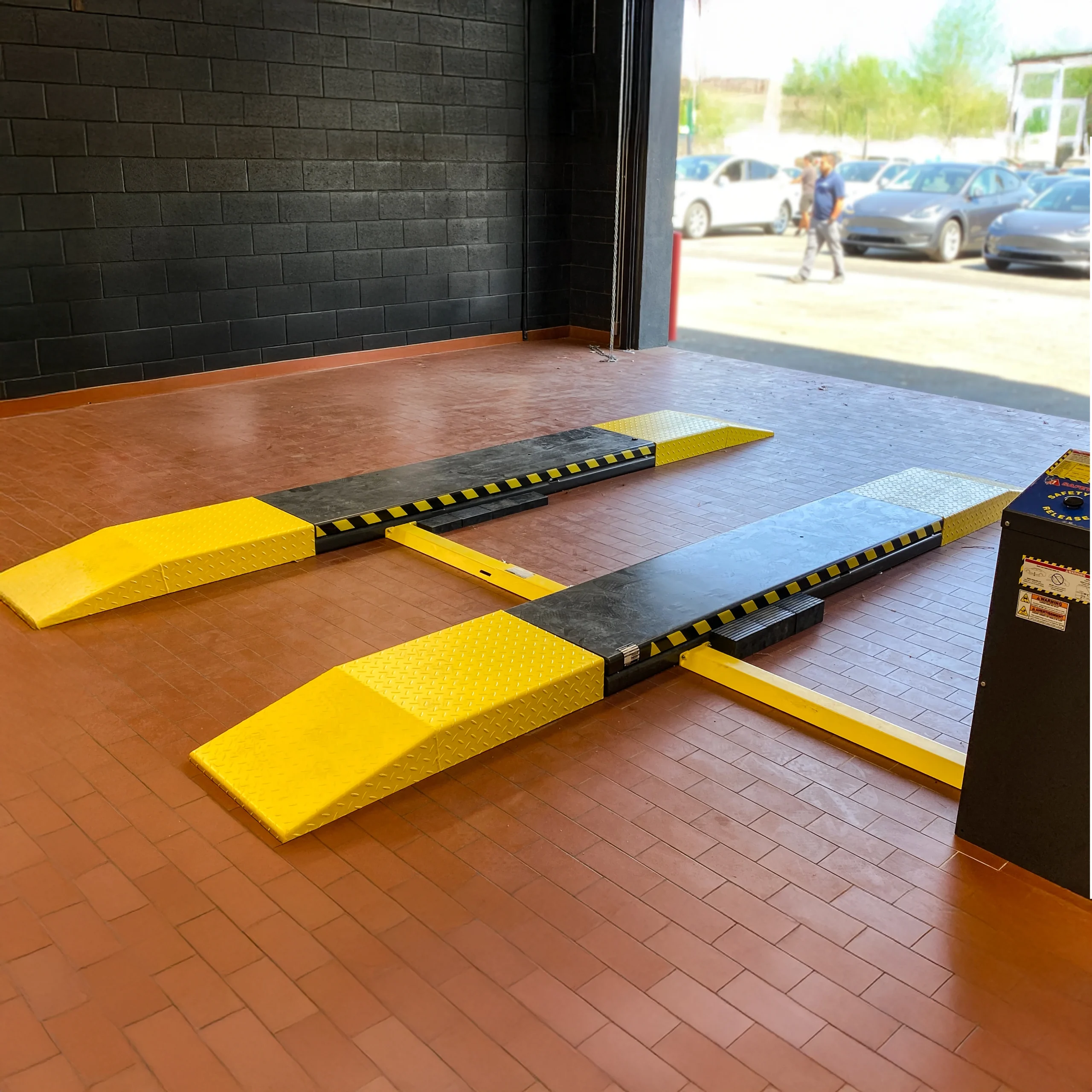

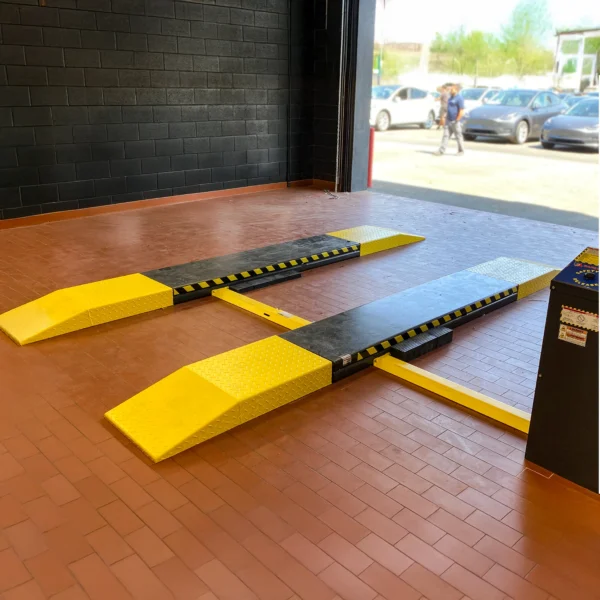

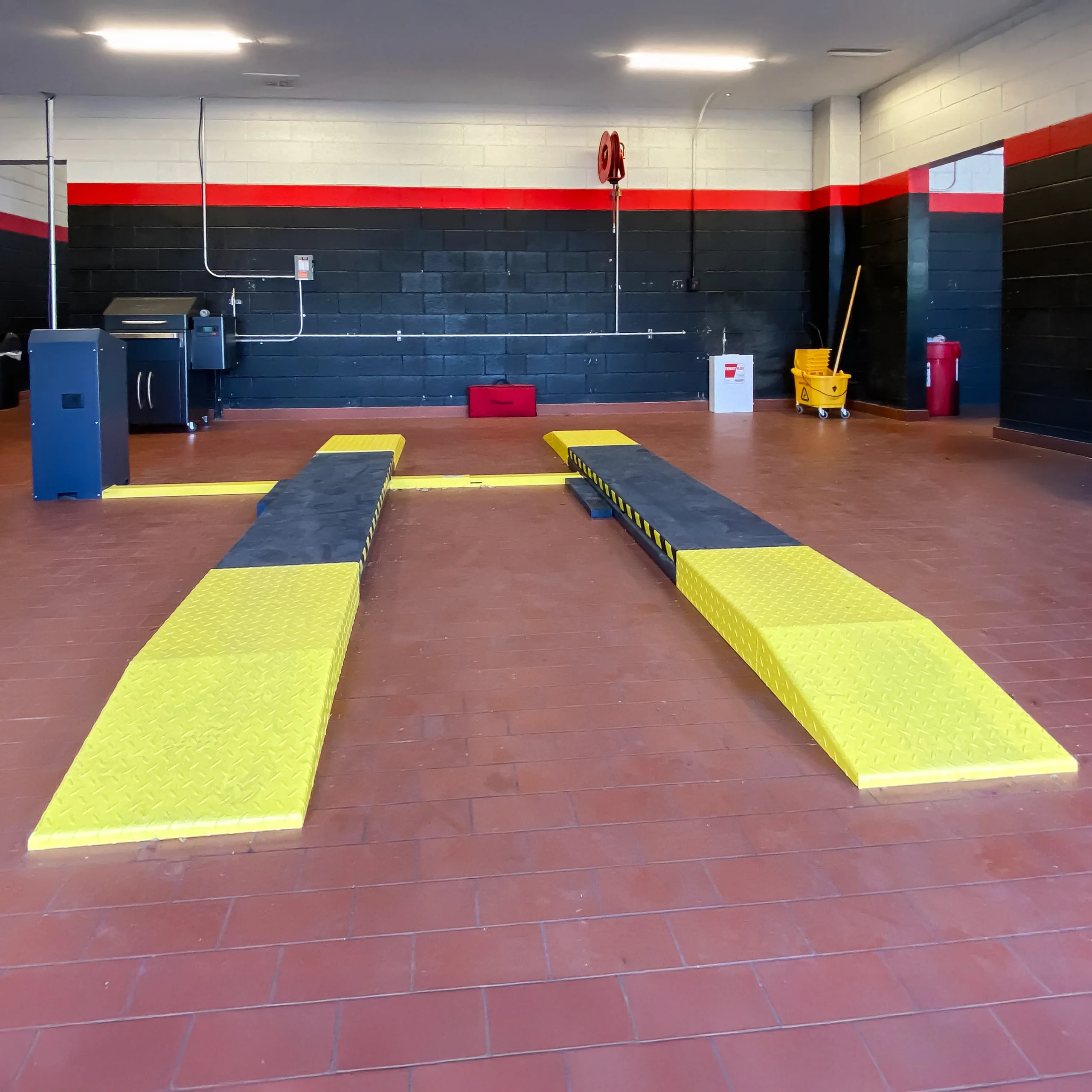

Approach ramp and block arrangement

Ideal for

Dealerships, EV and mixed-fleet workshops, tyre/suspension facilities and general repair shops servicing longer-wheelbase vehicles while still wanting a relatively compact mid-rise lifting system.

Specifications

Specifications

Details

Capacity
2,722 kg
Configuration
Extended open-centre mid-rise scissor lift
Rise class
Mid-rise
Maximum lifting height
933 mm
Installation type
Surface-mount

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak MDS-6EXT
BendPak SKU
5175192
Rated lifting capacity
2,722 kg
Rise class
2,722 kg
Configuration
Extended open-centre mid-rise scissor lift
Installation type
Surface-mount
Maximum lifting height
933 mm
Maximum height with blocks / adapters
972 mm
Lowered / floor profile
133 mm
Published lifting time
35 seconds
Published locking positions
610 / 889 mm
Platform / pad dimensions
Approx. 1,999 x 483 mm per platform
Overall / working length
Approx. 2,649 mm overall
Platform spacing / width reference
Width between platforms 1,016-1,168 mm
Width between platforms
1,016-1,168 mm
Motor
1.5 HP
Electrical configuration
Current US page: 208-230 V, 60 Hz, 1-phase. Confirm Australiansupplied voltage/frequency before publication.
Air / pneumatic requirement
Pneumatic kicker and pneumatic lock release; confirm workshop air requirement from exact Australian manual/configuration. BendPak legacy material specifies 50 psi / 10 CFM for lock system.
Shipping / supplied-revision reference
Approx. 793 kg on current manufacturer page; verify Australian supplied revision.
Australian publication rule
Confirm exact Genesis/Iron Lift Australian supplied revision, electrical configuration, manuals and availability before live publication.

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Twin extended MDS platform/scissor assemblies.
  • Four-cylinder hydraulic lifting arrangement with flow divider.
  • Pneumatic kicker assist and pneumatic safety-lock release components.
  • Mechanical safety-lock system with model-specific lock positions.
  • Vehicle contact blocks/pads and ramps as supplied in the Australian configuration.

Options

  • MDS extended-ramp accessory set where appropriate and confirmed compatible.
  • Additional approved contact blocks/adapters for compatible vehicles.
  • Replacement pneumatic, hydraulic, lock and pivot service parts.
  • Installation/commissioning including air/electrical preparation and bay layout review.

Workshop fit

BendPak MDS-6EXT is rated to 2,722 kg and is a extended open-centre mid-rise scissor lift. Published maximum lift is 933 mm; installation profile is surface-mount. Confirm vehicle mass and weight distribution, manufacturer-approved lifting points, ground clearance, track/wheelbase or pad reach, workshop bay dimensions, overhead clearance at full lift, electrical and pneumatic services, and the exact slab/foundation/recess requirements before supply or installation. Rated capacity alone does not establish vehicle suitability. For flush-mount products, the site recess/pit must be built to the exact supplied manual/revision – never from a generic scissor-lift drawing.

Frequently asked questions

Why choose MDS-6EXT instead of MDS-6LP?
The MDS-6EXT has longer platforms, making it better suited to vehicles with wider lifting-point spreads or longer wheelbases.
The current manufacturer page lists about 933 mm maximum lift height and about 972 mm with blocks. The Australian source currently shows slightly different values, so the supplied revision should be confirmed before publication.
Yes. The two-platform layout leaves the centre area more accessible than a solid-platform scissor lift.
The model uses pneumatic assistance/lock-release components. Iron Lift should confirm the exact Australian air requirement and connection before installation.
Its extended reach can be useful for many longer-wheelbase vehicles, including EVs, but suitability depends on approved lifting points, battery/underbody layout, mass and weight distribution.
