Iron Lift X-RISE 35F

3,500 kg full-rise flush-mount scissor hoist with 1,840 mm lift height, extendable platforms and air-operated mechanical safety locks for an uncluttered workshop floor.

Clear-floor two-post

Iron Lift X-RISE 35F

3,500 kg Full-Rise Flush-Mount Scissor Hoist

3,500 kg full-rise flush-mount scissor hoist with 1,840 mm lift height, extendable platforms and air-operated mechanical safety locks for an uncluttered workshop floor.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
3,500 kg
Rated capacity
1,840 mm
Maximum lifting height
1,554-1,754 mm
Platform length
1,900 mm
Overall width

Product overview

The Iron Lift X-RISE 35F is a full-rise recessed scissor hoist designed to leave the workshop floor clear when the lift is lowered. With 3,500 kg capacity and a 1,840 mm maximum lifting height, it provides practical under-vehicle working access while keeping side areas free of columns. Single-extendable platforms increase coverage for varying vehicle lengths, while strengthened base and scissor structures support regular workshop use. The control cabinet may be installed on either side to suit the bay layout. Dual automatic mechanical safety devices use air-operated release, so the installation must include an appropriate compressed-air provision as well as electrical and hydraulic requirements.

Key features

Detail photography

Flush-mount platform and recess arrangement

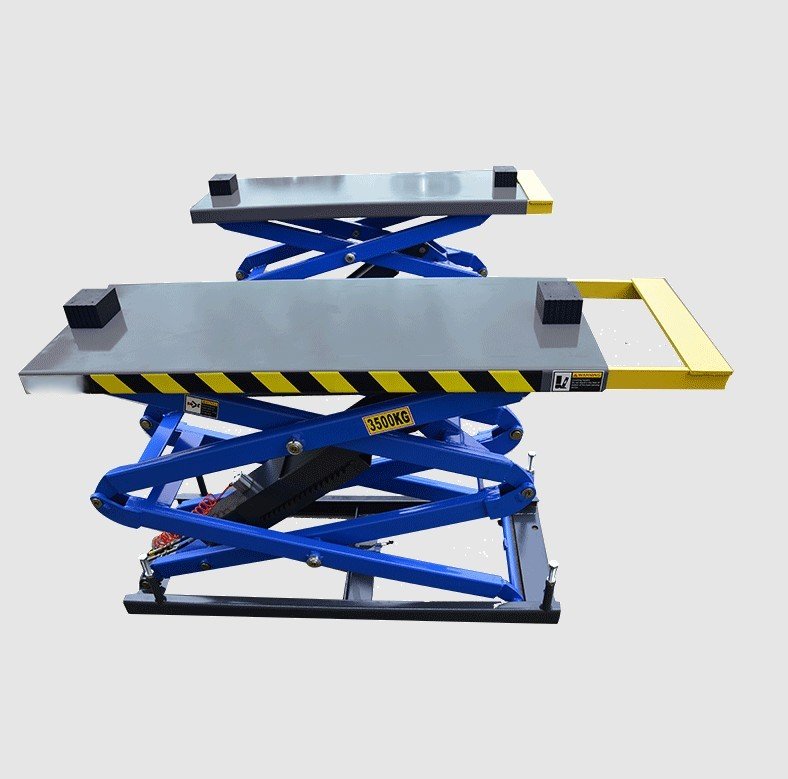

Single-extendable platform mechanism
Dual automatic mechanical safety locks
Air-operated lock-release detail

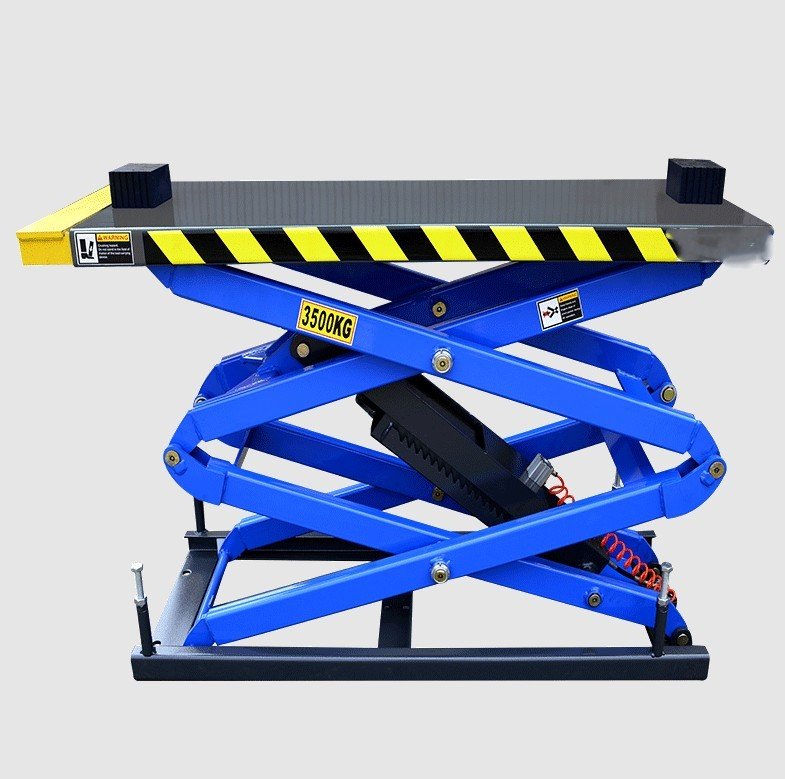

Strengthened base/scissor structure

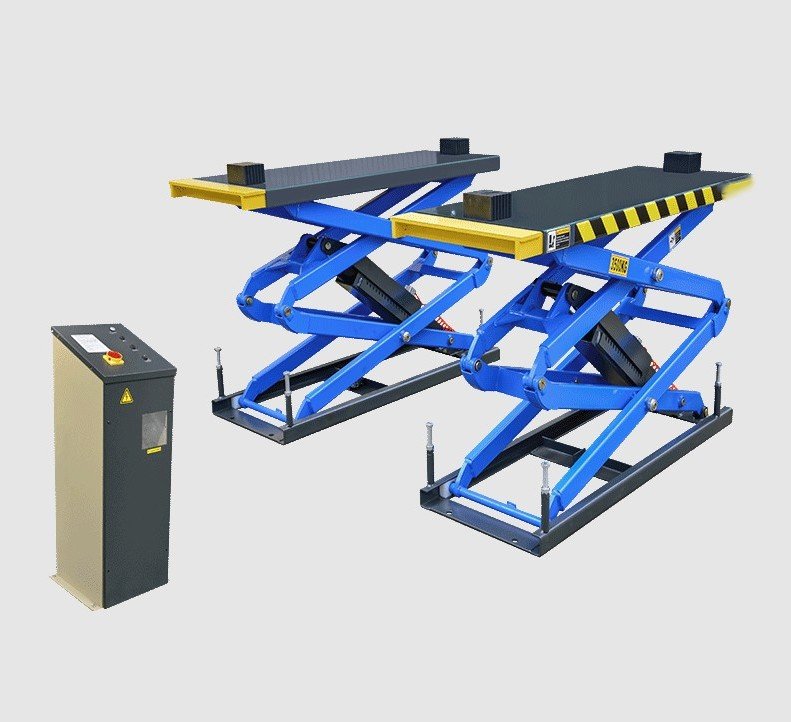

Left/right control-cabinet positioning
3-inch rubber pads

Ideal for

Mechanical workshops, tyre and suspension centres, dealerships and premium fit-outs that want a clean flush workshop floor with full-rise under-vehicle access.

Specifications

Specifications

Details

Capacity
3,500 kg
Configuration
Full-rise flush-mount scissor
Maximum lifting height
1,840 mm
Platform length
1,554-1,754 mm
Overall width
1,900 mm
Motor
3.0 HP

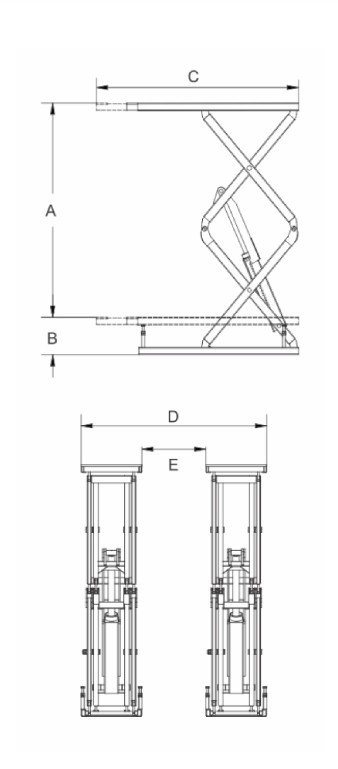

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
3,500 kg (8,000 lb)
Configuration
Full-rise flush-mount scissor
Lifting time
35 seconds
Maximum lifting height
35 seconds
Maximum lock height
1,800 mm
Minimum height
350 mm machine height – recessed installation
Platform / runway length
1,554-1,754 mm
Overall length including ramps
Not published as a single value on current source page
Overall width / outside platform width
1,900 mm
Width between platforms
800 mm
Alignment range
Not applicable
Auxiliary scissor
Not applicable
Gross weight
671 kg
Motor
3.0 HP
Control / safety
Dual automatic mechanical locks with air-operated release; electric control cabinet
Standard pads
3-inch rubber pads
Published factory options
No named accessory kit shown on current source page

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

This model requires a recessed installation. Confirm pit/recess dimensions from the approved installation drawing before any concrete work. Also confirm vehicle lifting-point spread, ground clearance, workshop air supply, electrical supply, drainage/water considerations where applicable, and safe access around the 1,900 mm overall width. Do not construct a recess from website summary dimensions alone.

Frequently asked questions

Is X-RISE 35F flush with the floor when lowered?
It is designed as a flush-mount model, subject to correct recessed installation using the approved installation dimensions.
The current technical table gives 1,840 mm, with a maximum lock height of 1,800 mm.
Yes. The mechanical safety locks use an air-operated release.
The source specifically states that the control cabinet can be installed on the left or right side.
Yes. The published platform length ranges from 1,554 mm to 1,754 mm.

Related Pages

Two-Post Hoists

Installation

Servicing & Repairs

Spare Parts

Request a Quote

Documents

brochure

manual

dimension drawing

Request a vehicle hoist quote

Tell us your vehicle mix, bay dimensions, proposed recess, air and power supply, slab details and location and we will help plan the X-RISE 35F installation.
