BendPak MD-6XP

Portable 2,722 kg mid-rise frame lift with adjustable lifting arms, multiple lock positions and a towable power-unit cart for flexible workshop use.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak MD-6XP

2,722 kg Portable Mid-Rise Frame-Engaging Scissor Lift

Portable 2,722 kg mid-rise frame lift with adjustable lifting arms, multiple lock positions and a towable power-unit cart for flexible workshop use.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
2,722 kg
Rated capacity
Portable mid-rise
Configuration
1,194 mm
Maximum lifting height
121 mm
Lowered / installation profile

Product overview

The BendPak MD-6XP gives workshops a practical mid-rise lifting option without permanently committing a bay to a fixed hoist. The frame-engaging layout uses adjustable arm assemblies to reach suitable vehicle pick-up points, while the portable power-unit cart doubles as the means of moving the lift between work areas. Its 1,194 mm published lifting height is well suited to wheel, brake, suspension, detailing and general service work where full standing-height access is not essential. For mixed-use workshops, the MD-6XP can add an extra lifting position that can be moved aside when the bay is needed for something else.

Key features

  • 2,722 kg rated lifting capacity
  • Portable mid-rise design for flexible bay use
  • Adjustable frame-engaging arm assemblies
  • Portable power-unit cart that also functions as a tow handle
  • Multiple mechanical lock positions for different working heights
  • Truck adapters included in the current manufacturer configuration
  • Compact footprint suited to narrower or shared bays
  • Hydraulic lifting system with balanced movement

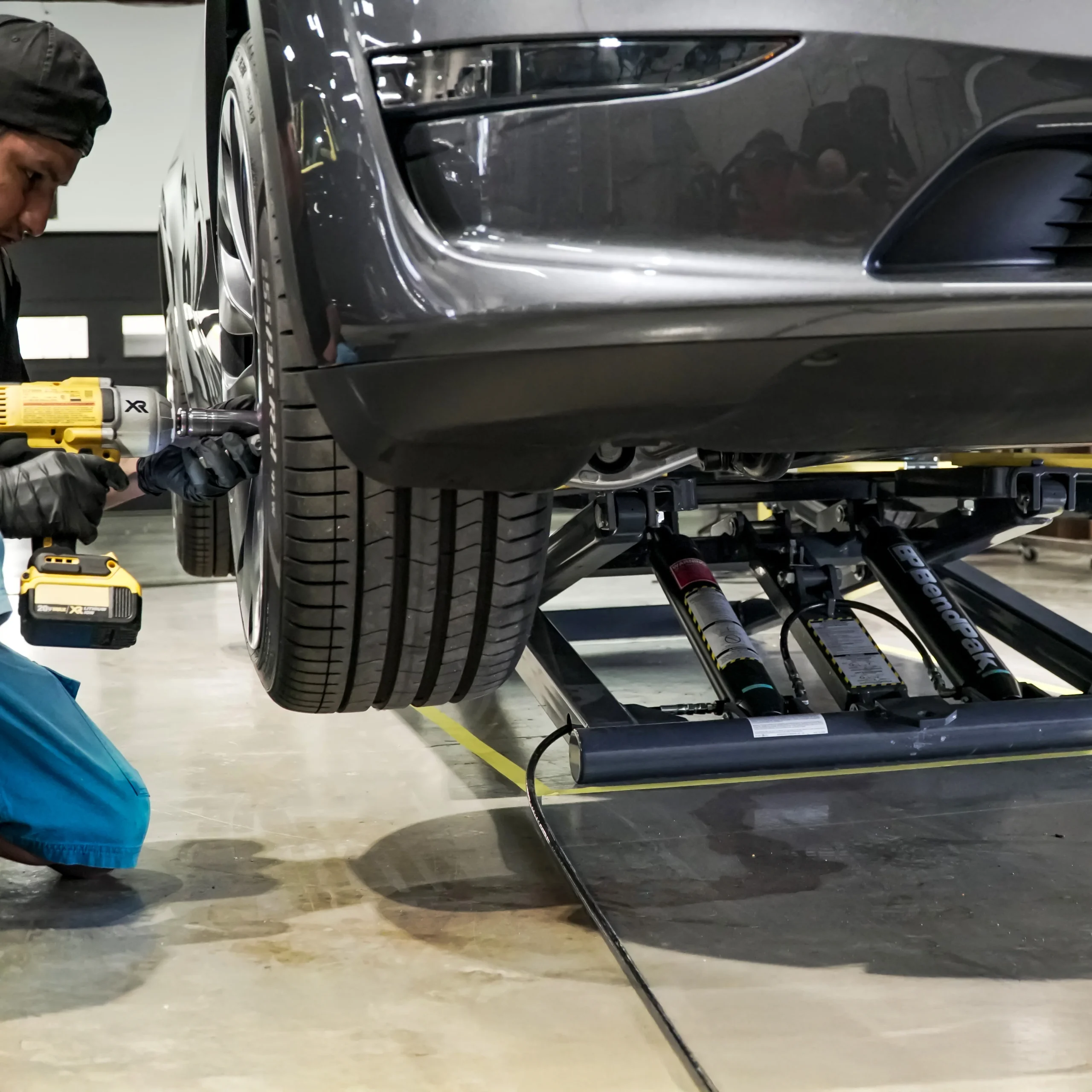

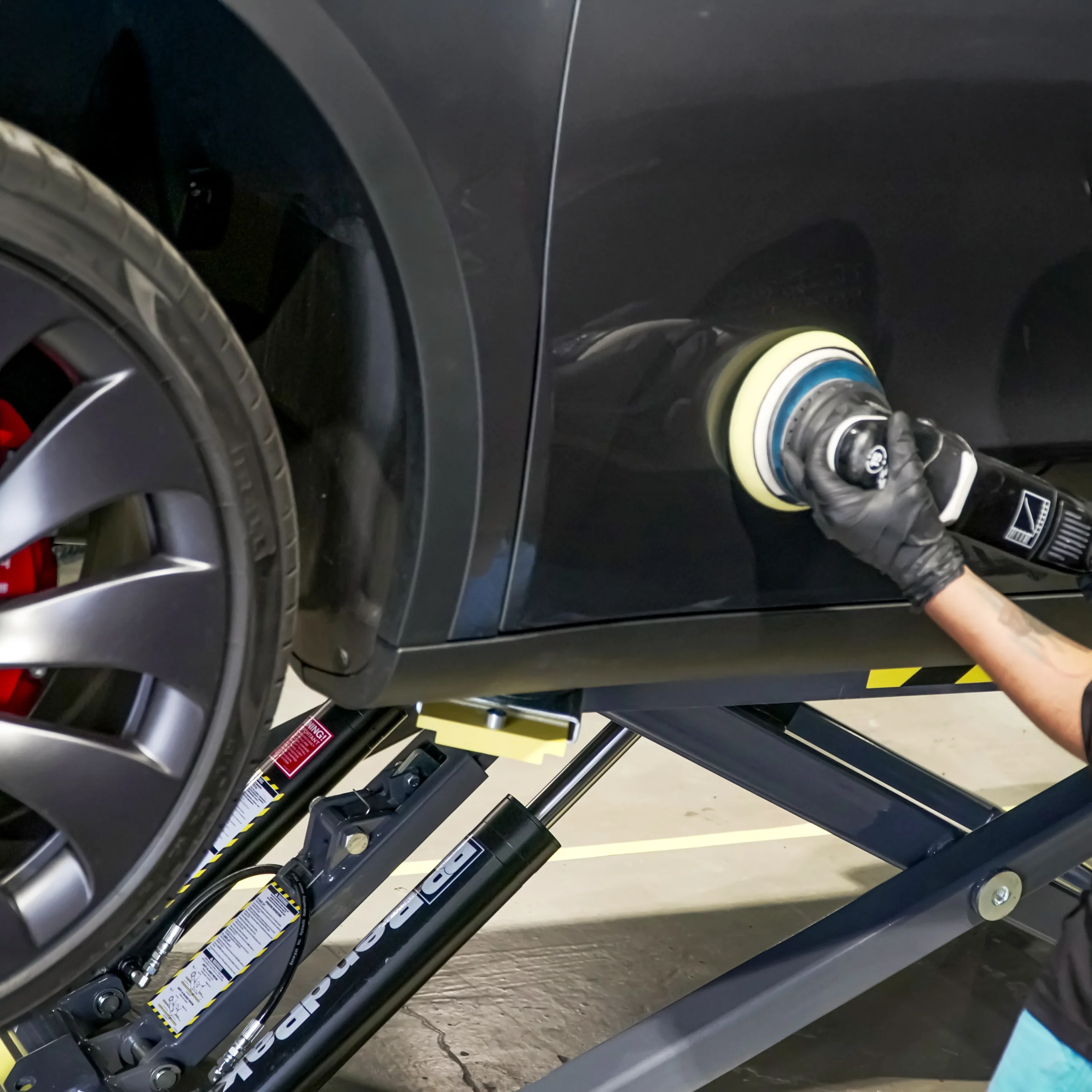

  • Useful access for wheel, brake, suspension, detailing and inspection work
  • No permanent two-post columns or overhead beam required

Detail photography

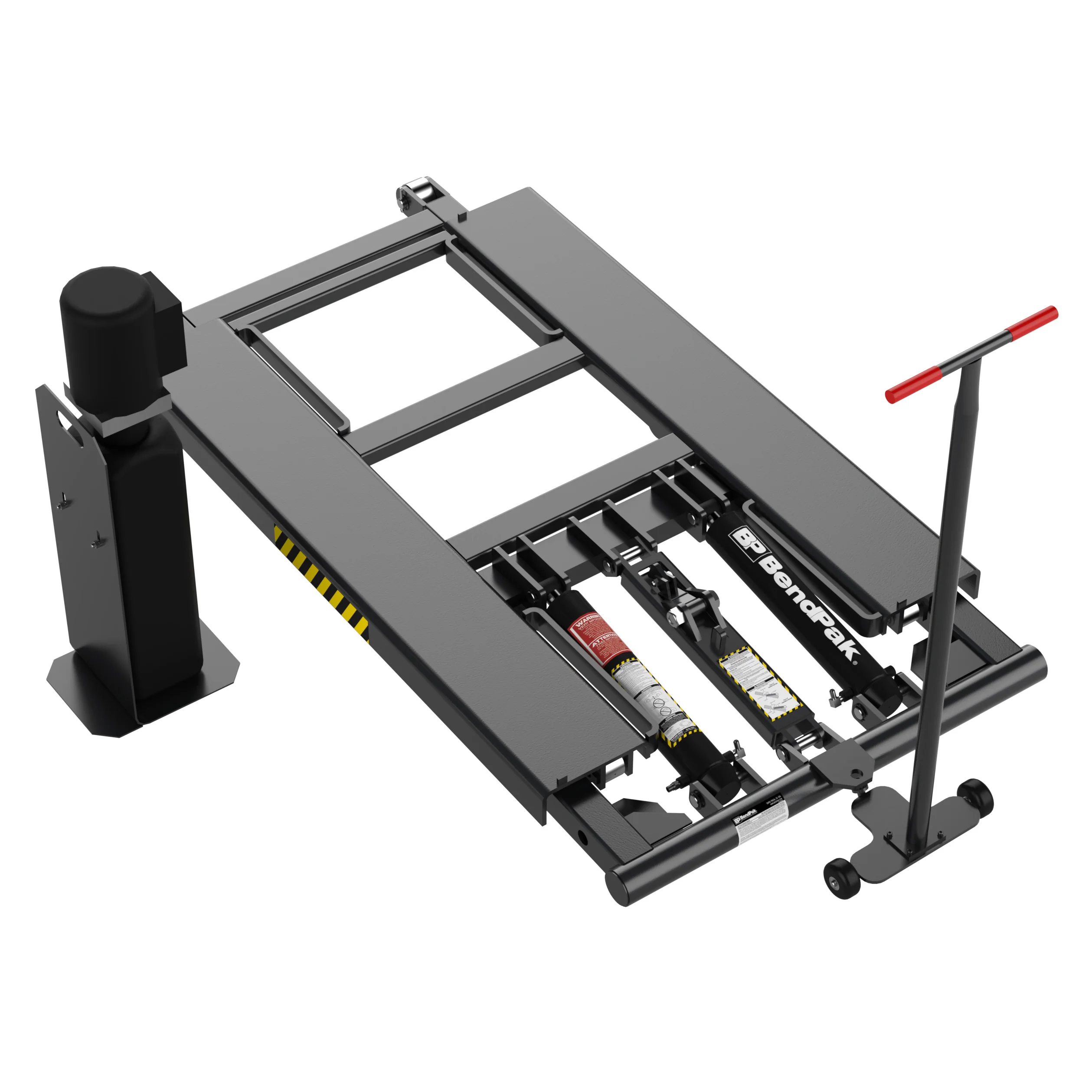

Portable power-unit cart / tow-handle arrangement

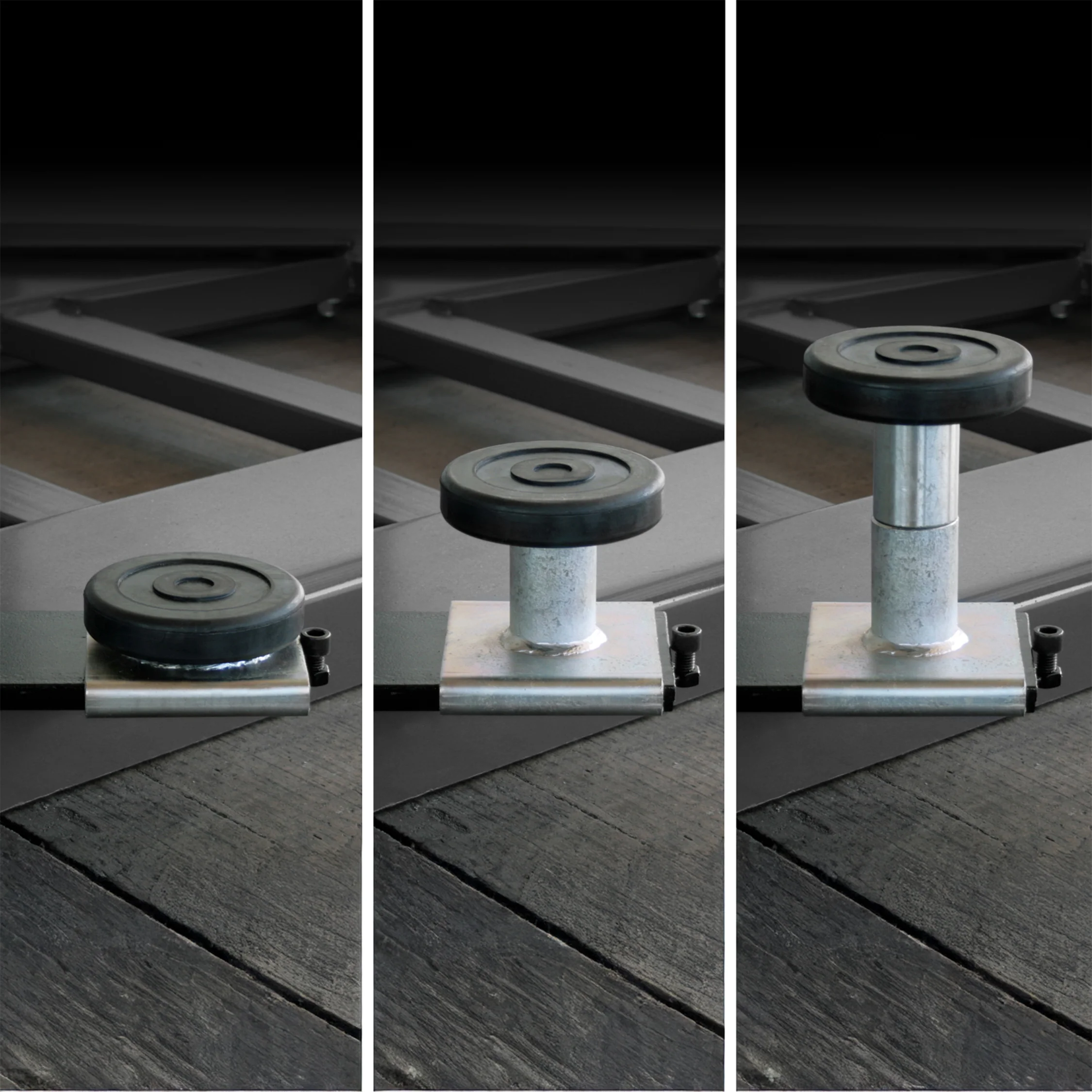

Adjustable arm assemblies and contact pads

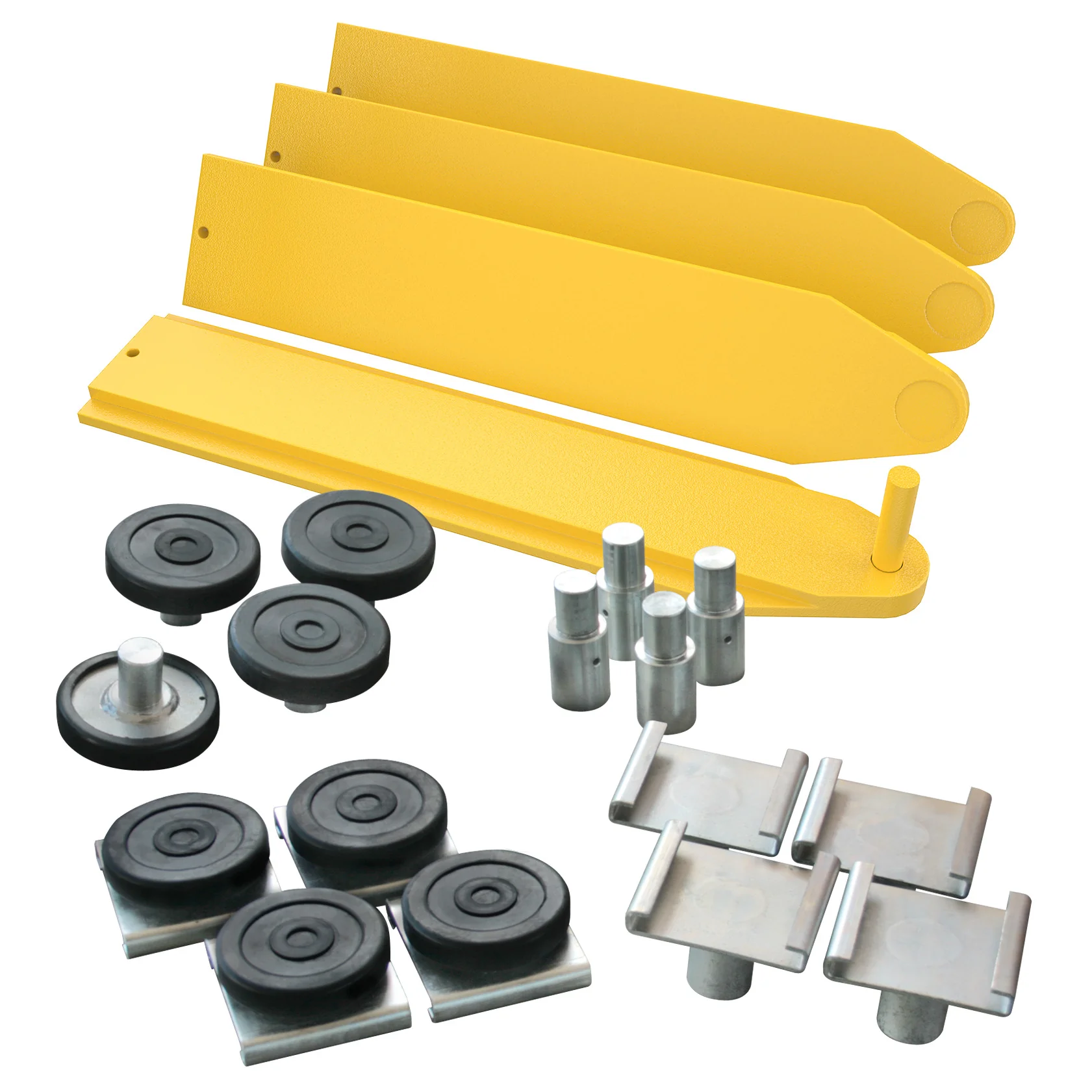

Truck adapter set
Mechanical lock bar and lock positions
Hydraulic cylinder / hose arrangement

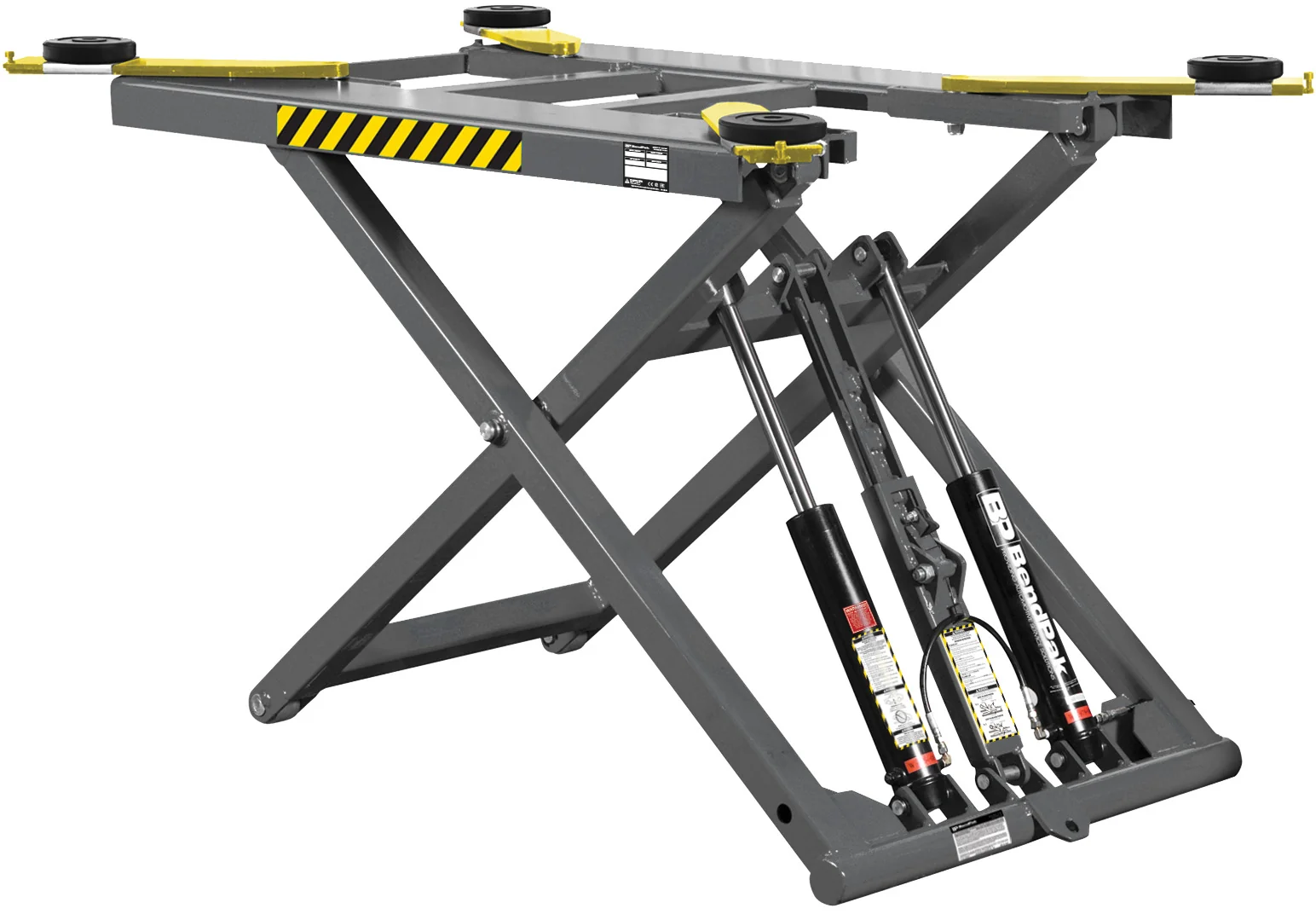

Compact scissor-frame structure

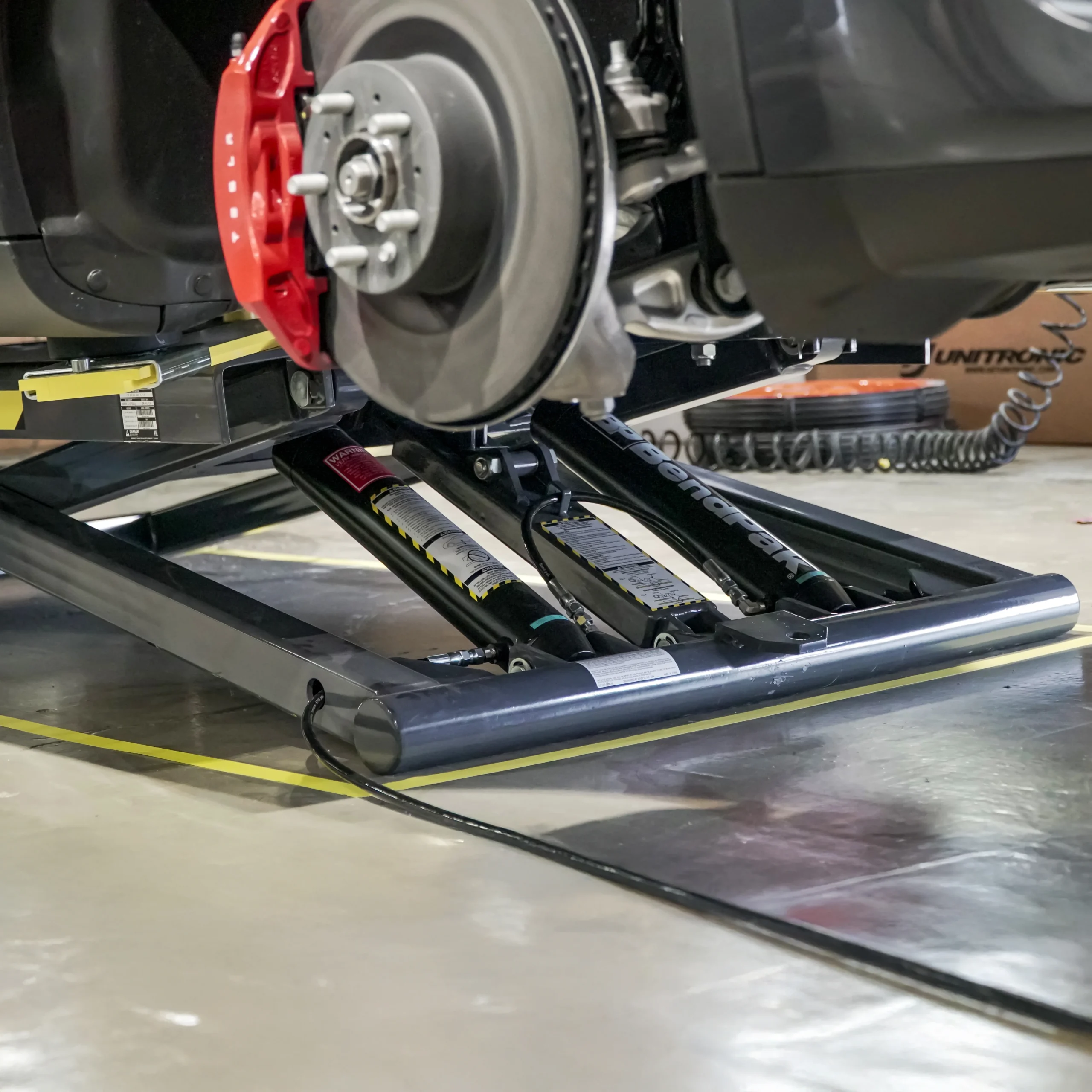

Low collapsed profile and vehicle approach area

Ideal for

Mechanical workshops, tyre and suspension shops, detailing/bodywork bays, home or specialist garages and multi-bay facilities needing a movable mid-rise lift rather than another permanently occupied bay.

Specifications

Specifications

Details

Capacity
2,722 kg
Configuration
Portable frame-engaging mid-rise scissor lift
Rise class
Mid-rise
Maximum lifting height
1,194 mm
Installation type
Portable / surface use

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak MD-6XP
BendPak SKU
5175730
Rated lifting capacity
2,722 kg
Rise class
2,722 kg
Configuration
Portable frame-engaging mid-rise scissor lift
Installation type
Portable / surface use
Maximum lifting height
1,194 mm
Maximum height with blocks / adapters
Not separately stated on current manufacturer page; use supplied pads/adapters per manual
Lowered / floor profile
121 mm
Published lifting time
45 seconds
Published locking positions
559 mm / 845 mm / 1,067 mm
Platform / pad dimensions
Adjustable arm/pad assemblies; frame length approx. 1,524 mm in official manual
Overall / working length
1,930 mm overall

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • MD-6XP scissor/frame lift assembly.
  • Adjustable arm assemblies and vehicle contact pads/adapters.
  • Portable hydraulic power-unit cart / tow handle.
  • Mechanical safety-lock bar with multiple working positions.
  • Truck adapters included in the current manufacturer configuration.

Options

  • Additional/alternate approved BendPak contact blocks or adapters for compatible vehicles.
  • Replacement pad/adaptor sets and model-specific wear/service parts.
  • Workshop positioning/storage arrangement suited to the site and bay workflow.

Workshop fit

BendPak MD-6XP is rated to 2,722 kg and is a portable frame-engaging mid-rise scissor lift. Published maximum lift is 1,194 mm; installation profile is portable / surface use. Confirm vehicle mass and weight distribution, manufacturer-approved lifting points, ground clearance, track/wheelbase or pad reach, workshop bay dimensions, overhead clearance at full lift, electrical and pneumatic services, and the exact slab/foundation/recess requirements before supply or installation. Rated capacity alone does not establish vehicle suitability. For flush-mount products, the site recess/pit must be built to the exact supplied manual/revision – never from a generic scissor-lift drawing.

Frequently asked questions

Is the MD-6XP a full-rise hoist?
No. It is a mid-rise lift with a published maximum lifting height of about 1,194 mm, intended for jobs where wheel, brake, suspension, lower-body and partial undercarriage access are the priority.
Yes. The portable power-unit cart also acts as a tow handle, allowing the lift to be repositioned rather than permanently occupying one bay.
The rated capacity is 2,722 kg, but suitability depends on vehicle mass, weight distribution, lifting-point geometry, ground clearance and correct arm/pad engagement – not capacity alone.
The current manufacturer product page does not state a separate workshop-air requirement for standard lift operation. Iron Lift should still confirm the supplied Australian configuration before installation.
Yes. Iron Lift can quote supply, commissioning/support, servicing and spare parts subject to location, site conditions and supplier arrangements.

Related Pages

Two-Post Hoists

Installation

Servicing & Repairs

Spare Parts

Request a Quote

Related Products

Related products

View All Scissor Hoists

Installation Service

Installation

Servicing & Repairs

Spare Parts

Documents

brochure

Download

manual

Download

dimension drawing

Download

Request a vehicle hoist quote

Tell us the vehicles you service, available bay space, required working height, vehicle lifting points, power supply and location and we will help confirm whether the BendPak MD-6XP suits your workshop.
