Iron Lift X-RISE 55

5,500 kg heavy-duty general-service scissor hoist with 5,018 mm runways, four hydraulic cylinders and large non-skid platforms for demanding workshop service.

Clear-floor two-post

Iron Lift X-RISE 55

5,500 kg Heavy-Duty General-Service Scissor Hoist

5,500 kg heavy-duty general-service scissor hoist with 5,018 mm runways, four hydraulic cylinders and large non-skid platforms for demanding workshop service.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
5,500 kg
Rated capacity
1,850 mm
Maximum lifting height
5,018 mm
Runway length
2,290 mm
Overall width

Product overview

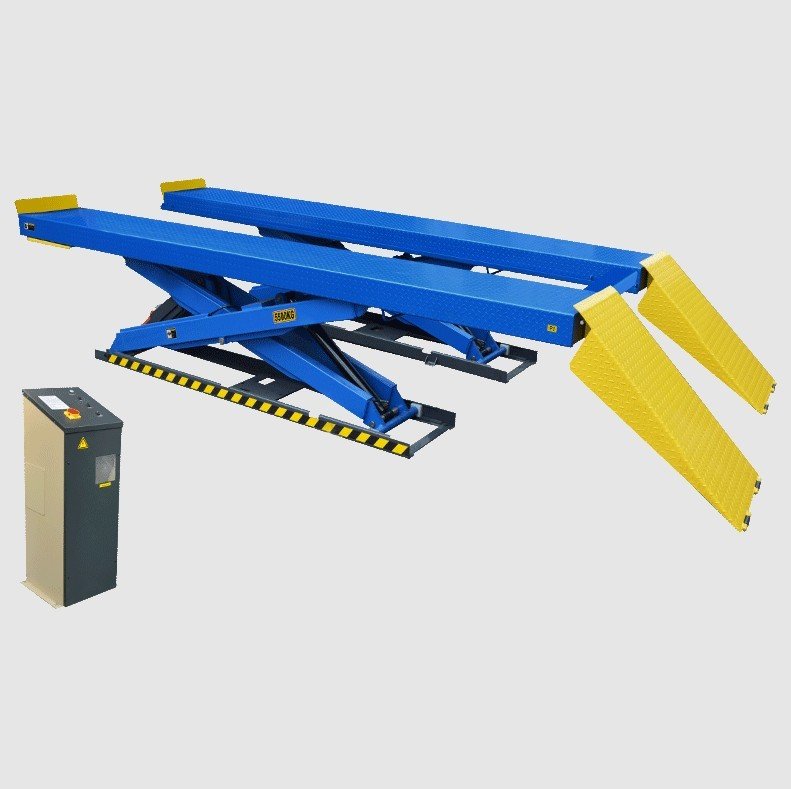

The Iron Lift X-RISE 55 is the general-service counterpart to the X-RISE 55A alignment model. It provides 5,500 kg capacity on long 5,018 mm runways for workshops that need a heavy-duty drive-on scissor platform without alignment turnplate provisions. A robust X-scissor structure is supported by four hydraulic cylinders arranged in two groups for platform synchronisation. Large non-skid platforms and a pull-out tool shelf support everyday inspection and under-vehicle maintenance. The safety system combines hydraulic locking with an air-operated self-locking mechanical lock and an automatic stop during lowering. Rolling-jack options can be added where wheel-free service is required.

Key features

Detail photography

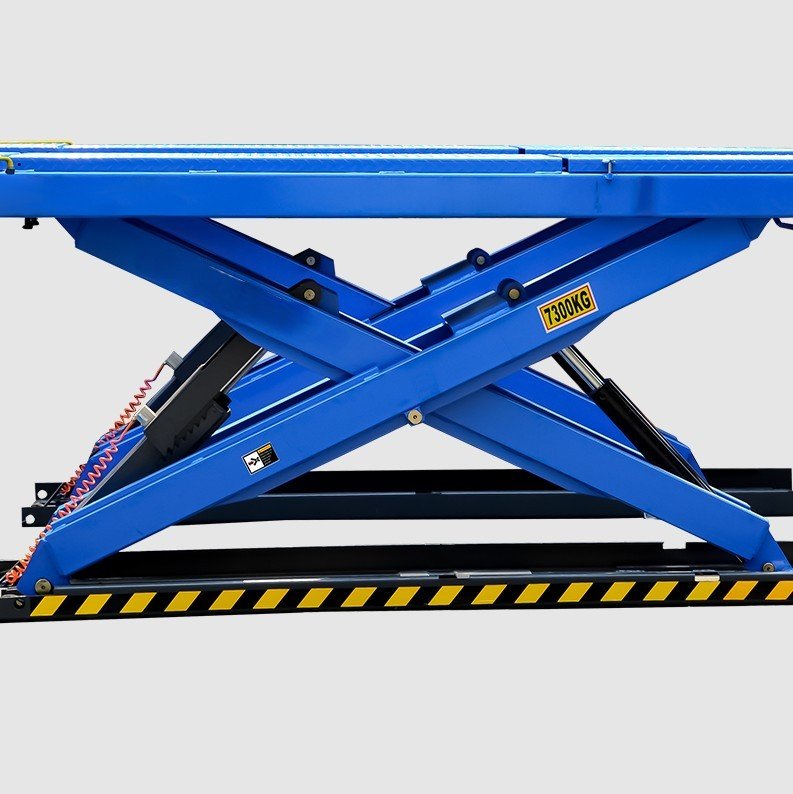

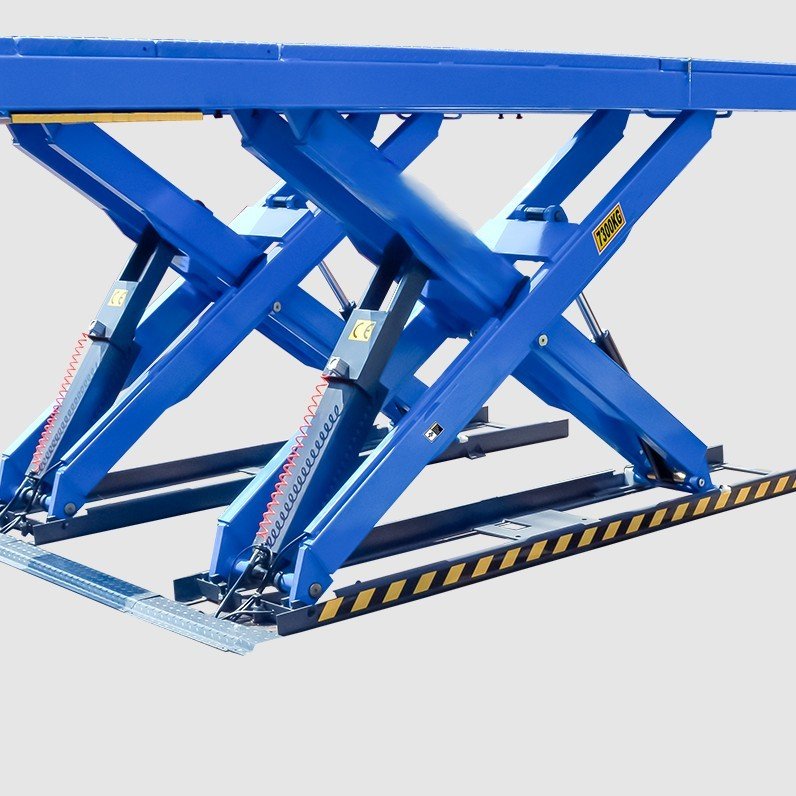

Heavy-duty X-scissor structure
Four-cylinder synchronisation arrangement
Electrical / electro-air control cabinet

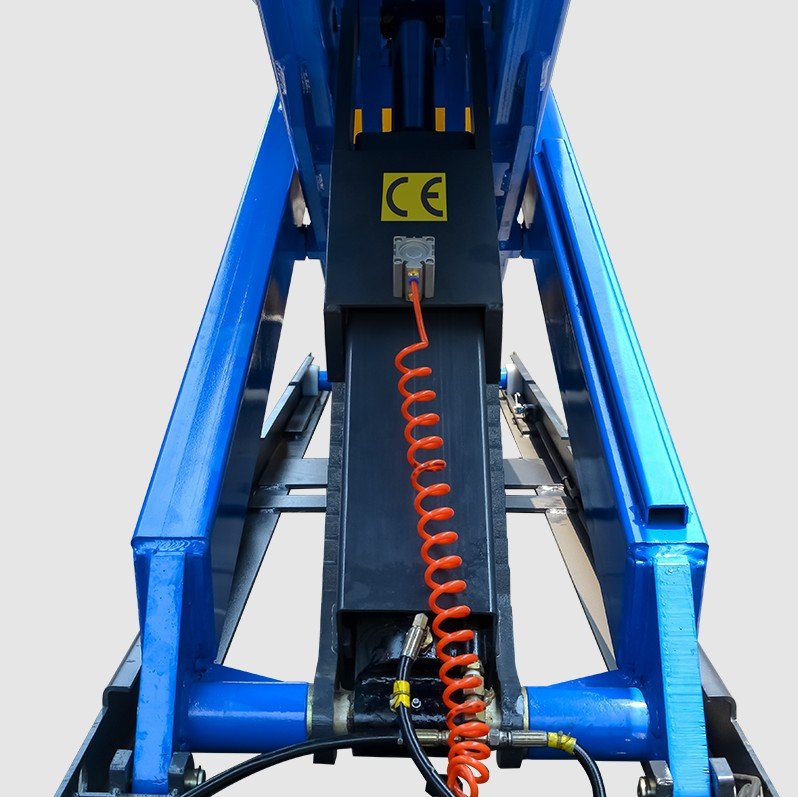

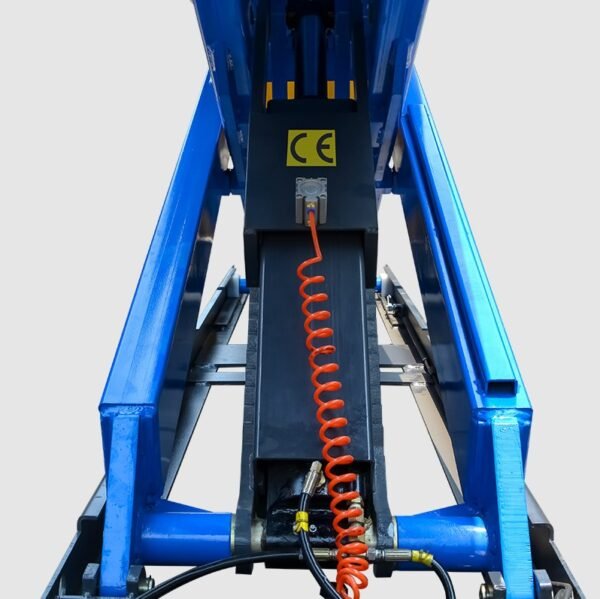

Hydraulic and mechanical safety-lock system

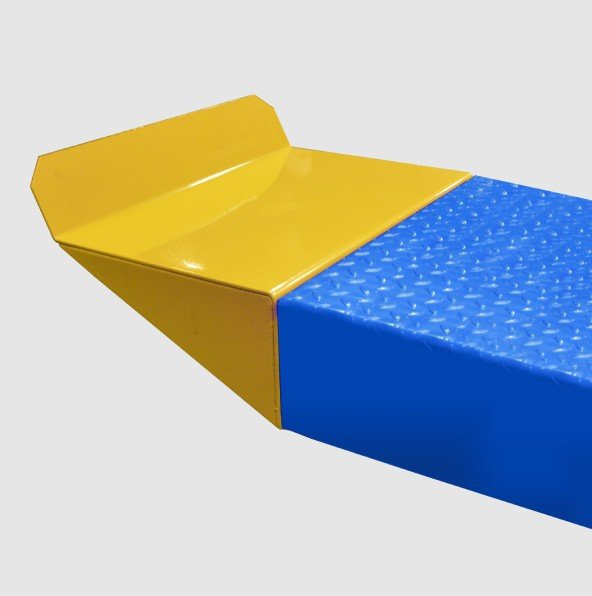

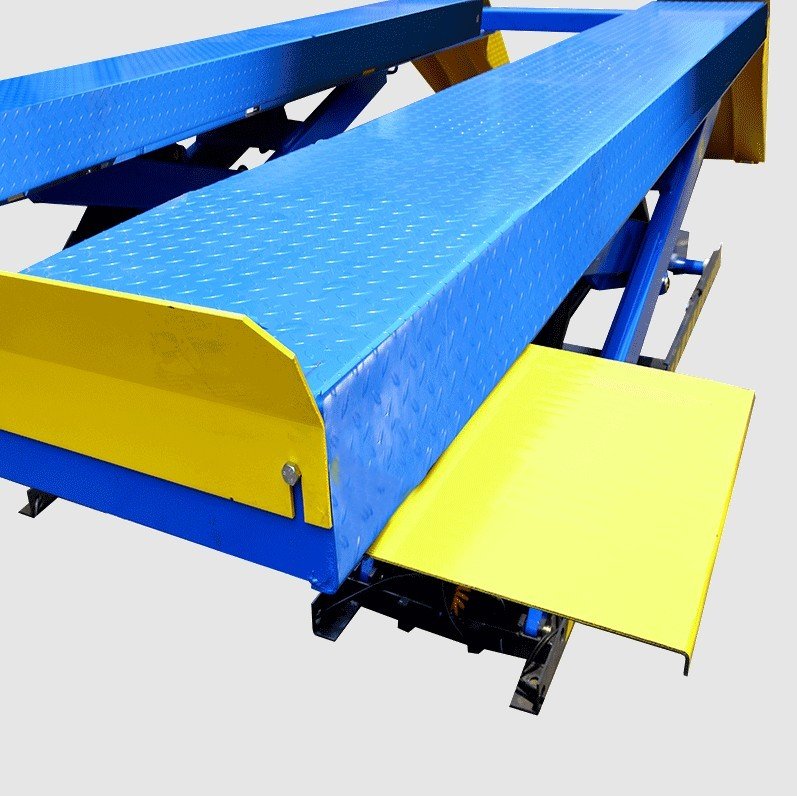

Large non-skid platforms and pull-out tool shelf

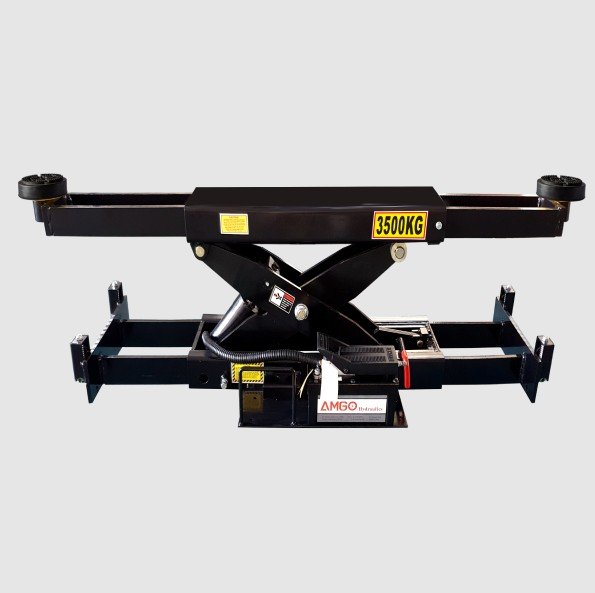

Rolling-jack rail / accessory interface
Rolling-jack rail / wheel-free service accessory interface where shown

Ideal for

Fleet workshops, dealerships, transport and light-commercial service facilities, general mechanical workshops and industrial service bays needing long platforms and 5,500 kg drive-on capacity.

Specifications

Specifications

Details

Capacity
5,500 kg
Configuration
General-service X-scissor
Maximum lifting height
1,850 mm
Runway length
5,018 mm
Overall width
2,290 mm
Motor
3.0 HP

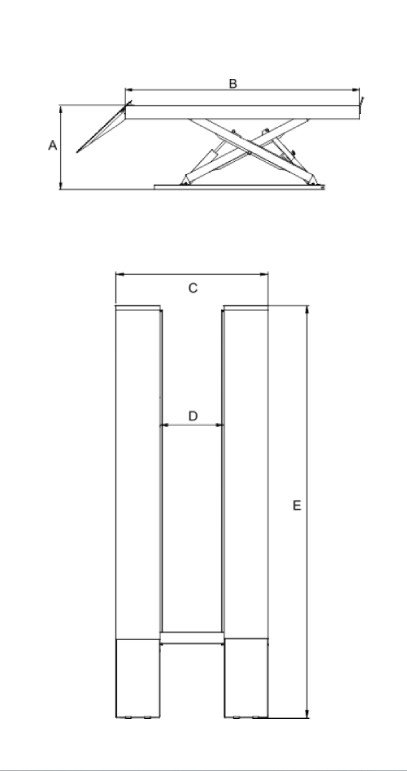

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
5,500 kg (12,000 lb)
Configuration
Heavy-duty general-service X-scissor
Lifting time
75 seconds
Maximum lifting height
75 seconds
Maximum lock height
1,805 mm
Minimum height
305 mm
Platform / runway length
5,018 mm
Overall length including ramps
6,784 mm
Overall width / outside platform width
2,290 mm
Width between platforms
1,040 mm
Alignment range
Not applicable
Auxiliary scissor
Not applicable
Gross weight
2,210 kg
Motor
3.0 HP
Control / safety
Hydraulic lock plus air-operated self-locking mechanical lock; lowlevel safety stop
Standard pads
Drive-on runway configuration
Published factory options

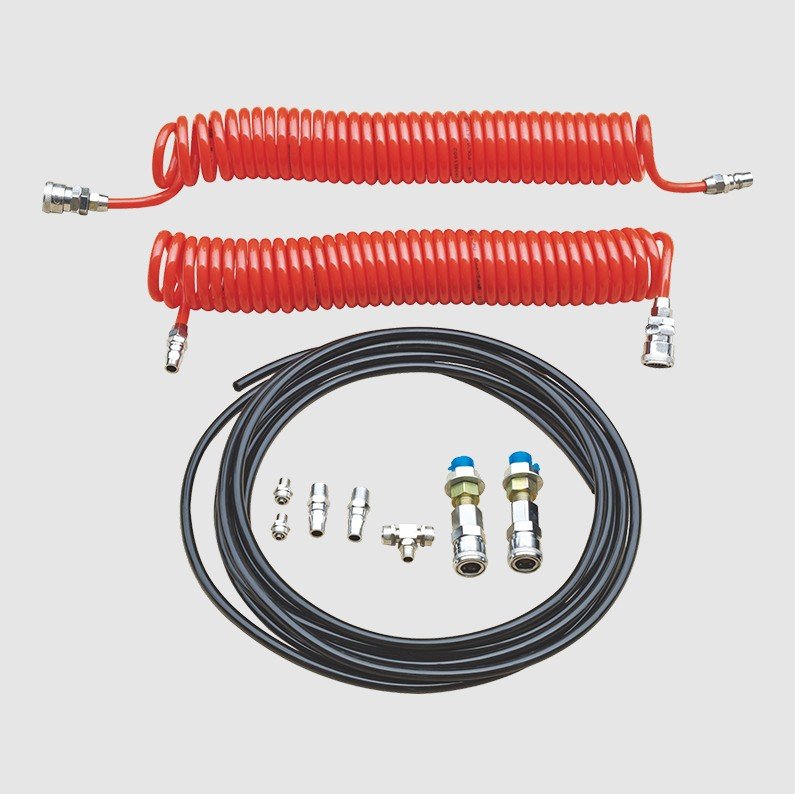

Extension platform PX001; air-line kit PX004; RJ-6H/RJ-6A 2.8 t and RJ-8A 3.5 t rolling jacks

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

Overall length including ramps is 6,784 mm, overall width 2,290 mm and runway length 5,018 mm. Confirm vehicle wheelbase, track, axle loading and tyre position on the platforms. Compressed air is required for the air-operated mechanical lock system and may also be required for selected rolling jacks. Confirm floor/foundation requirements, power supply and unloading access before installation.

Frequently asked questions

How does X-RISE 55 differ from X-RISE 55A?
X-RISE 55 is the general-service version. X-RISE 55A adds alignment-specific provisions such as turnplate pockets and alignment geometry.
The published maximum lifting height is 1,850 mm, with a maximum lock height of 1,805 mm.
Yes. PEAK lists manual and pneumatic-hydraulic rolling-jack options.
Yes. The source describes an air-operated self-locking mechanical safety lock.
The published overall length including ramps is 6,784 mm.
