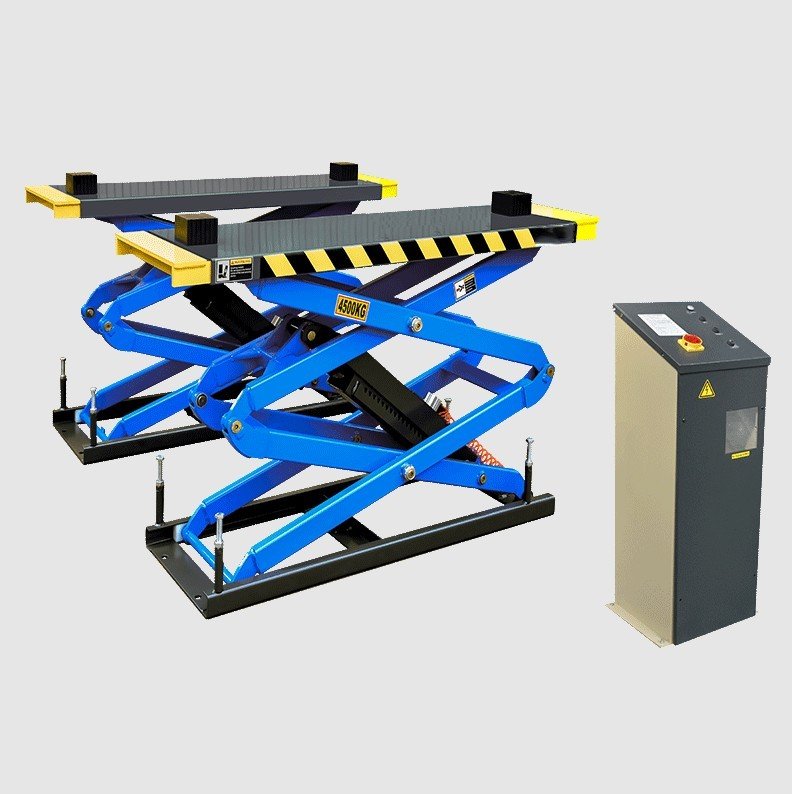

Iron Lift X-RISE 45F

4,500 kg full-rise flush-mount scissor hoist with doubleextendable platforms, photo-cell monitoring and a 1,905 mm published technical-table lifting height.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
Iron Lift X-RISE 45F
Iron Lift X-RISE 45F

Clear-floor two-post

Iron Lift X-RISE 45F

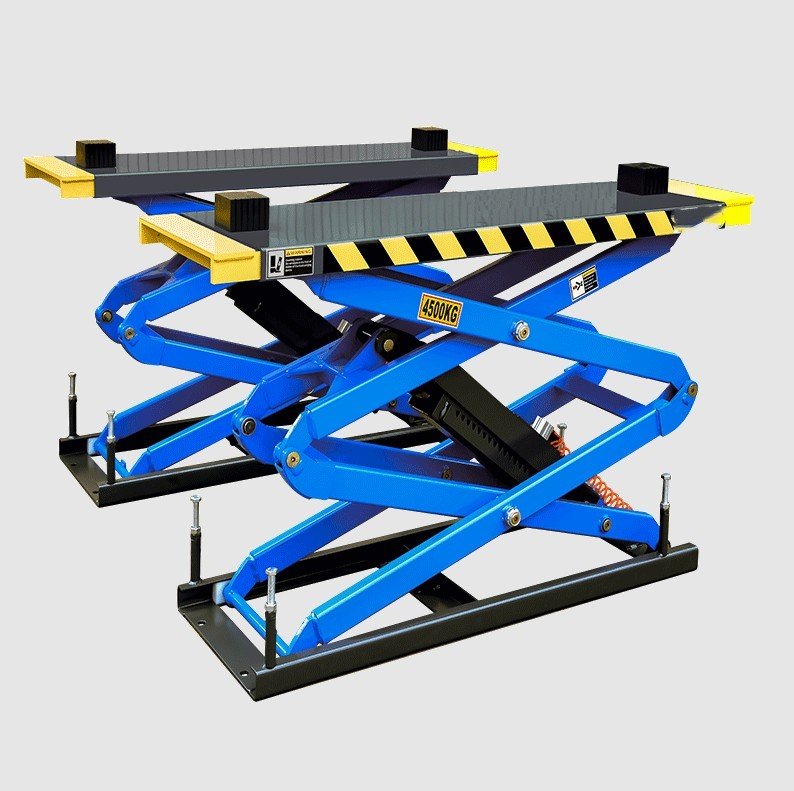

4,500 kg Full-Rise Flush-Mount Scissor Hoist

4,500 kg full-rise flush-mount scissor hoist with doubleextendable platforms, photo-cell monitoring and a 1,905 mm published technical-table lifting height.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,500 kg
Rated capacity
1,905 mm
Maximum lifting height
1,654-2,040 mm
Platform length
1,916 mm
Overall width

Product overview

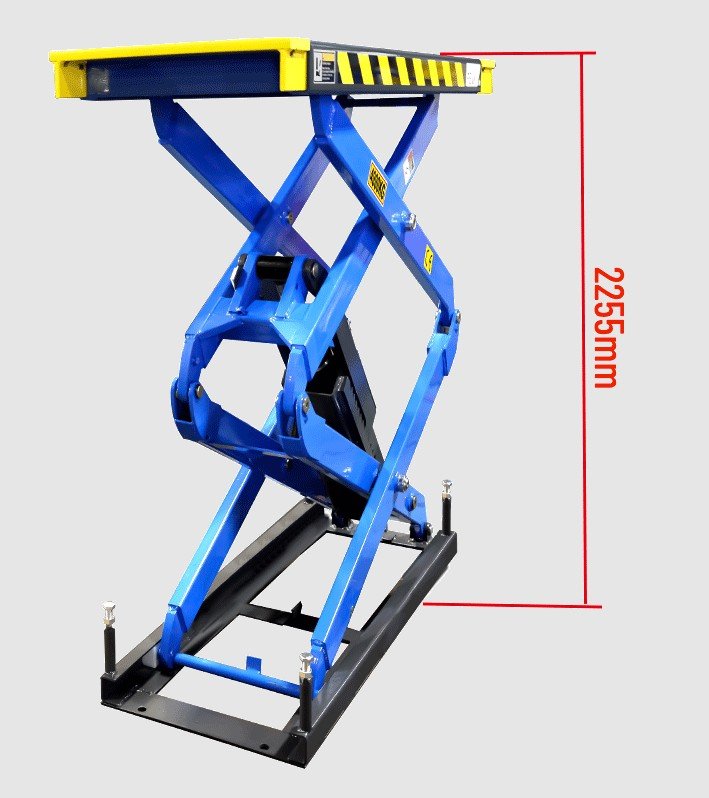

The Iron Lift X-RISE 45F is a 4,500 kg full-rise flush-mount scissor hoist for workshops seeking a clean floor, open side access and higher lifting capacity. Double-extendable platforms increase coverage across different vehicle wheelbases while the recessed installation keeps the bay unobstructed when the lift is down. The safety arrangement combines automatic mechanical locks with air-operated release, photo-cell monitoring and an automatic stop during the final lowering stage. A dedicated control cabinet manages the electrical operation. PEAK currently shows conflicting lifting-height information on this product page: one feature line states 2,255 mm, while the technical specification table states 1,905 mm. Iron Lift should display 1,905 mm unless PEAK supplies written clarification confirming a different figure.

Key features

  • 4,500 kg rated capacity
  • Full-rise flush-mount configuration
  • Double-extendable platforms from 1,654 mm to 2,040 mm
  • 1,905 mm maximum lifting height from the current technical table
  • Photo-cell monitoring / protection arrangement
  • Dual automatic mechanical safety devices
  • Air-operated safety-lock release
  • Automatic safety stop at approximately 300 mm during lowering
  • Electrical control cabinet
  • 3-inch rubber pads supplied as standard

Detail photography

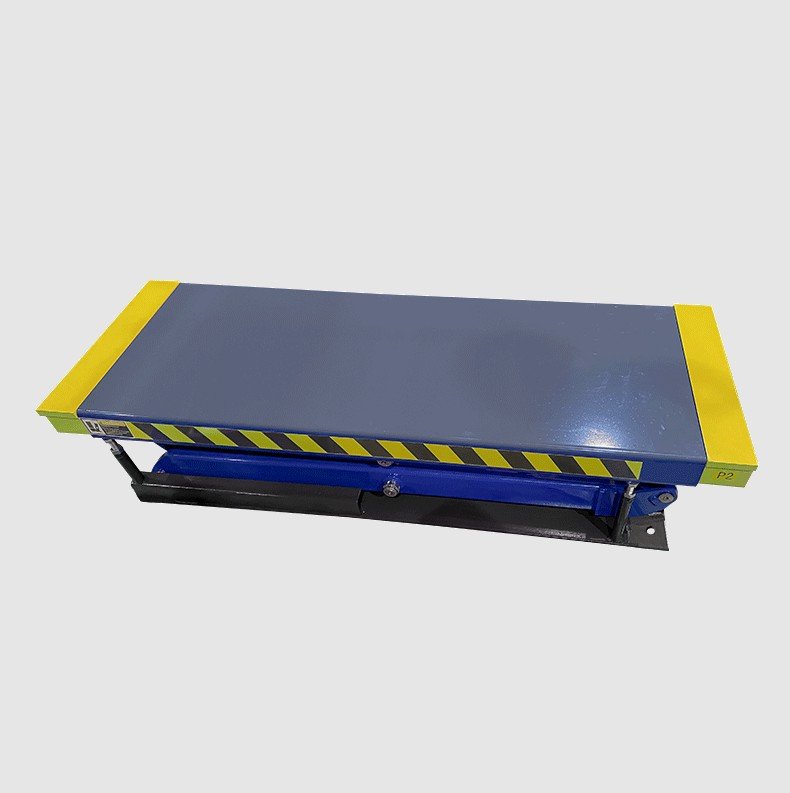

Flush-mount platform / recess layout

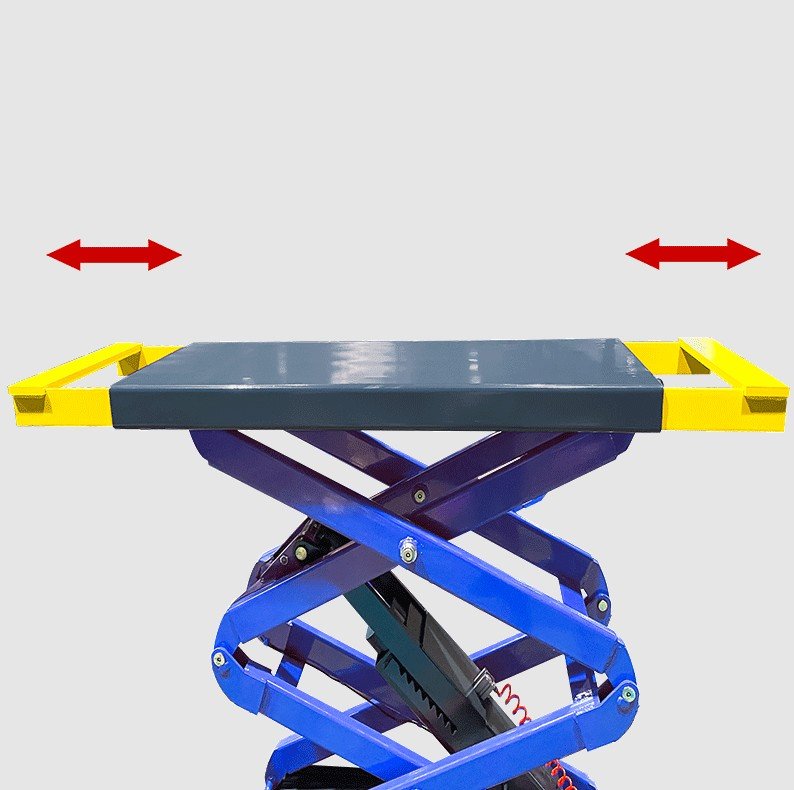

Double-extendable platform mechanism

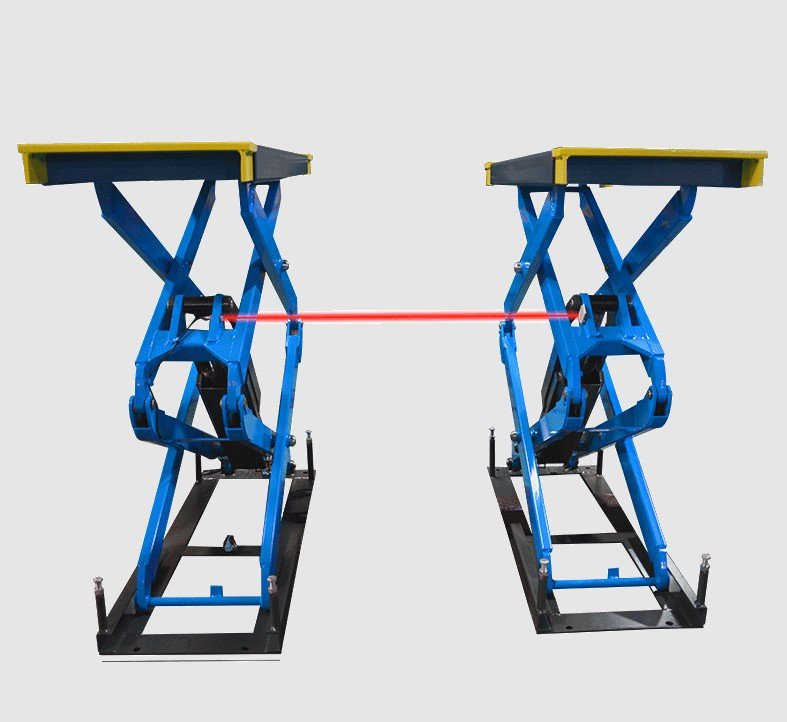

Photo-cell monitoring components

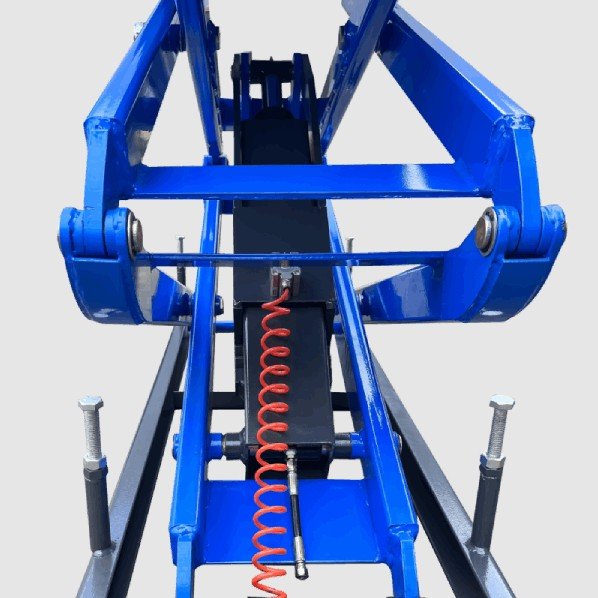

Mechanical safety-lock and air-release system
Automatic low-level safety-stop arrangement

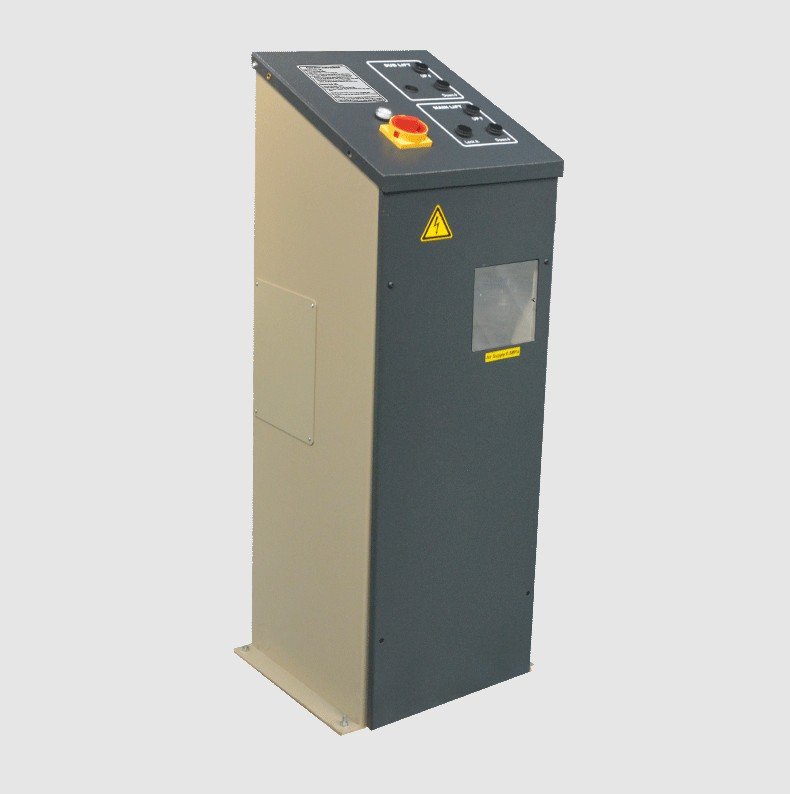

Electrical control cabinet

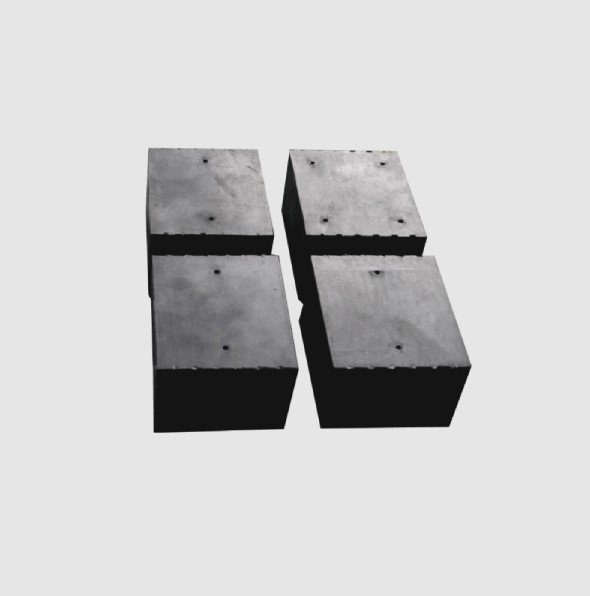

3-inch rubber pads
Iron Lift X-RISE 45F

Ideal for

Dealerships, professional mechanical workshops, tyre and suspension centres and integrated fit-outs requiring 4,500 kg capacity with a clear flush-floor bay.

Specifications

Specifications

Details

Capacity
4,500 kg
Configuration
Full-rise flush-mount scissor
Maximum lifting height
1,905 mm
Platform length
1,654-2,040 mm
Overall width
1,916 mm
Motor
3.0 HP

Factory dimension drawing

Iron Lift X-RISE 45F Diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
4,500 kg (10,000 lb)
Configuration
Full-rise flush-mount scissor
Lifting time
49 seconds
Maximum lifting height
49 seconds
Maximum lock height
1,845 mm
Minimum height
350 mm machine height – recessed installation
Platform / runway length
1,654-2,040 mm
Overall length including ramps
Not published as a single value on current source page
Overall width / outside platform width
1,916 mm
Width between platforms
800 mm
Alignment range
Not applicable
Auxiliary scissor
Not applicable
Gross weight
891 kg
Motor
3.0 HP
Control / safety
Photo-cell monitoring; automatic mechanical locks with air-operated release; 300 mm low-level safety stop
Standard pads
3-inch rubber pads
Published factory options
No named accessory kit shown on current source page

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Full-rise flush-mount scissor structure
  • Double-extendable platform system
  • Photo-cell monitoring/protection arrangement
  • Automatic mechanical safety locks
  • Air-operated safety-lock release

Options

  • No separately named factory accessory kit is shown on the current source page. Do not invent options.
  • Recess preparation, installation and commissioning quoted to suit the actual site.

Workshop fit

This is a recessed-installation hoist and requires site-specific pit/recess planning from approved installation drawings. Confirm vehicle mass, lifting-point spread, platform coverage, air supply, electrical supply and safe bay clearances. Important source discrepancy: use 1,905 mm as the public maximum lifting height until the conflicting 2,255 mm feature claim is clarified by PEAK.

Frequently asked questions

What maximum lifting height should be shown on the Iron Lift website?
Use 1,905 mm, which is the value in PEAK’s current technical table. A separate source feature line says 2,255 mm, so that higher figure should not be published unless PEAK confirms it in writing.
Yes. The mechanical safety-lock release is air operated.
The published platform length is adjustable from 1,654 mm to 2,040 mm.
The source identifies photo-cell detection/protection as part of the synchronisation and safety arrangement. Final commissioning should follow the approved manufacturer documentation.
No. X-RISE 45F is intended for flush/recessed installation.
