Stertil-Koni ST1075

7,500 kg-per-column hydraulic mobile column lifting system for truck, bus, fleet and heavy-vehicle workshops that need flexible wheel-engaging lifting without a fixed bay.

Clear-floor two-post

Stertil-Koni ST1075

7,500 kg-per-column Mobile Column Lift

7,500 kg-per-column hydraulic mobile column lifting system for truck, bus, fleet and heavy-vehicle workshops that need flexible wheel-engaging lifting without a fixed bay.

Freight and installation options available — contact us for details.

Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
7,500 kg per column
Capacity
1,850 mm
Lifting height
75 seconds
Lifting time
Mobile hydraulic column
Configuration

Product overview

The Stertil-Koni ST1075 gives heavy-vehicle workshops a flexible way to create a lifting bay where and when it is needed. Each column engages a vehicle wheel and provides 7,500 kg of rated lifting capacity, allowing columns to be arranged to suit the axle layout of the vehicle rather than committing the workshop to a permanent fixed hoist position. With a published lifting height of approximately 1,850 mm and a 75-second rise time, the ST1075 is suited to routine truck, bus and fleet servicing where fast under-vehicle access matters. Hydraulic lifting and electronic synchronisation manage the columns as a coordinated set while retaining the mobility that makes column lifts valuable in multi-use workshops. For Iron Lift customers, the ST1075 is best treated as a configurable lifting system rather than a single standalone machine. Final column quantity, control configuration, wheel/fork suitability, floor condition, charging or power arrangement and any axle-stand or adapter requirements should be matched to the actual fleet before quotation.

Key features

Detail photography

Column chassis and hydraulic pallet-style positioning mechanism
Wheel-engaging fork assembly
Column control interface
Mechanical safety-lock arrangement
Hydraulic cylinder / lifting carriage detail

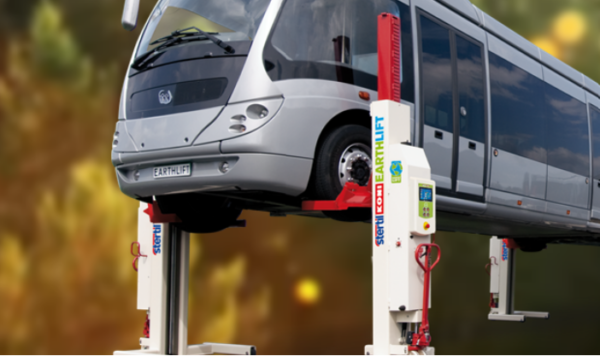

Multi-column vehicle setup showing working access

Ideal for

Truck and bus workshops, transport fleets, councils, emergency-service fleets, dealerships and industrial service facilities needing a flexible heavy-vehicle lifting system that can be moved clear of the bay when not required.

Specifications

Specifications

Details

Capacity
7,500 kg per column
Configuration
Hydraulic mobile column lift
Lifting height
1,850 mm
Lifting time
75 seconds
Column height
2,465 mm
Fork length
Approx. 356 mm / 14 in

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
Stertil-Koni ST1075
Rated lifting capacity
7,500 kg per column
Configuration
Hydraulic mobile column lift
Lifting height
Hydraulic mobile column lift
Lifting time
75 seconds
Column / system height
2,465 mm
Column / system weight
Confirm with Genesis for current Australian configuration
Fork / platform arrangement
356 mm / 14 in pick-up forks
Power / charging
Wireless or cabled configuration – confirm supplied Australian version
System configuration
Multi-column system; confirm current Australian maximum linkedcolumn configuration with Genesis

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

Options

Workshop fit

Confirm gross vehicle mass, individual wheel/axle loads, wheel diameter and width, axle spacing, number of lifting points, floor level/condition and workshop access before selection. Rated capacity is per column; total system capacity must not be used as a substitute for checking actual load distribution at every lifting point. The current Stertil-Koni manufacturer specification lists about 1,850 mm lifting height, 75-second rise time and 2,465 mm column height. Final Australian wireless/cabled control configuration and maximum linked-column count must be confirmed with Genesis before publication and quotation.

Frequently asked questions

How much can each ST1075 column lift?
Genesis lists the ST1075 as the 7,500 kg mobile-column model. Vehicle suitability still depends on the actual wheel/axle load carried by every individual column.
Stertil-Koni publishes a lifting height of approximately 1,850 mm.
No. Mobile columns are positioned at the vehicle wheels and can be moved away when not required, subject to the approved operating procedure and suitable floor conditions.
That depends on the number of axles, wheel positions and the loads carried at each lifting point. Iron Lift should size the set from the actual vehicle fleet rather than assuming a standard quantity.
Yes. Iron Lift can assist with system selection, installation/commissioning planning, servicing and parts enquiries subject to location, supplier availability and the final supplied configuration.

Related Pages

Two-Post Hoists

Installation

Servicing & Repairs

Spare Parts

Request a Quote

Documents

brochure

manual

dimension drawing

Request a vehicle hoist quote

Tell us the vehicles you service, axle configuration, wheel sizes, heaviest axle loads, workshop floor and location and we will help determine the right ST1075 column quantity and setup.
