Iron Lift X-RISE 45AX
Iron Lift X-RISE 45AX

Clear-floor two-post

Iron Lift X-RISE 45AX

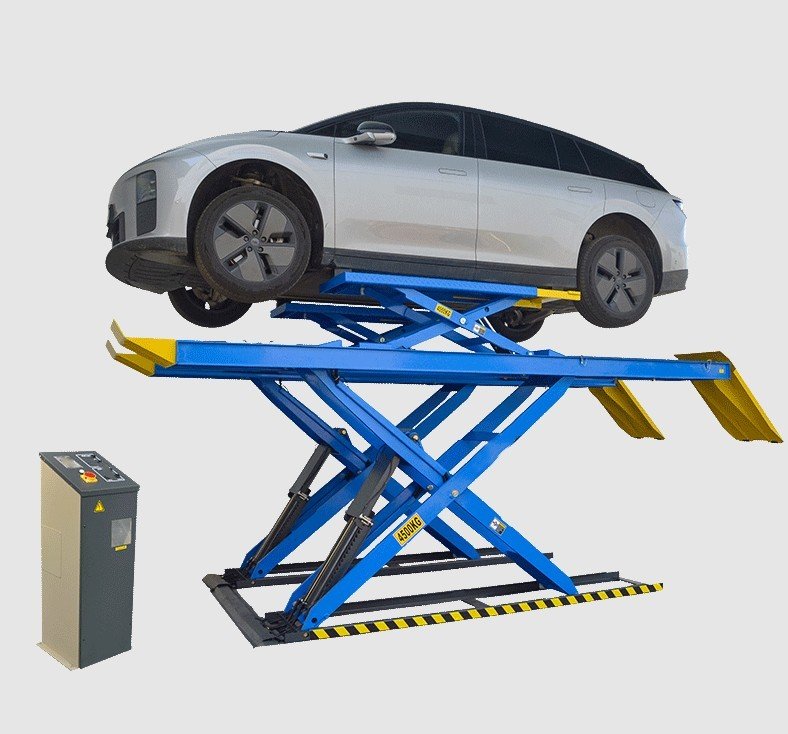

4,500 kg Alignment Double-Scissor Hoist with 4,000 kg Auxiliary Lift

4,500 kg alignment double-scissor hoist with built-in 4,000 kg auxiliary scissor, auto-reset rear slip plates and extended alignment platforms.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,500 kg
Main capacity
4,000 kg
Auxiliary capacity
1,950 mm
Maximum hydraulic lock height
5,700 mm
Overall length incl. ramps

Product overview

The Iron Lift X-RISE 45AX combines wheel-alignment capability with an integrated 4,000 kg auxiliary scissor, allowing a single bay to support alignment work and wheel-free service operations. The main platform is rated to 4,500 kg and incorporates auto-reset rear slip plates and adjustable turnplate pockets. Each main platform is driven by two hydraulic cylinders to support synchronised movement. Electromagnetic air-control mechanical locks and a low-level automatic safety stop form part of the safety system, while the control cabinet can be installed on either the left or right side of the bay. The auxiliary scissor extends from 1,600 mm to 1,975 mm and rises 511 mm, providing wheel-free access while the vehicle remains positioned on the main alignment platforms.

Key features

  • 4,500 kg main lifting capacity
  • Built-in 4,000 kg auxiliary scissor lift
  • Alignment-capable double-scissor configuration
  • Auto-reset rear slip plates supplied as standard
  • Adjustable turnplate pockets
  • Four hydraulic cylinders across the main platforms
  • Electromagnetic air-control mechanical locks
  • Automatic safety stop at approximately 300 mm during lowering
  • Control cabinet can be positioned left or right
  • Auxiliary platform extends from 1,600 mm to 1,975 mm

Detail photography

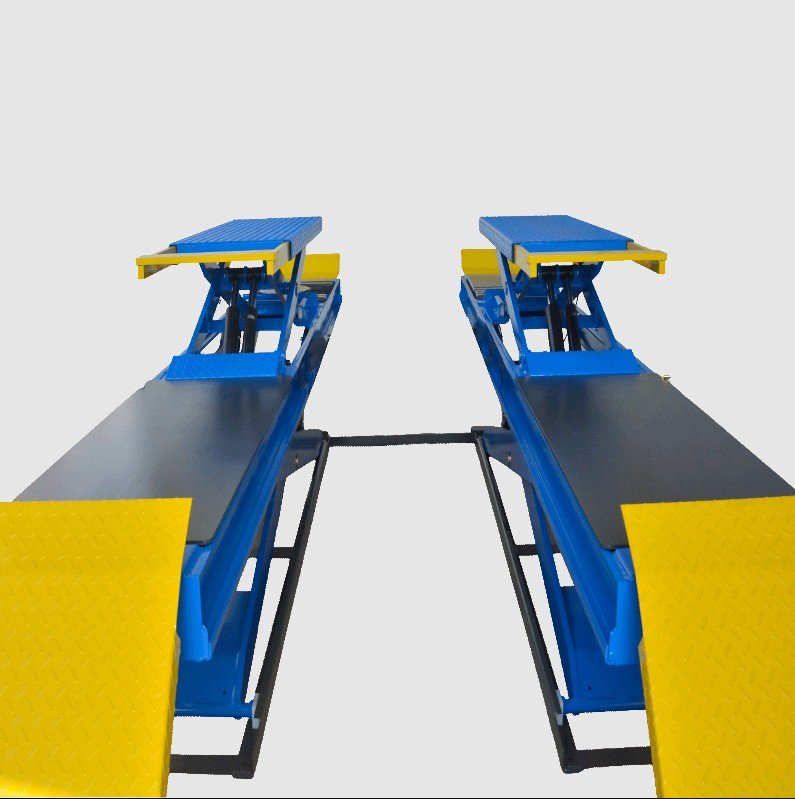

Main double-scissor structure

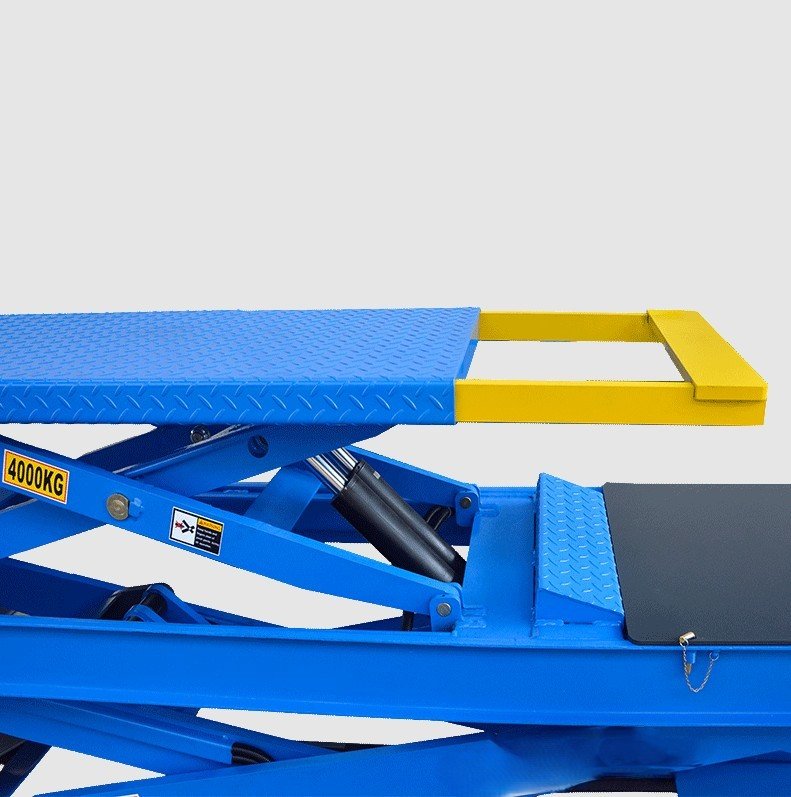

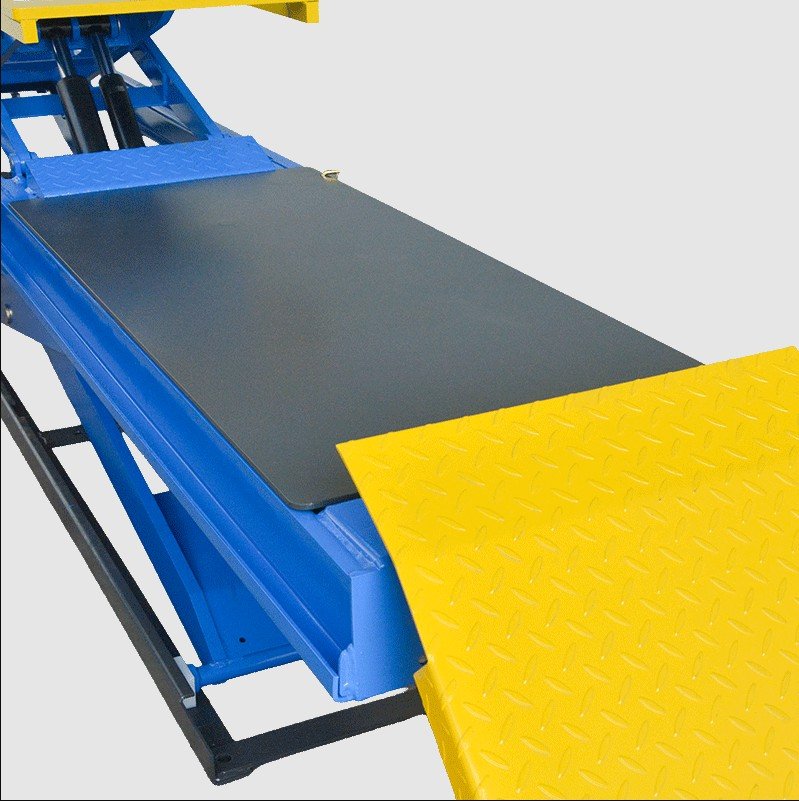

Integrated auxiliary scissor and extendable sub-platform
Auto-reset rear slip plates

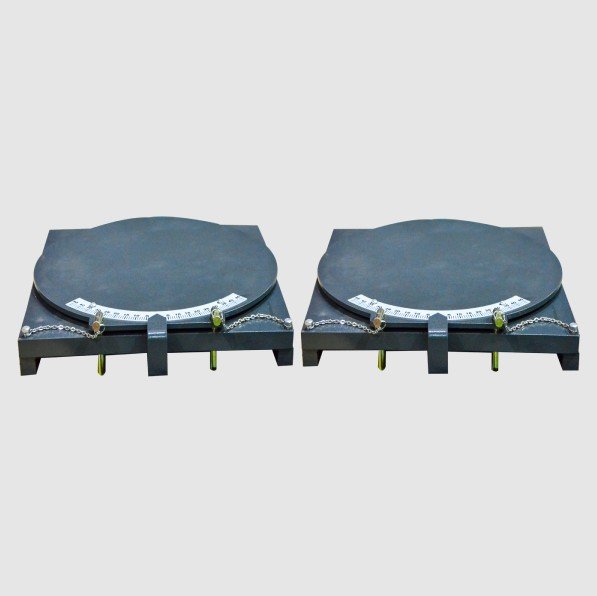

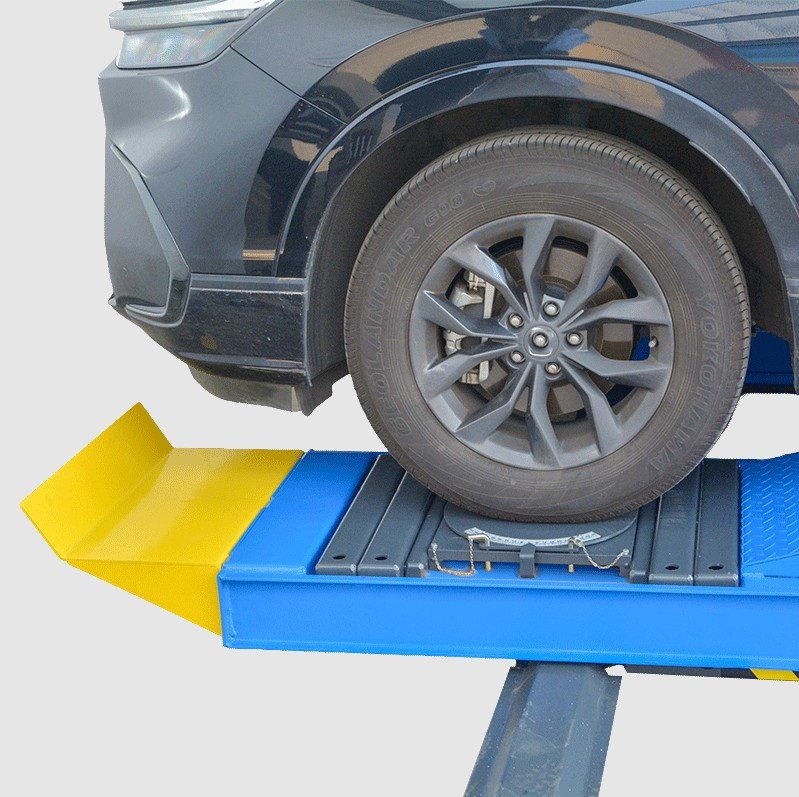

Adjustable turnplate pockets

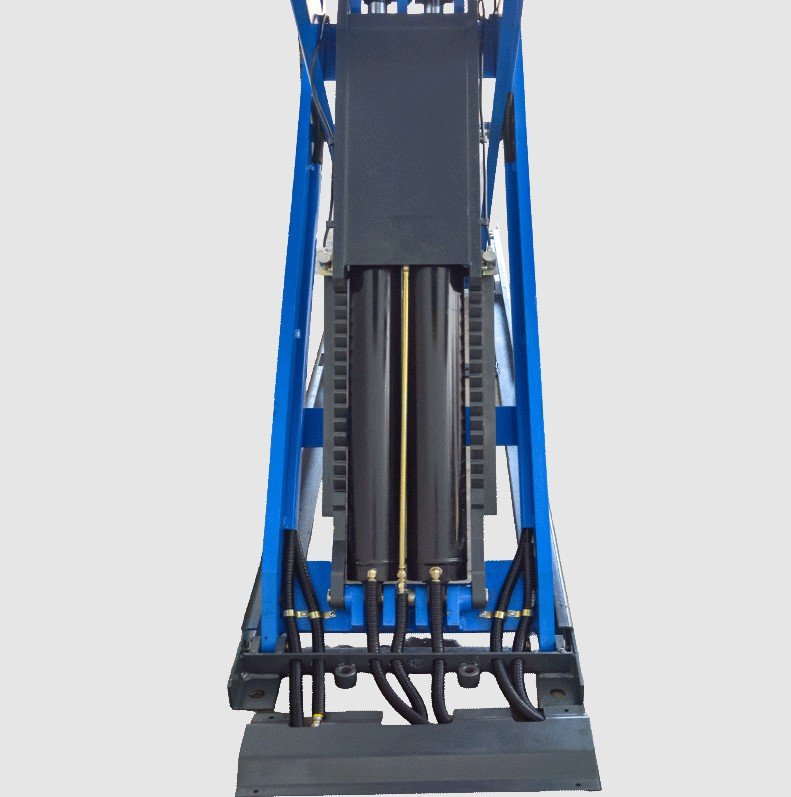

Four-cylinder synchronisation arrangement
Electromagnetic air-control mechanical locks
Left/right control-cabinet installation detail
Crossbeam, cable and secondary safety detail
Rolling-jack rail / wheel-free service accessory interface where shown

Ideal for

Wheel-alignment centres, dealerships, tyre and suspension workshops and premium multi-purpose service bays that need alignment capability plus built-in wheel-free lifting.

Specifications

Specifications

Details

Main capacity
4,500 kg
Auxiliary scissor capacity
4,000 kg
Maximum hydraulic lock height
1,950 mm
Overall width
2,220 mm
Alignment wheelbase range
2,238-3,871 mm
Motor
3.0 HP

Factory dimension drawing

Iron Lift X-RISE 45AX diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
4,500 kg (10,000 lb) main lift
Configuration
Alignment double-scissor with built-in auxiliary scissor
Lifting time
55 seconds
Maximum lifting height
55 seconds
Maximum lock height
1,950 mm hydraulic / 1,883 mm mechanical
Minimum height
200 mm main platform
Platform / runway length
Main platform length within 4,700 mm body; auxiliary runway 1,600- 1,975 mm
Overall length including ramps
5,700 mm
Overall width / outside platform width
2,220 mm
Width between platforms
940 mm
Alignment range
Four-wheel alignment wheelbase 2,238-3,871 mm
Auxiliary scissor
4,000 kg capacity; 511 mm lift height; 48 mm minimum; 1,600-1,975 mm platform length
Gross weight
2,382 kg
Motor
3.0 HP
Control / safety
Electromagnetic air-control mechanical locks; automatic low-level safety stop
Standard pads
Not separately specified on current source page
Published factory options
Turnplates kit 40101; LED light kit 20814; RJ-6A 2.8 t pneumatichydraulic rolling jack

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Main 4,500 kg alignment double-scissor structure
  • Built-in 4,000 kg auxiliary scissor with extendable platform
  • Auto-reset rear slip plates
  • Adjustable turnplate pockets
  • Four-cylinder main lifting arrangement

Options

  • Turnplate set - source kit 40101

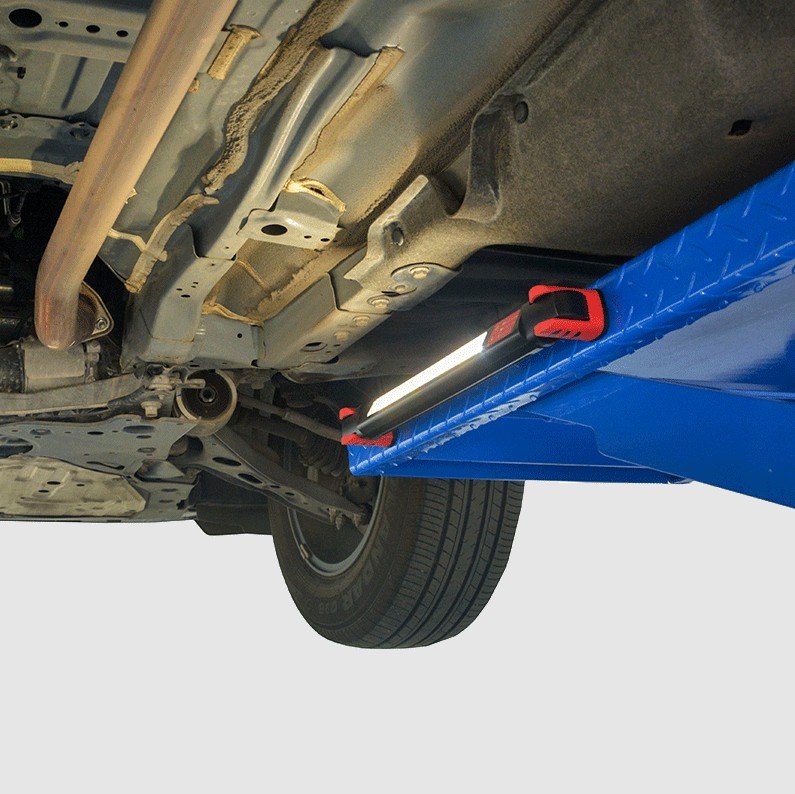

  • LED light kit - source kit 20814

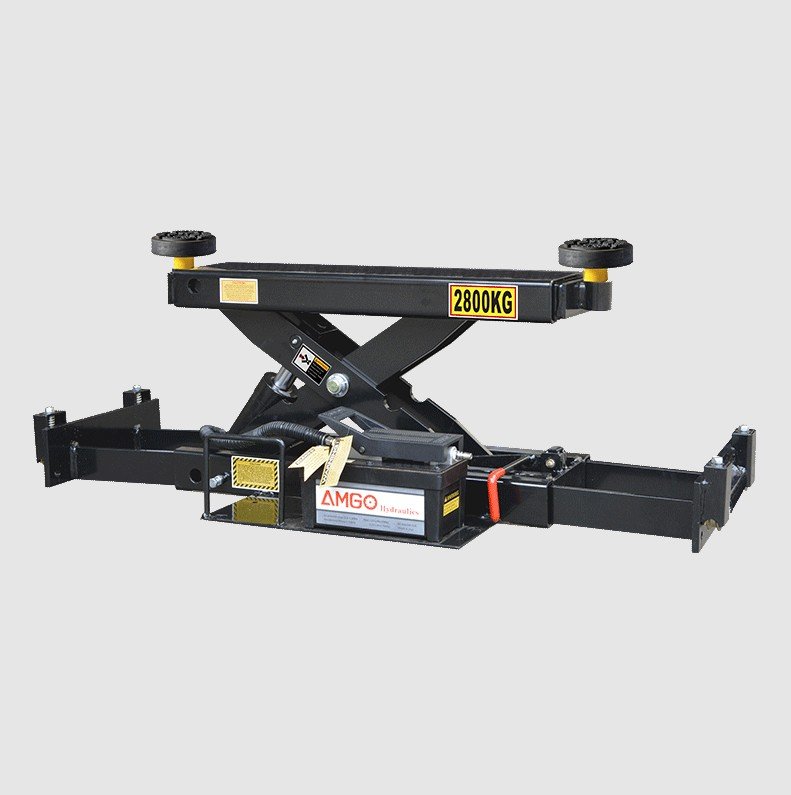

  • RJ-6A 2,800 kg pneumatic-hydraulic rolling jack
  • Installation and commissioning quoted to suit the actual site

Workshop fit

Allow approximately 5,700 mm overall length including ramps and 2,220 mm overall width. Confirm vehicle wheelbase against the published 2,238-3,871 mm four-wheel alignment range, plus track width, axle loads, lifting points for the auxiliary scissor, air supply, electrical supply and slab/foundation requirements. Turnplates and rolling jack are options unless specifically included in the Iron Lift quotation.

Frequently asked questions

Can X-RISE 45AX perform wheel alignment and wheel-free service in one bay?
Yes. It combines an alignment main platform with a built-in 4,000 kg auxiliary scissor for lifting the vehicle clear of its wheels.
The source lists auto-reset rear slip plates as standard equipment.
The turnplate set is listed as an option, source kit 40101, so inclusion must be confirmed on the quote.
The built-in auxiliary scissor is rated at 4,000 kg and has an extendable 1,600-1,975 mm platform.
Yes. The source specifies electromagnetic air-control mechanical locks.
