Iron Lift X-RISE 55A

Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
Iron Lift X-RISE 55A
Iron Lift X-RISE 55A

Clear-floor two-post

Iron Lift X-RISE 55A

5,500 kg

5,500 kg alignment scissor hoist with four hydraulic cylinders, 5,018 mm
runways and clear access around the vehicle for service and alignment
work.

Freight and installation options available — contact us for details.

REQUEST A QUOTE
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
5,500 kg
Rated capacity
1,850 mm
Maximum lifting height
2,290 mm
Overall width
5,018 mm
Runway length

Product overview

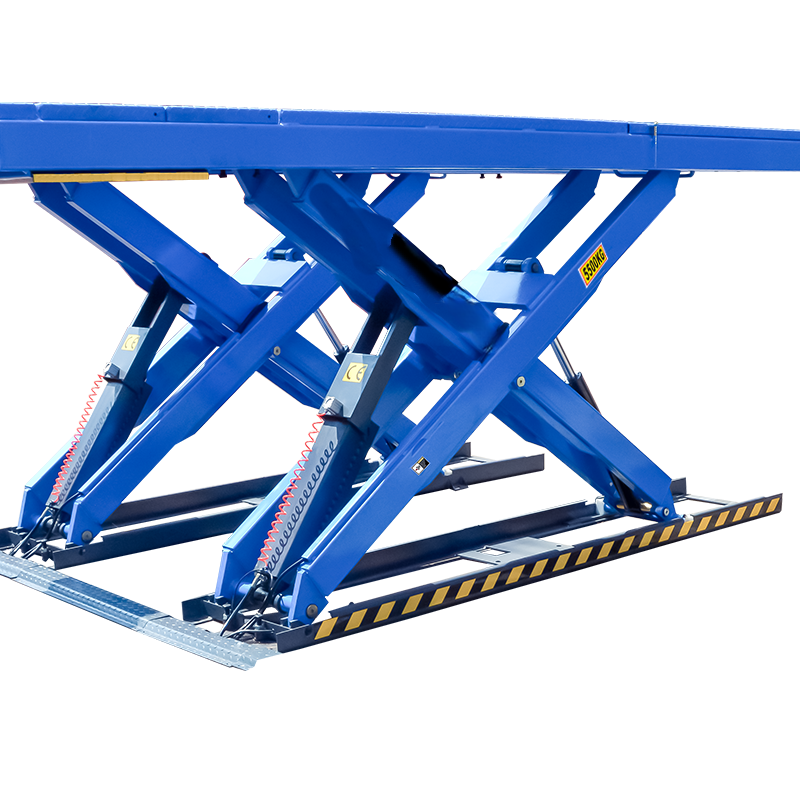

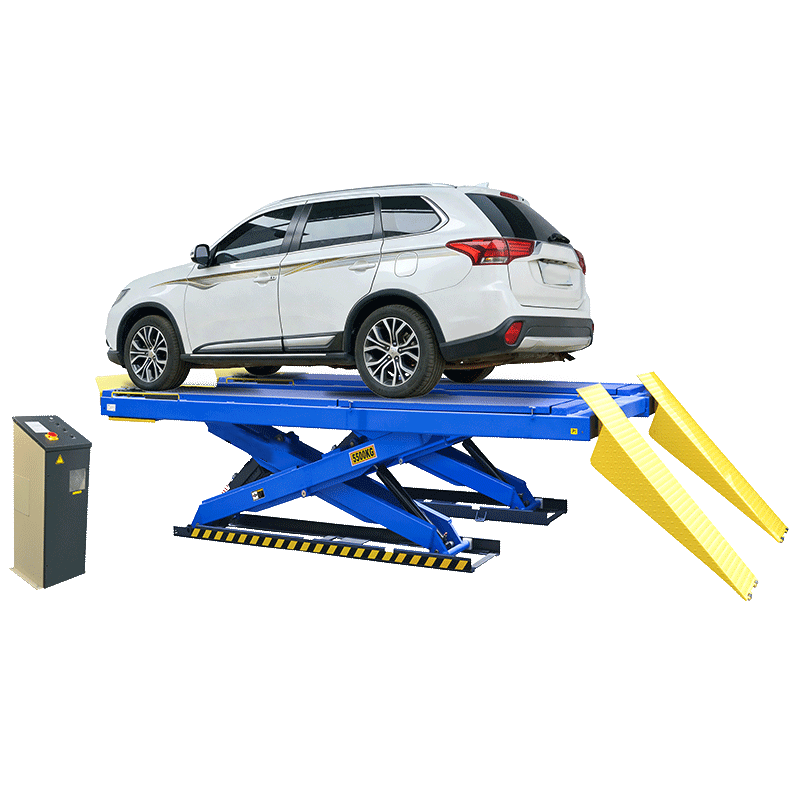

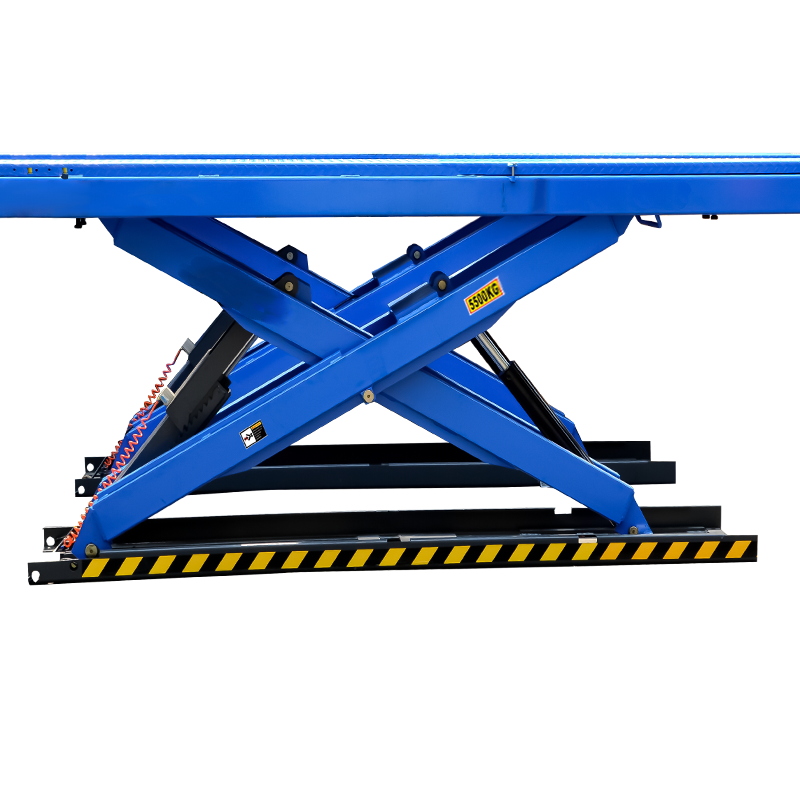

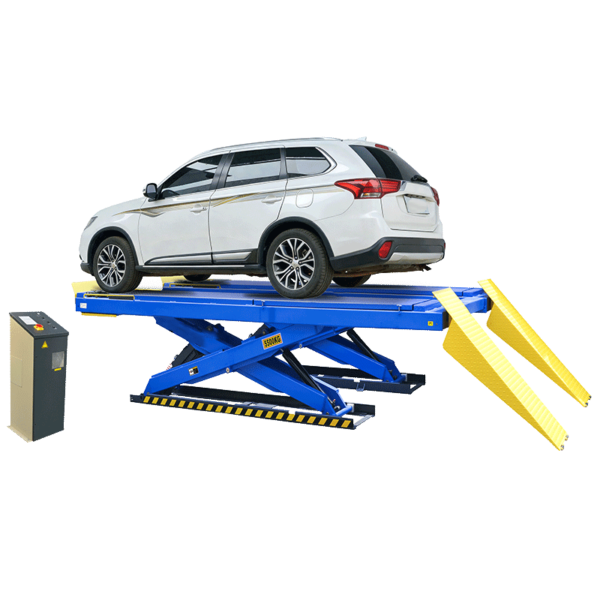

The Iron Lift X-RISE 55A is a 5,500 kg alignment scissor hoist for workshops requiring substantial lifting capacity without side columns around the vehicle. Its heavy-duty X-scissor structure, two groups of four hydraulic cylinders and large non-skid platforms support general service and wheel-alignment work. The hoist includes an electrical control cabinet, hydraulic and self-locking mechanical safety systems, an automatic safety stop during lowering and adjustable turnplate pockets.

Key features

  • 5,500 kg rated lifting capacity
  • Alignment scissor configuration for service and wheel-alignment work

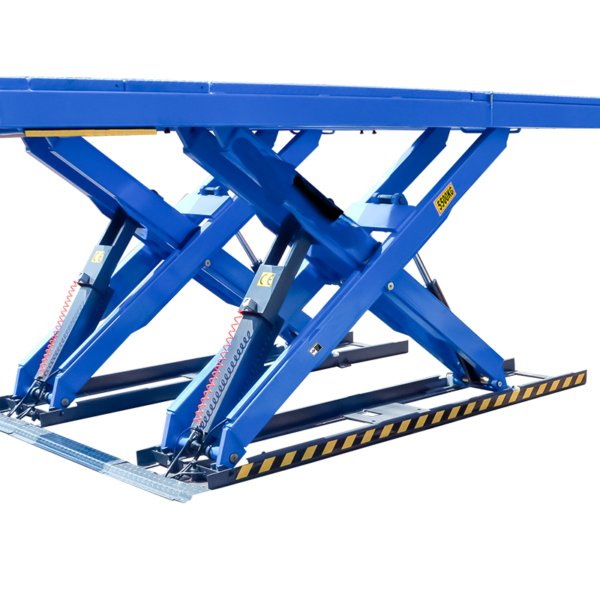

  • Heavy-duty X-scissor structure
  • Four hydraulic cylinders arranged in two groups for platform synchronisation
  • Electrical control operation with control cabinet

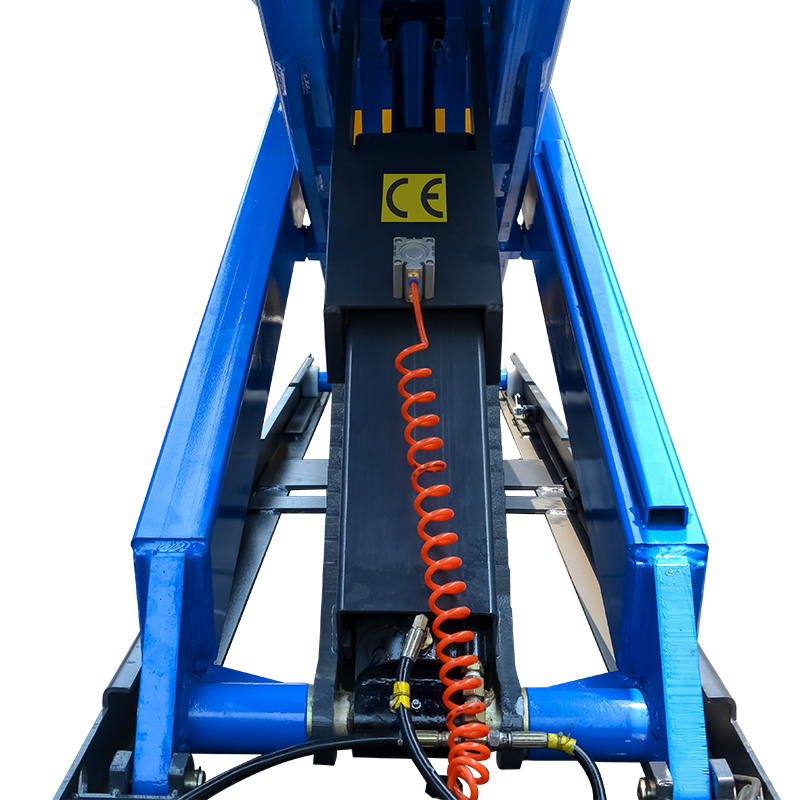

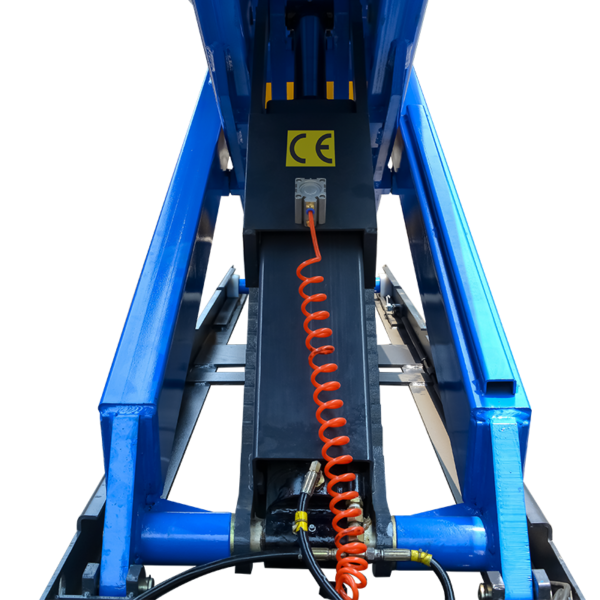

  • Hydraulic lock plus self-locking mechanical safety lock
  • Automatic safety stop at approximately 600 mm during lowering
  • Large integrated non-skid platforms

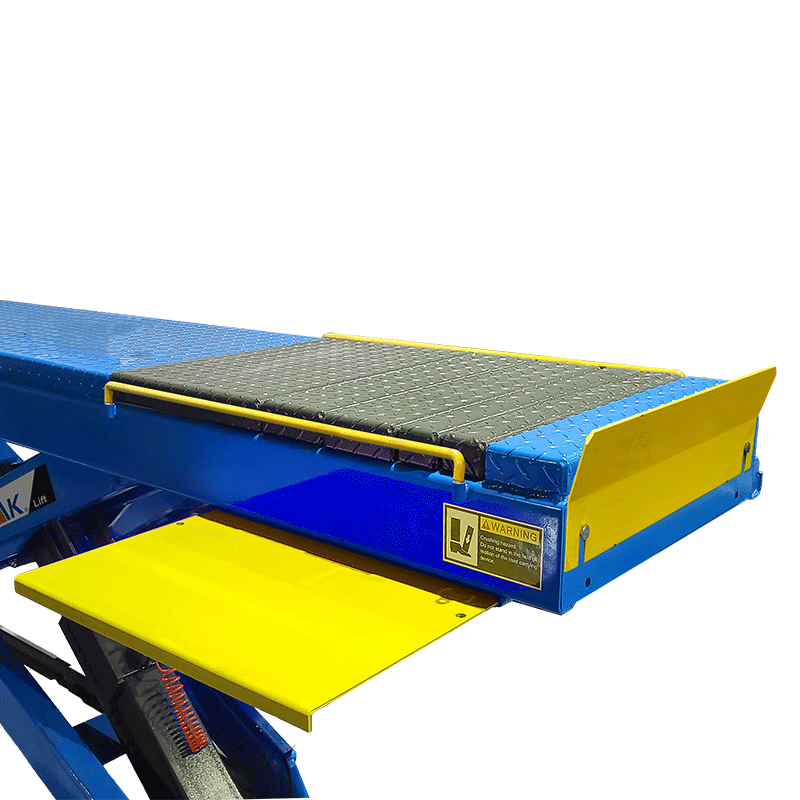

  • Pull-out tool shelf supplied as standard

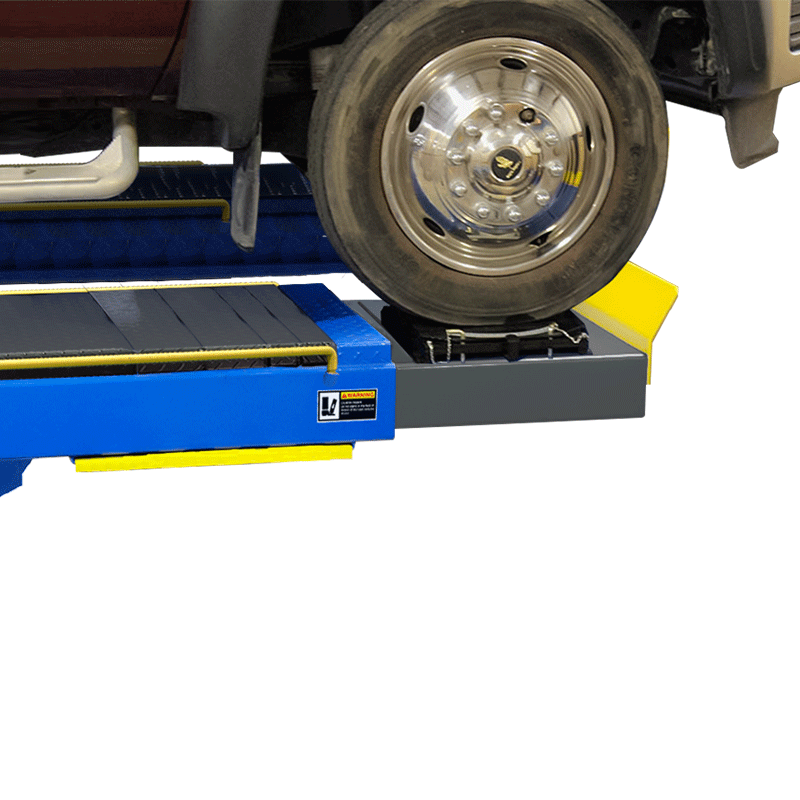

  • Adjustable turnplate pockets

Detail photography

Single-point safety lock release
Direct-drive hydraulic cylinder Direct-drive hydraulic cylinder
Super-asymmetric arm set
Automatic arm restraints
Double-screw pad and 3″ adapters
Optional saddle / frame adapter
Toe guards and tool trays
Carriage and slider detail
Iron Lift Forge 45DA

Ideal for

Wheel-alignment centres, tyre and suspension workshops, dealerships, general mechanical workshops and fleet facilities requiring a high-capacity scissor platform with open access around the sides of the vehicle.

Specifications

Specifications

Details

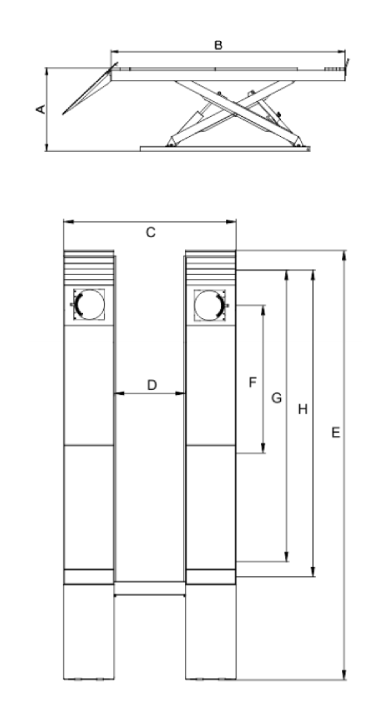

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
5,500 kg (12,000 lb)
Configuration
Alignment scissor hoist
Lifting time
Approx. 75 seconds
Maximum lifting height
Approx. 75 seconds
Maximum lock height
1,805 mm
Minimum platform height
305 mm
Overall length including ramps
6,554 mm
Runway length
5,018 mm
Overall width
2,290 mm
Width between runways
1,040 mm
Four-wheel alignment range
2,081-4,266 mm
Maximum two-wheel alignment
4,331 mm
Gross weight
Approx. 2,604 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Heavy-duty alignment scissor structure and base frames
  • Large integrated non-skid platforms
  • Four hydraulic cylinders in two synchronised groups
  • Electrical control cabinet
  • Hydraulic and self-locking mechanical safety systems

Options

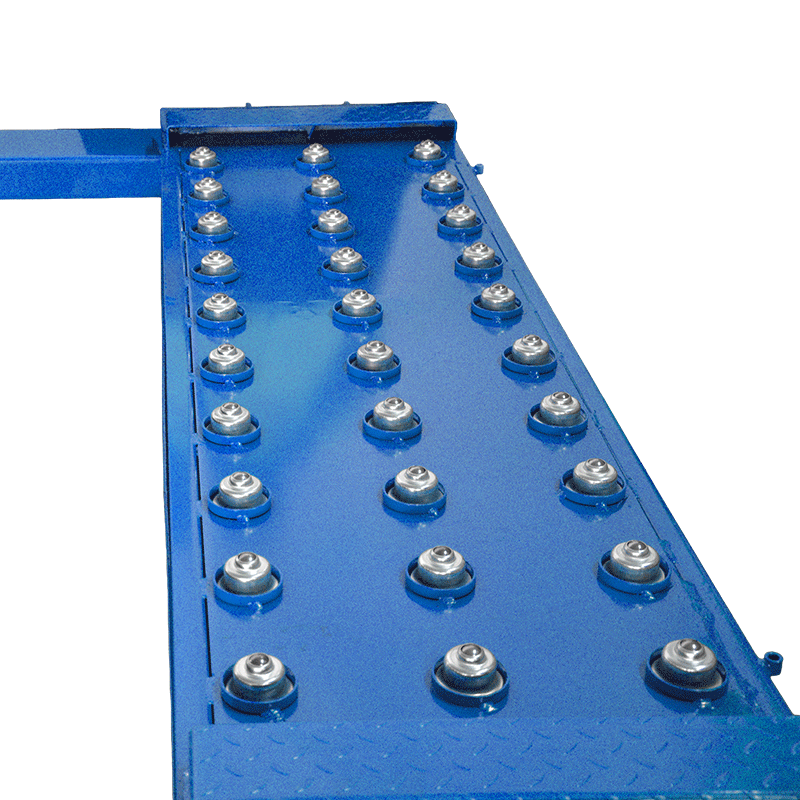

  • Extension platform - source kit PX011

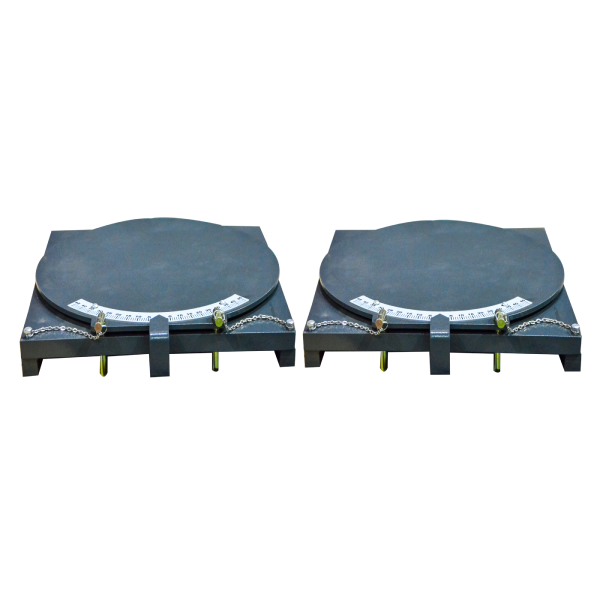

  • Turnplate set - source kit 40101

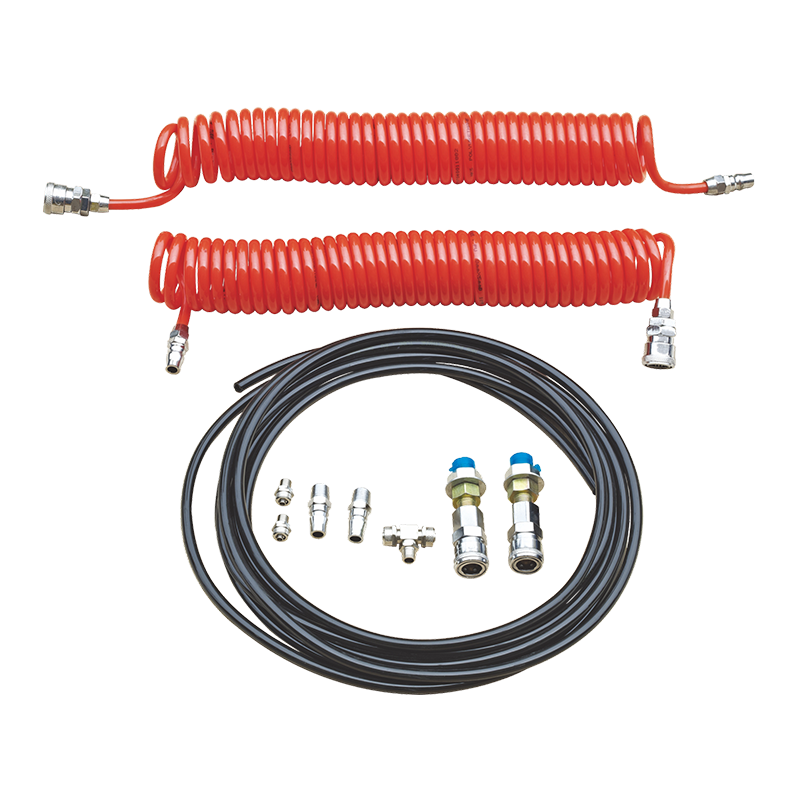

  • Air-line kit - source kit PX004
  • RJ-6H manual hydraulic rolling jack - 2.8 t

Workshop fit

Overall length including ramps is 6,554 mm, runway length 5,018 mm and overall width 2,290 mm. Minimum platform height is 305 mm. Confirm vehicle length, wheelbase, track, axle loads, bay length, approach clearance, site electrical supply, any compressed-air requirement for the selected control/accessory configuration, foundation or recessed-installation requirements and unloading access. Rolling jacks and turnplates are options unless specifically included in the quote.

Frequently asked questions

Can X-RISE 55A be used for both service and wheel alignment?
Yes. It is an alignment scissor configuration with adjustable turnplate pockets and alignment dimensions, while its platform layout also supports general service work.
The rated capacity is 5,500 kg. Vehicle suitability still depends on dimensions, axle loads, weight distribution and support on the platforms or rolling jacks.
The manufacturer lists the turnplate set as an option. Adjustable turnplate pockets are part of the layout, but the supplied turnplate configuration must be confirmed on the quote.
Yes. The source lists 2.8 t and 3.5 t rolling-jack options. Select the correct capacity and operating type for the intended vehicle mix.
The hoist is 6,554 mm overall including ramps. Additional approach and working clearance is required, so Iron Lift should review the bay layout before installation.
