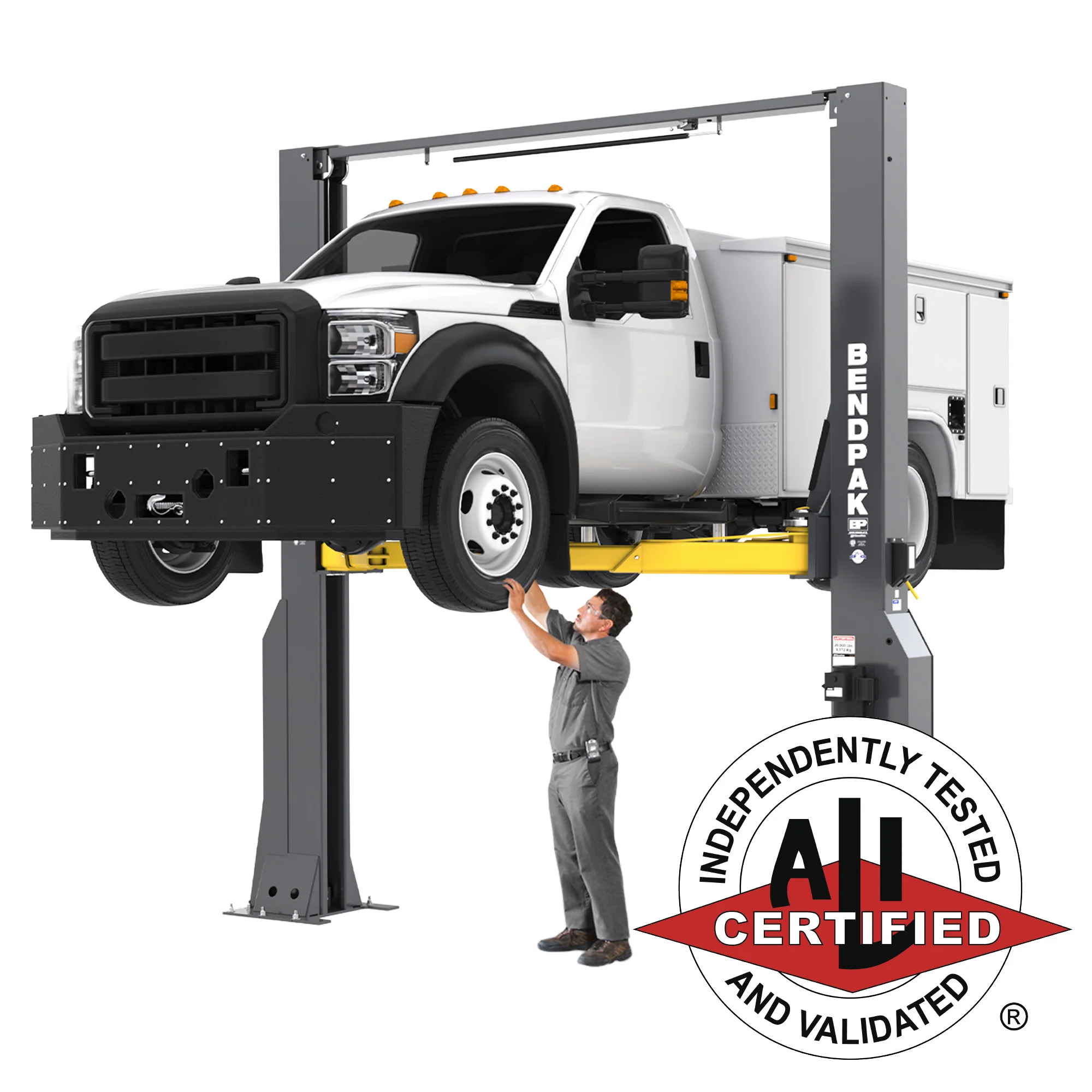

BendPak 20AP

9,072 kg high-capacity clearfloor two-post hoist for heavy work trucks, commercial fleets and industrial service bays requiring substantial perarm capacity.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
BendPak 20AP - Iron Lift
BendPak 20AP - Iron Lift

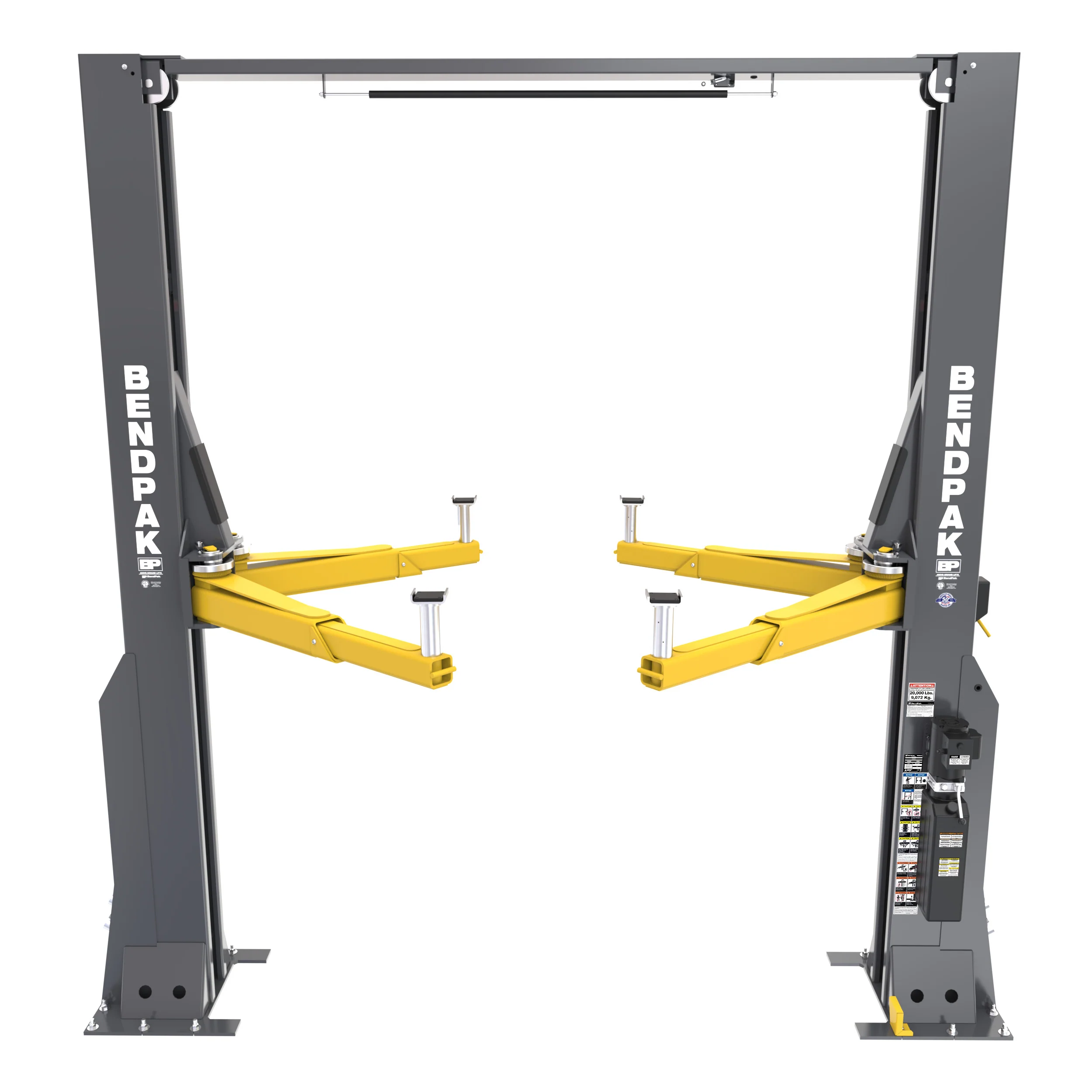

Clear-floor two-post

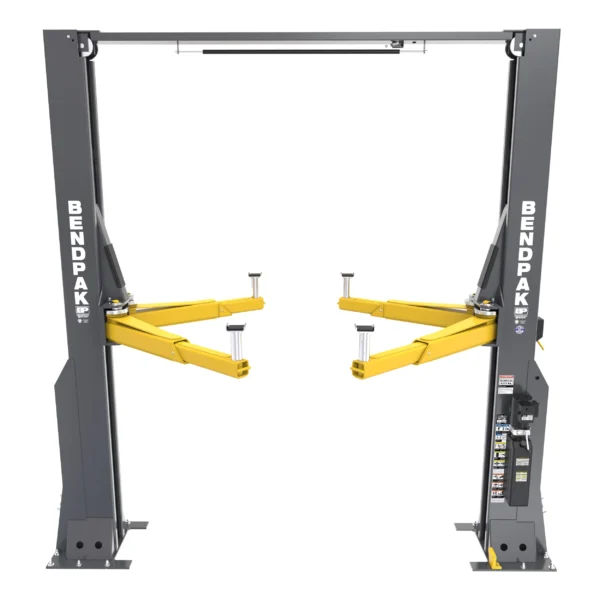

BendPak 20AP

9,072 kg Super-Duty Clearfloor Two-Post Hoist

9,072 kg high-capacity clearfloor two-post hoist for heavy work trucks, commercial fleets and industrial service bays requiring substantial perarm capacity.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
9,072 kg
Rated capacity
Super-duty high-capacity clearfloor two-post
Configuration
4,293 mm
Overall height
2,737 mm
Drive-through clearance

Product overview

The BendPak 20AP is the highest-capacity standard-height BendPak two-post model selected for this first Iron Lift batch. Rated at 9,072 kg, it is positioned for heavy work trucks, commercial vehicles and fleet applications that exceed the practical range of mainstream automotive two-post hoists. The clearfloor structure gives technicians unobstructed space between the columns, while the wide 3,200 mm inside-column dimension and 2,737 mm drive-through clearance suit larger vehicles. Australian availability, power pack and final compliance/supply configuration must be confirmed before the page goes live.

Key features

  • 9,072 kg rated lifting capacity
  • 2,268 kg published maximum per arm
  • Heavy-duty clearfloor layout
  • Approx. 2,102 mm maximum lifting height with pad
  • 3,200 mm inside-column width
  • 2,737 mm drive-through clearance
  • 889-1,575 mm front and rear arm reach
  • Dual direct-drive hydraulic system
  • Automatic arm restraints and safety locks
  • 79-second published lifting time

Detail photography

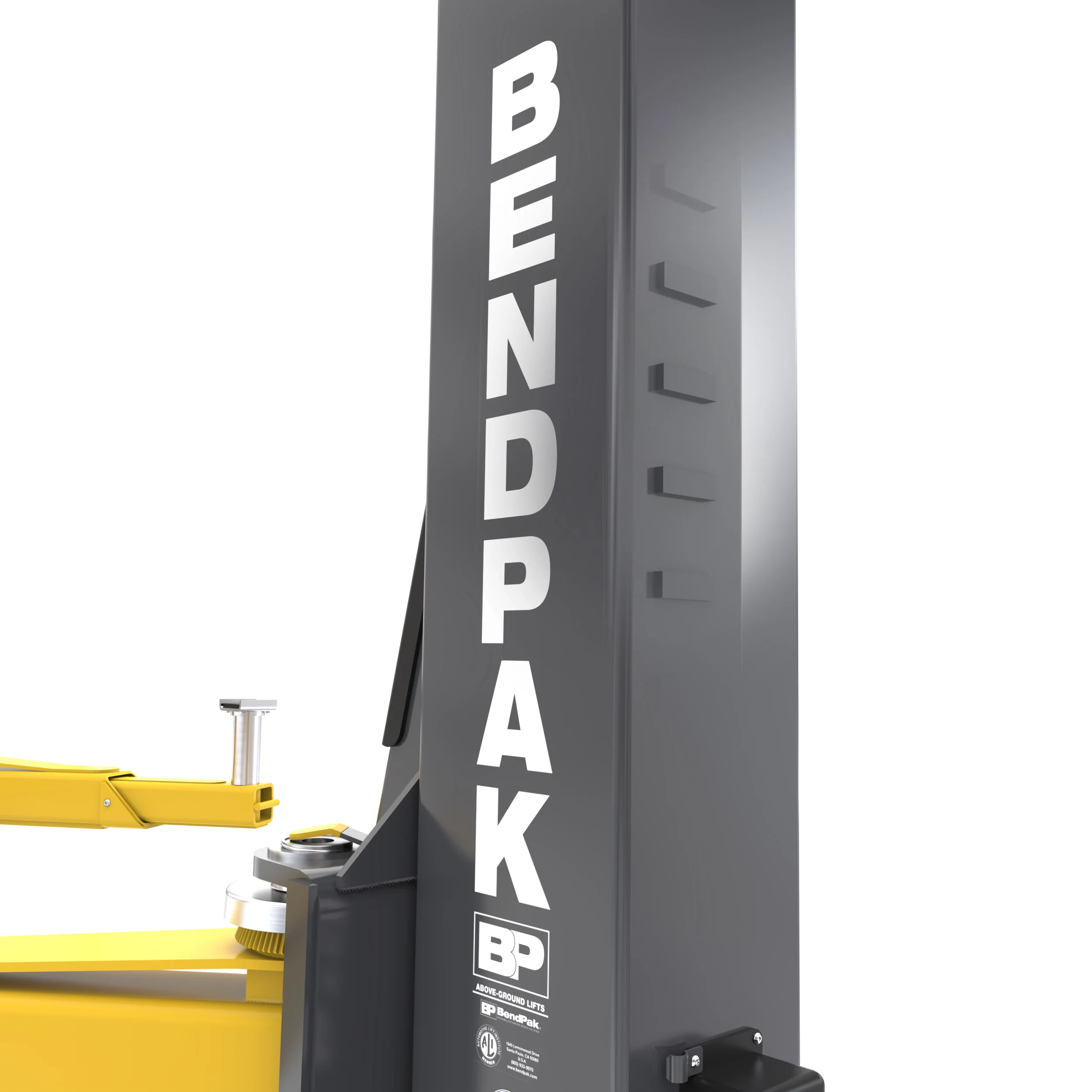

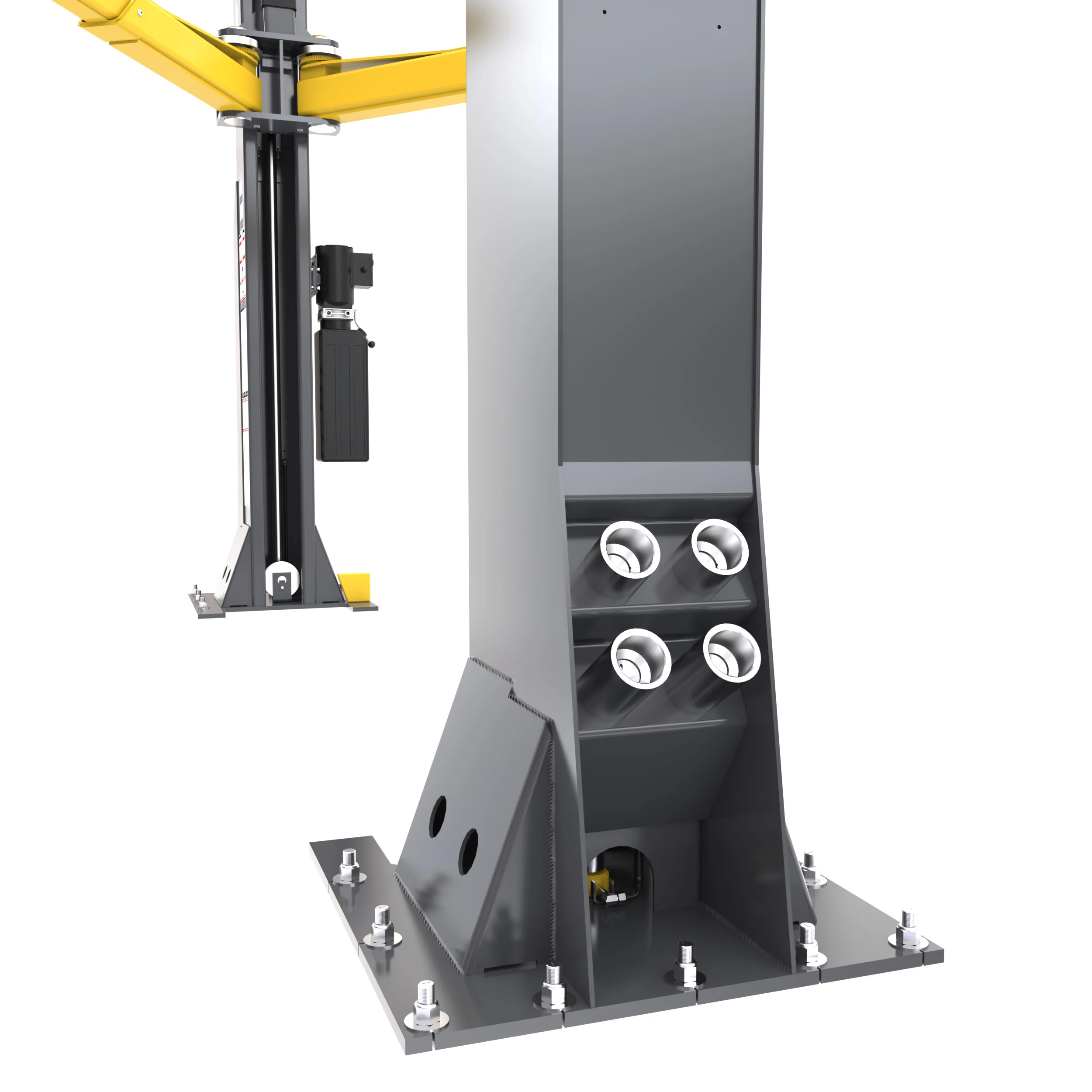

Heavy-duty column/base structure

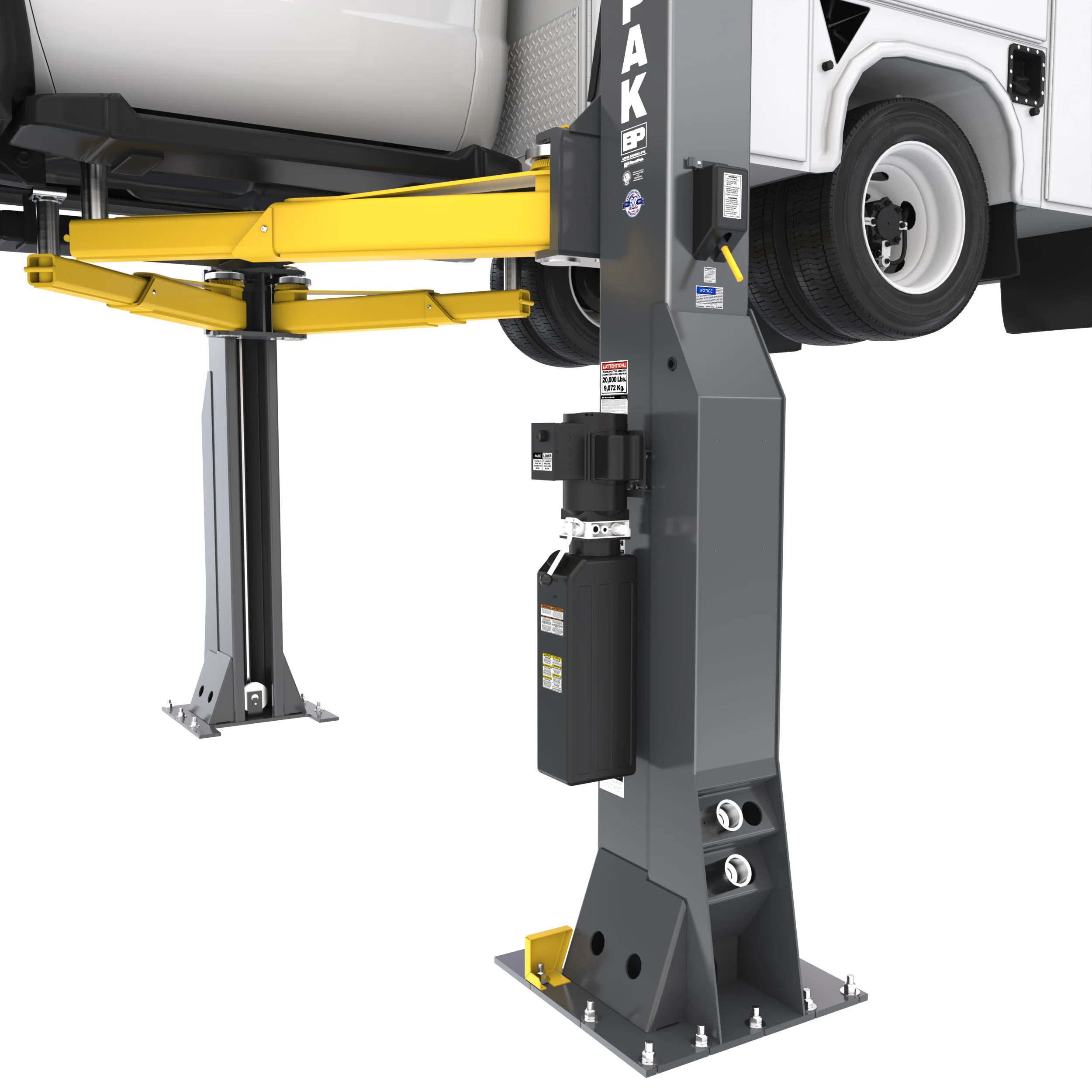

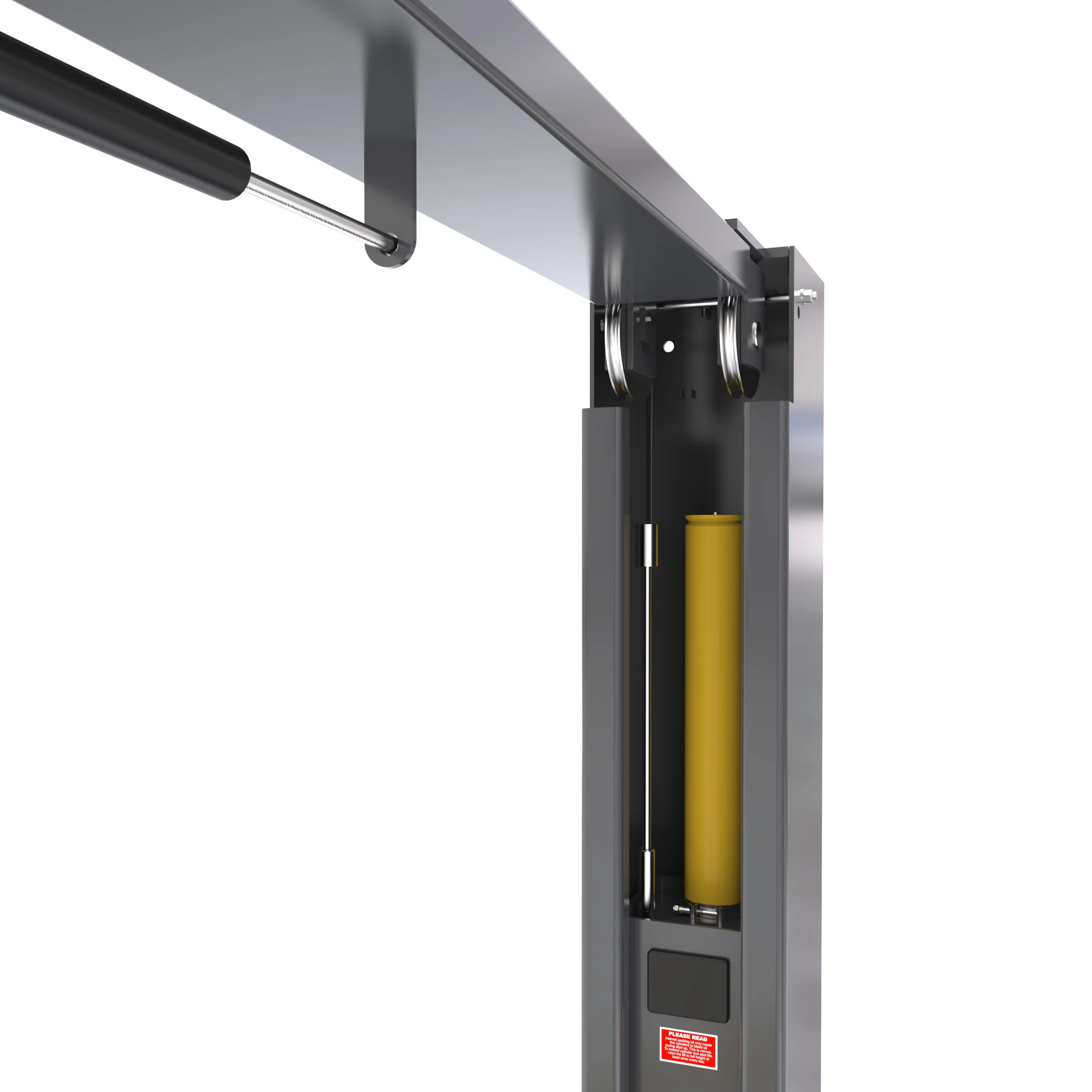

Large carriage and direct-drive cylinders
Long heavy-vehicle arm assemblies

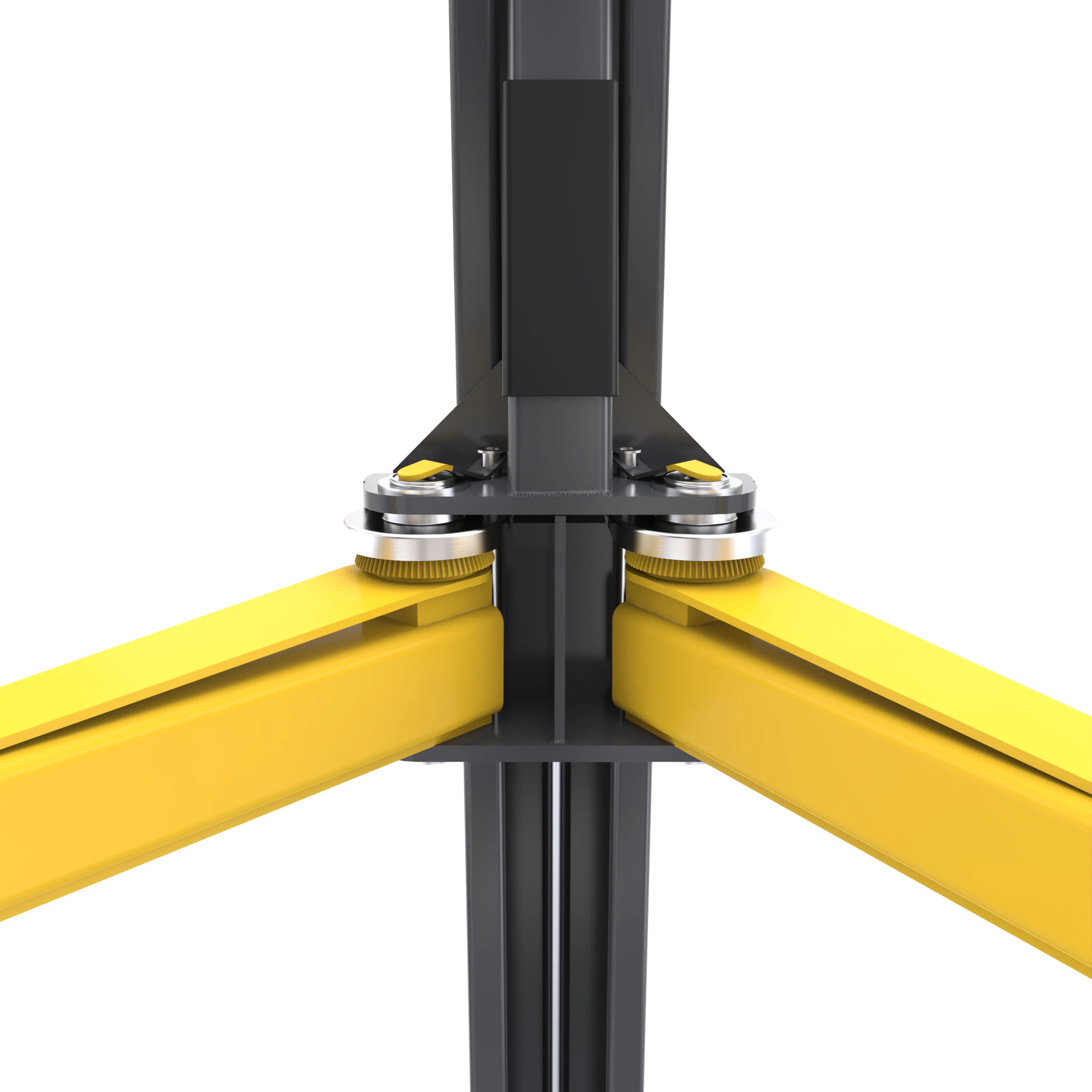

Arm-restraint mechanism

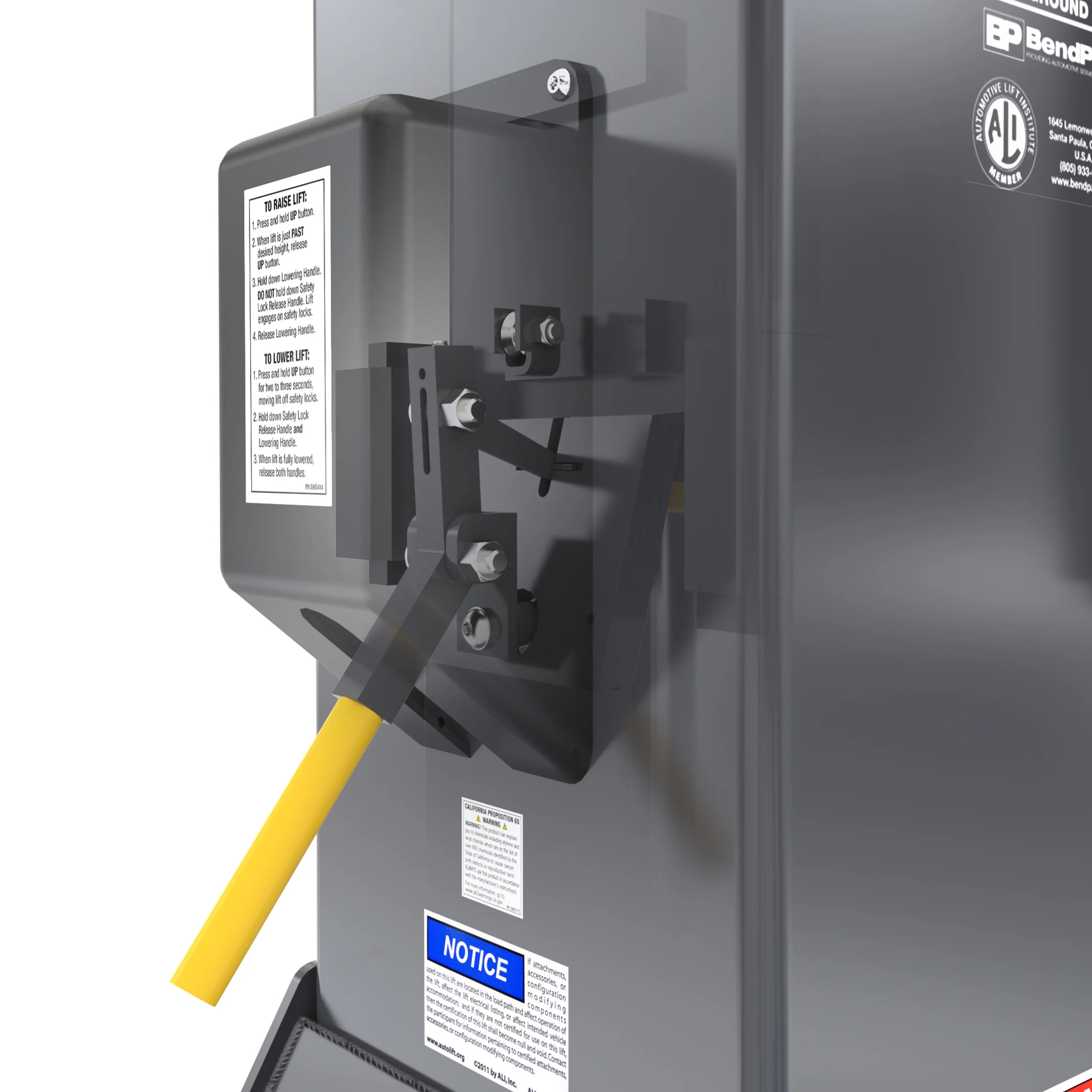

Safety-lock system

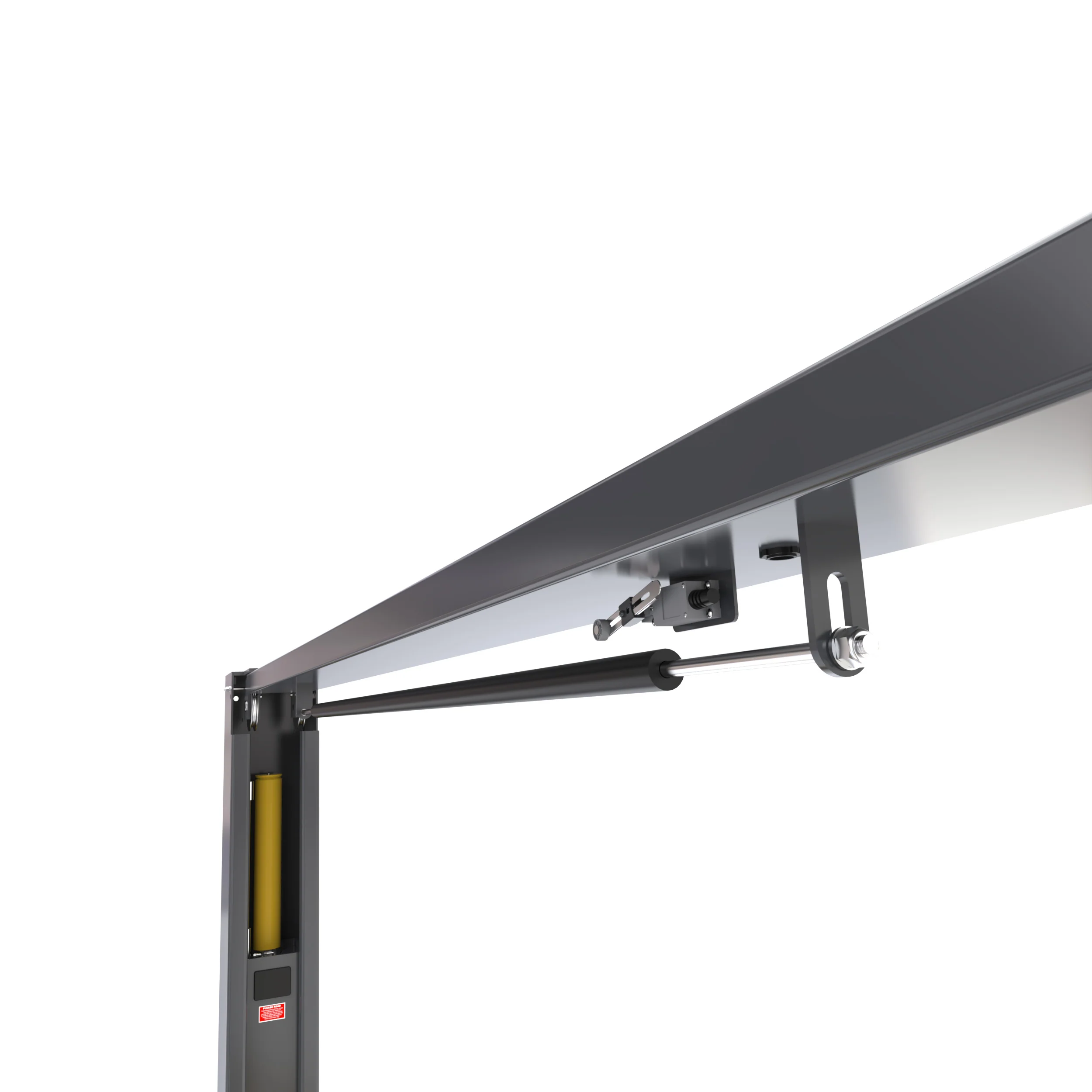

Overhead shutoff and clearfloor arrangement

Ideal for

Heavy fleet, utility, transport, industrial and mining-support workshops servicing large commercial vehicles within the approved twopost lifting-point and load-distribution envelope.

Specifications

Specifications

Details

Capacity
9,072 kg
Configuration
Super-duty high-capacity clearfloor two-post
Overall height
4,293 mm
Overall width
4,267 mm
Drive-through clearance
2,737 mm

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak 20AP
BendPak SKU
5175614
Rated lifting capacity
9,072 kg
Maximum load per arm
9,072 kg
Configuration
Super-duty high-capacity clearfloor two-post
Rise
1,937 mm
Published lifting height
2,102 mm with pad
Minimum pad / lifting height
203 mm
Time to full rise
79 seconds
Overall height
4,293 mm
Overall width
4,267 mm
Width between / inside columns
3,200 mm
Drive-through clearance
2,737 mm
Front arm reach
889-1,575 mm
Rear arm reach
889-1,575 mm
Power unit
5 HP; Australian voltage/frequency and supply package to be confirmed before publication
Model-specific note
20,000-lb / 9,072 kg high-capacity model; Australian supply not currently surfaced on Genesis BendPak brand page

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Two-post hoist structure, columns and base plates for the exact model.

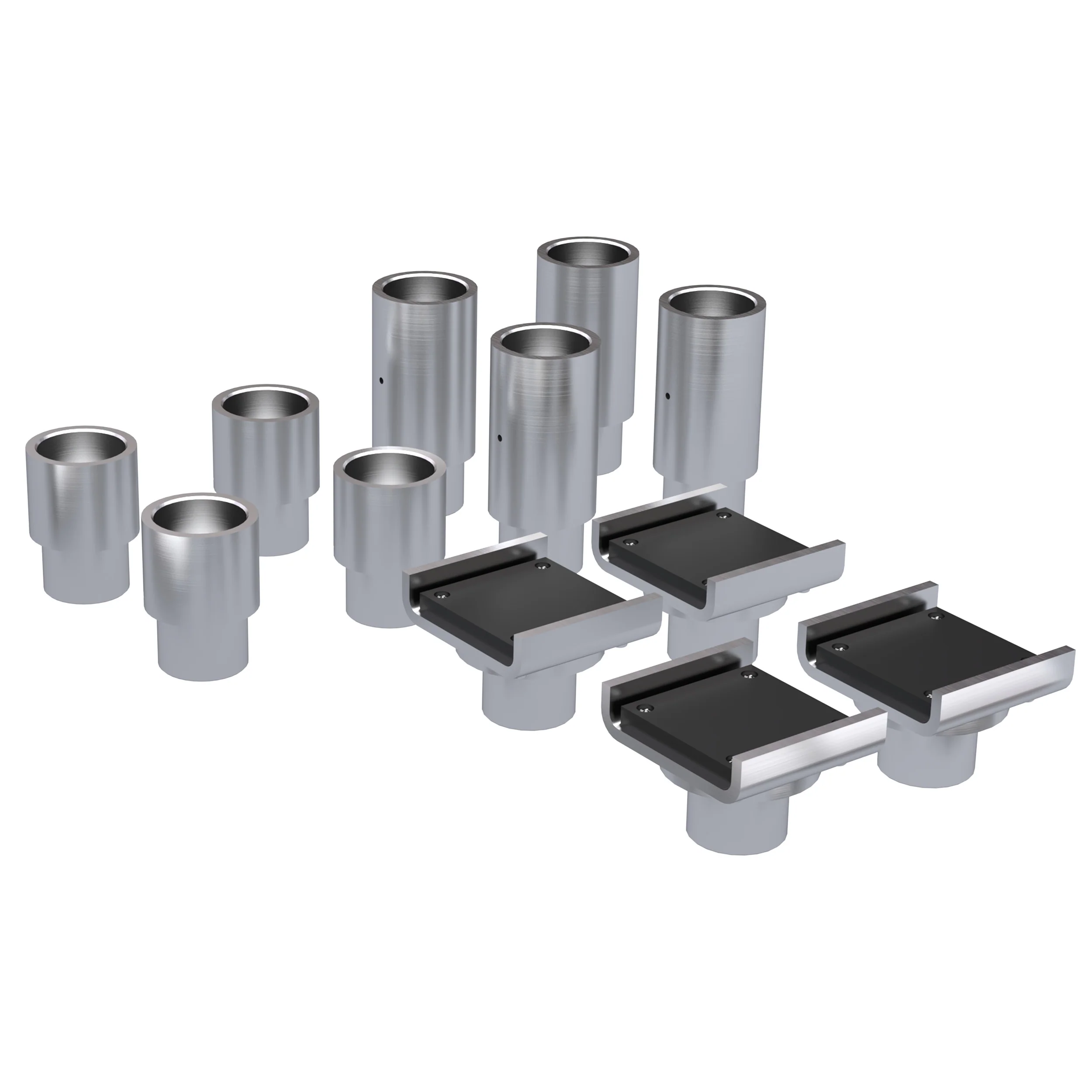

  • Model-specific lifting-arm assemblies and vehicle-contact pads/adapters supplied with the Australian package.
  • Hydraulic lifting system, power unit, equalisation system and safety-lock system.
  • Automatic Swing Arm Restraint System (ASARS) where specified for the exact AP-series model.
  • Overhead safety shut-off arrangement on clearfloor models.

Options

  • Compatible truck/van height adapters and frame-contact accessories approved for the exact model.
  • Pinch-weld pads/pucks, frame cradle pads and replacement contact-pad options where compatible.
  • Wheel spotting accessories and compatible workshop accessories where required.
  • Air/electric workstation or other column-mounted service accessories where compatible.

Workshop fit

BendPak 20AP is rated to 9,072 kg. Key published workshop dimensions in this brief include overall height 4,293 mm, overall width 4,267 mm, inside-column width 3,200 mm and drive-through clearance 2,737 mm. Confirm actual vehicle mass, individual arm loading, centre of gravity/weight distribution, manufacturer lifting points, arm reach, required pads/adapters, vehicle height, bay width, ceiling and overhead services, electrical supply, slab condition/strength/anchoring requirements, unloading access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability. AUSTRALIAN AVAILABILITY HOLD: Do not present this model as locally stocked, immediately available or confirmed for Australian supply until Michael/Genesis confirms it. The page may be built in staging so the catalogue is ready.

Frequently asked questions

What is the capacity of the 20AP?
9,072 kg total rated capacity, with a published maximum of 2,268 kg per arm.
Approximately 2,737 mm.
No. Two-post suitability also depends on lifting points, centre of gravity, per-arm loading, vehicle dimensions and manufacturer lifting instructions.
It was not surfaced on the supplied Genesis brand/range pages during this research. Australian supply must be confirmed before publication.
Yes. Send vehicle make/model, GVM, axle loads, lifting-point layout and dimensions for review before quotation.
