Iron Lift FORGE 45C

Commercial-duty 4,500 kg clear-floor two-post hoist with four three-stage arms, long carriages and direct-drive lifting for everyday workshop throughput.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
Iron Lift FORGE 45C
Iron Lift FORGE 45C

Clear-floor two-post

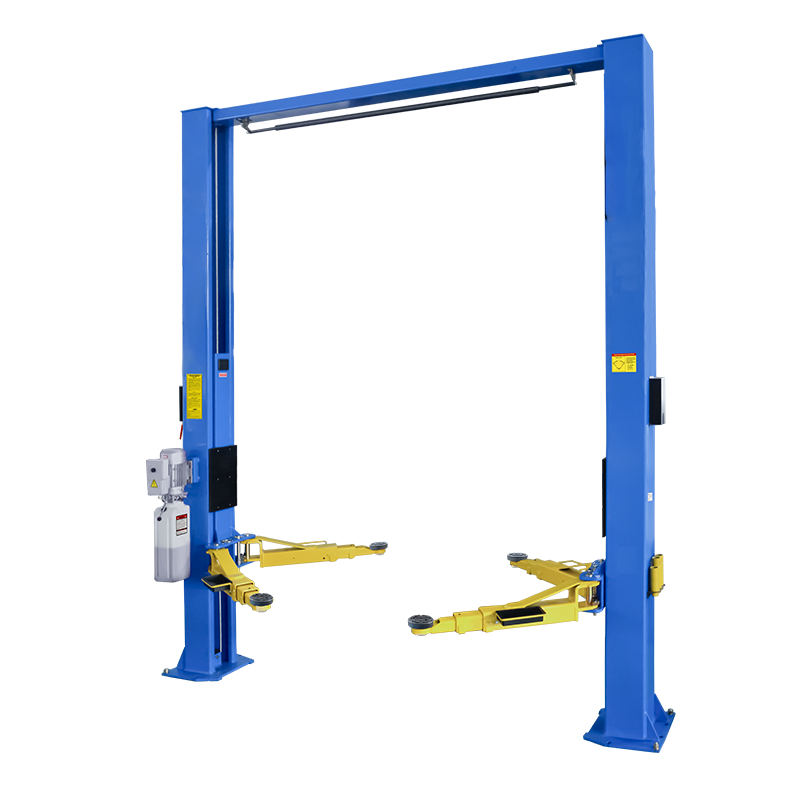

Iron Lift FORGE 45C

4,500 kg Clear-Floor Two-Post Hoist

Commercial-duty 4,500 kg clear-floor two-post hoist with four three-stage arms, long carriages and direct-drive lifting for everyday workshop throughput.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,500 kg
Rated capacity
1,890-1,938 mm
Maximum lifting height
3,516 mm
Overall width
2,560 mm
Drive-through clearance

Product overview

The Iron Lift FORGE 45C is a straightforward commercial 4,500 kg two-post hoist for workshops that value broad arm reach and an uncluttered service bay. Four three-stage arms make it easier to reach different factory lifting points across a mixed vehicle fleet, while the overhead clear-floor structure leaves the centre of the bay open. Long carriages, dual direct-drive cylinders and automatic arm restraints are combined with a single-point lock release for practical workshop operation. It is a strong general-purpose choice for mechanical repairs, suspension work, drivetrain access and routine fleet servicing.

Key features

  • 4,500 kg rated lifting capacity
  • Four three-stage lifting arms
  • Clear-floor overhead structure
  • Long carriage design
  • Single-point manual safety-lock release
  • Dual direct-drive hydraulic cylinders

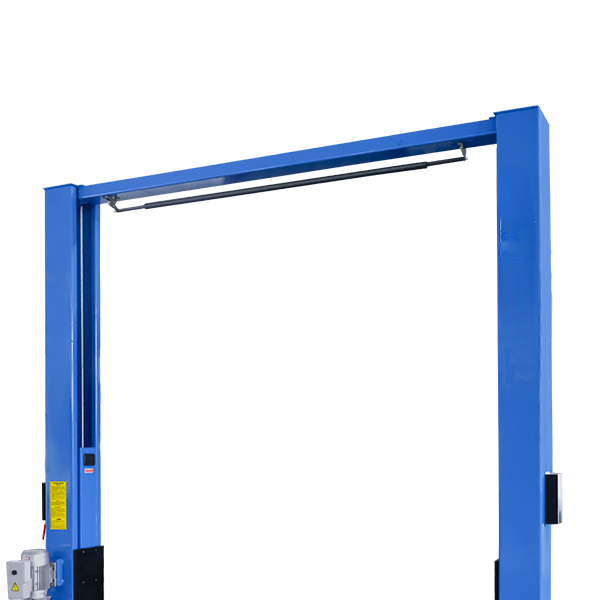

  • Overhead safety shut-off
  • Automatic arm restraints
  • 90 mm minimum pad height
  • Toe guards and tool trays supplied as standard

Detail photography

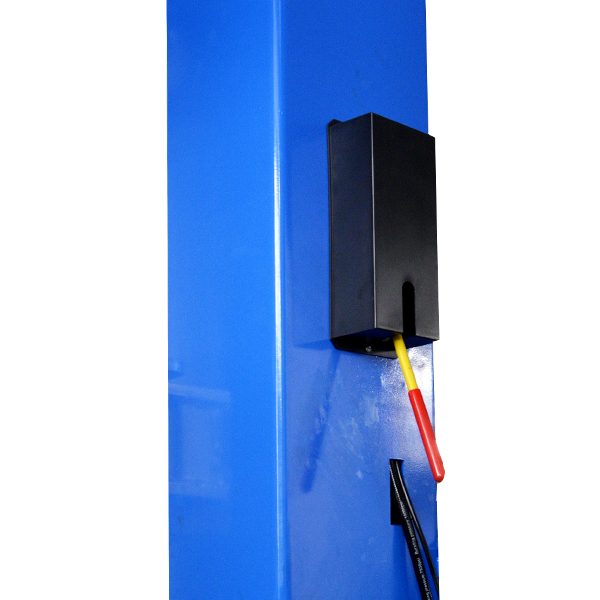

Single-point safety lock release

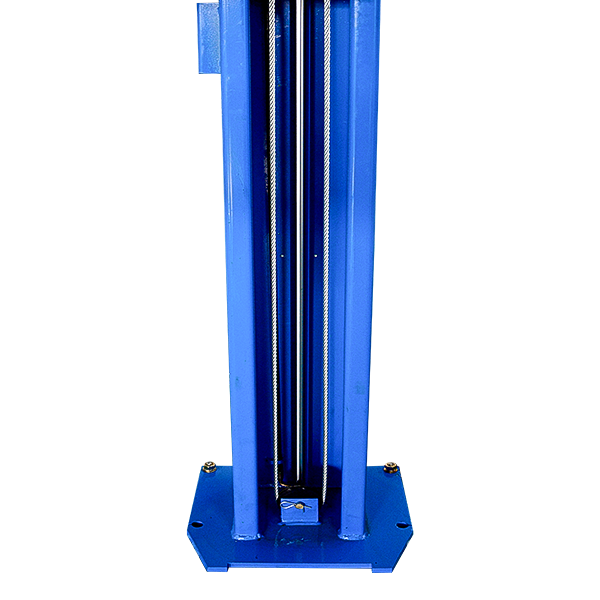

Direct-drive hydraulic cylinder Direct-drive hydraulic cylinder

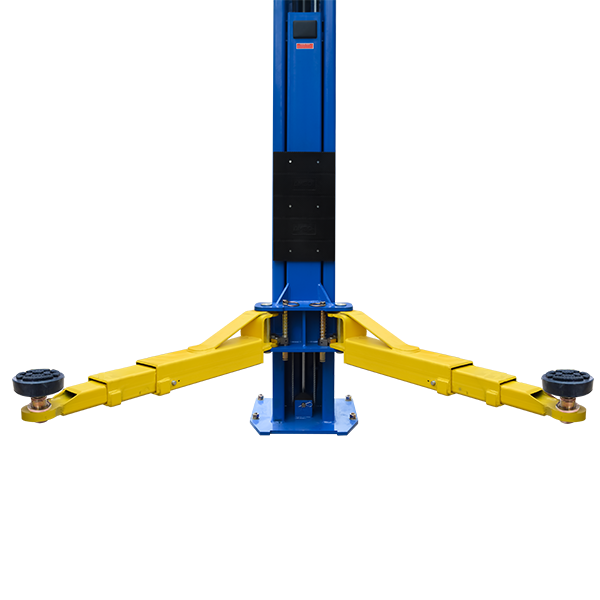

Super-asymmetric arm set

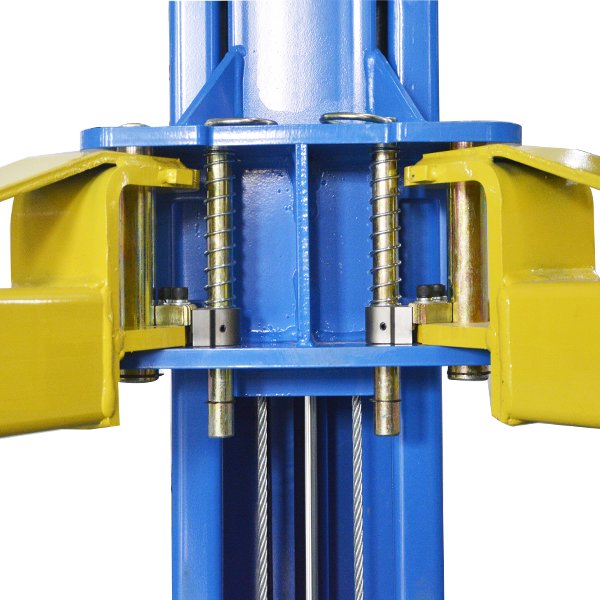

Automatic arm restraints

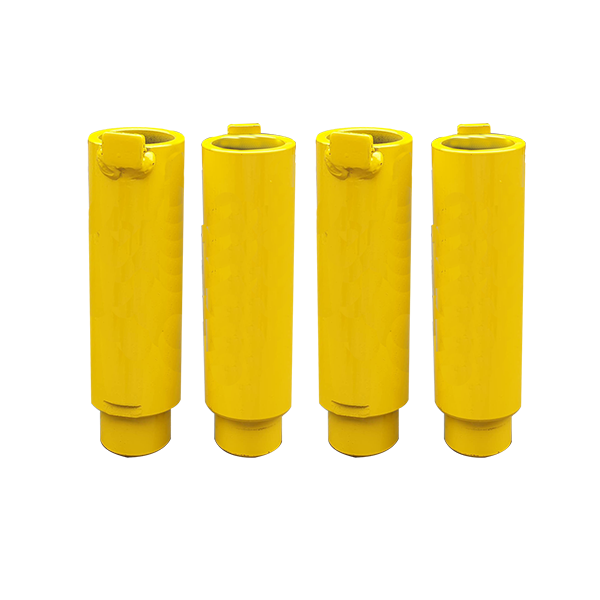

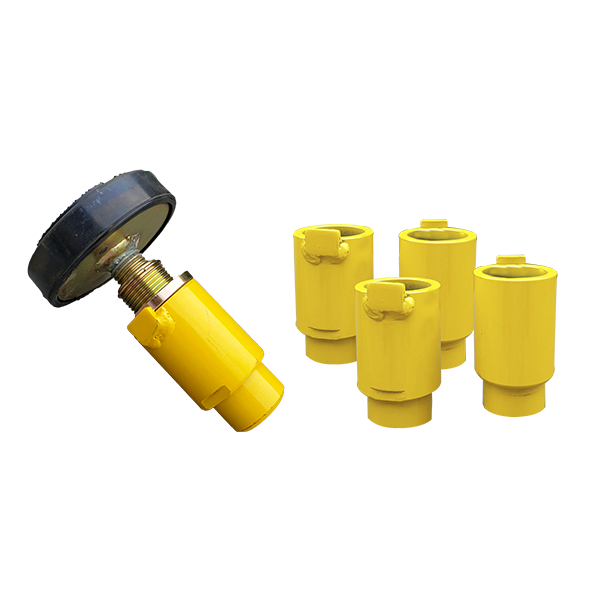

Double-screw pad and 3″ adapters

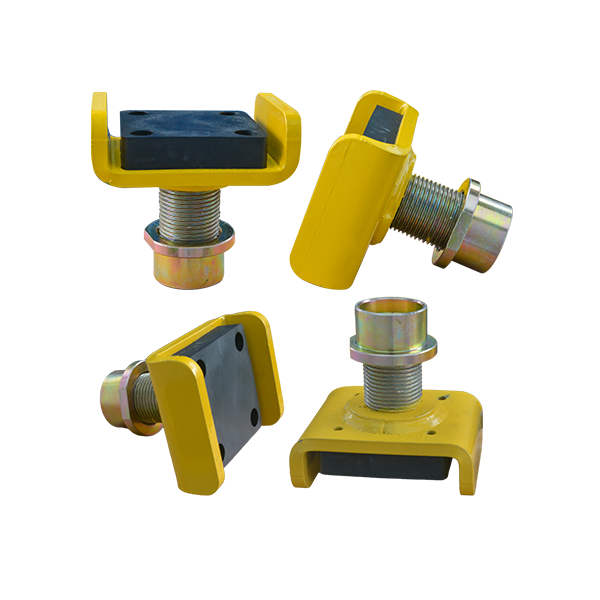

Optional saddle / frame adapter
Toe guards and tool trays
Carriage and slider detail
Iron Lift FORGE 45C
Optional saddle adapter where shown

Ideal for

General repairers, dealerships, fleet maintenance operations and higher-throughput commercial workshops needing a 4,500 kg clear-floor two-post with four three-stage arms and simple, familiar operation.

Specifications

Specifications

Details

Capacity
4,500 kg
Configuration
Clear-floor two-post, direct-drive
Overall height
3,854 mm
Overall width
3,516 mm
Drive-through clearance
2,560 mm
Motor
3.0 HP

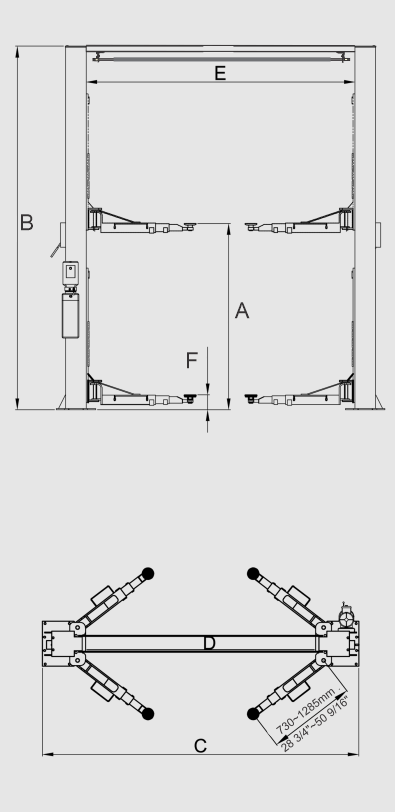

Factory dimension drawing

Iron Lift FORGE 45C Diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
4,500 kg
Configuration
Clear-floor two-post
Lifting time
Approx. 61 seconds
Maximum lifting height – without extension adapter
Approx. 61 seconds
Maximum lifting height – with 3-inch extension adapter
1,966-2,014 mm
Maximum lock height – without extension adapter
1,840-1,888 mm
Maximum lock height – with 3-inch extension adapter
1,916-1,964 mm
Minimum pad height
90 mm
Overall height
3,854 mm
Overall width
3,516 mm
Drive-through clearance
2,560 mm
Width between columns
2,850 mm
Arm configuration
Four three-stage arms
Gross weight
Approx. 748 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Clear-floor two-post structure with overhead beam
  • Four three-stage lifting arms
  • Long carriages, dual direct-drive hydraulic cylinders and power unit
  • Single-point manual lock release and overhead safety shut-off
  • Double-screw rubber pads with 3-inch extension adapters

Options

  • Saddle / frame adapter kit - source kit 21108
  • 6-inch extension adapter - source part 1102504001-01
  • Installation and commissioning quoted to suit the actual site

Workshop fit

Overall hoist height is 3,854 mm. Overall width is 3,516 mm, drive-through clearance is 2,560 mm and width between columns is 2,850 mm. Minimum pad height is 90 mm. Check the heaviest vehicles you intend to lift, approved lifting points, front/rear weight distribution, arm reach and adapters, as well as slab, anchoring, power and access before installation.

Frequently asked questions

Who is the FORGE 45C aimed at?
It is positioned as a general commercial-workshop two-post: 4,500 kg capacity, four three-stage arms and a clear floor for broad day-to-day service work.
Both are 4,500 kg clear-floor models, but the FORGE 45C uses a conventional four three-stage arm layout rather than the flexible symmetric/asymmetric positioning focus of the FORGE 45A.
The published minimum pad height is 90 mm.
No. Capacity is only one part of suitability. Lifting points, weight distribution, vehicle dimensions and arm reach must also be within the hoist limits.
Yes. Installation, servicing, repairs and spare-parts support can be arranged through Iron Lift.
