Iron Lift FORGE 40H

High-clearance 4,000 kg clear-floor two-post hoist with two tall installation settings and four three-stage arms for workshops servicing higher vehicles.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

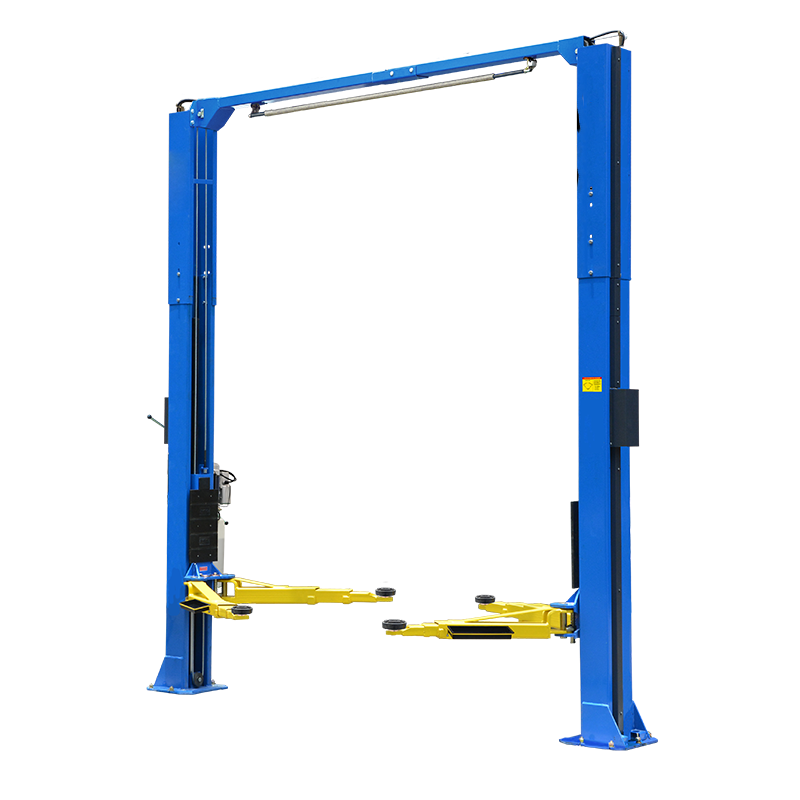

Iron Lift FORGE 40H

4,000 kg Clear-Floor Two-Post Hoist

High-clearance 4,000 kg clear-floor two-post hoist with two tall installation settings and four three-stage arms for workshops servicing higher vehicles.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,000 kg
Rated capacity
1,815-1,863 mm
Maximum lifting height
3,428 mm
Overall width
2,528 mm
Drive-through clearance

Product overview

The Iron Lift FORGE 40H is aimed at workshops where overhead working height is just as important as lifting capacity. It retains a 4,000 kg rating but uses a taller clear-floor structure, giving workshops extra vertical space for vans, 4WDs, utilities and other higher-bodied vehicles. Four three-stage arms give a broad reach across different wheelbases and lifting-point locations. The working bay remains clear between the posts, while a single-point lock release, direct-drive hydraulic lifting, automatic arm restraints and an overhead safety shut-off support efficient daily use.

Key features

  • 4,000 kg rated lifting capacity
  • Tall clear-floor configuration with two overall-height settings
  • Four three-stage lifting arms
  • Single-point manual safety-lock release
  • Dual direct-drive hydraulic cylinders
  • Overhead safety shut-off
  • Automatic arm restraints
  • 90 mm minimum pad height
  • Optional width-extension kit available
  • Toe guards and tool trays supplied as standard

Detail photography

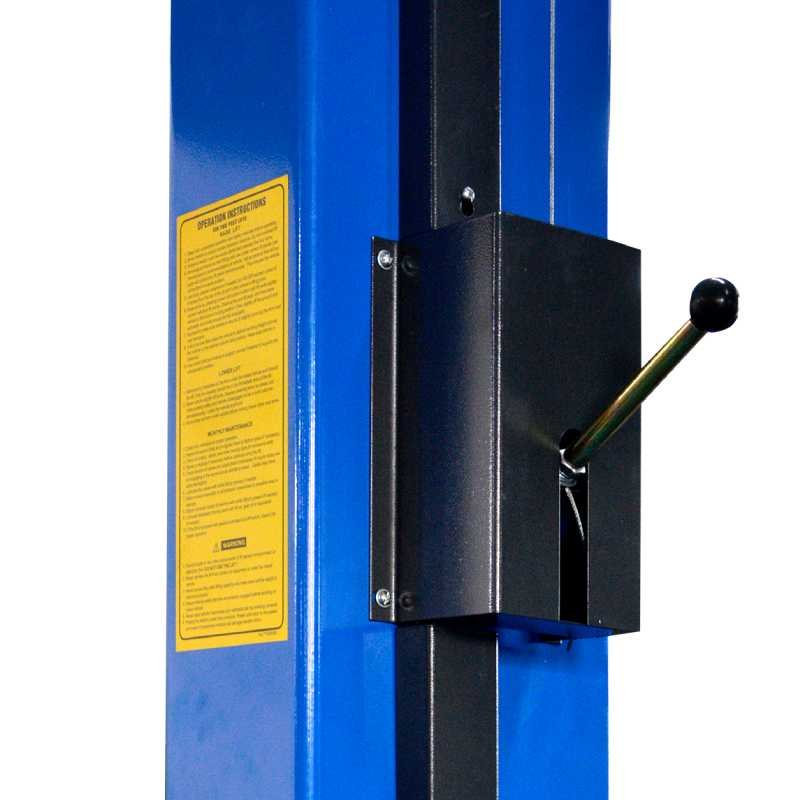

Single-point safety lock release

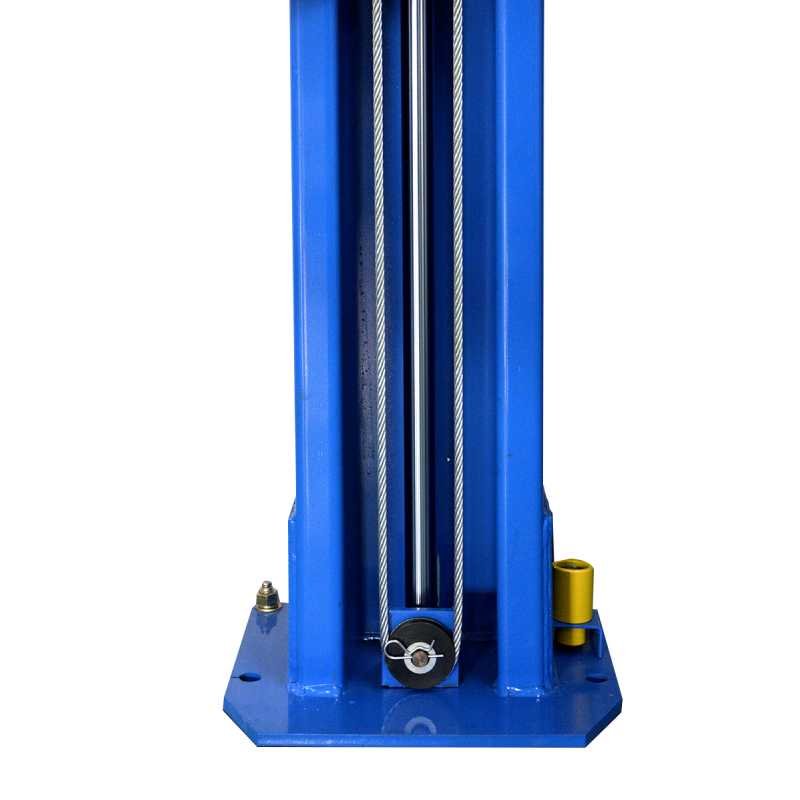

Direct-drive hydraulic cylinder Direct-drive hydraulic cylinder

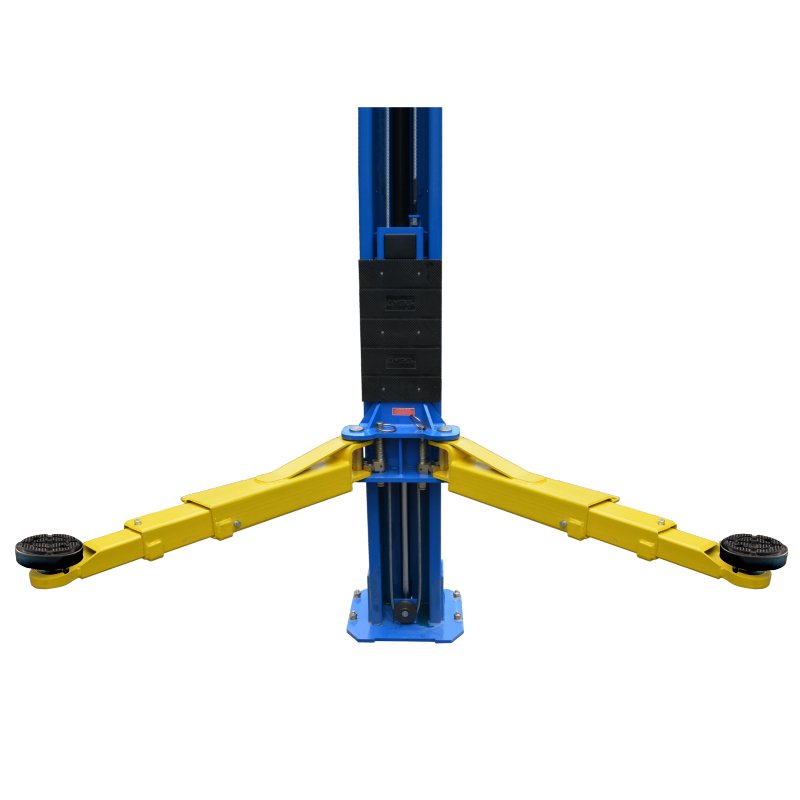

Super-asymmetric arm set

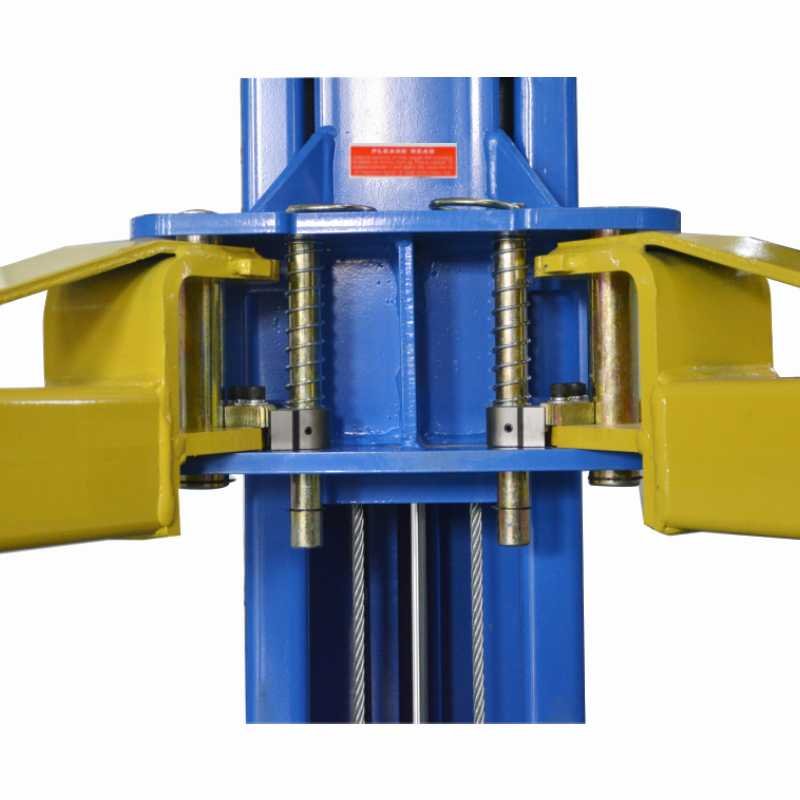

Automatic arm restraints

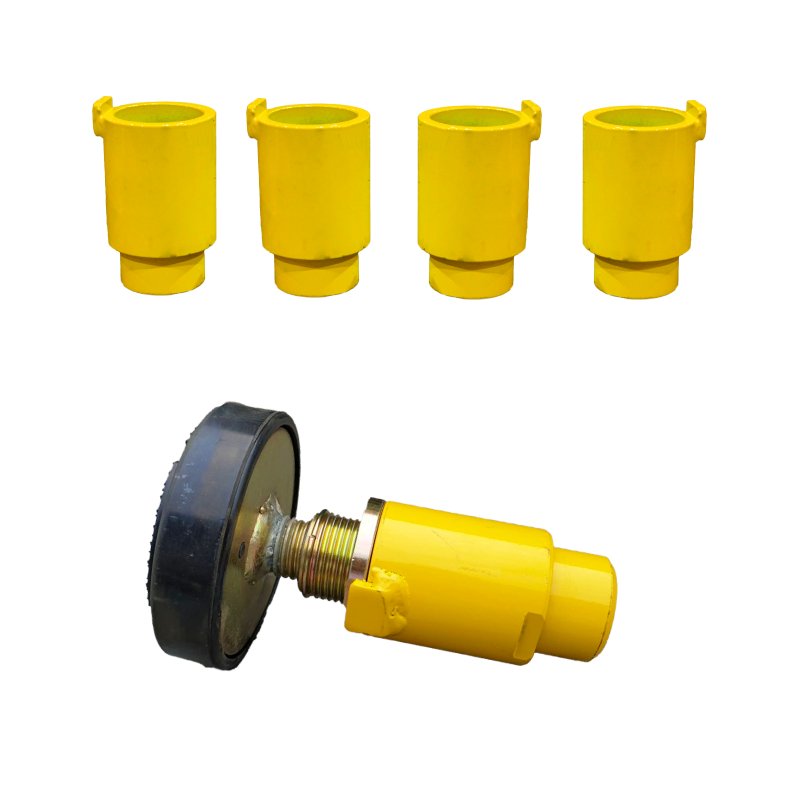

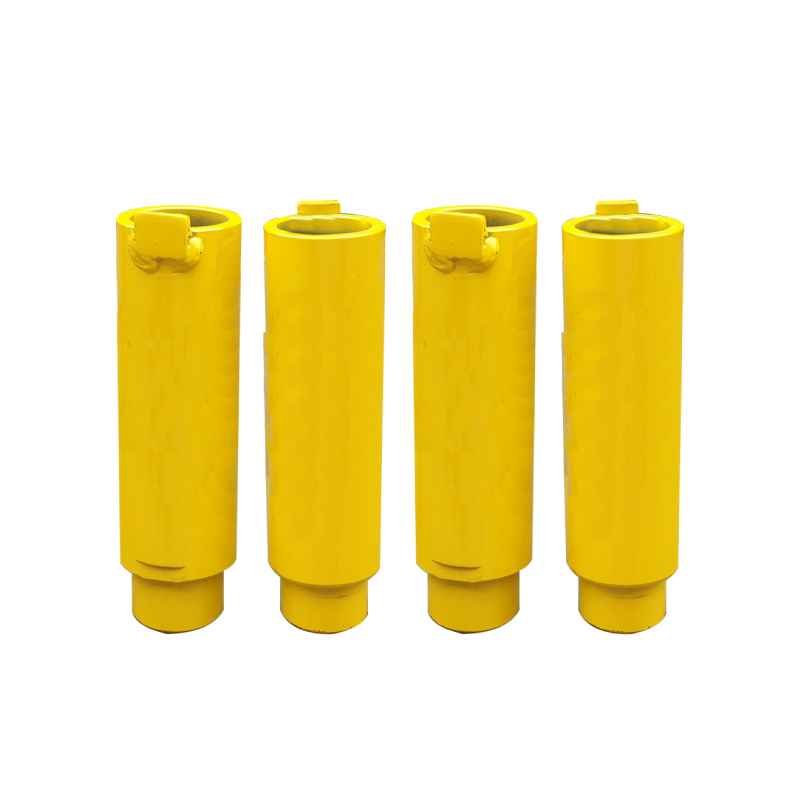

Double-screw pad and 3″ adapters

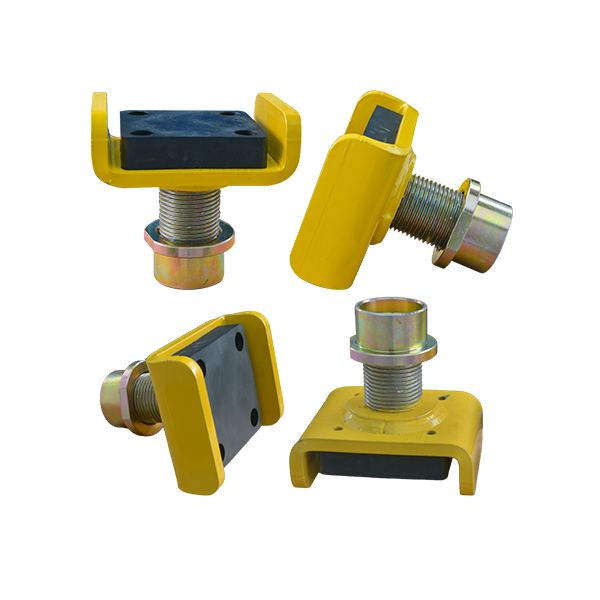

Optional saddle / frame adapter
Toe guards and tool trays
Carriage and slider detail
Optional saddle adapter where shown

Ideal for

Workshops regularly servicing taller vans, 4WDs, utilities and mixed light-commercial fleets, particularly where a standardheight overhead two-post can become restrictive.

Specifications

Specifications

Details

Capacity
4,000 kg
Configuration
Tall clear-floor two-post, direct-drive
Overall height
4,231 mm or 4,431 mm
Overall width
3,428 mm
Drive-through clearance
2,528 mm
Motor
3.0 HP

Factory dimension drawing

Iron Lift FORGE 40H diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
4,000 kg
Configuration
Tall clear-floor two-post
Lifting time
Approx. 57 seconds
Maximum lifting height – without extension adapter
Approx. 57 seconds
Maximum lifting height – with 3-inch extension adapter
1,891-1,939 mm
Maximum lock height – without extension adapter
1,768-1,816 mm
Maximum lock height – with 3-inch extension adapter
1,844-1,892 mm
Minimum pad height
90 mm
Overall height
4,231 mm or 4,431 mm
Overall width
3,428 mm
Drive-through clearance
2,528 mm
Width between columns
2,850 mm
Arm configuration
Four three-stage arms
Gross weight
Approx. 705 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Tall clear-floor two-post structure with overhead beam
  • Four three-stage lifting arms
  • Dual direct-drive hydraulic cylinders and power unit
  • Single-point manual lock release and overhead safety shut-off
  • Double-screw rubber pads with 3-inch extension adapters

Options

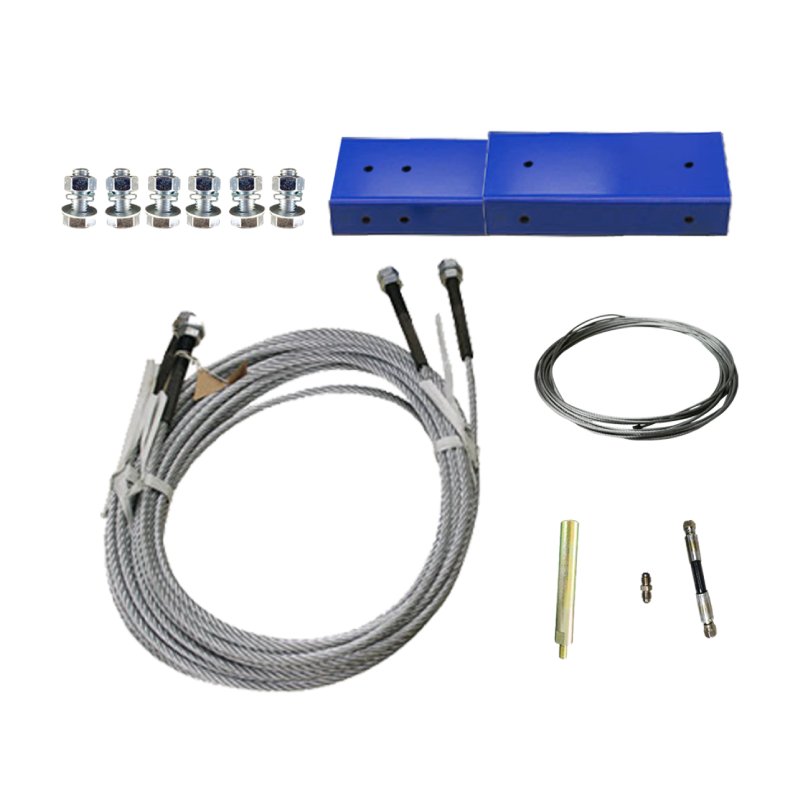

  • Width-extension kit - source kit 20906
  • Saddle / frame adapter kit - source kit 21108
  • 6-inch extension adapter - source part 1102504001-01
  • Installation and commissioning quoted to suit the actual site

Workshop fit

The technical table currently lists two overall-height settings of 4,231 mm and 4,431 mm. Allow additional clearance from doors, lighting, sprinklers and other overhead services. Overall width is 3,428 mm, drive-through clearance is 2,528 mm and width between columns is 2,850 mm. Confirm vehicle mass, lifting points, weight distribution, arm reach/adapters, slab and anchoring requirements, electrical supply and site access before installation.

Frequently asked questions

Why choose the FORGE 40H instead of a standard-height 4-tonne hoist?
Its taller overhead structure provides additional vertical clearance, which can be useful when the workshop regularly sees vans, 4WDs and other higher-bodied vehicles.
Use 4,231 mm and 4,431 mm from the current technical specification table. The supplier page also contains a 4,445 mm narrative reference, which should not be published unless it is confirmed.
Yes. Four three-stage arms are specified, giving a broad working range across different lifting-point locations.
An optional width-extension kit is listed. Final bay width and installation dimensions should be confirmed before ordering.
Yes. Iron Lift can quote installation and commissioning after reviewing ceiling height, slab, electrical supply, access and the vehicle mix.
