BendPak P9000LT

4,082 kg open-centre low-rise lift with long approach geometry for fast service work, wheel access and pit-style workshop applications.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

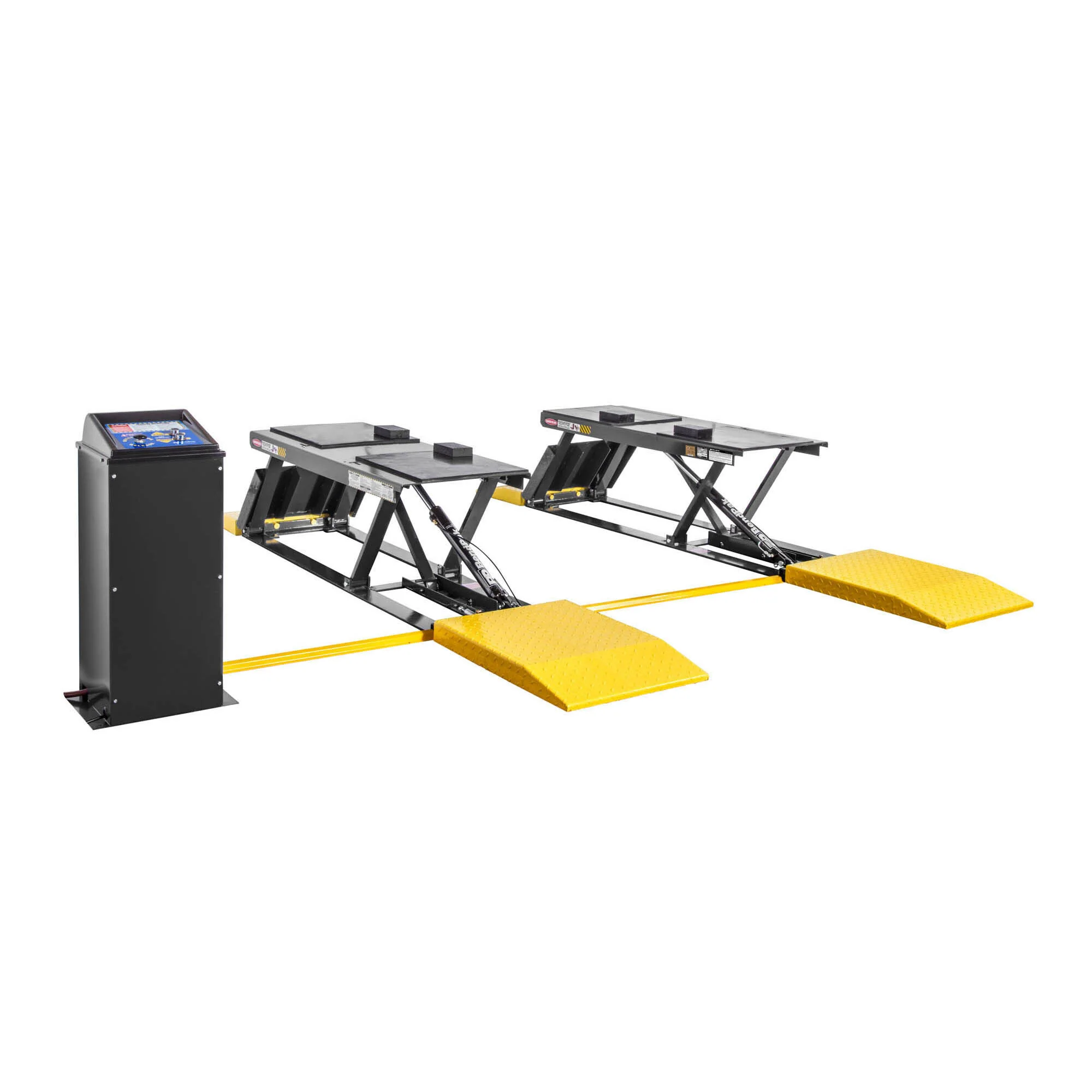

BendPak P9000LT

4,082 kg Open-Centre Pit-Style Low-Rise Scissor Lift

4,082 kg open-centre low-rise lift with long approach geometry for fast service work, wheel access and pit-style workshop applications.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
4,082 kg
Rated capacity
Pit-style low-rise
Configuration
603 mm
Maximum lifting height
102 mm
Lowered / installation profile

Product overview

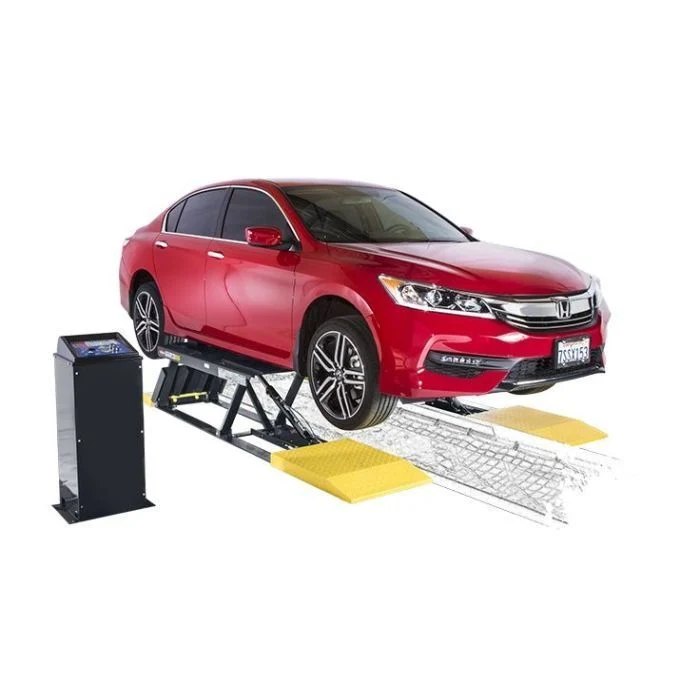

The BendPak P9000LT is the non-flush counterpart to the P9000LTF and gives workshops 4,082 kg of low-rise lifting capacity with a long approach layout. Its twin platform design keeps useful access through the centre, while four mechanical lock positions provide different service heights. The lift is aimed at quick-service and wheel-focused tasks rather than full standing-height underbody work. In a shop that values fast vehicle positioning, higher low-rise capacity and flexible pit/surface integration, the P9000LT can fill a useful role alongside taller two-post, four-post or full-rise scissor equipment.

Key features

  • 4,082 kg rated lifting capacity
  • Open-centre low-rise service layout
  • 603 mm published maximum lifting height
  • 686 mm published height with blocks
  • 102 mm lowered profile
  • Four mechanical locking heights
  • Pneumatic lock release
  • Electronic push-button controls
  • Long approach geometry
  • Compatible P9000 telescoping arm and ramp-filler accessories

Detail photography

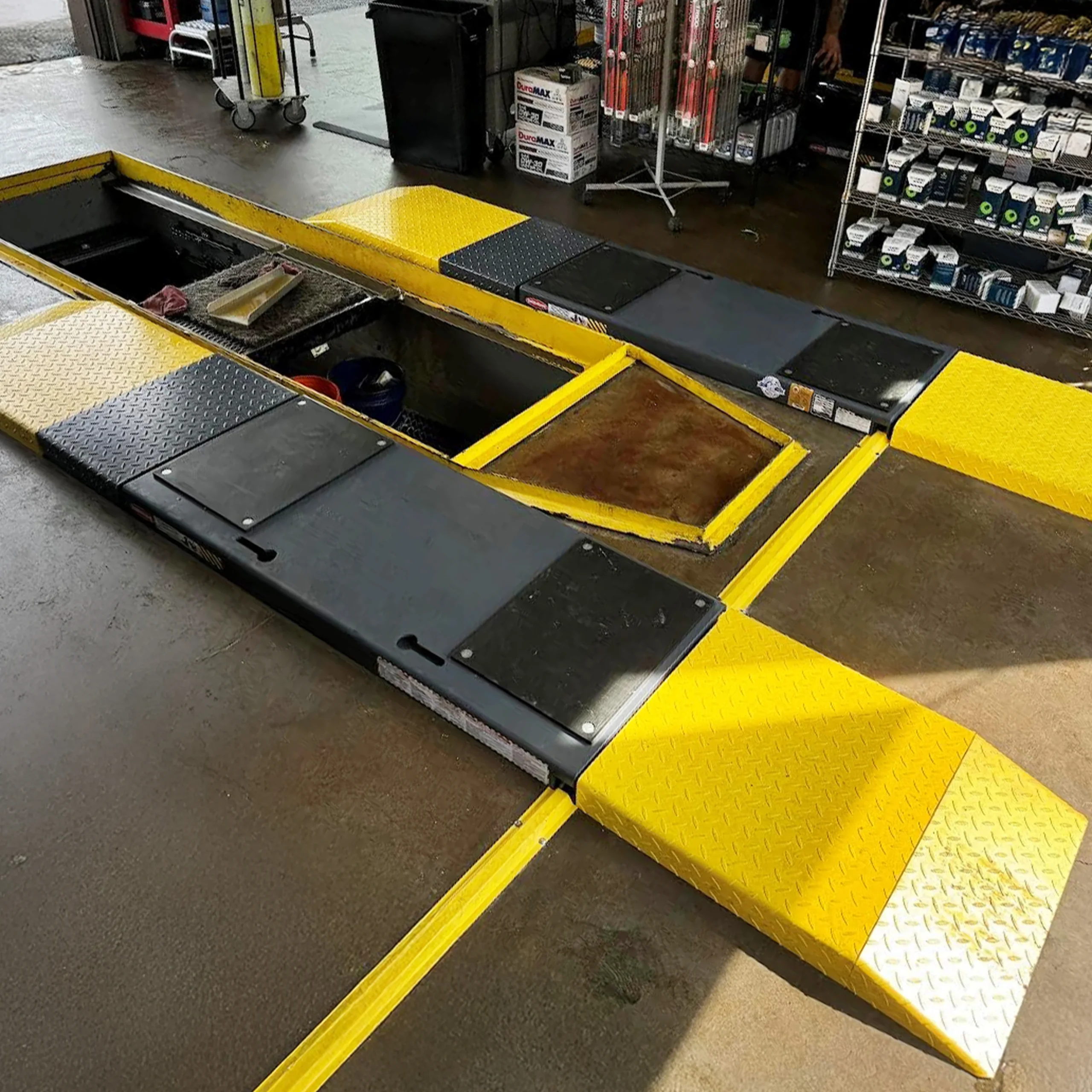

Long approach/ramp arrangement
Open-centre platform layout
Hydraulic system
Mechanical lock positions
Pneumatic release components
Rubber contact pads/blocks
Control panel
Optional P9000 telescoping arm kit

Ideal for

Tyre and brake shops, fast-service bays, fleet maintenance workshops, pit-style service areas and facilities needing higher-capacity low-rise lifting without a recessed flush installation.

Specifications

Specifications

Details

Capacity
4,082 kg
Configuration
Open-centre pit-style low-rise lift
Rise class
Low-rise
Low-rise
603 mm
Installation type

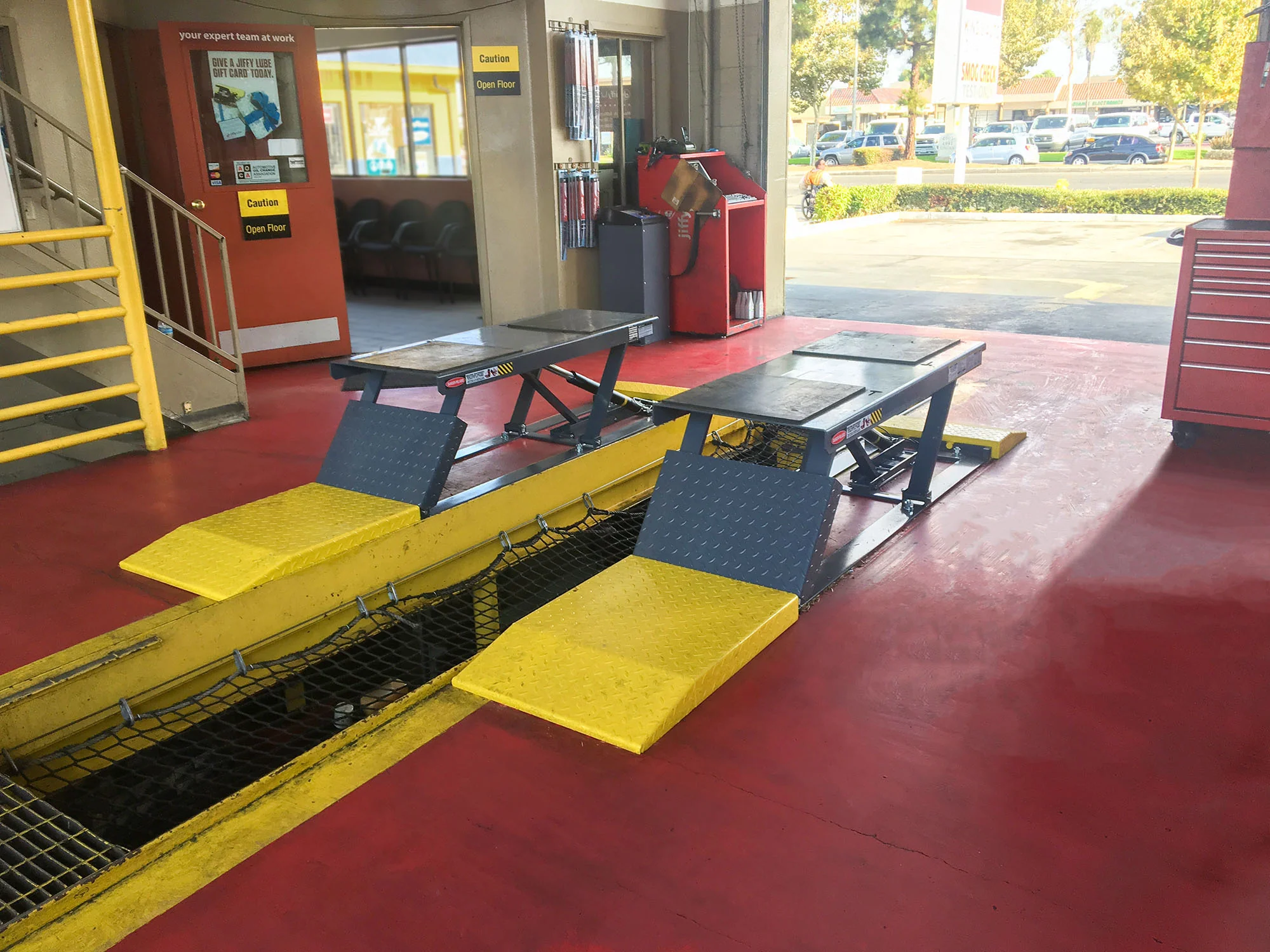

Surface / pit-rail application with long approach arrangement

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak P9000LT
BendPak SKU
5175133
Rated lifting capacity
4,082 kg
Rise class
4,082 kg
Configuration
Open-centre pit-style low-rise lift
Installation type
Surface / pit-rail application with long approach arrangement
Maximum lifting height
603 mm
Maximum height with blocks / adapters
686 mm
Lowered / floor profile
102 mm
Published lifting time
45 seconds
Published locking positions
381 / 483 / 546 / 622 mm
Platform / pad dimensions
Approx. 1,486 x 610 mm per pad/platform
Overall / working length
Approx. 3,165 mm overall
Platform spacing / width reference
Width between platforms approx. 584-1,067 mm
Width between platforms
584-1,067 mm
Motor
1.5 HP
Electrical configuration
Current US page: 208-230 V, 60 Hz, 1-phase. Confirm Australiansupplied electrical configuration before publication.
Air / pneumatic requirement
Pneumatic lock release; confirm exact workshop-air requirement from Australian supplied manual/configuration.
Shipping / supplied-revision reference
Approx. 681 kg on current manufacturer page; verify Australian supplied revision.
Australian publication rule
Confirm exact Genesis/Iron Lift Australian supplied revision, electrical configuration, manuals and availability before live publication.

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • P9000LT twin platform/lift assemblies and long approach components for the exact supplied configuration.
  • Hydraulic power/control system.
  • Mechanical safety-lock system with pneumatic release.
  • Rubber vehicle contact blocks/pad surfaces supplied with the exact configuration.
  • Exact-model operating/installation documentation.

Options

  • BendPak P9000 telescoping arm kit where compatible.
  • BendPak P9000 ramp filler plate kit where appropriate.
  • Approved contact blocks/adapters.
  • Installation/commissioning and bay/pit layout review.

Workshop fit

BendPak P9000LT is rated to 4,082 kg and is a open-centre pit-style low-rise lift. Published maximum lift is 603 mm; installation profile is surface / pit-rail application with long approach arrangement. Confirm vehicle mass and weight distribution, manufacturerapproved lifting points, ground clearance, track/wheelbase or pad reach, workshop bay dimensions, overhead clearance at full lift, electrical and pneumatic services, and the exact slab/foundation/recess requirements before supply or installation. Rated capacity alone does not establish vehicle suitability. For flush-mount products, the site recess/pit must be built to the exact supplied manual/revision – never from a generic scissor-lift drawing.

Frequently asked questions

How is P9000LT different from P9000LTF?
P9000LT uses a surface/pit-style long approach layout, while P9000LTF is the flush-mount recessed version.
The current manufacturer page lists about 603 mm, or 686 mm with the supplied/approved blocks.
No. It is a low-rise service lift focused on quick-service, wheel, brake, suspension and related work.
BendPak currently lists a P9000 telescoping arm kit as an accessory. The exact vehicle/application must be checked before specification.
No exact Genesis product page was located. Do not publish stock or availability until Genesis/Iron Lift confirms the supply arrangement.
