BendPak MDS-6EXF

Extended flush-mounted 2,722 kg mid-rise scissor lift for longer liftingpoint spreads, combining a clean floor installation with open-centre service access.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak MDS-6EXF

2,722 kg Extended Flush-Mount Open-Centre Mid-Rise Scissor Lift

Extended flush-mounted 2,722 kg mid-rise scissor lift for longer liftingpoint spreads, combining a clean floor installation with open-centre service access.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
2,722 kg
Rated capacity
Extended flush mid-rise
Configuration
933 mm
Maximum lifting height
Flush-mount
Lowered / installation profile

Product overview

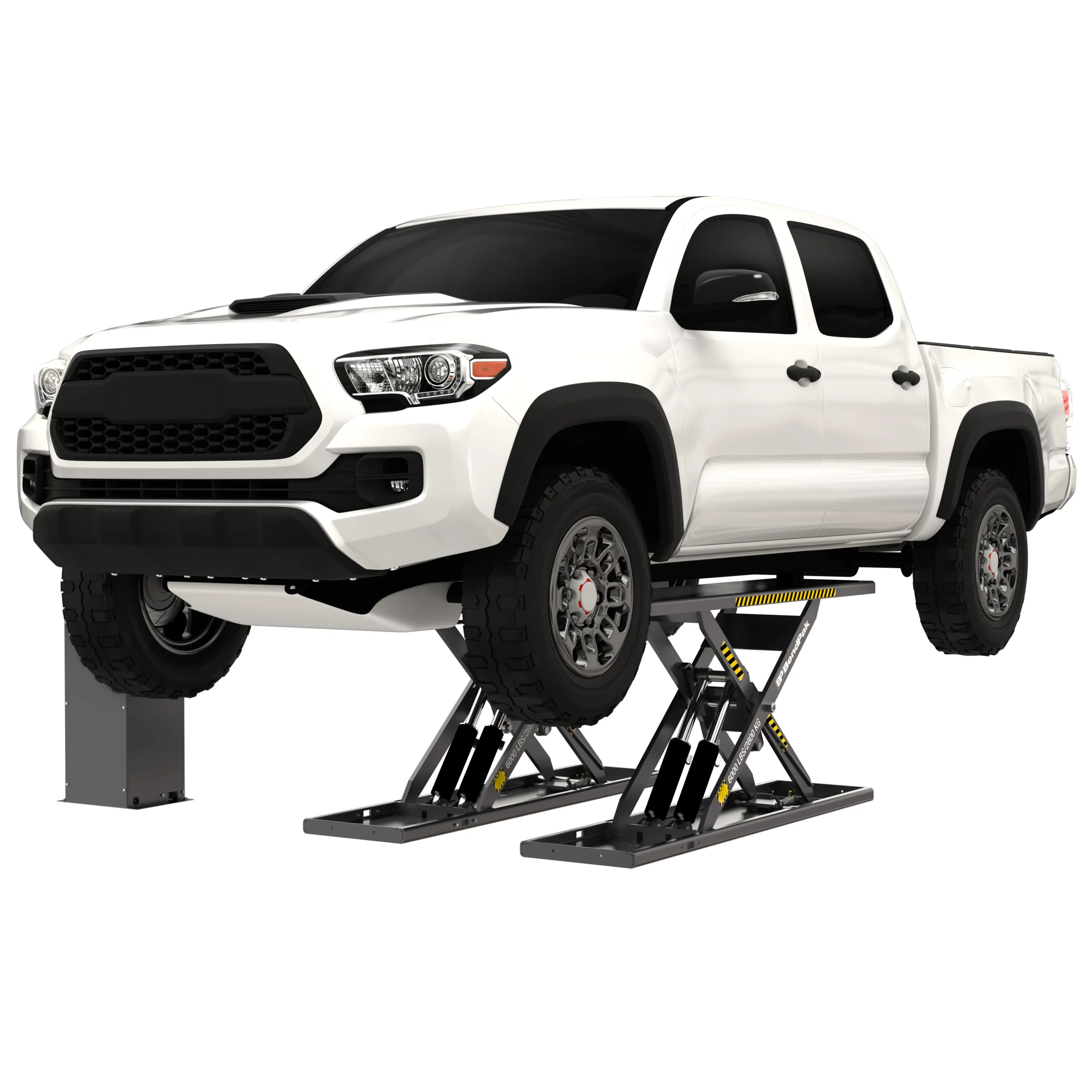

The BendPak MDS-6EXF combines the longer platform reach of the MDS-6EXT concept with a recessed flush-floor installation. Approximately 2,000 mm platforms create additional reach for longer vehicles while the open-centre layout leaves useful working access between the lift structures. Pneumatic assistance supports the initial movement from the flush position, and the four-cylinder hydraulic system is designed to keep both sides moving together. It is aimed at workshops that need a cleaner fixed installation without giving up the extended lifting-point range of the larger MDS platform.

Key features

  • 2,722 kg rated lifting capacity
  • Extended approximately 2,000 mm platforms
  • Recessed flush-mount design
  • Open-centre mid-rise service access
  • 933 mm published maximum lift height
  • Approximately 1,007 mm published height with blocks
  • Four hydraulic cylinders and flow-divider arrangement
  • Pneumatic kicker assist
  • Pneumatic safety-lock release
  • Adjustable 1,016-1,168 mm platform spacing

Detail photography

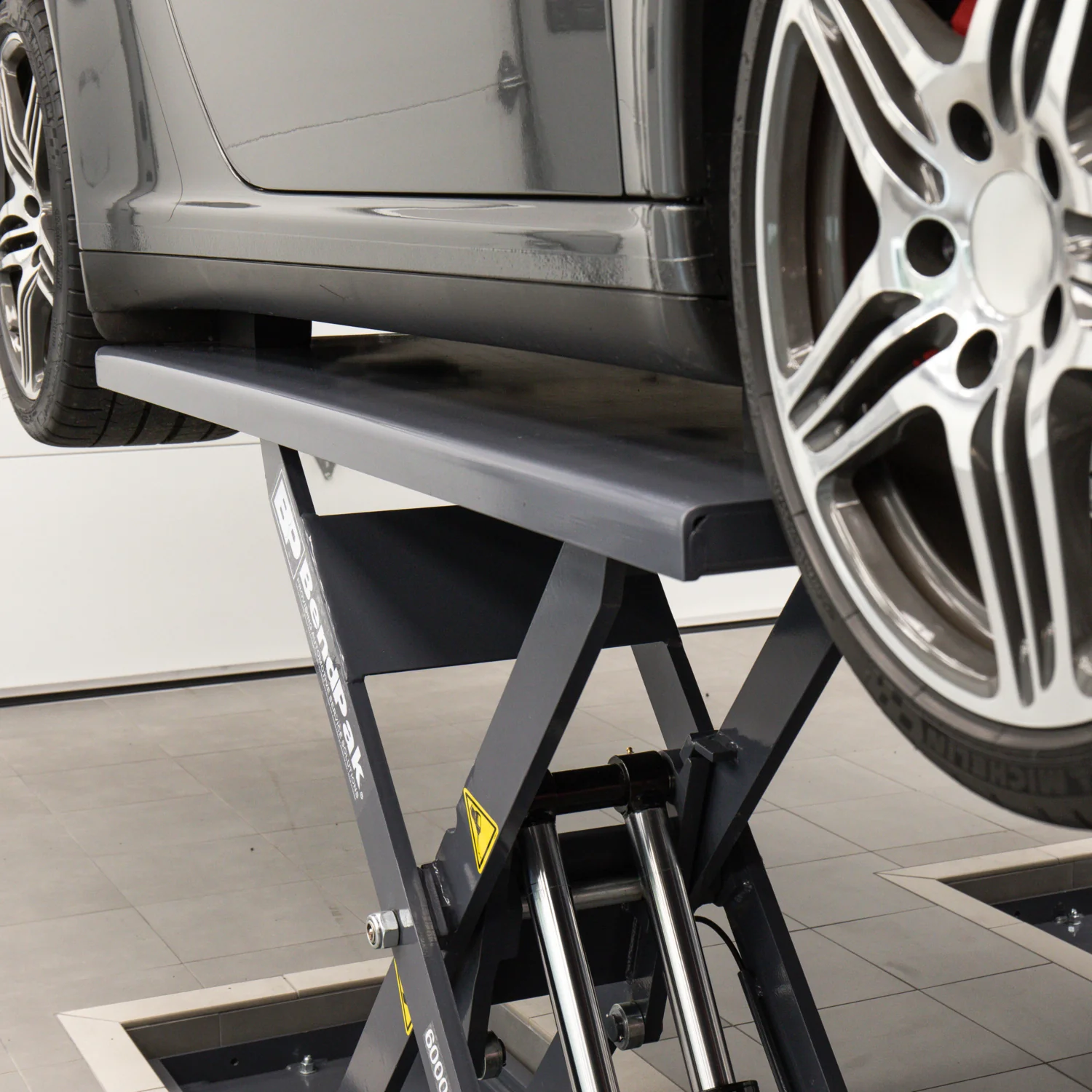

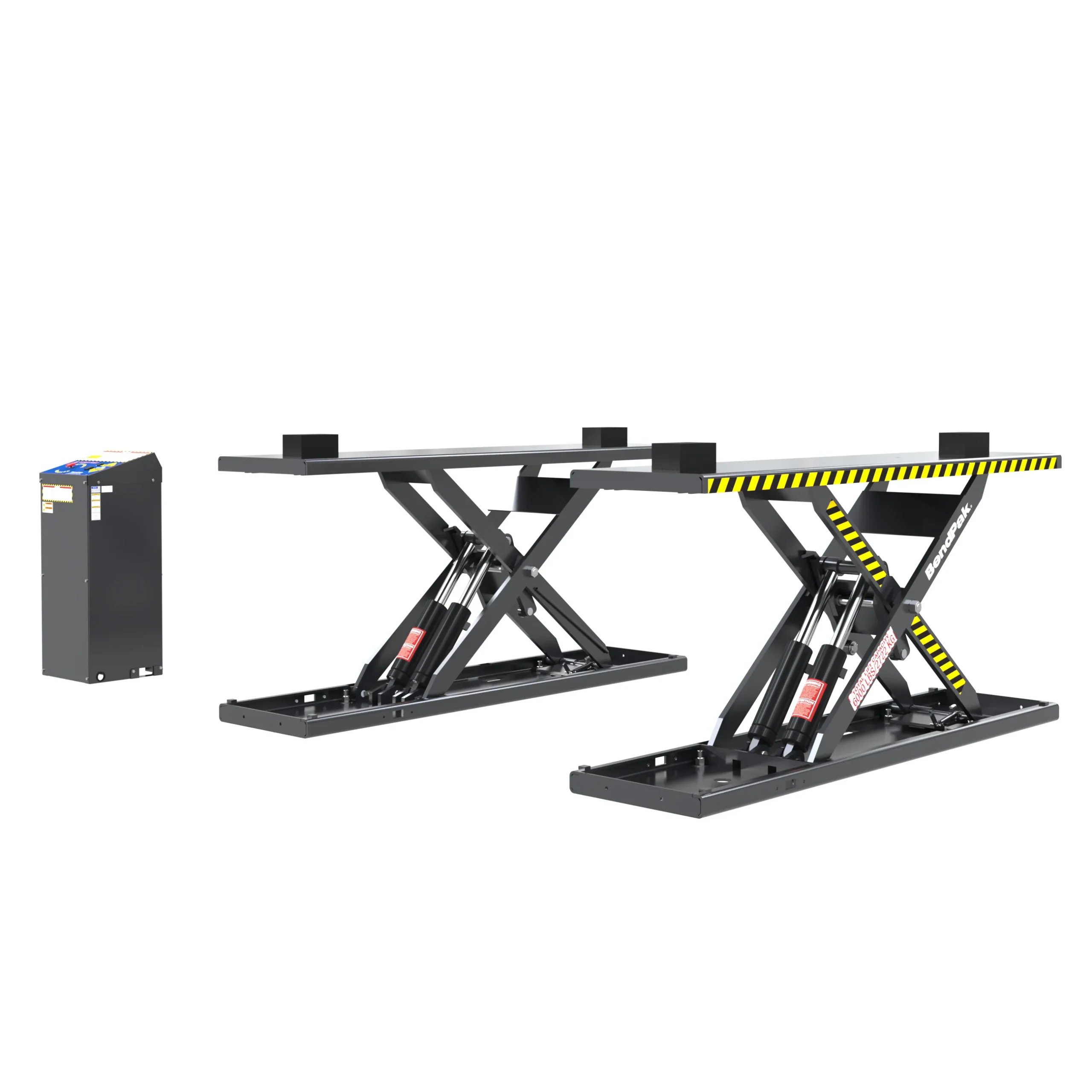

Extended flush-mount platform layout
Recess/pit installation detail
Pneumatic kicker system

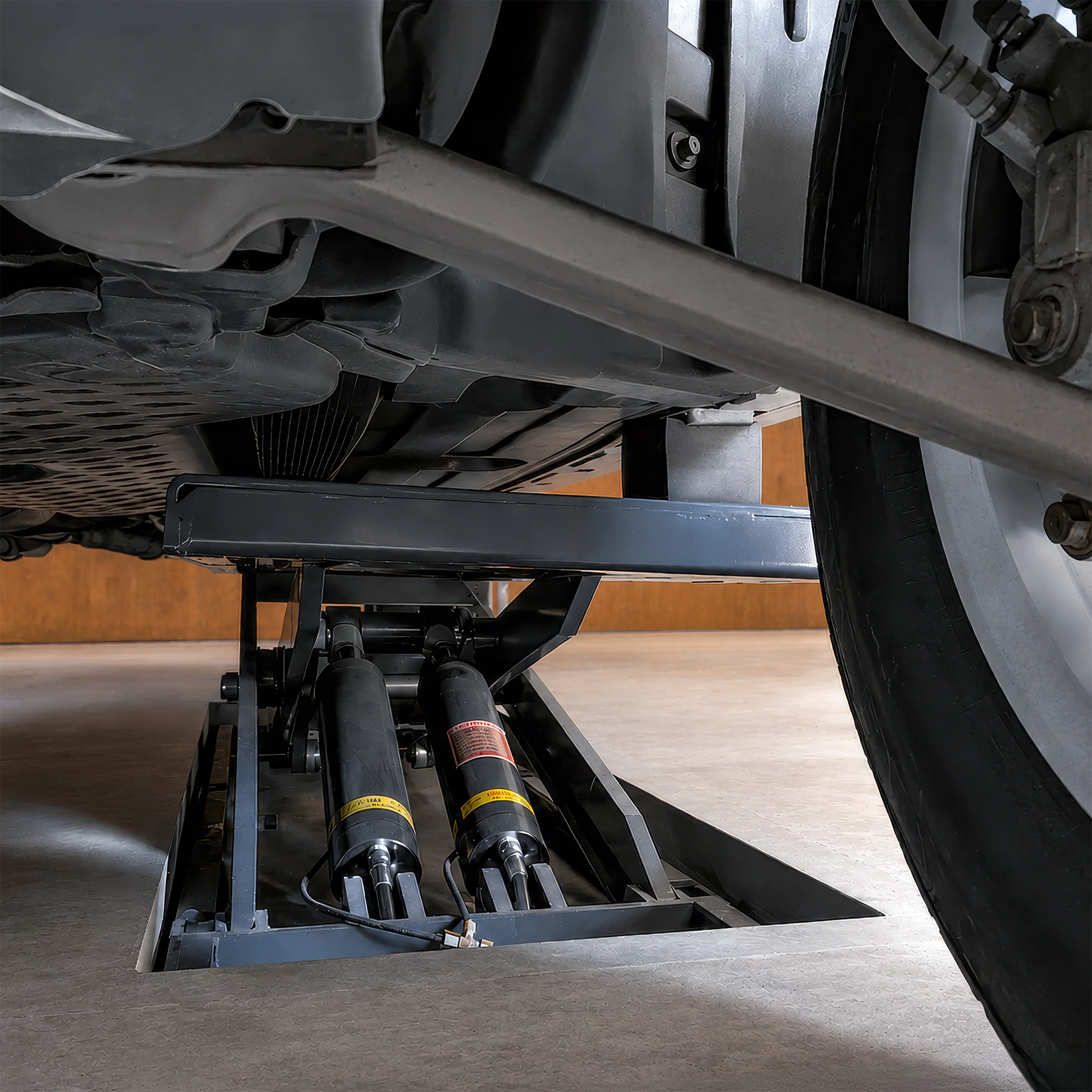

Four hydraulic cylinders
Open-centre working area
Mechanical safety locks
Pneumatic release

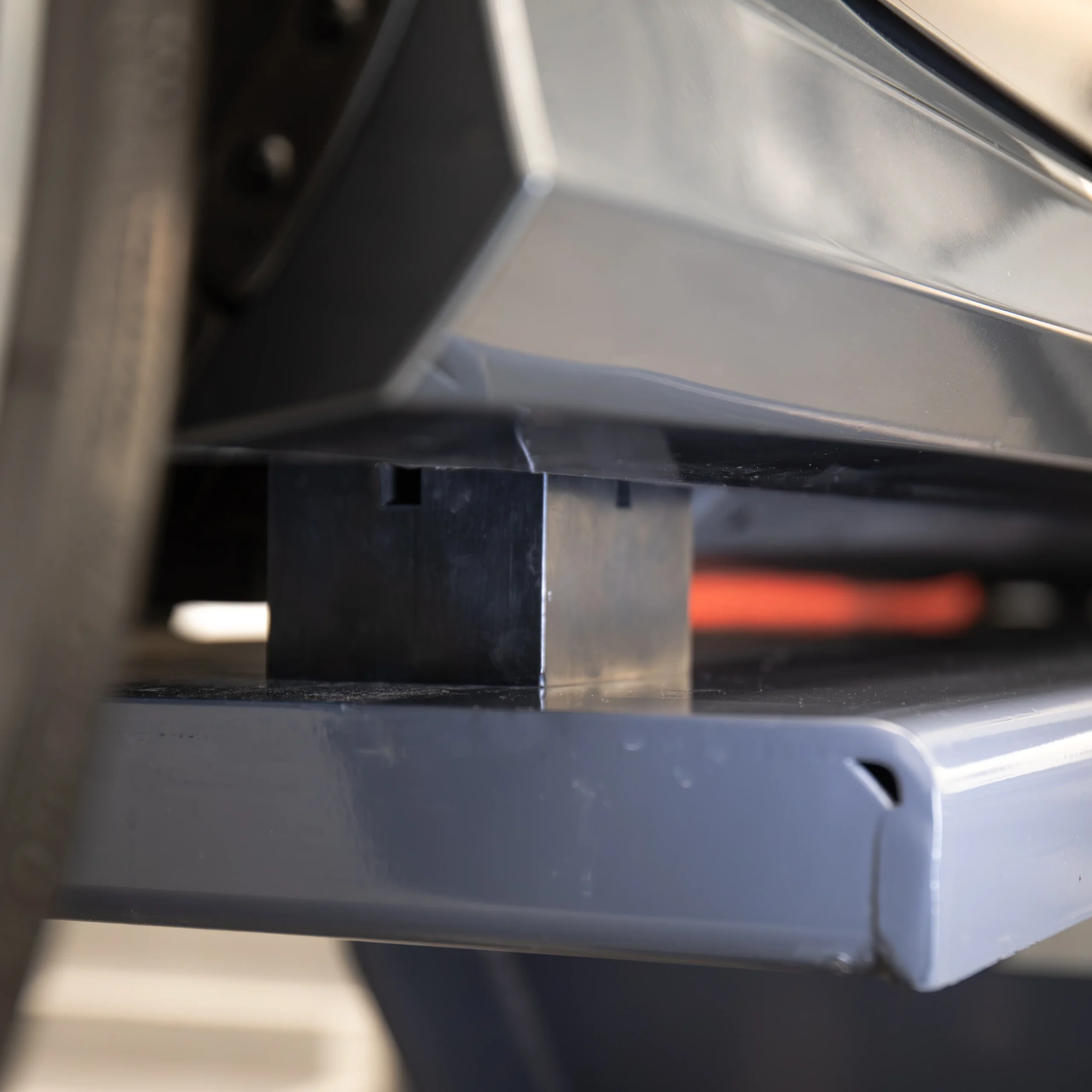

Vehicle contact blocks / control console

Ideal for

EV and long-wheelbase vehicle workshops, dealerships, premium service centres and new fit-outs needing extended mid-rise reach with a flush, low-obstruction workshop floor.

Specifications

Specifications

Details

Capacity
2,722 kg
Configuration
Extended flush-mount open-centre mid-rise scissor lift
Rise class
Mid-rise
Maximum lifting height
933 mm
Installation type
Recessed / flush-mount

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak MDS-6EXF
BendPak SKU
5175151
Rated lifting capacity
2,722 kg
Rise class
2,722 kg
Configuration
Extended flush-mount open-centre mid-rise scissor lift
Installation type
Recessed / flush-mount
Maximum lifting height
933 mm
Maximum height with blocks / adapters
1,007 mm
Lowered / floor profile
Flush with finished floor when correctly recessed; physical platform depth shown as 133 mm
Published lifting time
35 seconds
Published locking positions
610 / 889 mm
Platform / pad dimensions
Approx. 2,000 x 483 mm per platform
Overall / working length
Approx. 2,000 mm lift/platform length
Platform spacing / width reference
Width between platforms 1,016-1,168 mm
Width between platforms
1,016-1,168 mm
Motor
1.5 HP
Electrical configuration
Current US page: 110 V, 50/60 Hz, 1-phase. Confirm Australiansupplied voltage/configuration before publication.
Air / pneumatic requirement
Pneumatic kicker and lock release; confirm exact Australian air requirement from current manual/configuration.

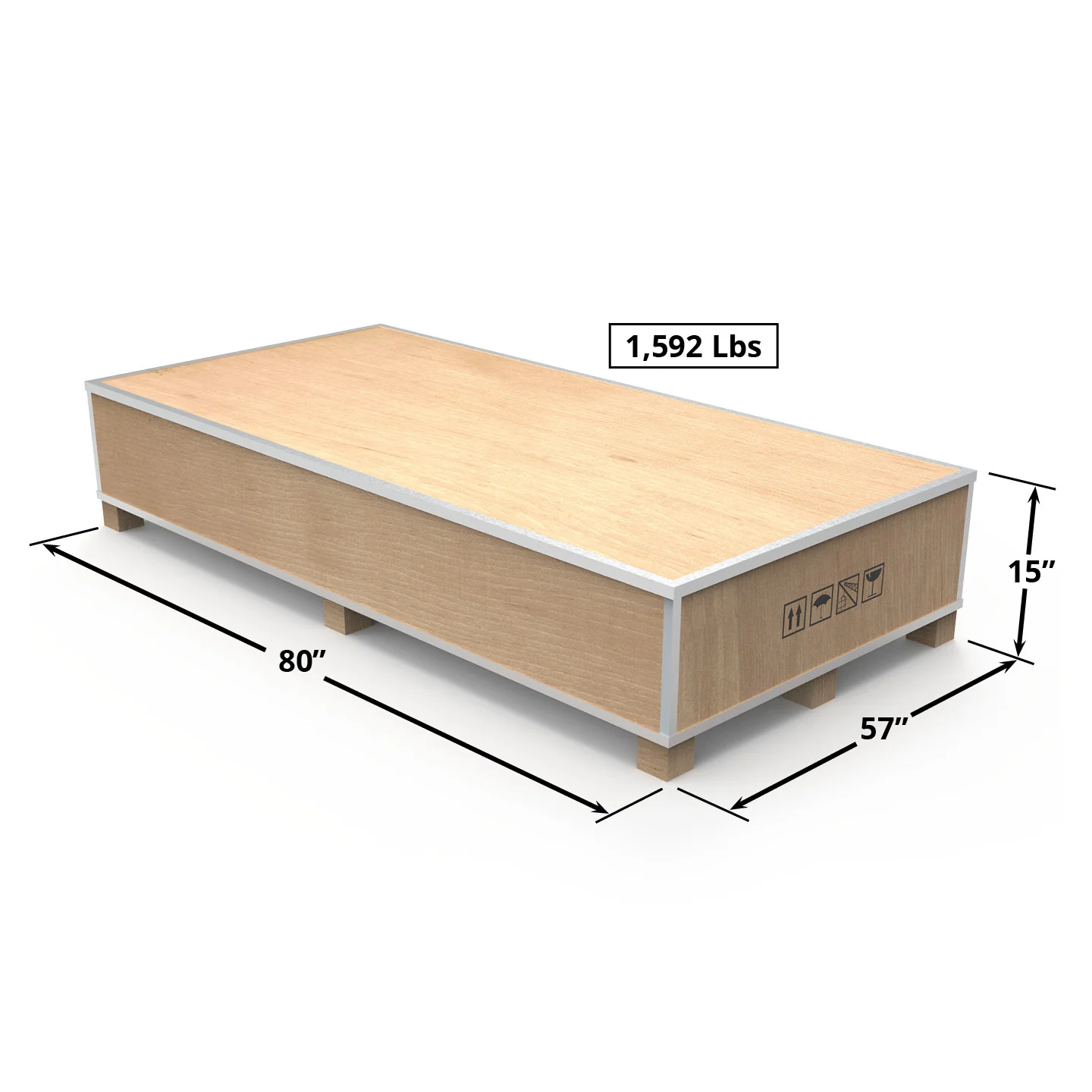

Shipping / supplied-revision reference
Approx. 698 kg on current manufacturer page; verify Australian supplied revision.
Australian publication rule
Confirm exact Genesis/Iron Lift Australian supplied revision, electrical configuration, manuals and availability before live publication.

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Twin extended recessed MDS platform/scissor assemblies.
  • Four-cylinder hydraulic lifting arrangement with flow divider.
  • Pneumatic kicker and safety-lock release components.
  • Mechanical safety-lock system.
  • Vehicle blocks/pads and exact-model components supplied with the approved configuration.

Options

  • Approved vehicle blocks/adapters for compatible vehicles.
  • Model-compatible ramp/approach solutions if applicable to the supplied flush configuration.
  • Replacement hydraulic, pneumatic, pivot and lock parts.
  • Pit/recess planning, installation, commissioning and operator handover.

Workshop fit

BendPak MDS-6EXF is rated to 2,722 kg and is a extended flush-mount open-centre mid-rise scissor lift. Published maximum lift is 933 mm; installation profile is recessed / flush-mount. Confirm vehicle mass and weight distribution, manufacturer-approved lifting points, ground clearance, track/wheelbase or pad reach, workshop bay dimensions, overhead clearance at full lift, electrical and pneumatic services, and the exact slab/foundation/recess requirements before supply or installation. Rated capacity alone does not establish vehicle suitability. For flush-mount products, the site recess/pit must be built to the exact supplied manual/revision – never from a generic scissor-lift drawing.

Frequently asked questions

What makes MDS-6EXF different from MDS-6LPF?
The EXF has longer platforms, giving more reach for vehicles with wider lifting-point spreads or longer wheelbases.
Yes. It is intended for recessed installation so the working area can sit flush with the surrounding floor when lowered.
The current BendPak website uses MDS-6EXF for SKU 5175151. Older genuine documents may use MDS-6EXTF; Jhuma should use the current public model name while matching documents by exact SKU/revision.
The lift uses pneumatic kicker and lock-release components. Confirm the exact air requirement for the Australian-supplied revision before installation.
No exact current Genesis product page was located. Build/stage the page, but do not publish stock or availability claims until Genesis/Iron Lift confirms supply.
