Iron Lift FORGE 68HD

6,800 kg heavy-duty clear-floor two-post hoist with three height settings, wide column spacing and rugged two-stage arms for large commercial vehicles.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift
Iron Lift FORGE 68HD
Iron Lift FORGE 68HD

Clear-floor two-post

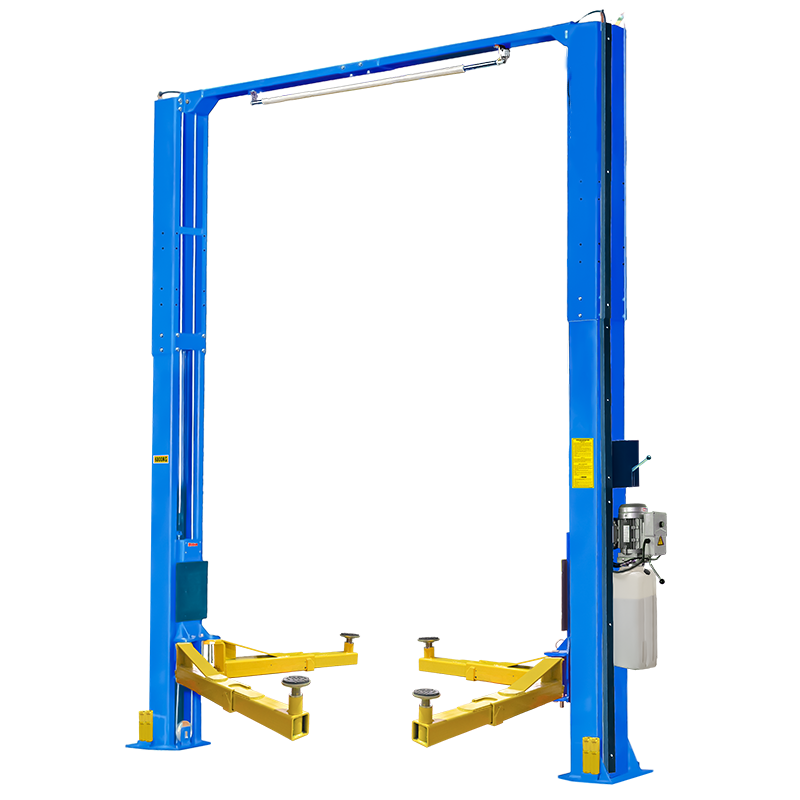

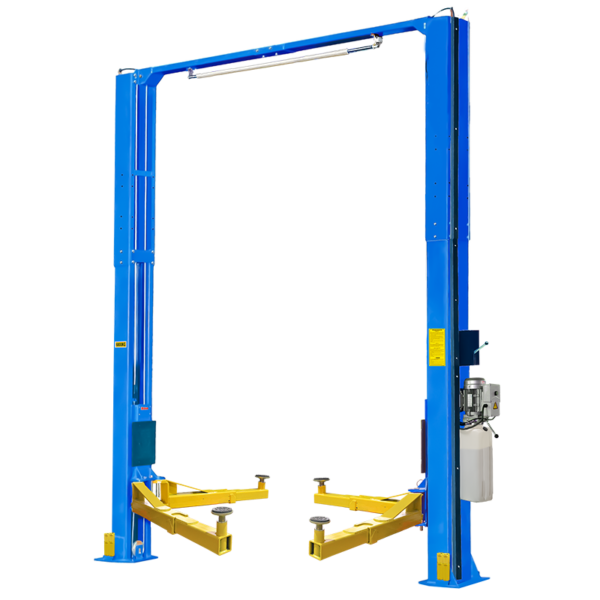

Iron Lift FORGE 68HD

6,800 kg Clear-Floor Two-Post Hoist

6,800 kg heavy-duty clear-floor two-post hoist with three height settings, wide column spacing and rugged two-stage arms for large commercial vehicles.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
6,800 kg
Rated capacity
1,902-1,936 mm
Maximum lifting height
3,829 mm
Overall width
2,787 mm
Drive-through clearance

Product overview

The Iron Lift FORGE 68HD moves the FORGE range into higher-capacity commercial and industrial work. Rated to 6,800 kg, it uses a wide clear-floor structure with 3,137 mm between columns and three installation-height settings, giving workshops room to handle larger vehicles while maintaining open access through the centre of the bay. Four rugged two-stage arms are matched to the heavier-capacity structure. Rubber lifting pads, saddle adapters and 3-inch and 6-inch extensions are supplied, allowing the contact arrangement to be configured for different approved chassis lifting points.

Key features

  • 6,800 kg rated lifting capacity
  • Heavy-duty clear-floor overhead design
  • 3,137 mm width between columns
  • Three overall-height settings: 4,420 / 4,725 / 5,030 mm
  • Four rugged two-stage lifting arms
  • Single-point manual safety-lock release
  • Dual direct-drive hydraulic cylinders
  • Heavy-duty rubber pads and saddle adapters supplied
  • 3-inch and 6-inch extension adapters supplied
  • Automatic arm restraints, toe guards and tool trays

Detail photography

Single-point safety lock release

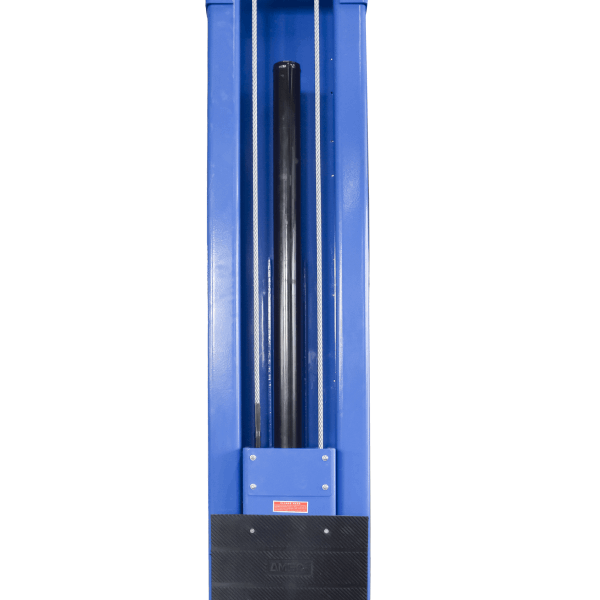

Direct-drive hydraulic cylinder Direct-drive hydraulic cylinder

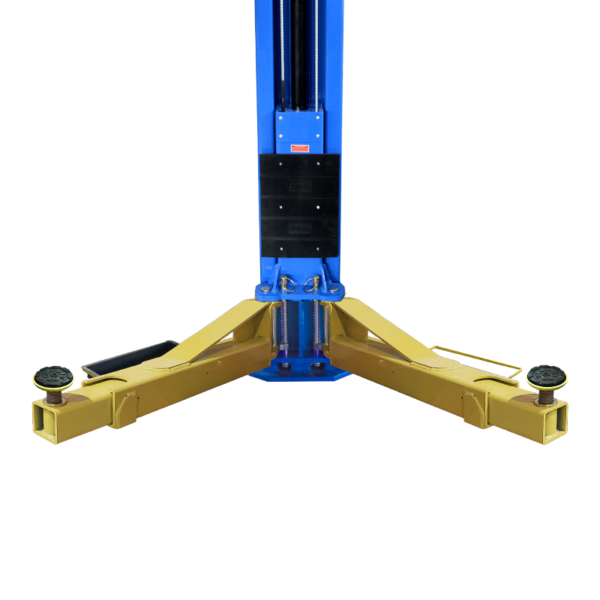

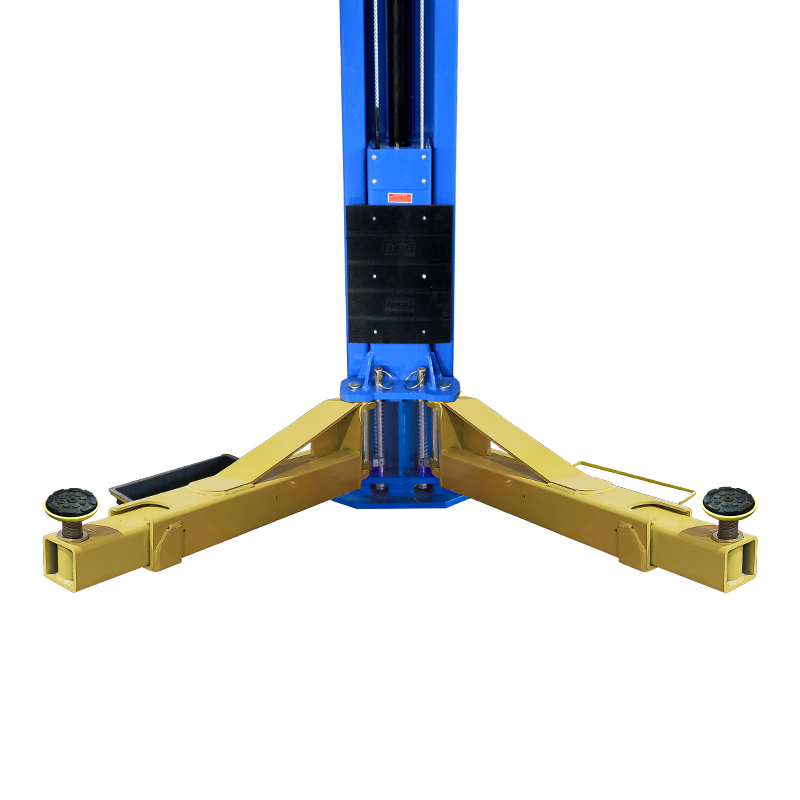

Super-asymmetric arm set

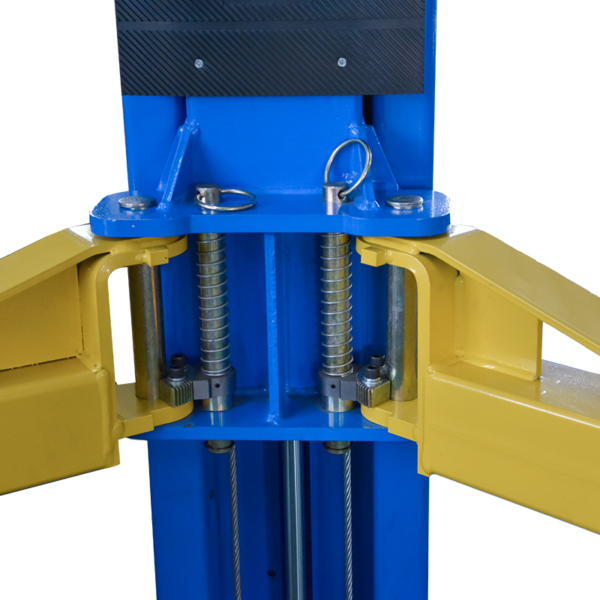

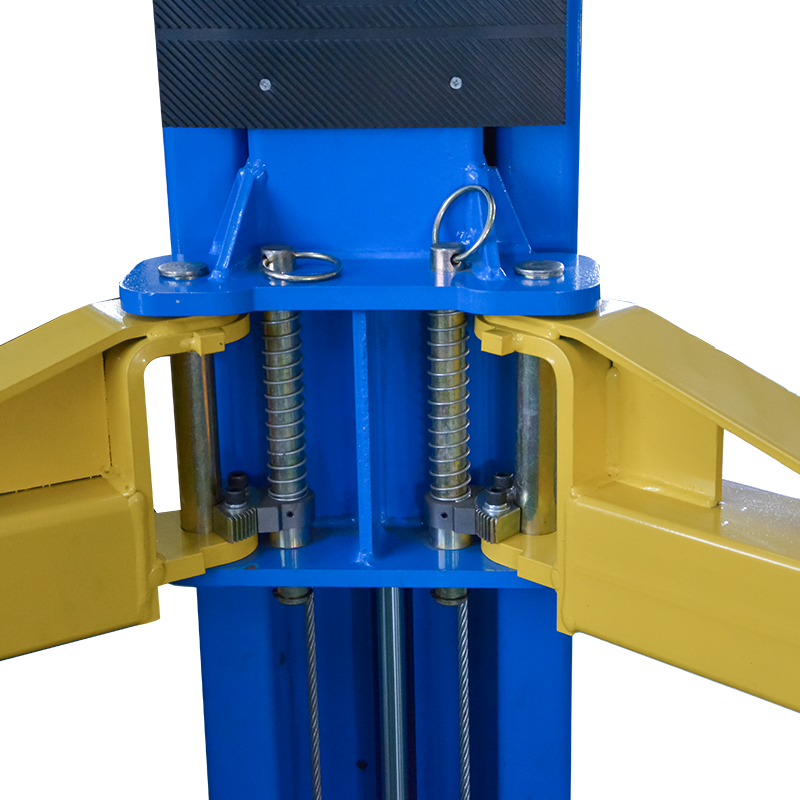

Automatic arm restraints

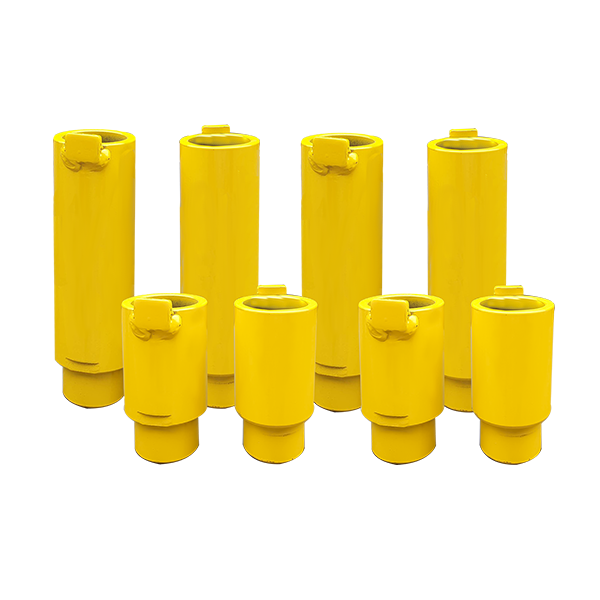

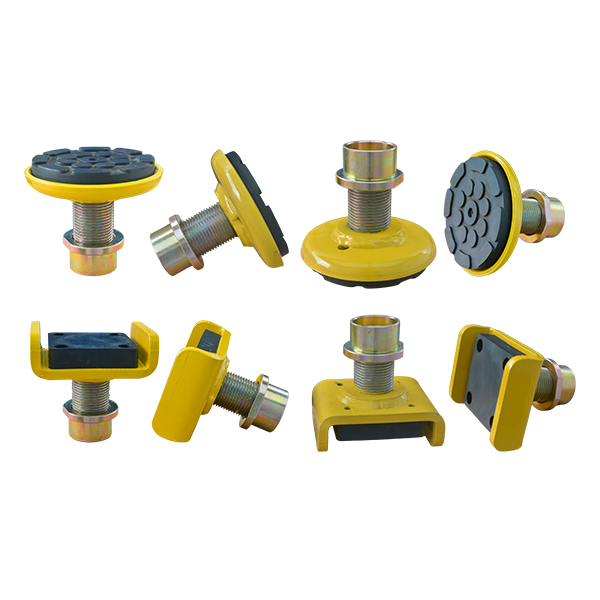

Double-screw pad and 3″ adapters

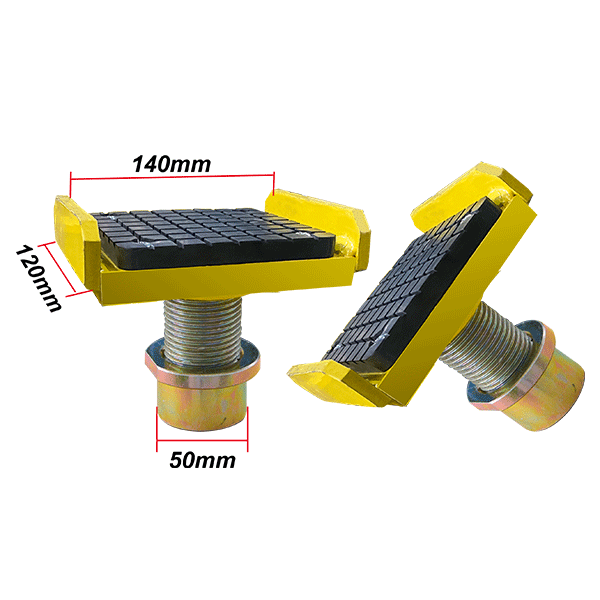

Optional saddle / frame adapter

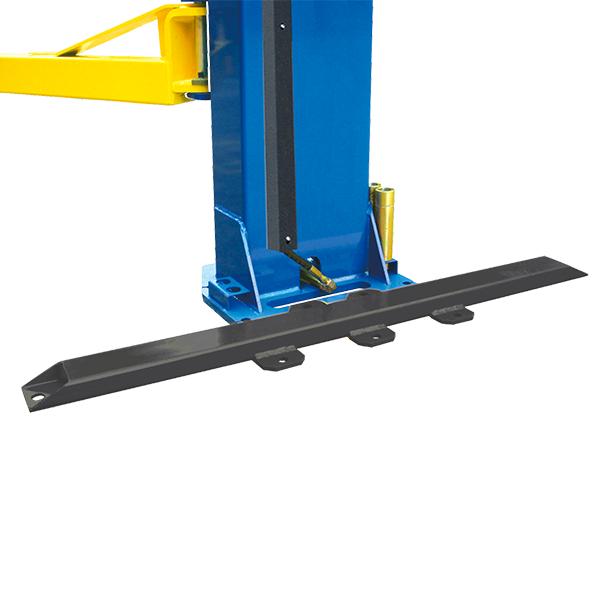

Toe guards and tool trays

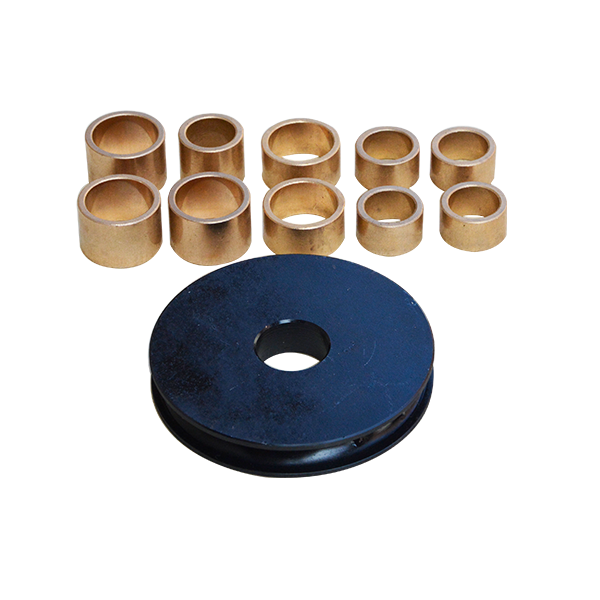

Carriage and slider detail
Iron Lift FORGE 68HD

Ideal for

Transport workshops, fleet depots, mining-support workshops and industrial service facilities lifting large vans and heavier commercial vehicles that fall within the hoist’s approved chassis-contact lifting envelope.

Specifications

Specifications

Details

Capacity
6,800 kg
Configuration
Heavy-duty clear-floor two-post, direct-drive
Overall height
4,420 / 4,725 / 5,030 mm
Overall width
3,829 mm
Drive-through clearance
2,787 mm
Motor
3.0 HP

Factory dimension drawing

Iron Lift FORGE 68HD Diagram

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity
6,800 kg
Configuration
Heavy-duty clear-floor two-post
Lifting time
Approx. 84 seconds
Maximum lifting height – without extension adapter
Approx. 84 seconds
Maximum lifting height – with extension adapters
2,131-2,165 mm
Maximum lock height – without extension adapter
1,852-1,886 mm
Maximum lock height – with extension adapters
2,081-2,115 mm
Minimum pad height
175 mm
Overall height
4,420 / 4,725 / 5,030 mm
Overall width
3,829 mm
Drive-through clearance
2,787 mm
Width between columns
3,137 mm
Arm configuration
Four rugged two-stage arms
Gross weight
Approx. 1,099 kg
Motor
3.0 HP

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Rated lifting capacity

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Heavy-duty clear-floor two-post structure with overhead beam
  • Four rugged two-stage lifting arms
  • Dual direct-drive hydraulic cylinders and power unit
  • Single-point manual lock release and overhead safety shut-off
  • Heavy-duty single-screw rubber pads

Options

  • Heavy-duty extra-wide saddle adapter - source kit 21109
  • Optional base/installation extension component - source kit 21501; confirm application before quoting
  • Installation and commissioning quoted to suit the actual site

Workshop fit

The FORGE 68HD is physically large as well as high capacity. Overall width is 3,829 mm, width between columns is 3,137 mm and drive-through clearance is 2,787 mm. Overall height can be 4,420 mm, 4,725 mm or 5,030 mm. Minimum pad height is 175 mm. Confirm vehicle manufacturer lifting points, axle/weight distribution, arm reach, pad or saddle choice, slab and anchoring requirements, electrical supply and access before purchase or installation.

Frequently asked questions

What is the rated capacity of the FORGE 68HD?
It is rated to 6,800 kg.
It uses four rugged two-stage arms suited to the heavier-duty working range of this model.
Yes. Saddle adapters, rubber pads and 3-inch and 6-inch extensions are listed as standard equipment.
The hoist has overall-height settings of 4,420 mm, 4,725 mm and 5,030 mm. Additional clearance is still required for the building, services and vehicle.
No. For heavy vehicles especially, lifting-point position, front/rear weight distribution, arm reach and chassis geometry must be checked as well as total weight.
