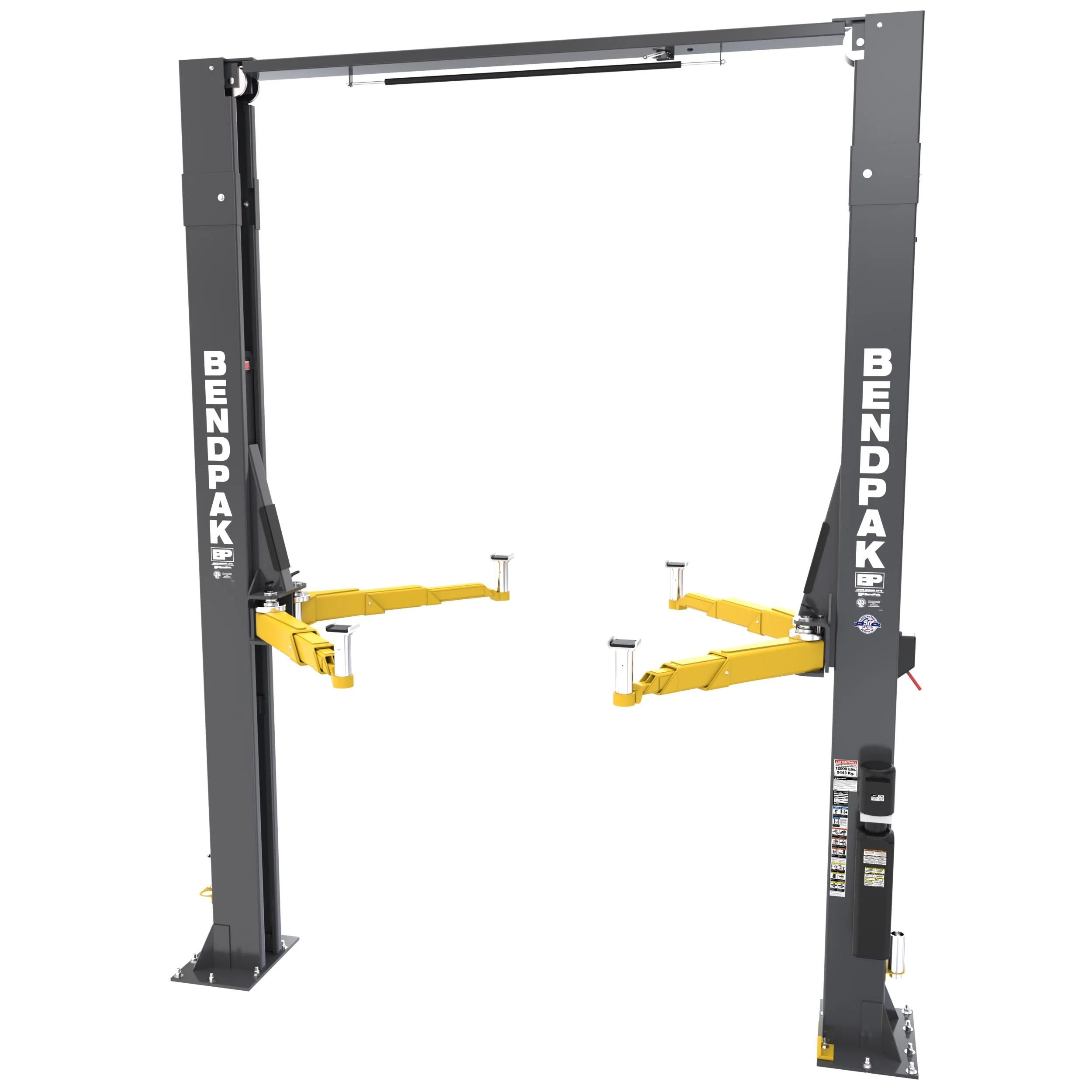

BendPak 12APX-192

5,443 kg extended-height high-rise two-post hoist with approximately 4.9 m overall height for tall vans, trucks and commercial service bays.
Get a Vehicle Hoist Quote
View Specifications
Call Iron Lift

Clear-floor two-post

BendPak 12APX-192

BendPak 12APX-192

5,443 kg extended-height high-rise two-post hoist with approximately 4.9 m overall height for tall vans, trucks and commercial service bays.

Freight and installation options available — contact us for details.

Request a Quote
Ask About Installation
Call (08) 9249 5550
Quote only · Supply, installation planning, service, and spare parts from Malaga, WA
5,443 kg
Rated capacity
Extended-height high-rise clearfloor two-post
Configuration
4,902 mm (current BendPak spec lists 193 in overall height; Genesis rounds to about 4,904 mm)
Overall height
2,616 mm
Drive-through clearance

Product overview

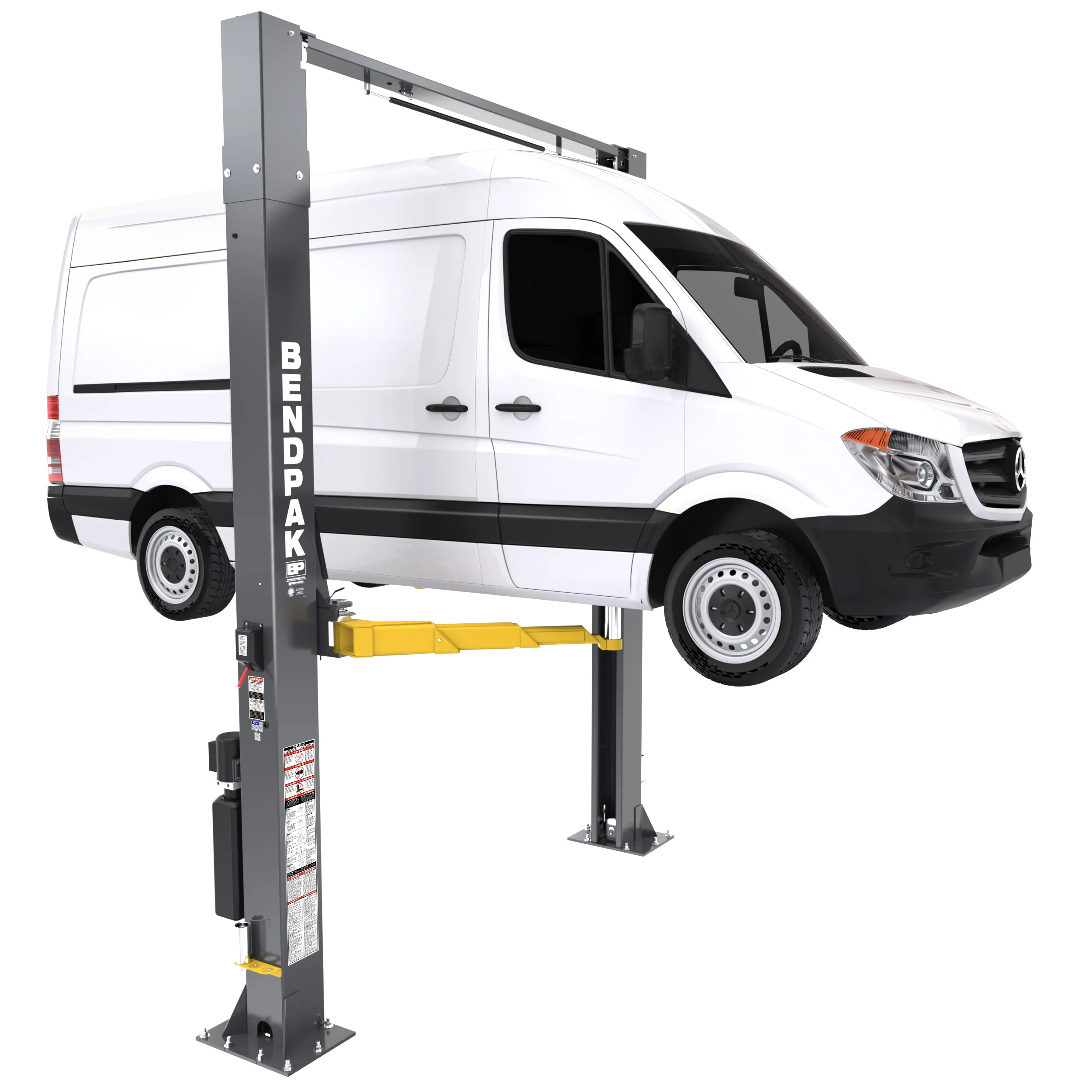

The BendPak 12APX-192 combines the 5,443 kg capacity and arm coverage of the 12APX with an extended overhead structure of approximately 4.9 metres. It is designed for tall professional bays where high-roof vans, larger utilities, commercial vehicles and mixed fleets need more overhead space. The lift remains a clearfloor two-post system, allowing workshop equipment to move beneath the raised vehicle without a floorplate crossing the bay.

Key features

  • 5,443 kg rated lifting capacity
  • Approx. 4.9 m overall height
  • Approx. 2,013 mm lifting height with pad
  • 3,048 mm width between columns
  • 2,616 mm drive-through clearance
  • High-rise clearfloor layout
  • Bi-Metric arm positioning
  • Automatic swing-arm restraints
  • Dual direct-drive hydraulic cylinders
  • Single-point safety-lock release

Detail photography

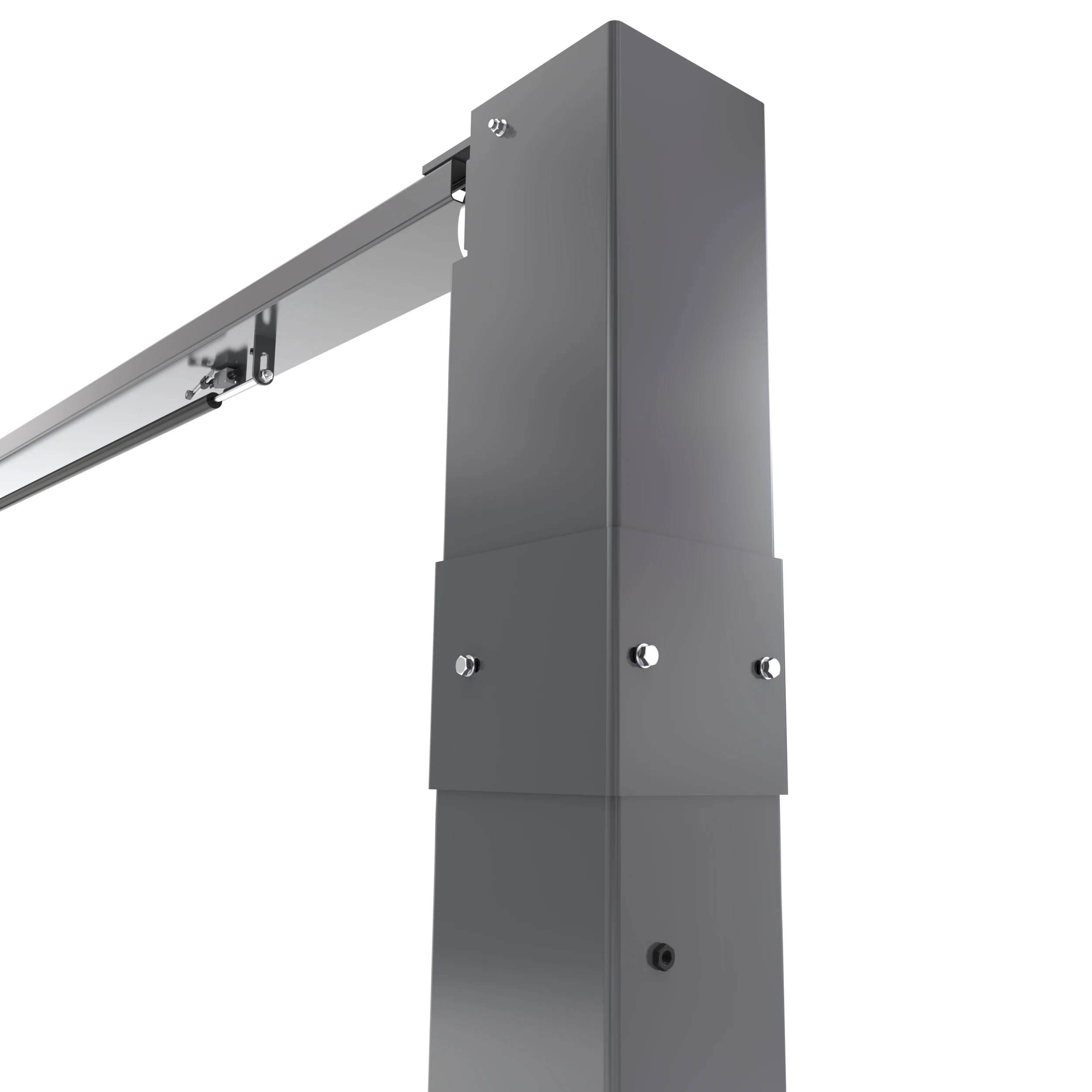

Extended overhead beam/column height

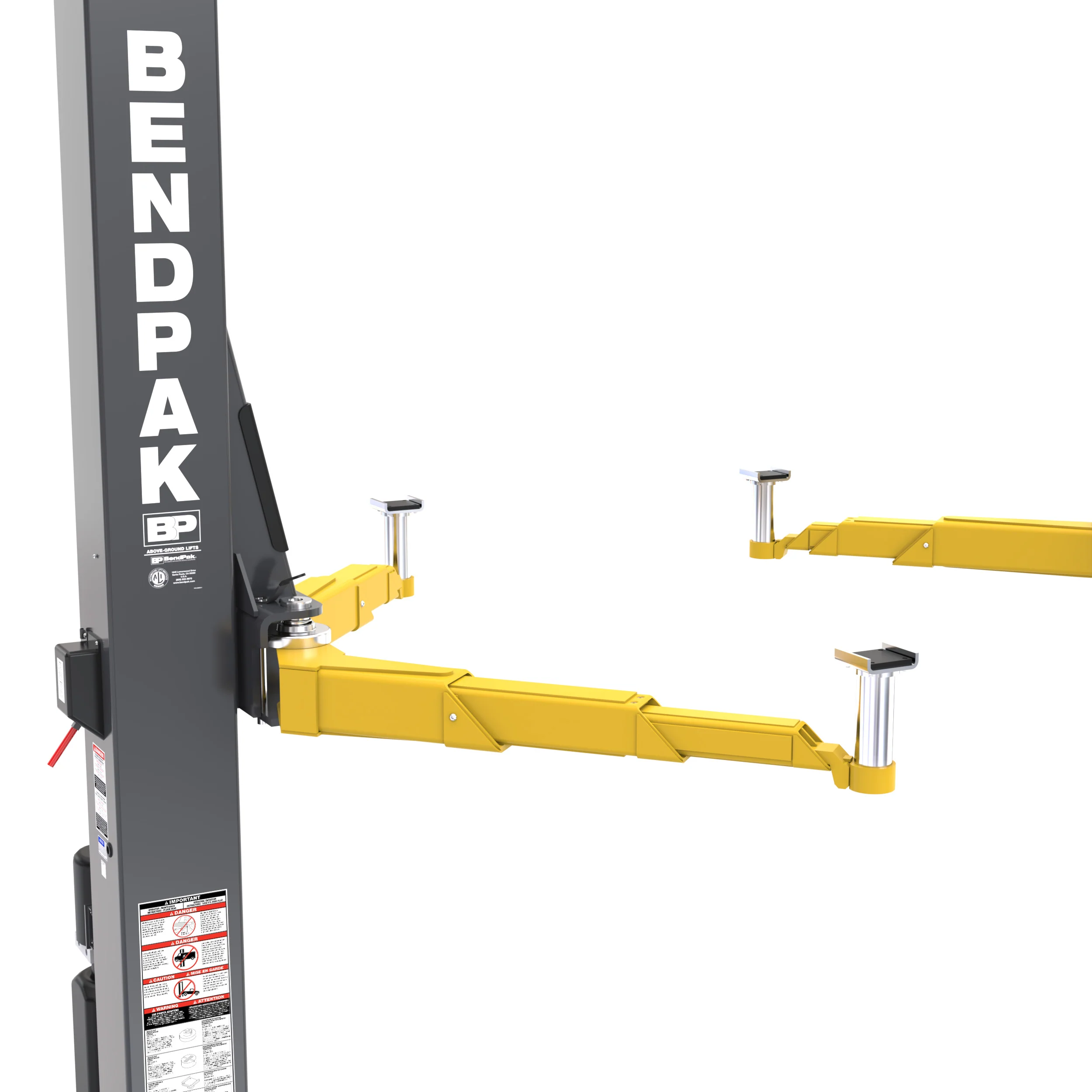

Heavy-duty AP-series arm geometry
Adapter/pad system

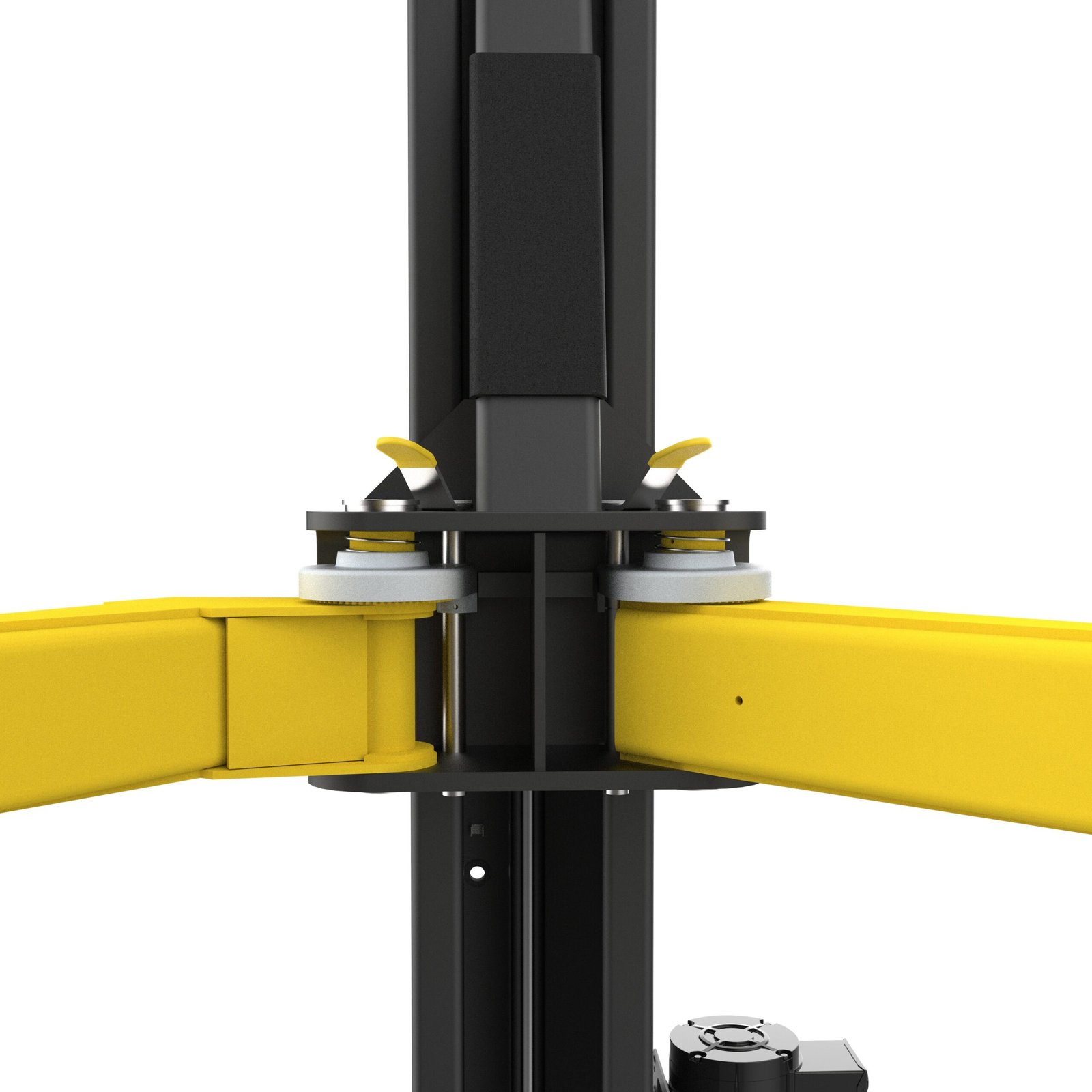

ASARS arm restraint
Direct-drive cylinders

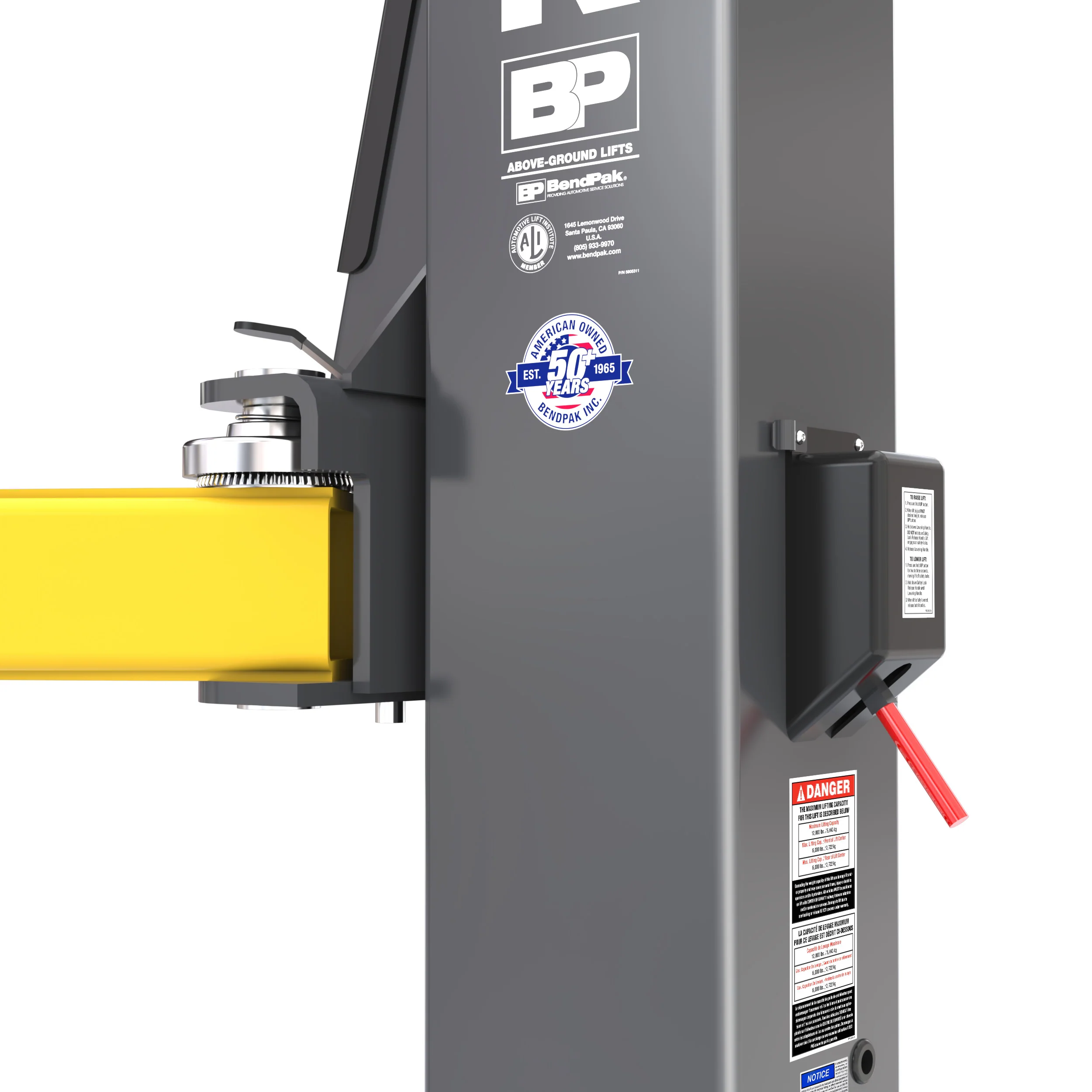

Overhead shutoff and safety-lock details

Ideal for

High-roof van and commercial vehicle workshops, dealerships, fleet depots and large service bays that need 5,443 kg capacity with substantially increased overhead clearance.

Specifications

Specifications

Details

Capacity
5,443 kg
Configuration
Extended-height high-rise clearfloor two-post
Overall height
4,902 mm (current BendPak spec lists 193 in overall height; Genesis rounds to about 4,904 mm)
Overall width
3,962 mm
Drive-through clearance
2,616 mm

Factory dimension drawing

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model
BendPak 12APX-192
BendPak SKU
5175557
Rated lifting capacity
5,443 kg
Maximum load per arm
5,443 kg
Configuration
Extended-height high-rise clearfloor two-post
Rise
1,930 mm
Published lifting height
2,013 mm with pad; up to about 2,229 mm with listed adapter configuration on Genesis AU page
Minimum pad / lifting height
108 mm
Time to full rise
68 seconds
Overall height
4,902 mm (current BendPak spec lists 193 in overall height; Genesis rounds to about 4,904 mm)
Overall width
3,962 mm
Width between / inside columns
3,048 mm
Drive-through clearance
2,616 mm
Front arm reach
660-1,403 mm
Rear arm reach
743-1,524 mm
Power unit
5 HP; Genesis current AU page lists 230 VAC, 50/60 Hz, single-phase – confirm site supply before publication/installation
Model-specific note
Extended-height version of 12APX for tall vehicles and high-roof bays

Letters A–F match the diagrams above. Figures follow the Iron Lift FORGE 45DA factory sheet. Confirm before locking brochure artwork or a firm install quote.

Field

Letter

Value

Public model

Lifting time

Max lifting height without adapter

Max lifting height with adapter

Max lock height without adapter

Max lock height with adapter

Overall height

Overall width

Drive-through clearance

Width between columns

Minimum pad height

Short arm reach

Long arm reach

Gross weight

Pad / pin

What’s included

  • Two-post hoist structure, columns and base plates for the exact model.
  • Model-specific lifting-arm assemblies and vehicle-contact pads/adapters supplied with the Australian package.
  • Hydraulic lifting system, power unit, equalisation system and safety-lock system.
  • Automatic Swing Arm Restraint System (ASARS) where specified for the exact AP-series model.
  • Overhead safety shut-off arrangement on clearfloor models.

Options

  • Compatible truck/van height adapters and frame-contact accessories approved for the exact model.
  • Pinch-weld pads/pucks, frame cradle pads and replacement contact-pad options where compatible.
  • Wheel spotting accessories and compatible workshop accessories where required.
  • Air/electric workstation or other column-mounted service accessories where compatible.

Workshop fit

BendPak 12APX-192 is rated to 5,443 kg. Key published workshop dimensions in this brief include overall height 4,902 mm (current BendPak spec lists 193 in overall height; Genesis rounds to about 4,904 mm), overall width 3,962 mm, inside-column width 3,048 mm and drive-through clearance 2,616 mm. Confirm actual vehicle mass, individual arm loading, centre of gravity/weight distribution, manufacturer lifting points, arm reach, required pads/adapters, vehicle height, bay width, ceiling and overhead services, electrical supply, slab condition/strength/anchoring requirements, unloading access and the exact installation manual before supply. Rated capacity alone does not establish vehicle suitability.

Frequently asked questions

How tall is the 12APX-192?
The current BendPak technical table lists 193 inches overall, approximately 4,902 mm; Genesis Australia rounds this to about 4,904 mm.
5,443 kg, subject to the per-arm load and correct vehicle weight distribution.
Approximately 2,013 mm with the standard pad position; Genesis also lists a higher figure with adapters.
More than the approximately 4.9 m hoist height, with additional allowance for overhead services, raised vehicles and safe installation clearances.
Yes. We can review the bay, slab, access, power and vehicle mix before quoting supply and installation.
